K102J20C0GL53H5 datasheet, PDF

Datasheet> All Categories > Passive components> K102J20C0GL53H5

K102J20C0GL53H5: DescriptionMultilayer Ceramic Capacitors MLCC - Leaded 1000pF +/-5% 500V Bulk; CategoryPassive components; File Size145KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

K102J20C0GL53H5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	K102J20C0GL53H5	-	-	View	Buy Now

K102J20C0GL53H5 Overview

Multilayer Ceramic Capacitors MLCC - Leaded 1000pF +/-5% 500V Bulk

K102J20C0GL53H5 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Vishay
Product Category	Multilayer Ceramic Capacitors MLCC - Leaded
Termination Style	Radial
Capacitance	1000 pF
Voltage Rating DC	500 VDC
Tolerance	5 %
Case Style	Dipped
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Product	General Type MLCCs
Packaging	Bulk
Operating Temperature Range	- 55 C to + 125 C
Voltage Rating	500 V
Capacitance - nF	1 nF
Capacitance - uF	0.001 uF
Factory Pack Quantity	5000
Unit Weight	0.005644 oz

Preview

Download Datasheet

View All

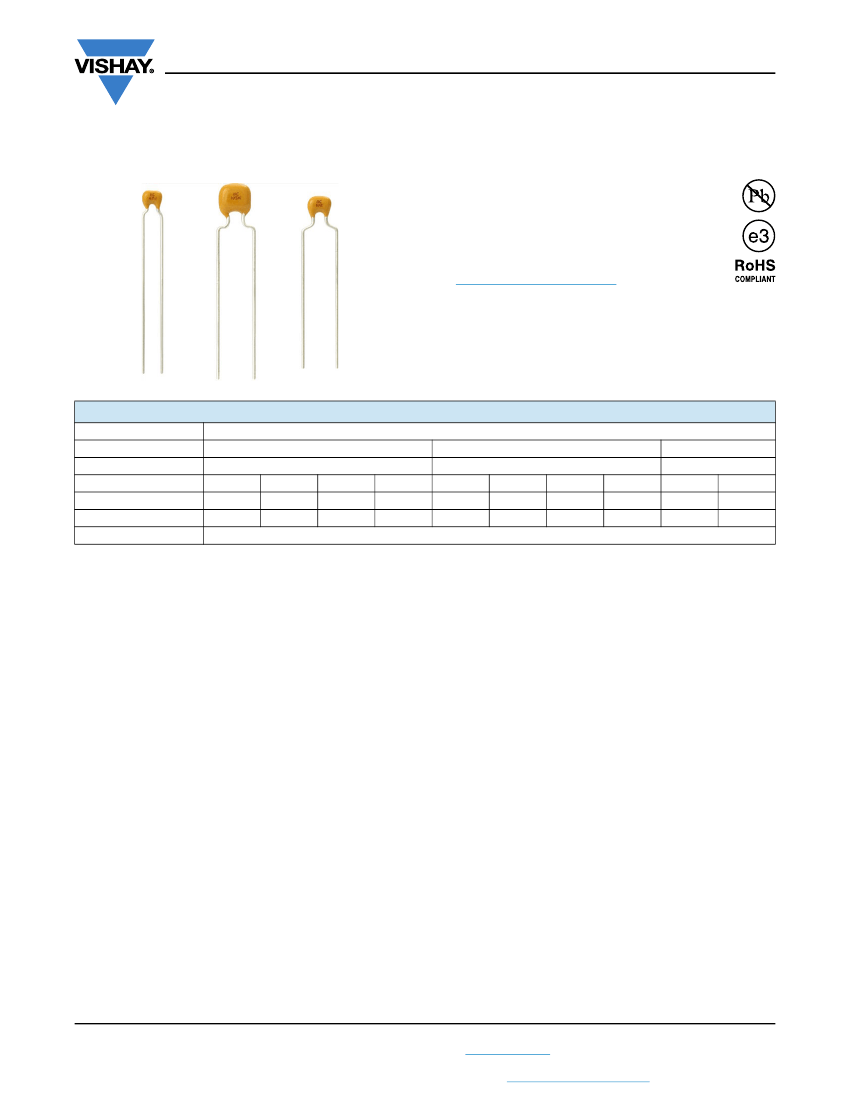

K Series

www.vishay.com

Vishay BCcomponents

Radial Leaded Multilayer Ceramic Capacitors for General Purpose

Class 1, Class 2 and Class 3, 50 V

, 100 V

, 200 V

, 500 V

FEATURES

•

High capacitance with small size

High reliability

Crimp and straight leadstyles

Material categorization:

For definitions of compliance please see

www.vishay.com/doc?99912

APPLICATIONS

• Temperature compensation

• Coupling and decoupling

QUICK REFERENCE DATA

DESCRIPTION

Ceramic Class

Ceramic Dielectric

Voltage (V

)

Min. Capacitance (pF)

Max. Capacitance (pF)

Mounting

10 000

100

5600

C0G

200

3900

500

1800

100

1 000 000

Radial

100

560 000

VALUE

X7R

200

100

220 000

500

100

47 000

10 000

1 000 000

Y5V

100

10 000

220 000

MARKING

Marking indicates capacitance value and tolerance in

accordance with “EIA 198” and voltage marks.

CAPACITANCE RANGE

10 pF to 1 μF

TOLERANCE ON CAPACITANCE

OPERATING TEMPERATURE RANGE

C0G, X7R: - 55 °C to + 125 °C

Y5V: - 30 °C to + 85 °C

± 5 %, ± 10 %, ± 20 %, + 80 %/- 20 %

RATED VOLTAGE

50 V

, 100 V

, 200 V

, 500 V

TEMPERATURE CHARACTERISTICS

Class 1: C0G

Class 2: X7R

Class 3: Y5V

TEST VOLTAGE

• 50 V

and 100 V

: 250 % of rated voltage

• 200 V

: 150 % of rated voltage + 100 V

• 500 V

: 130 % of rated voltage + 100 V

SECTIONAL SPECIFICATIONS

Climatic category (acc. to EN 60058-1)

Class 1 and 2: 55/125/21

Class 3: 30/85/21

INSULATION RESISTANCE AT 500 V

APPROVALS

EIA 198

IEC 60384-9

• 50 V

and 100 V

: 100 G or 1000

F

whichever is less

at rated voltage within 2 min of charging

• 200 V

and 500 V

: 10 G or 100

F

whichever is less

at rated voltage within 2 min of charging

DISSIPATION FACTOR

Class 1

0.1 % max. when C



30 pF

(at 1 MHz; 1 V where C



1000 pF, and at

1 kHz; 1 V where C > 1000 pF)

For C < 30 pF: DF = 100/(400 + 20 x C)

DF = Dissipation factor in %;



C = Capacitance value in pF

2.5 % max. (at 1 kHz; 1 V)

5 % max. (at 1 kHz; 1 V)

DESIGN

• The capacitors consist of a general purpose MLCC

• The lead wires are 0.5 mm and are made of 100 % tinned

copper clad steel wire

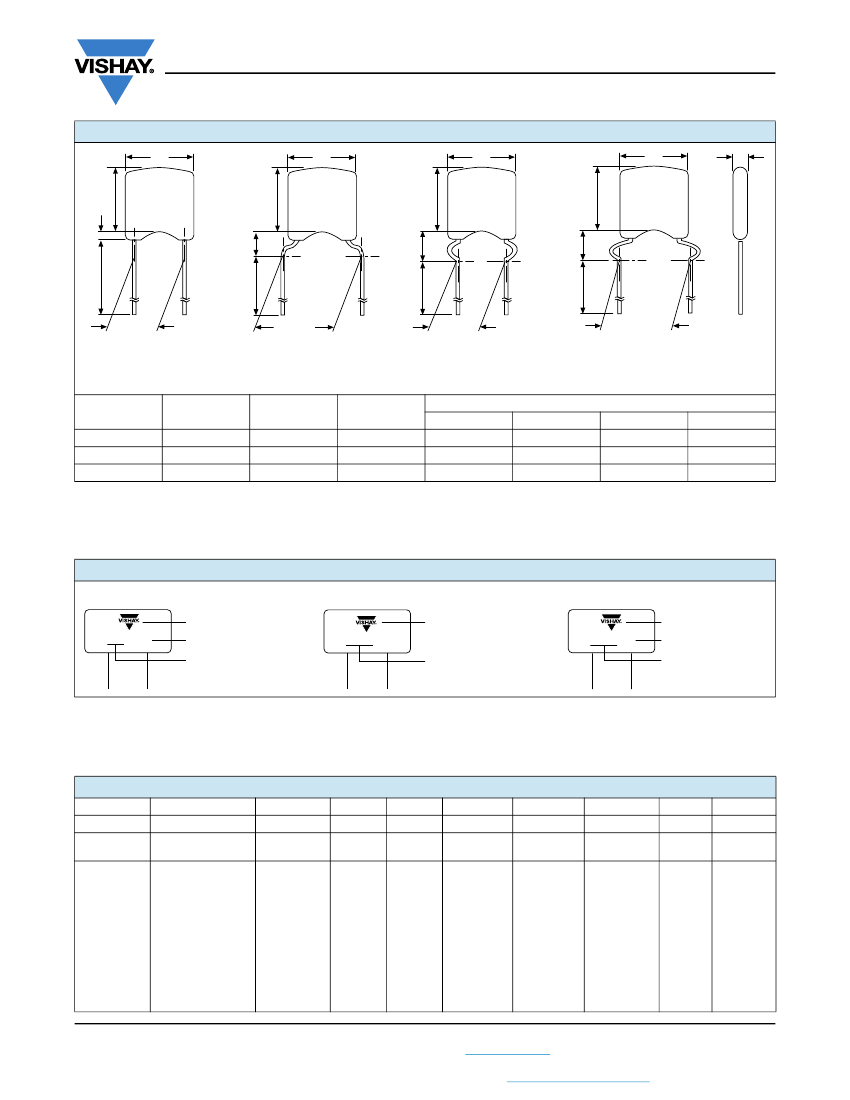

• The capacitors may be supplied with straight or kinked

leads having a lead spacing of 2.5 mm and 5.0 mm

• Coating is made of yellow colored flame retardant epoxy

resin in accordance with UL 94 V-0

Revision: 21-Aug-13

Class 2

Class 3

Document Number: 45171

For technical questions, contact:

cmll@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
