LA7411 datasheet, PDF - EEWORLD Datasheet

LA7411: DescriptionPlayback Amplifier and Record Amplifier for VHS VCRs; CategoryAnalog mixed-signal IC Consumption circuit; File Size122KB，5 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

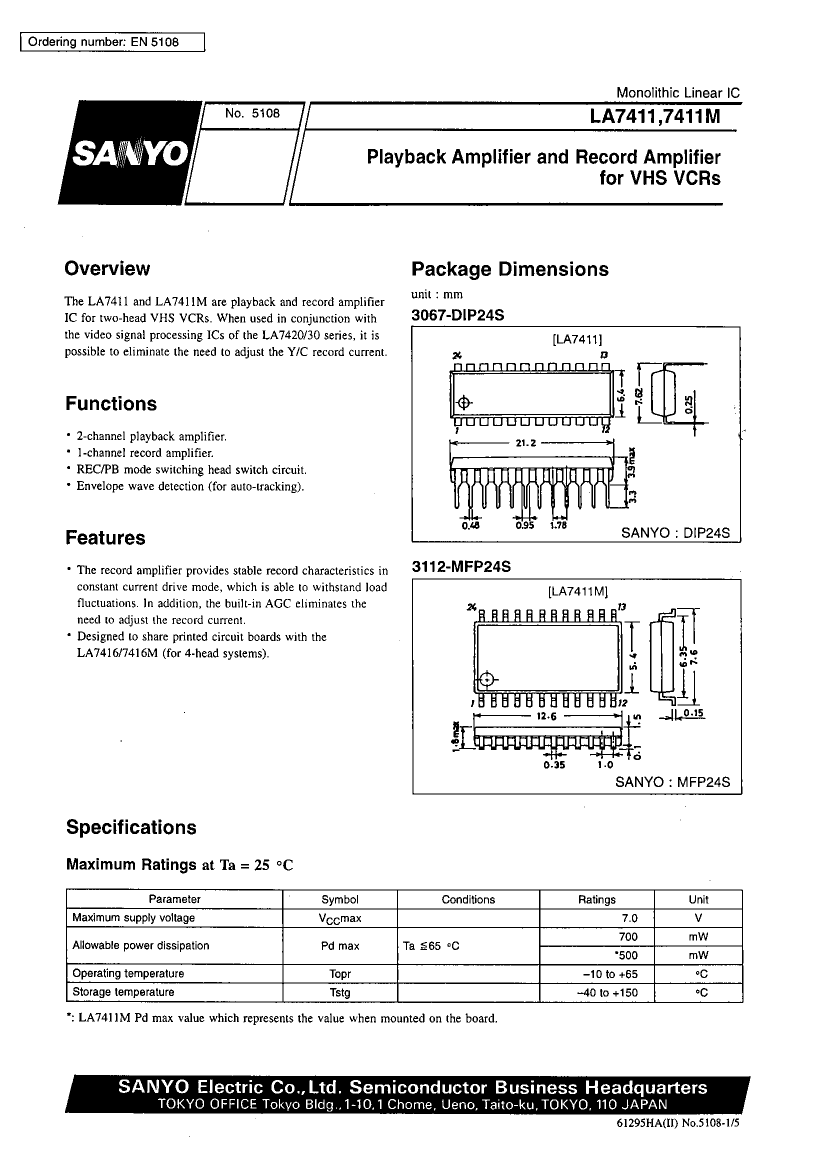

LA7411 Overview

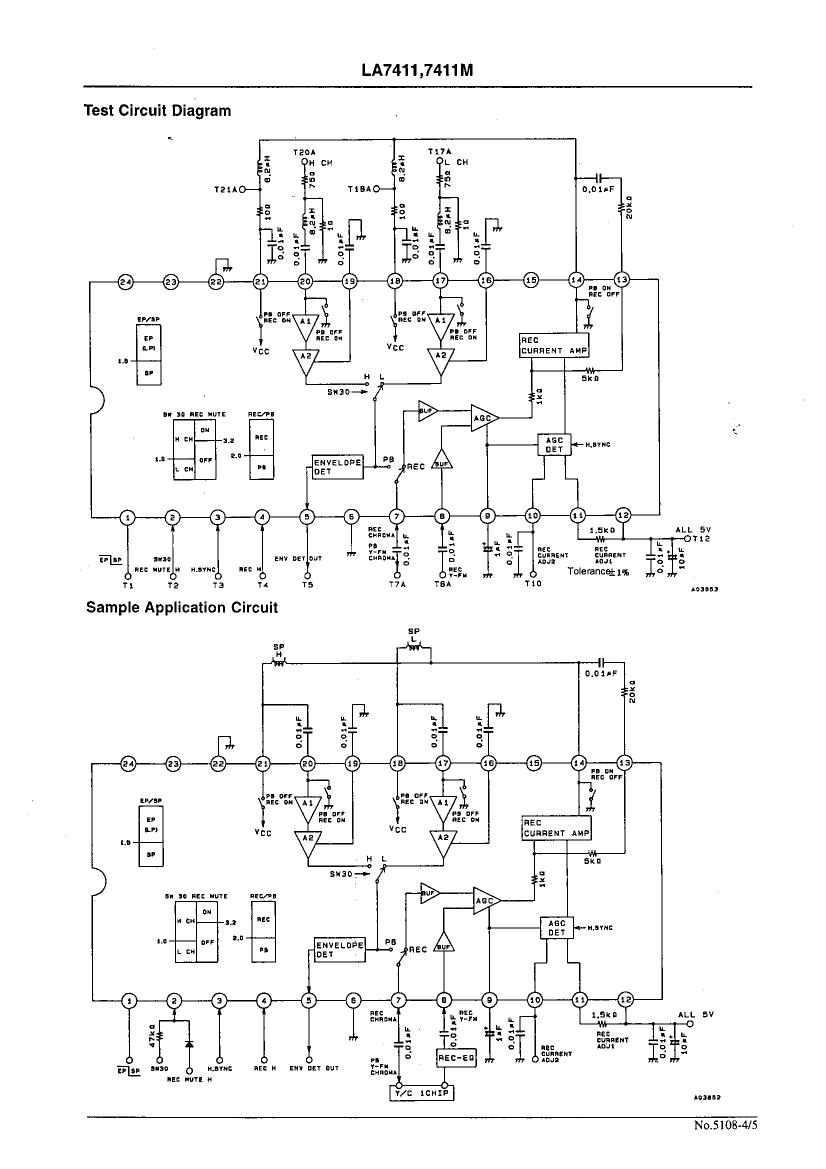

Playback Amplifier and Record Amplifier for VHS VCRs

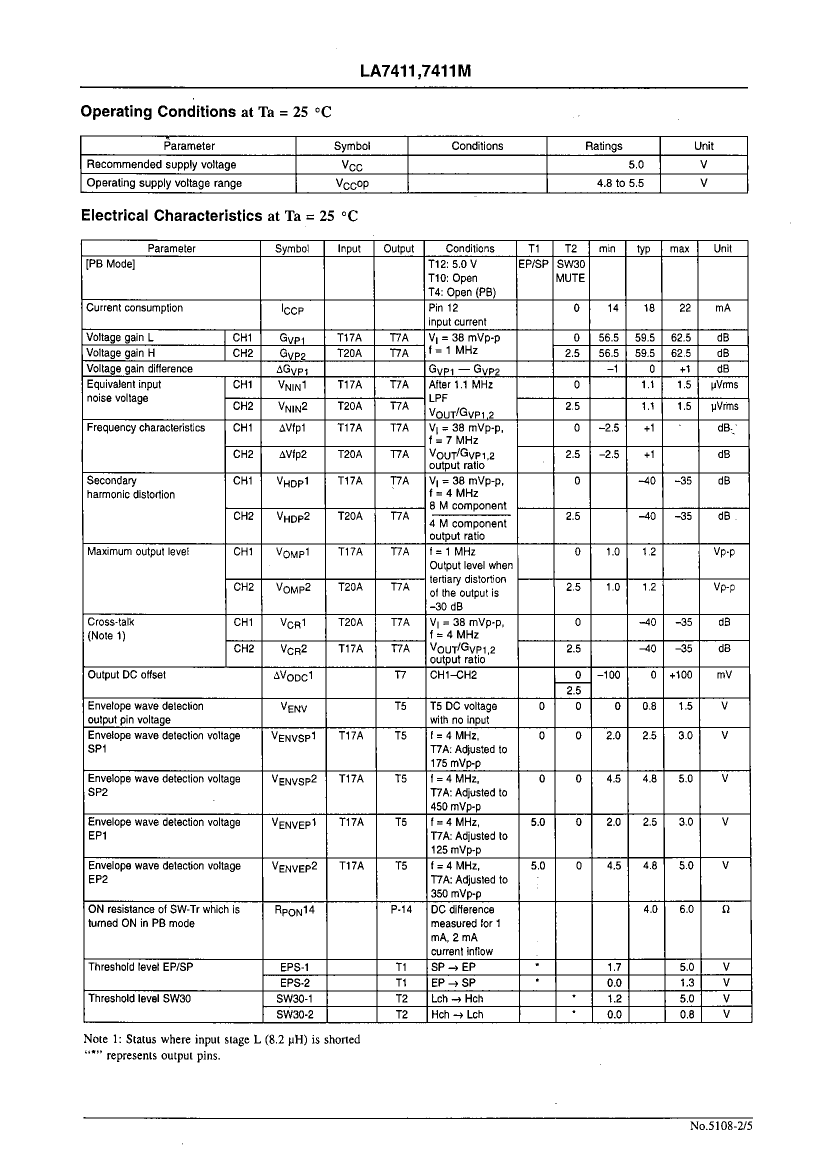

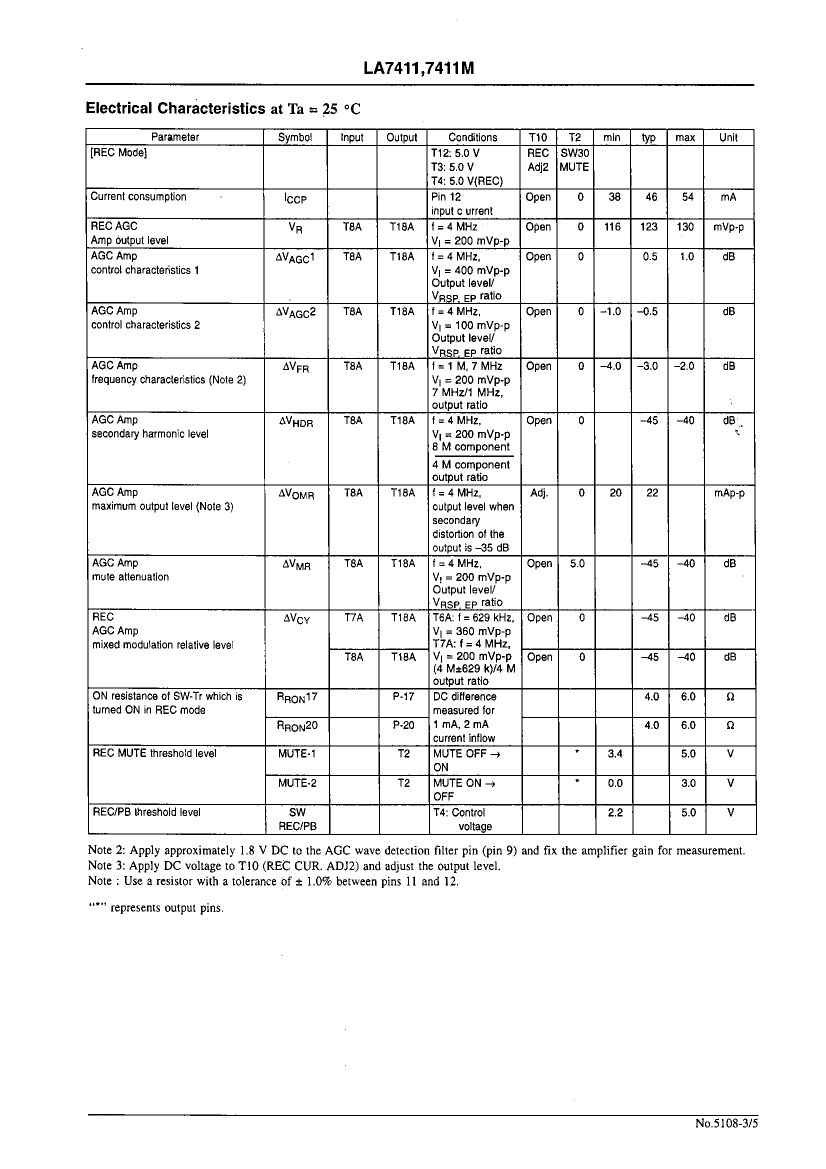

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SANYO
Parts packaging code	DIP
package instruction	SDIP, SDIP24,.3
Contacts	24
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	1-CHANNEL RECORD AMPLIFIER
Commercial integrated circuit types	VIDEO PREAMPLIFIER
Gain	59.5 dB
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
length	21.2 mm
Number of channels	2
Number of functions	1
Number of terminals	24
Maximum operating temperature	65 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.9 mm
Maximum slew rate	54 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.8 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

	LA7411	LA7411M
Description	Playback Amplifier and Record Amplifier for VHS VCRs	Playback Amplifier and Record Amplifier for VHS VCRs
Is it Rohs certified?	incompatible	incompatible
Maker	SANYO	SANYO
Parts packaging code	DIP	DFP
package instruction	SDIP, SDIP24,.3	SSOP, SOP24,.3,40
Contacts	24	24
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	1-CHANNEL RECORD AMPLIFIER	1-CHANNEL RECORD AMPLIFIER
Commercial integrated circuit types	VIDEO PREAMPLIFIER	VIDEO PREAMPLIFIER
Gain	59.5 dB	59.5 dB
JESD-30 code	R-PDIP-T24	R-PDSO-G24
JESD-609 code	e0	e0
length	21.2 mm	12.6 mm
Number of channels	2	2
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	65 °C	65 °C
Minimum operating temperature	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SSOP
Encapsulate equivalent code	SDIP24,.3	SOP24,.3,40
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.9 mm	1.8 mm
Maximum slew rate	54 mA	54 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.8 V	4.8 V
surface mount	NO	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	1.778 mm	1 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	5.4 mm
