TNPW0805470KBEEA

Description
Thin Film Resistors - SMD TNPW0805 470K 0.1% T-9 ET1 E3
CategoryPassive components    The resistor
File Size180KB,13 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

TNPW0805470KBEEA Online Shopping

Suppliers Part Number Price MOQ In stock
TNPW0805470KBEEA - - View Buy Now

TNPW0805470KBEEA Overview

Thin Film Resistors - SMD TNPW0805 470K 0.1% T-9 ET1 E3

TNPW0805470KBEEA Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVishay
package instruction, 0805
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLASER TRIMMABLE; PRECISION; RATED AC VOLTAGE: 150V
JESD-609 codee3
Manufacturer's serial numberTNPW
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, PAPER, 7 INCH
Rated power dissipation(P)0.125 W
Rated temperature70 °C
resistance470000 Ω
Resistor typeFIXED RESISTOR
size code0805
surface mountYES
technologyTHIN FILM
Temperature Coefficient25 ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance0.1%
Operating Voltage150 V
TNPW e3

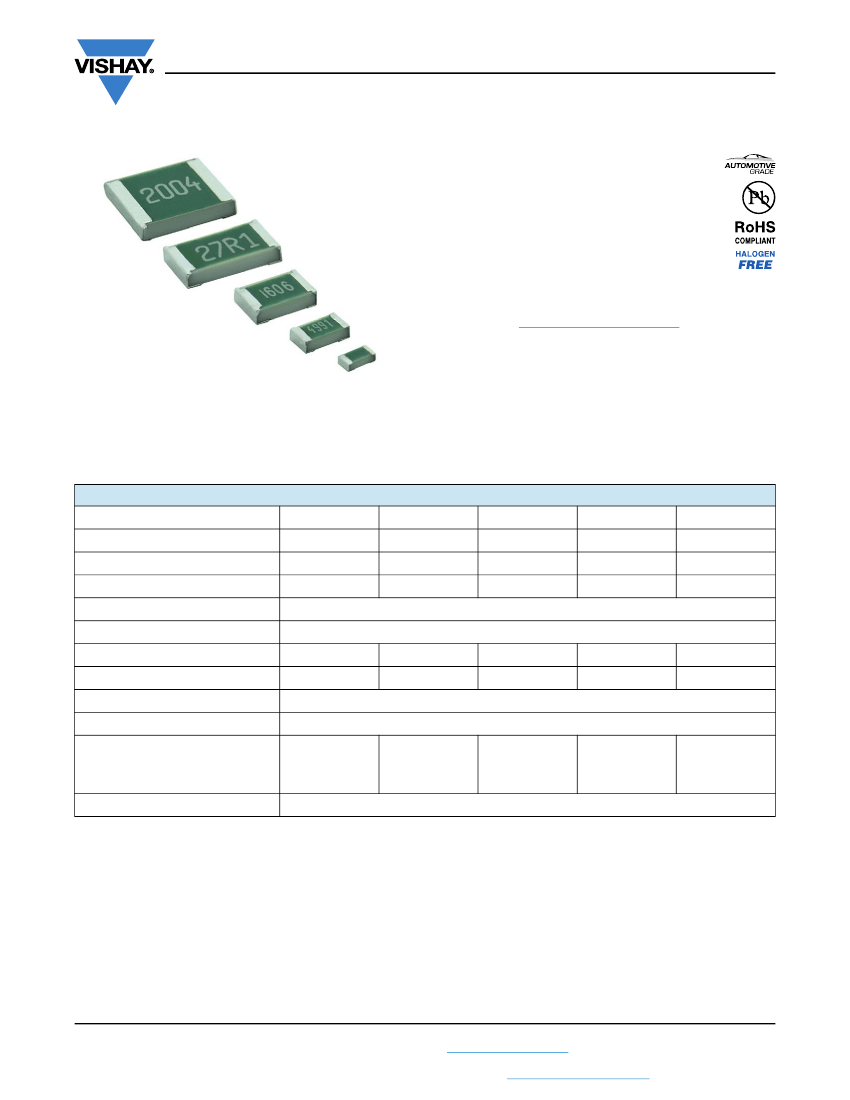

www.vishay.com
Vishay
High Stability Thin Film Flat Chip Resistors
FEATURES
• Superior moisture resistivity (85 °C; 85 % RH)
• Excellent overall stability at different
environmental conditions
0.05 % (1000 h
rated power at 70 °C)
• AEC-Q200 qualified (sizes 0402 to 1206)
• Single lot date code (optional)
• Sulfur resistance verified according to ASTM B 809
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
TNPW e3 precision thin film flat chip resistors are the perfect
choice for most fields of modern electronics where highest
reliability and stability is of major concern. Typical
applications include test and measuring equipment, medical
equipment, industrial, and automotive.
• Test and measuring equipment
• Medical equipment
• Industrial equipment
• Automotive
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation,
P
70 (2)
Operating voltage,
U
max.
AC
RMS
or DC
Permissible film temperature,
F max. (2)
Operating temperature range
Permissible voltage against ambient
(insulation):
1 min;
U
ins
Failure rate: FIT
observed
Notes
(1)
The detail specification EN 140401-801 does not cover this product size.
(2)
Please refer to APPLICATION INFORMATION, see next page.
75 V
100 V
200 V
0.1 x 10
-9
/h
300 V
300 V
0.100 W
50 V
TNPW0402 e3
0402
RR1005M
10
to 100 k
TNPW0603 e3
0603
RR1608M
4.7
to 332 k
TNPW0805 e3
0805
RR2012M
4.7
to 1 M
± 1 %; ± 0.5 %; ± 0.1 %
± 50 ppm/K; ± 25 ppm/K; ± 15 ppm/K; ± 10 ppm/K
0.125 W
75 V
0.200 W
150 V
155 °C
-55 °C to 155 °C
0.400 W
200 V
0.500 W
200 V
TNPW1206 e3
1206
RR3216M
4.7
to 2 M
TNPW1210 e3
(1)
1210
RR3225M
10
to 3.01 M
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
Revision: 12-May-16
Document Number: 28758
1
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
