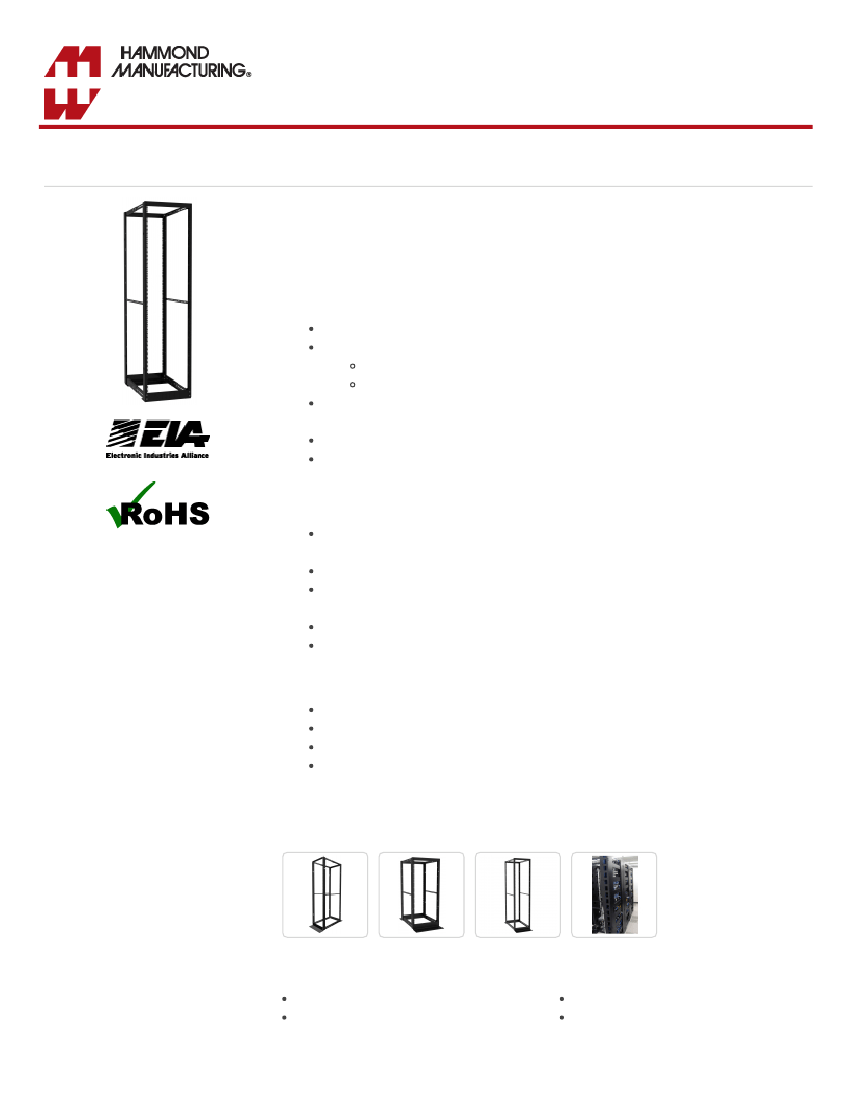

Knockdown Steel 4-Post Rack (DC4R Series) - Hammond Mfg.
Quality Products. Service Excellence.
Knockdown Steel 4-Post Rack
DC4R Series
2,000 lbs Weight Capacity
The Hammond DC4R Open Rack series is one of the most economical solutions to house IT
equipment in wiring closets or data centers. In situations where the wiring closet itself is under
lock and key and accessed by a limited number of people, full cabinets having locking doors and
side panels may not be required resulting in a significant cost savings.
Standard Features
Available in 24U and 44U
Two (2) pairs of 19” mounting EIA-310-D compliant square-hole rails.
Ships with a 50-pack of screws and cage nuts
CAGKIT1032-50.
Includes marked rack unit dividers to aid in equipment mounting.
For 44U height, add optional DC4RPR44 pair of rails for additional adjustable mounting
depths.
New!
Optional solid side panels gives you the look, feel and security of a welded cabinet.
Four (4) pairs of integrated 10-32 ground studs, at both the front and rear of the rack.
Stud pairs are conveniently spaced 5/8” apart and located across from each other inside
the rail channel. For added convenience, two (2) pairs are located near the top of the
rack, while the others are near the bottom of the rack.
Rail depth L-bracket restrict the installer from over-extending the rack. This ensures the
integrity of the rack.
Self-squaring design for a short assembly time.
One (1) set of two (2) horizontal cable manager bars. Additional cable manager bars
available by ordering part number
DC4RSHCM.
Finished in smooth black powder paint.
Knockdown design ships unassembled for easy handling and shipping protection.
Specifications
Constructed of 12-gauge steel.
Suggested load capacity of 2,000 lbs (907 kg).
RoHS Compliant.
Manufactured in North America.
Note: Adjustable depth versions not available in the USA.
Gallery
Accessories
Rackmount Adjustable Angle Bracket
Adjustable Depth Shelf
Vertical Rack Cable Manager with Door
Vertical Fingered Rack Cable Manager with
Door
1/2
https://www.hammfg.com/dci/products/open-frame/dc4r
2/4/2018
Knockdown Steel 4-Post Rack (DC4R Series) - Hammond Mfg.
Universal Rack Shelf
Two Post Centered Shelf
Rack Panels
Horizontal Ring Cable Manager
10-32 Mounting Screw and Cage Nut
Combo-Pack
Horizontal Finger Cable Manager
Light Duty Caster Set for Open Frame
Rack
Rack and Cabinet Baying/Ganging/Joining
Kit
Top Wire Management
Top Cable Chimney
Adjustable Depth Cable Manager
Horizontal Hinged Cable Manager
Outlet Strips
Grounding
Rack Isolation Kit
Bolt Down Kit
Adjustable Depth
Overall Dimensions
Part No.
DC4R24
DC4R44
DC4R4448
Height
48.12
83.13
83.13
Width
20.50
20.50
20.50
Rack
Units
24U
44U
44U
Height
42.00
77.00
77.00
Mounting Dimensions
Width
19.00
19.00
19.00
Min Depth
24.00
24.00
32.00
Max Depth
36.00
36.00
48.00
Optional Accessories
Solid Side Panel
DC4R2436SP
DC4R4436SP
DC4R4448SP
Extra Pair of Rails
-
DC4RPR44
DC4RPR44
The base feet extending outwards add approx. 12 inches of overall depth.
Note: Product not available within the USA.
Fixed Depth
Overall Dimensions
Part No.
DC4R4429F
DC4R4436F
DC4R4442F
Height
83.13
83.13
83.13
Width
20.50
20.50
20.50
Depth
29.00
36.00
42.00
Rack
Units
44U
44U
44U
Height
77.00
77.00
77.00
Mounting Dimensions
Width
19.00
19.00
19.00
Depth
29.00
36.00
42.00
Optional Solid
Side Panel
DC4R4436SP
DC4R4436SP
DC4R4448SP
DC4R Specific Accessories
Part No.
DC4RSHCM
DC4RPR24
DC4RPR44
Description
Additional Horizontal Cable Bars (2)
Additional pair of rails for DC4R 24U
Additional pair of rails for DC4R 44U
