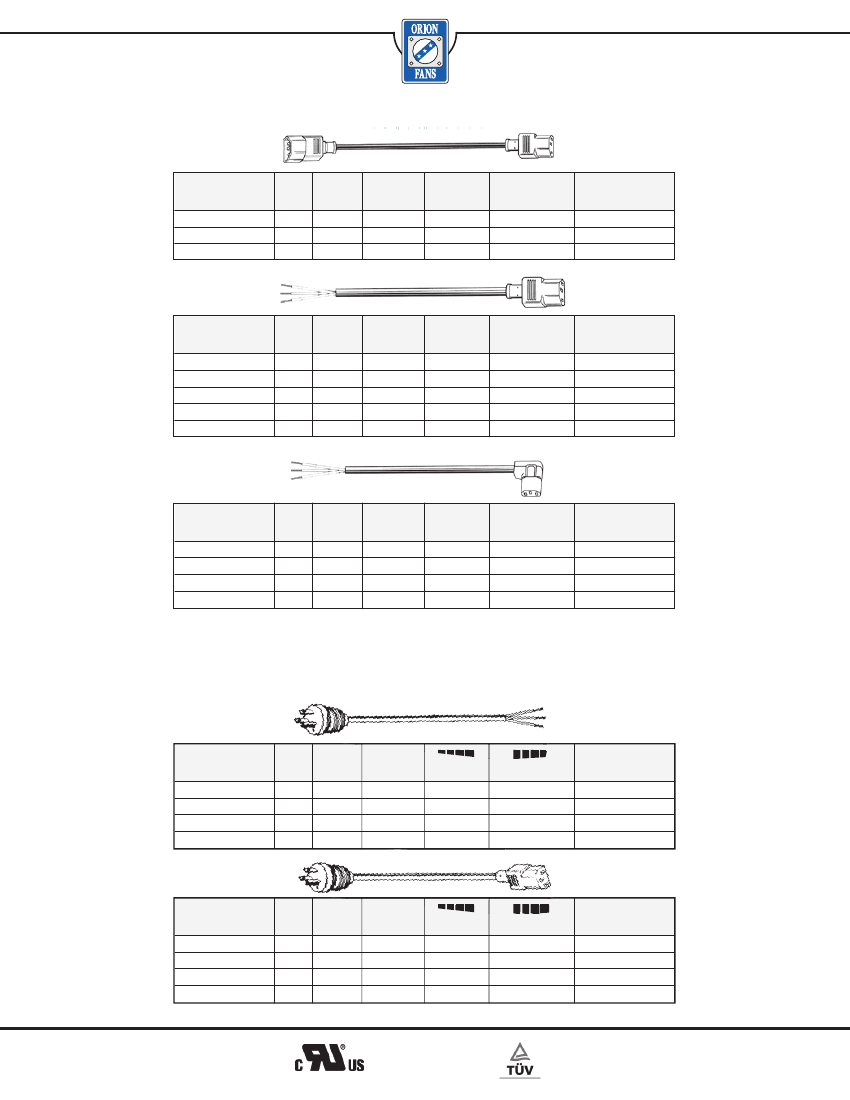

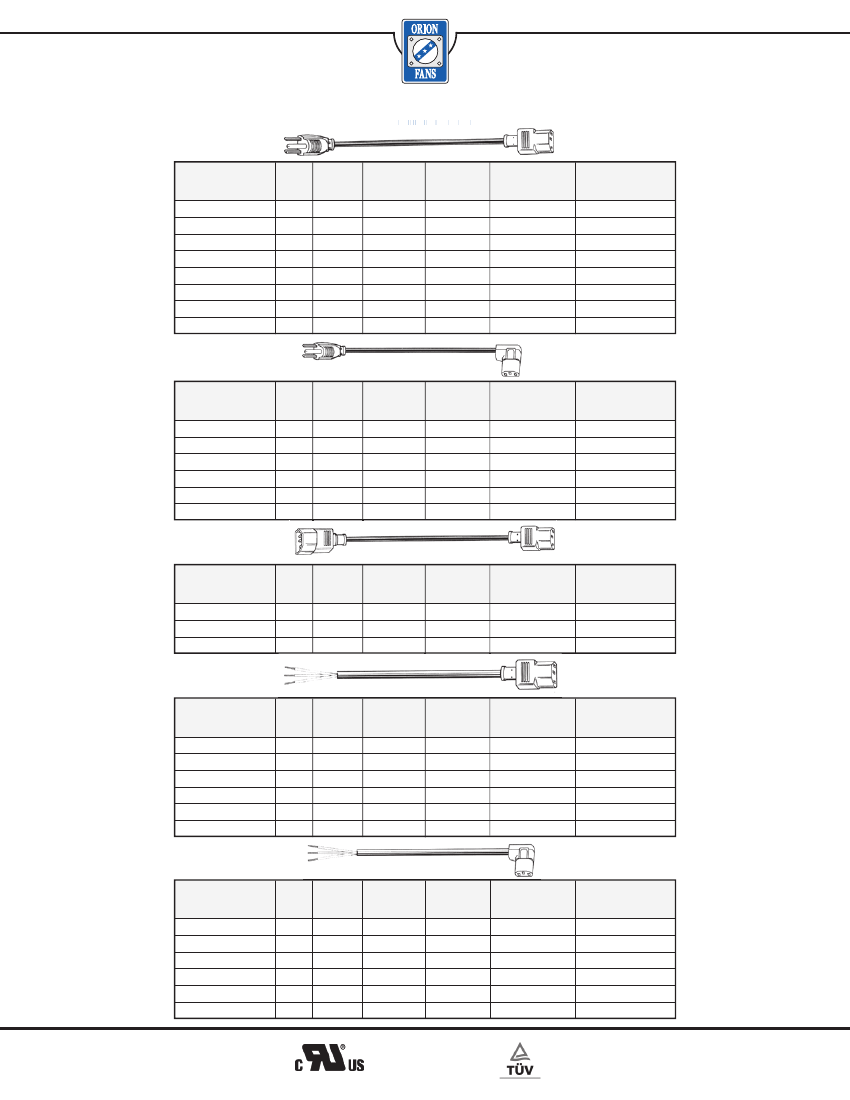

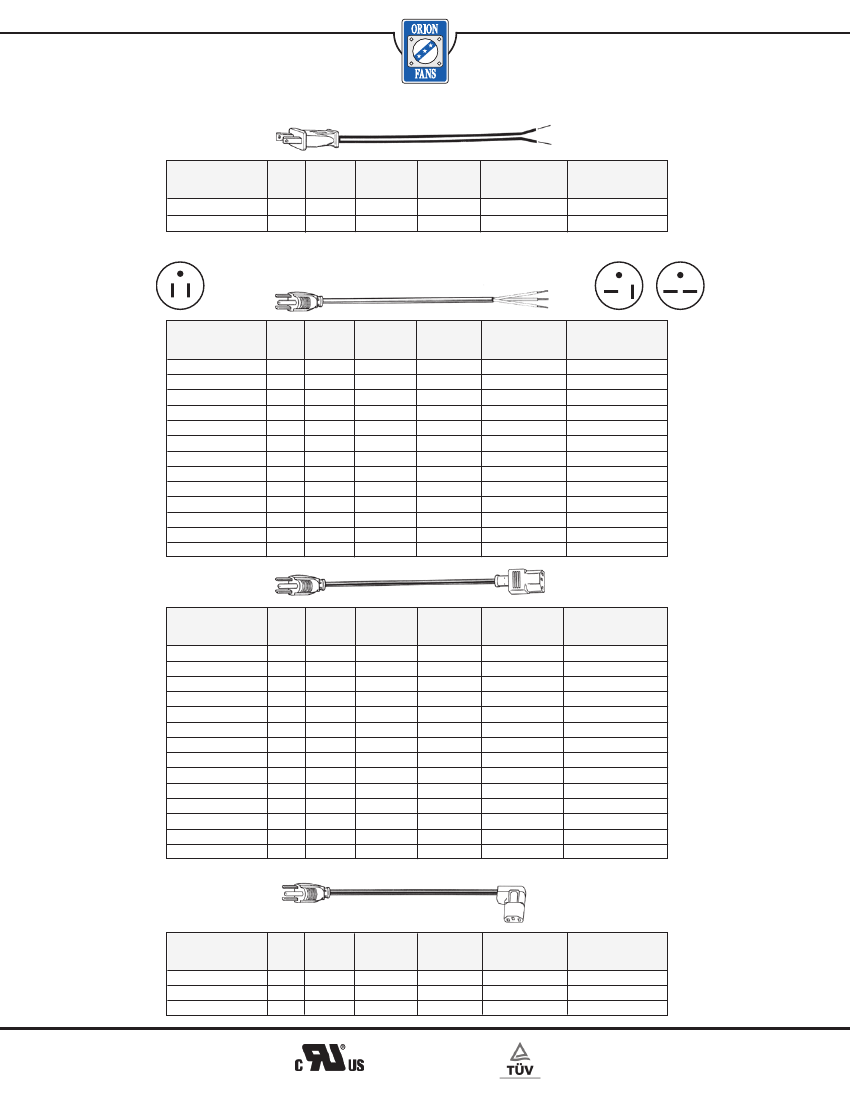

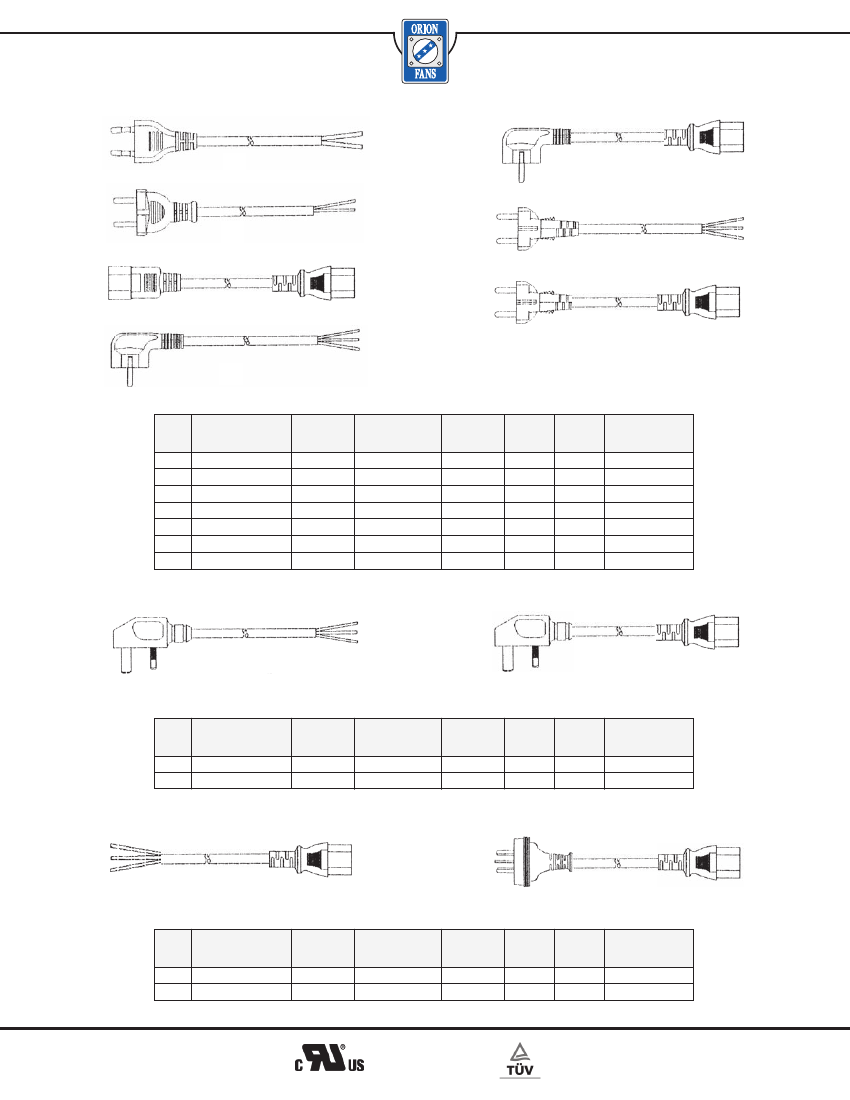

Power Cords
2
3
4
5
6
7
1
4
1
3
1
67
01
2
Example
3 Conductors Unshielded, 14 Gauge, SJT, 5-15P Straight,
C-13 Straight, 6
'
7
"
, Black
1:
Number of Conductors
5:
1 = 2 Conductors
2 = 3 Conductors Unshielded
3 = 3 Conductors Shielded
AWG
2 = 12 Gauge
4 = 14 Gauge
6 = 16 Gauge
8 = 18 Gauge
A = .75mm
B = 1.0mm
6:
C = 1.5mm
Cord Type:
1 = SJT
2 = SVT
3 = SPT-1
4 = SJO
6 = H03VV-F
7 = H03VVH2-F
8 = H05VV-F
Plug
0 = None
1 = 1-15 Standard
7:
2 = 1-15P Polarized
3 = 5-15P Straight
4 = 5-15P Right Angle
5 = 5-15P Hospital Grade Clear
6 = 5-15P Hospital Grade Gray
7 = C-14
8 = 6-15P
9 = 5-20P
A = 003A Europe
B = 006B Europe
C = 010 Europe
D = 010A Europe
E = 012A UK
F = 015 Australia
G = 019 Europe
Connector
0 = None
1 = C-13 Straight
2 = C-13 Right Angle
3 = C-14
4 = C-15
5 = C-19
6 = C-17
7 = 022A
8 = 002-2
Length
18 = 1'8"
33 = 3'3"
50 = 5'0"
60 = 6'0"
67 = 6'7"
76 = 7'6"
80 = 8'0"
910 = 9'10"
100 = 10'0"
160 = 16'0"
Color Code
01 = Black
02 = Brown
03 = Gray
05 = White

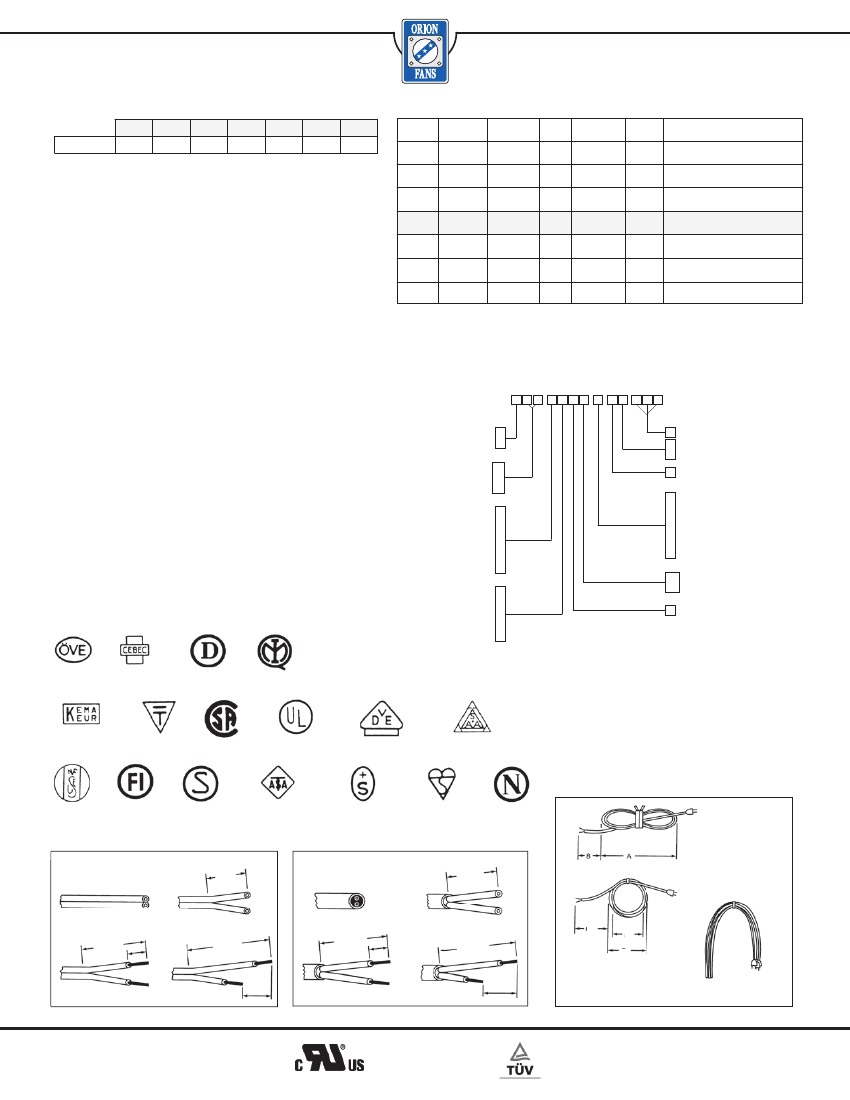

ORION PART NUMBER CODE:
Cord
Type
SVT
SJT
AWG/Size
18 - 14
18
18 - 14
INTERNATIONAL CORDAGE TYPES
No. of
Temp. Rating °C Voltage
Conductors Std.
Special
Rating
3
3
60
60
75, 90, 105
75, 90, 105
300
300
Service Junior Thermoplastic
Description
SPT-1
2:
SPT-2
SJTW-A
HPN
SPT-3
18 - 16
2 or 3
18 - 10
2 or 3
3
60
3:
18 - 16
18 - 14
2 or 3
60
75, 90, 105
60
75, 90, 105
300
2 or 3
90
60
75, 90, 105
105
75, 90, 105
300
300
300
300
Service Parallel Thermoplastic
1/64” Insulation
Service Parallel Thermoplastic
2/64” Insulation
Service Parallel Thermoplastic
3/64 Insulation
Service Junior Thermoplastic -
Outdoor Use
Heater Parallel Neoprene
Service Vacuum Thermoplastic
Note: SJ, SJD, SJTO, SO, SV and SVO cordage is available by special order. Minimums
may apply.
4:
INTERNATIONAL CORDAGE TYPES
H 0 5 V V
Types
Harmonized . . . . . . . . . . . H
Other Standard . . . . . . . . A
Voltage Rating
300/300V . . . . . . . . . . . . 03
300/500V . . . . . . . . . . . . 05
450/750 . . . . . . . . . . . . . 07
Conductor Insulation
PVC . . . . . . . . . . . . . . . . . V
Rubber (Natural or
Synthetic) . . . . . . . . . . . R
Polychloroprene Rubber . N
Silicone Rubber . . . . . . . . S
Glass FIber Construction . J
Cable Jacket
PVC . . . . . . . . . . . . . . . . . V
Rubber (Natural or
Synthetic) . . . . . . . . . . . R
Polychloroprene Rubber . N
Textile Construction . . . . . T
F 3 G 0 7 5
Dimensions of Conductor
. . . . . . . . . . . . . . . . . .in mm
2
G . . . . . . . . . .with ground wire
X . . . . . . . .without ground wire
Number of Conductors
Conductor Types
U . . . . . . . . . . . . . . . . . . .Solid
R . . . . . . . . . . . . . . . .Stranded
K . . . . . .Fine wire-Fixed install
F . . .Fine wire-flexible cordage
H .Extra-fine wire-flex. cordage
Y . . . . . . . . . . . . . . .Tinsel cord
Construction Detail
H . . . . . . .Flat, separate cable
H2 . . .Flat, non-separate cable
Special Components
. . . . . . . . . . . .(Rarely Used)
Austria
INTERNATIONAL APPROVALS:
Belgium
Denmark
Italy
Netherlands
Japan
Canada
United States
Germany
Australia
France
Finland
Sweden
United Kingdom
Switzerland
United Kingdom Norway
STANDARD PUT-UPS
A HANK LENGTH
B FREE END LENGTH
Tie Loop Hank
PARALLEL CORDS
END CUTS
SLIT
CABLED CORDS
R.O.J.
Cut Blunt
SLIT
STRIP
Slit & Cut Blunt
SLIT
Cut Blunt
R.O.J.
STRIP
R.O.J. & Cut Blunt
R.O.J.
C
Slit & Strip
Cut Back
R.O.J. & Strip
Cut Back
A INSIDE DIAMETER
B COIL DIAMETER
C FREE END LENGTH
B
A
Coiled & Tied
Tied in Bundles
Knight Electronics, Inc.
10557 Metric Drive
Dallas, Texas 75243
214-340-0265
RoHS Compliant
72
Information and data is subject to
change without prior notification.
