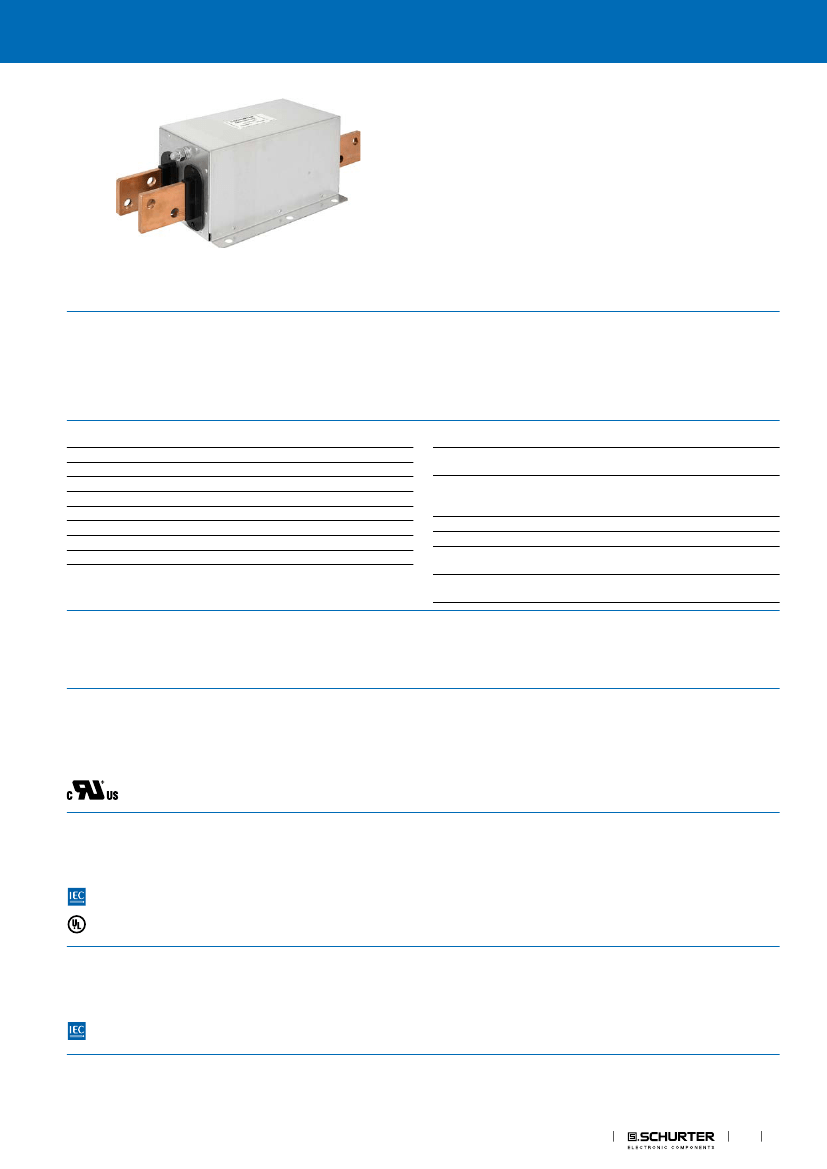

3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
FMER SOL
DC filter for photovoltaic converters
Approvals and Compliances
Description
- Compact DC filter for photovoltaic systems
Applications
- Voltage up to 1200 VDC for world wide acceptance
- UL approved 1000VDC, 250 - 2300A and 600VDC, 25 - 150A
- Helps to meet international EMC standards
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Rated Current
Rated voltage
Approval for
Overload Current
Number of Filter Stages
Weight
Material: Housing
Sealing Compound
25 - 2300 (1200) A @ Ta 55 (75) °C
1200 VDC MAX.
25 - 2300 A @ Ta 55 °C / 1200 VDC
1.5 x Ir
1-stage
1 - 32 kg
Metal
UL 94V-0
Mounting
Terminal
Screw-on mounting on chassis, from
top
Screw clamps for types up to 150 A
and copper bars for types upwards of
250 A.
-40 °C to 100 °C
40/100/21 acc. to IEC 60068-1
IP 20 (25A-150A types), IP 00 (250A-
2300A types) acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Operating Temperature
Climatic Category
Degree of Protection
Protection Class
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMER SOL
Approval Logo
Certificates
UL Approvals
Certification Body
UL
Description
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
IEC 60939
UL 1283
Description
Passive filters for suppressing electromagnetic interference
Electromagnetic interference filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
EMC Products
1
FMER SOL
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

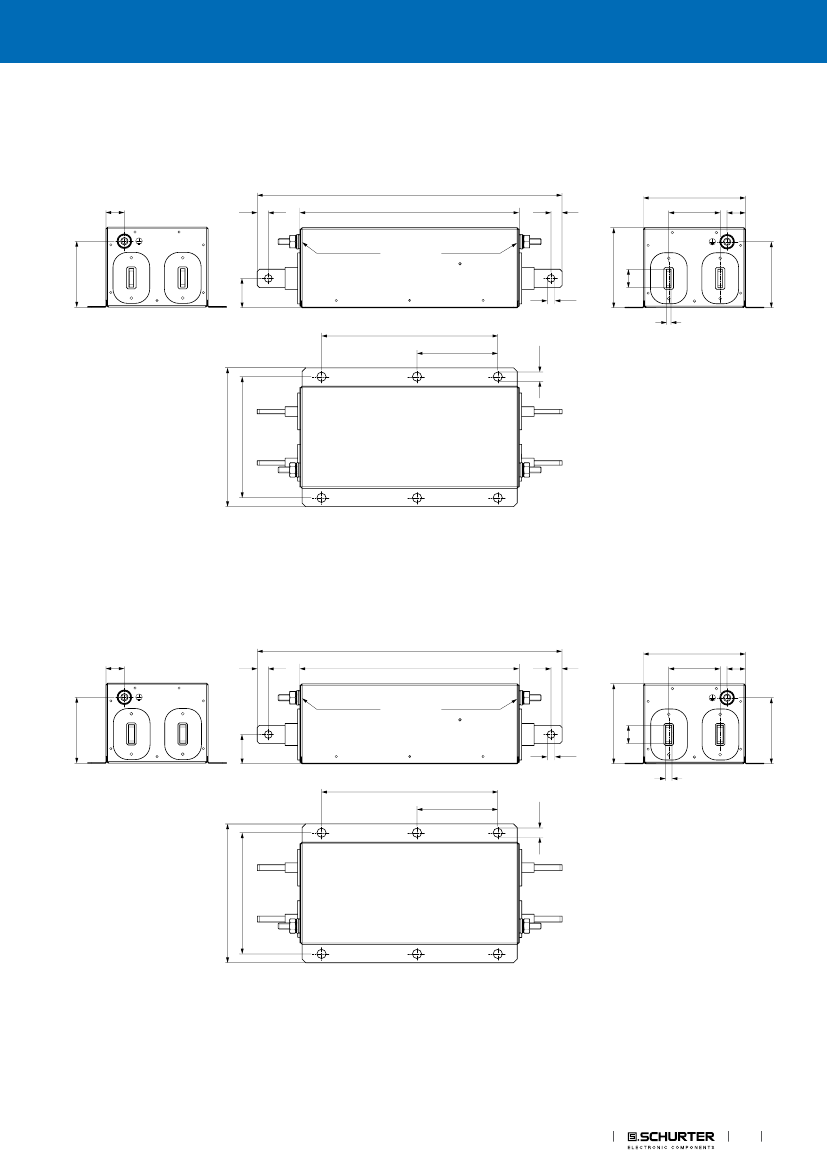

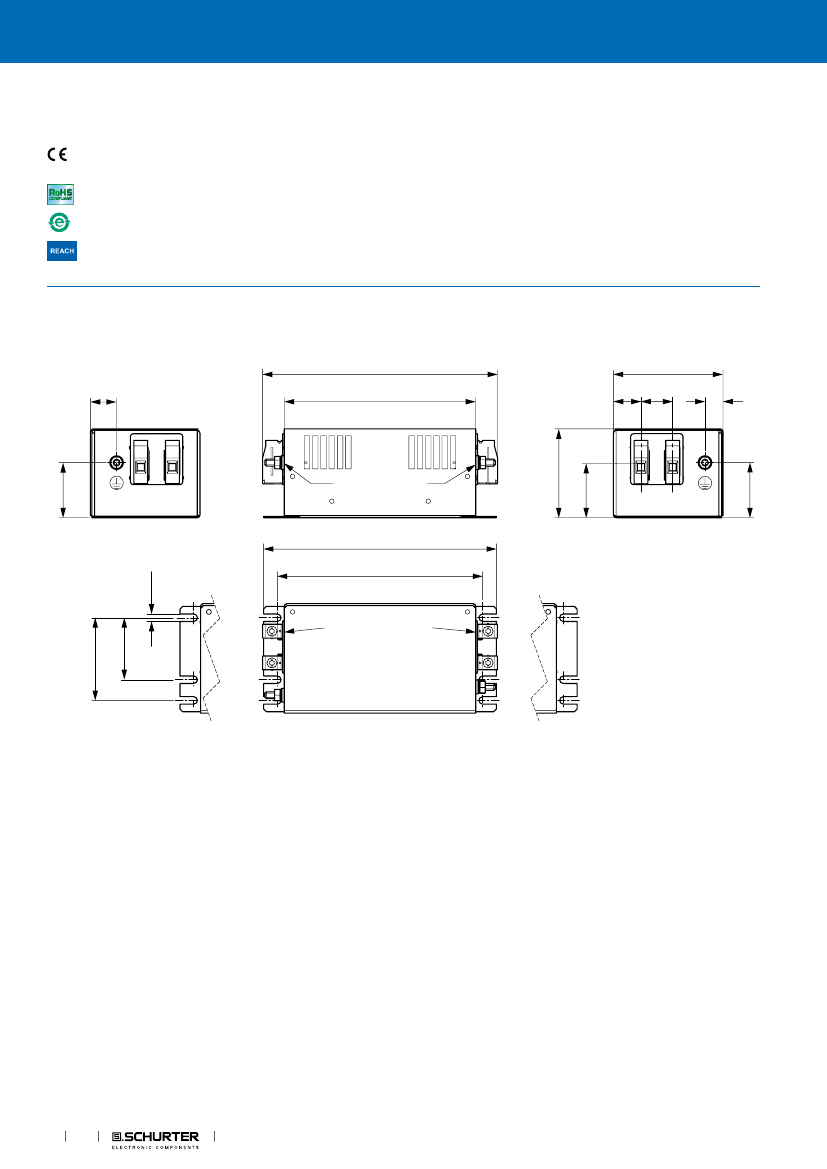

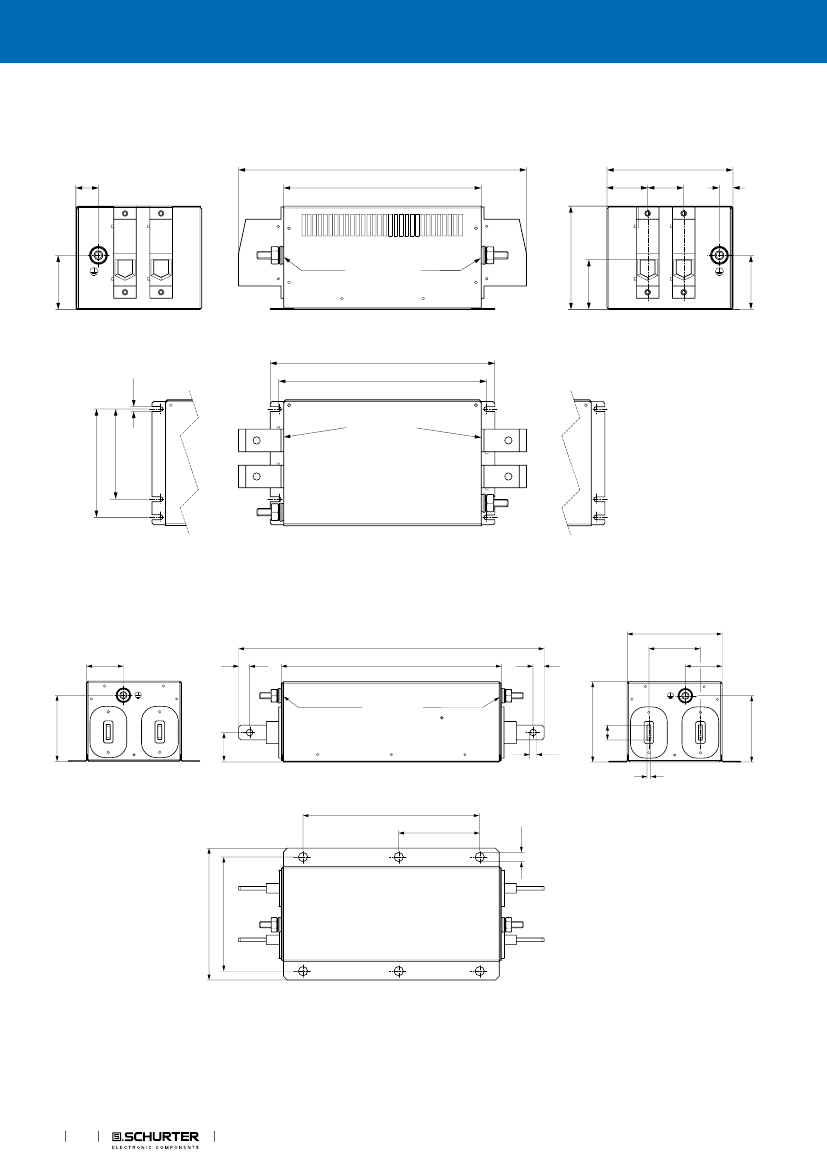

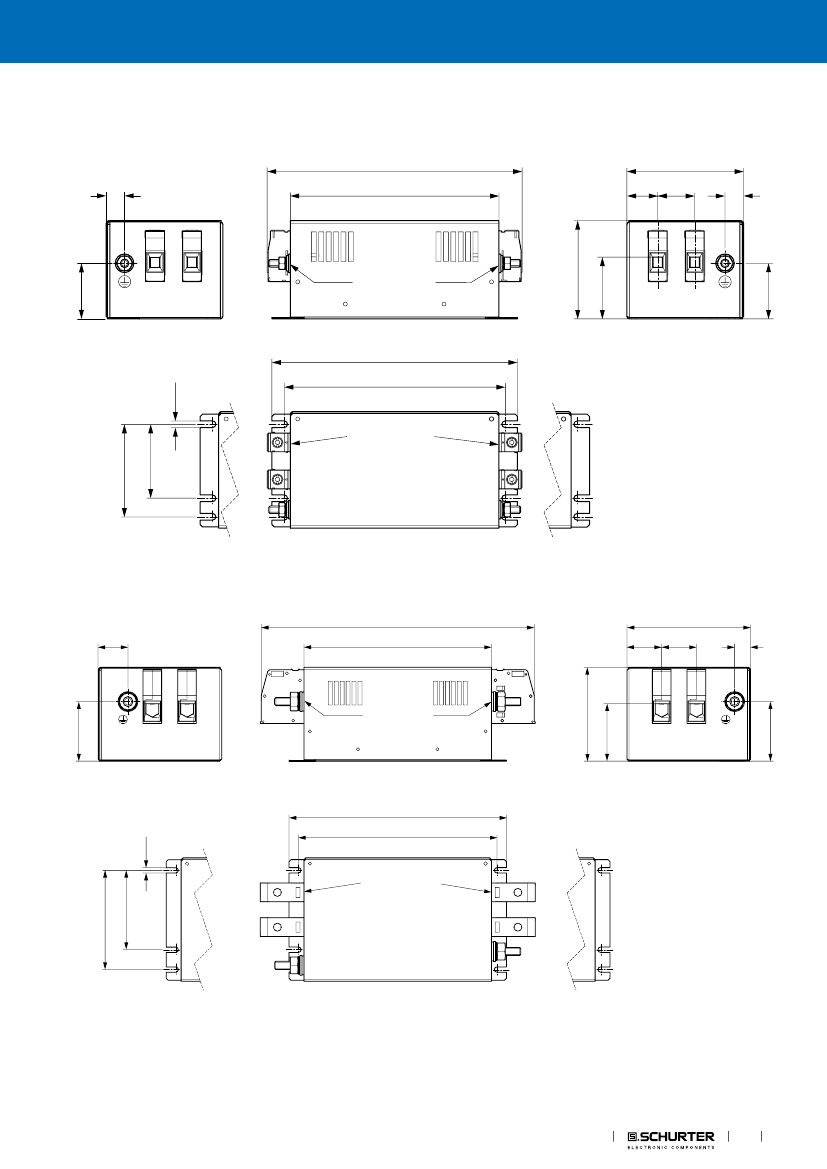

Dimension [mm]
Case 2P
max. 175
20
140
20
max. 80
23
13
40
40
170
5.4
±0.3
(6x)
150
–2
0
60
±0.3
45
±0.3
10mm
2
; 1.5-1.8Nm
1)
2)
1) PV module
2) Inverter
2
EMC Products
40
M5x13; 2-2.5 Nm
max. 65
