Series 2380
Programmable DC Electronic Loads
Multiple Operating Modes
These DC electronic loads can operate
in constant current (CC), constant
voltage (CV), constant resistance (CR),
or constant power (CP) mode. They
can also be configured to provide
a dynamically changing load to the
DC source with load switching times
as fast as 25kHz. Versatile internal, external, and remote triggering options allow
synchronizing the dynamic load behavior with other events.
• 200W, 250W, and 750W models
• Supports up to 500V or 60A
• Constant current (CC),constant
voltage (CV), constant resistance
(CR), and constant power (CP)
operating modes
• LED simulated load test mode
• Readback voltage and current
resolution down to 0.1mV/0.01mA
• Dynamic mode with cycle rate up
to 25kHz
• Voltage rise and fall time
measurement
• Current monitor function
• List mode
• Battery test mode
• Built-in GPIB,USB, and RS-232
interfaces
Comprehensive Protection
Protection functions built into Series 2380 DC electronic loads ensure the reliability
and safety of all tests. These functions include over temperature protection (OTP),
over voltage protection (OVP), over current protection (OCP), over power protection
(OPP), and local/remote reverse voltage (LRV/RRV) protection. A power-on system
self-test ensures the instrument is operating properly.
Full Complement of Settings and Controls
To maximize testing efficiency, you can save test parameters into any one of
100 memory locations for quick recall. All load parameters, such as voltage,
current, slew rate, and dynamic mode time intervals, can be set using the front
panel controls or programmed remotely. A numeric keypad and rotary knob
allow entering settings quickly and setting parameters to their full resolution
easily. USB-TMC, GPIB and RS-232 interfaces are built in for remote control and
communication. A current monitor interface simplifies monitoring input current
waveforms by providing a connection for an oscilloscope.

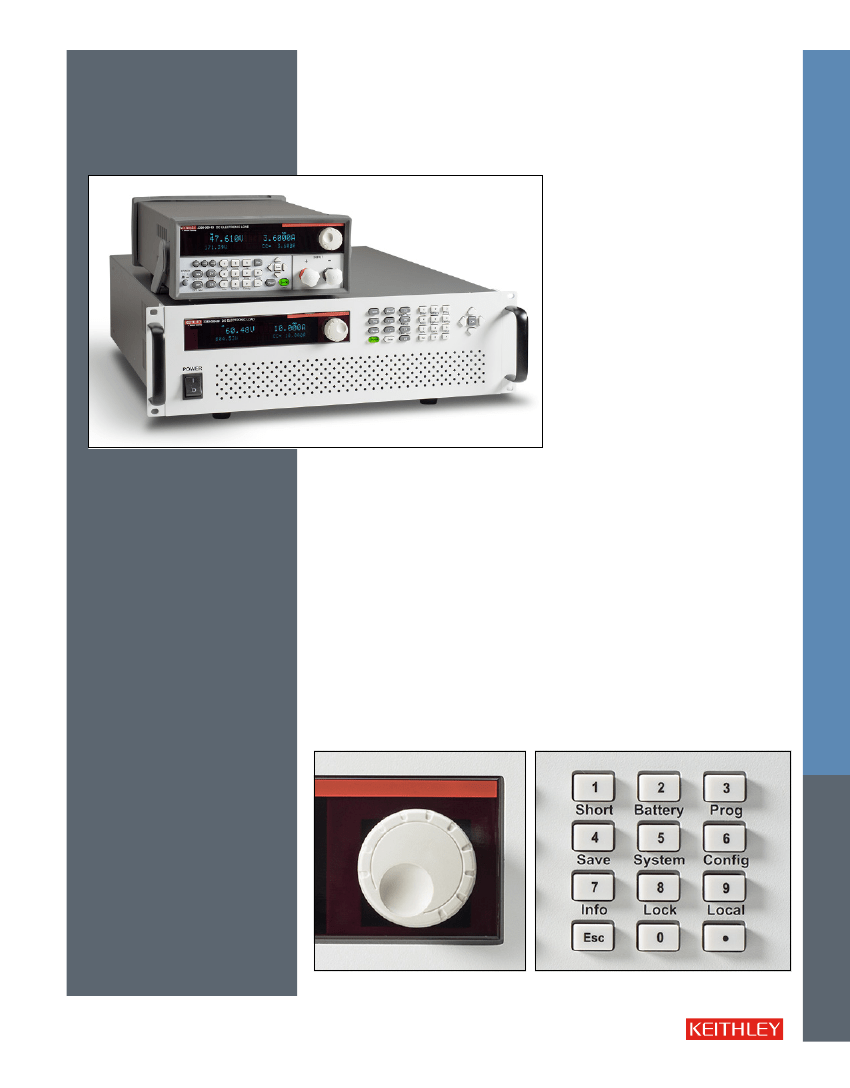

Figure 1. Use either the rotary knob or the keypad to quickly enter settings and set parameter values using all the
available resolution.
A Tektronix Company
DC POWER SUPPLIES
Programmable DC Electronic Loads
Programmable DC electronic loads
Series 2380 programmable DC
electronic loads can sink a wide range
of voltages and currents. The 200W
Model 2380-500-15 can accept up
to 500V or 15A. The 250W Model
2380-120-60 can accept up to 120V
or 60A. The 750W Model 2380- 500
30 can accept up to 500V or 30A.
These single-output, stand-alone
electronic loads are cost-effective and
self-contained.
2380
Programmable DC Electronic Loads
Ordering Information
2380-500-15
Programmable DC
Electronic Load,
500V, 15A, 200W
2380-120-60
Programmable DC
Electronic Load,
120V, 60A, 250W
2380-500-30
Programmable DC
Electronic Load,
500V, 30A, 750W
2380J-500-15
Programmable DC
Electronic Load, 500V,
15A, 200W-Japan only
2380J-120-60
Programmable DC
Electronic Load, 120V,
60A, 250W-Japan only
2380J-500-30
Programmable DC
Electronic Load, 500V,
30A, 750W-Japan only
Accessories Supplied
Quick Start Guide
Documentation CD
Power cord
Programmable DC Electronic Loads

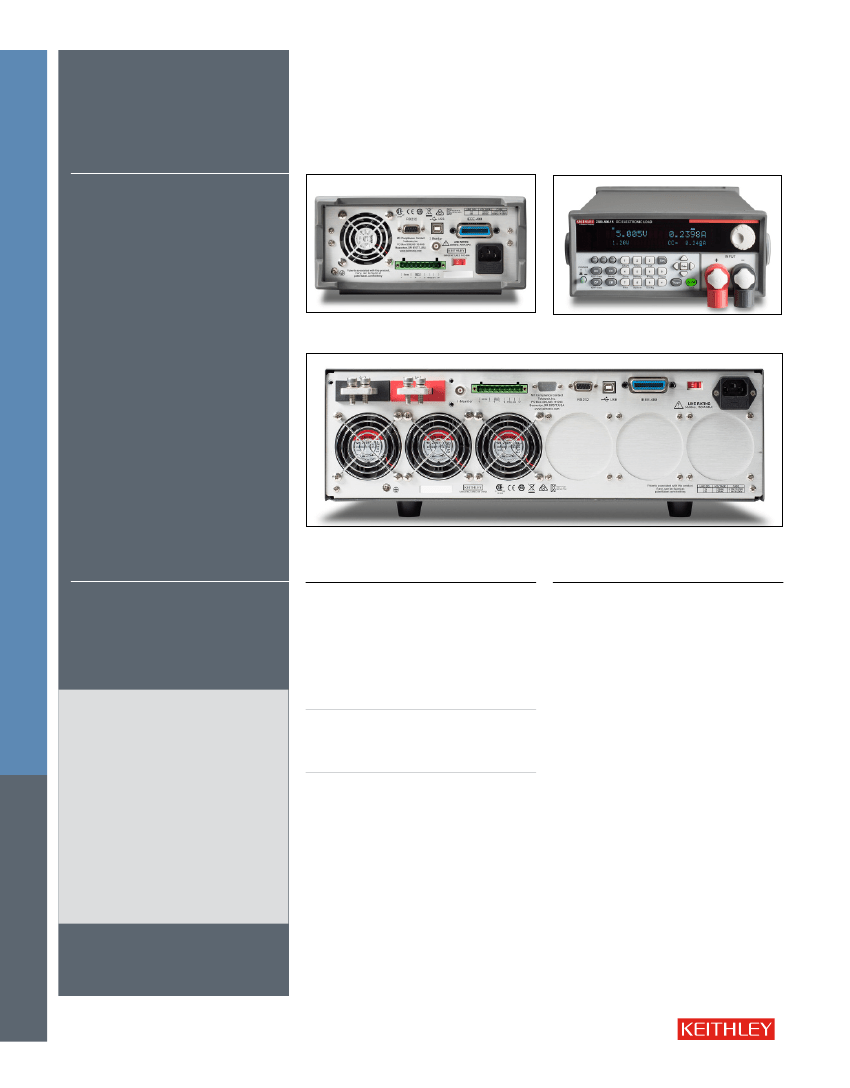

Model 2380-500-15 rear panel
Model 2380-500-15 front view showing the safety
covers on the input terminals.
Model 2380-500-30 rear panel
ACCESSORIES AVAILABLE
2380-001
2380-002
7007-2
9-pin Rear Panel Mating Connector
DUT Connection Protective Cover
Double-Shielded Premium IEEE-488 Interface
Cable, 2m (6.5 ft)
USB Cable, Type A Connector to Type B
Connector, 1m (3.3 ft)
SERVICES AVAILABLE
Model Number*-1-EW
3-year factory warranty from date of shipment
extended 1 additional year
Model Number*-5Y-EW
3-year factory warranty from date of shipment
extended to 5 years
C/Model Number*-3Y-STD
KeithleyCare 3 YR STD Calibration Plan
C/Model Number*-3Y-DAT
KeithleyCare 3 YR Calibration w/Data Plan
C/Model Number*-5Y-STD
KeithleyCare 5 YR STD Calibration Plan
C/Model Number*-5Y-DAT
KeithleyCare 5 YR Calibration w/Data Plan
* Replace the specific power supply model number in place
of Model Number to generate the appropriate model
number for a service item. Example for a 2380-500-15,
a 1-year extended warranty model number would be
2380-500-15-EW.
KP-CL-488LPA IEEE-488.2 Interface Board for the PCI Bus
USB-B-1
APPLICATIONS
• Environmental test, stress test,
and accelerated life testing
for AC/DC power sources and
DC/DC modules
• LED lighting drivers and high
power component testing
RACK MOUNT KITS FOR THE 2380-500-15 AND
THE 2380-120-60
4299-7
RMU2U
386759800
2380-RM
Universal Fixed Rack Mount Kit
Fixed Rack Mount Kit
RMU2U Rack Mount Cosmetic Filler Panel
Full-Rack-Width Instrument Fixed
Rack Mount Kit
RACK MOUNT KIT FOR THE 2380-500-30
DC POWER SUPPLIES
• Automotive electronics testing
• Battery research and discharge
testing
• Production test
A Tektronix Company
2380
Specifications
Model 2380-500-15/2380J-500-15
Input Voltage
Input Current
Input Power
Min. Operating
Voltage
Range
Resolution
Accuracy
Range
Resolution
Accuracy
Range
Resolution
Accuracy
2
Range
Resolution
Accuracy
T1 & T2
Accuracy
Ascending/
Descending
Slope
4
Minimum Rise
Time
5
Low Range
0–500 V
0–3 A
200 W
0.6 V at 3 A (maximum 0.9 V)
0.1–50 V
1 mV
±(0.05% + 0.025% FS)
0–3 A
0.1 mA
±(0.05% + 0.05% FS)
0.3
Ω–10 Ω
0.001
Ω
0.01% + 0.08 S
200 W
10 mW
0.1% + 0.1% FS
20 µs–3600 s; Res: 1 µs
5 µs ± 100 ppm
0.0001–0.1 A/µs
~10 µs
0–50 V
1 mV
±(0.025% + 0.025% FS)
0–3 A
0.01 mA
±(0.05% + 0.05% FS)
200 W
10 mW
±(0.1% + 0.1% FS)
~210 W
~3.3 A
~530 V
~85°C
Programmable DC Electronic Loads
Model 2380-120-60/2380J-120-60
High Range
0–500 V
0–15 A
200 W
4.5 V at 15 A
0.1– 500 V
10 mV
±(0.05% + 0.025% FS)
0–15 A
1 mA
±(0.05% + 0.05% FS)
10
Ω–7.5
kΩ
0.1
Ω
0.01% + 0.0008 S
200 W
10 mW
0.1% + 0.1% FS
20 µs–3600 s; Res: 1 µs
5 µs ± 100 ppm
0.001–1 A/µs
~10 µs
Measuring Range
0–500 V
10 mV
±(0.025% + 0.025% FS)
0–15 A
0.1 mA
±(0.05% + 0.05% FS)
200 W
10 mW
±(0.1% + 0.1% FS)
~210 W
~16.5 A
~530 V
~85°C
Readback Voltage
Range
Resolution
Accuracy
Range
Resolution
Accuracy
Range
Resolution
Accuracy
0–18 V
0.1 mV
±(0.025% + 0.025% FS)
0–6 A
0.1 mA
±(0.05% + 0.1% FS)
250 W
10m W
±(0.2% + 0.2% FS)
~260 W
~6.6 A
~130 V
~85°C
0–120 V
1 mV
±(0.025% + 0.025% FS)
0–60 A
1 mA
±(0.05% + 0.1% FS)
250 W
10m W
±(0.2% + 0.2% FS)
~260 W
~66 A
~130 V
~85°C
CC Mode
Constant Voltage
Mode
Constant Current
Mode
Constant
Resistance Mode
1
Constant Power
Mode
3
Dynamic Mode
T1 & T2
Accuracy
Ascending/
Descending
Slope
4
Minimum Rise
Time
5
20 µs–3600 s; Res: 1 µs
5 µs ± 100 ppm
0.0001–0.25 A/µs
~20 µs
20 µs–3600 s; Res: 1 µs
5 µs ± 100 ppm
0.001–2.5 A/µs
~20 µs
Input Voltage
Input Current
Input Power
Min. Operating
Voltage
Range
Resolution
Accuracy
Range
Resolution
Accuracy
Range
Resolution
Accuracy
2
Range
Resolution
Accuracy
Low Range
0–120 V
0–6 A
250 W
0.18 V at 6 A
0–18 V
1 mV
±(0.05% + 0.025% FS)
0–6 A
0.1 mA
±(0.05% + 0.1% FS)
0.05
Ω–10 Ω
0.001
Ω
0.01% + 0.08 S
250 W
10 mW
0.2% + 0.2% FS
High Range
0–120 V
0–60 A
250 W
1.8 V at 60 A
0–120 V
10 mV
±(0.05% + 0.025% FS)
0–60 A
1 mA
±(0.05% + 0.1% FS)
10
Ω–7.5
kΩ
0.1
Ω
0.01% + 0.0008 S
250 W
10 mW
0.2% + 0.2% FS
Rated Value
(0°–40°C)
Rated Value
(0°–40°C)
Constant Voltage
Mode
Constant Current
Mode
Constant
Resistance Mode
1
Constant Power
Mode
3
Dynamic Mode
CC Mode
Measuring Range
Range
Readback Voltage Resolution
Accuracy
Range
Readback Current Resolution
Accuracy
Range
Readback Power Resolution
Accuracy
Protection Range
Overpower Protection
Overcurrent Protection
Overvoltage Protection
Over Temperature Protection
Specification
Current (CC)
Short Circuit
Voltage (CV)
Resistance (CR)
Input Terminal Impedance
Dimensions
NOTES*
~3.3 / 3 A
~16.5 / 15 A
~0 V
~0 V
~300 mΩ
~300 mΩ
~1 MΩ
~1 MΩ
214.81mm × 104.24mm × 397.03mm
Readback Current
Readback Power
Protection Range
Overpower Protection
Overcurrent Protection
Overvoltage Protection
Over Temperature Protection
Specification
Short Circuit
Current (CC)
Voltage (CV)
Resistance (CR)
Input Terminal Impedance
Dimensions
~6.6 / 6 A
~66 / 60 A
0V
0V
~30 mΩ
~30 mΩ
~300 kΩ
~300 kΩ
214.81mm ×104.24mm × 397.03mm
*Specifications are subject to change without notice.
