Power supply unit - EG 45-PS-230AC/ 5DC/250 - 2940676
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
DIN rail power supply unit, secondary-switched, input 230 V AC, output 4-13 V DC/250 mA, pre-setting 5 V DC
The illustration shows version EG
45-PS-120AC/ 5DC/250
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
528.9 g
85044082
Germany
1 pc
Technical data
Dimensions
Width
Height
Depth
45 mm
107 mm
77 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP20
0 °C ... 60 °C
Input data
Nominal input voltage
AC frequency range
Current consumption
Nominal power consumption
230 V AC
50 Hz ... 60 Hz
approx. 33 mA
approx. 8 VA
04/27/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/2940676
Power supply unit - EG 45-PS-230AC/ 5DC/250 - 2940676
Technical data
Input data
Power failure bypass
Input fuse
35 ms
0.4 A (slow-blow TR 5, internal, solderable)
Output data
Nominal output voltage
Nominal output current (I
N
)
Residual ripple
Type of protection
Protective circuit/component
4 V DC ±2 % (can be set up to 13 V DC. Default 5 V DC ± 4%)
250 mA
< 100 mV
PP
Electronic disconnect at 1.3 x IN
Varistor
General
Net weight
Operating mode
Test voltage input/output
Mounting position
Assembly instructions
539 g
100% operating factor
4 kV AC
On horizontal DIN rail
Can be aligned with spacing = 10 mm
Connection data, input
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Screw thread
COMBICON plug-in screw terminal block
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
14
8 mm
M3
Connection data, output
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Screw thread
COMBICON plug-in screw terminal block
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
14
8 mm
M3
Standards and Regulations
04/27/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/2940676
Power supply unit - EG 45-PS-230AC/ 5DC/250 - 2940676
Technical data
Standards and Regulations
Standards/regulations
prEN 50178
DIN EN 50178/VDE 0160
DIN VDE 0106-101
DIN VDE 0551
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27040702
27040702
27049002
27049002
27049002
27049002
27049002
27040701
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001039
EC001039
EC000599
EC002540
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211502
39121004
39121004
39121004
39121004
Accessories
Accessories
Fuse
04/27/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/2940676
Power supply unit - EG 45-PS-230AC/ 5DC/250 - 2940676

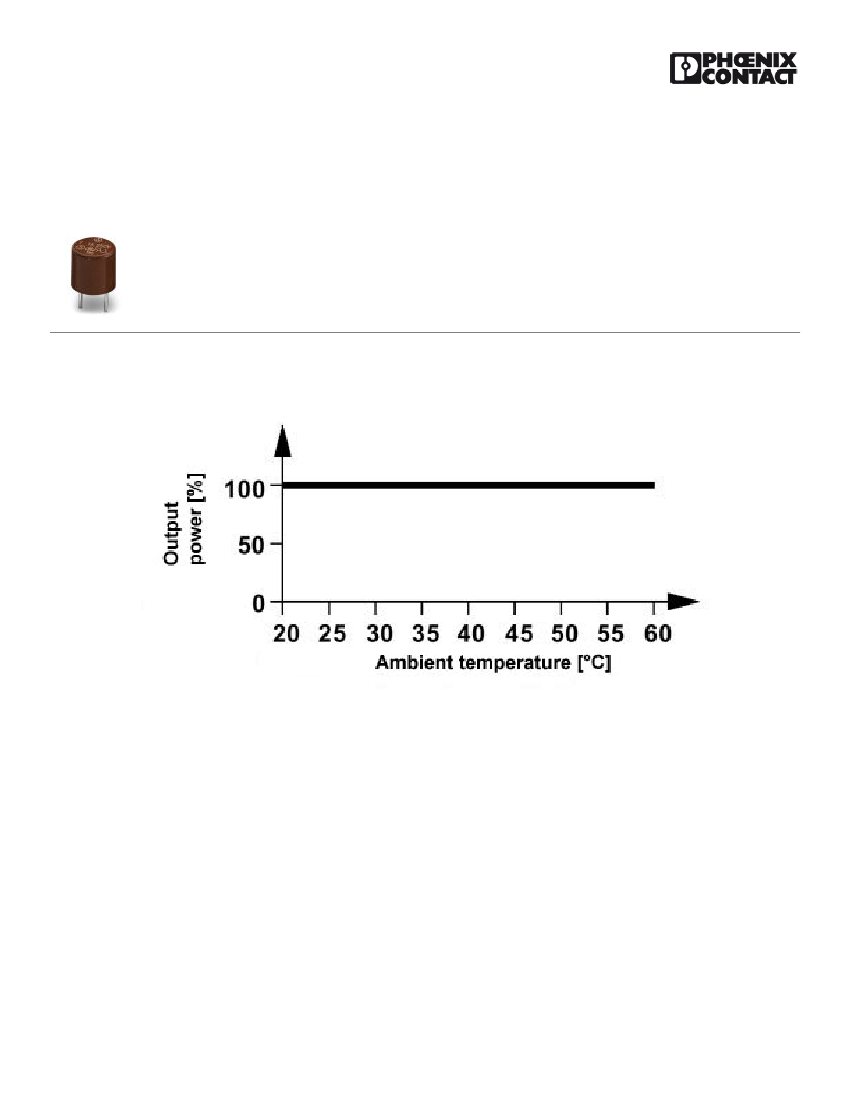

Accessories
Fuse - VF-SI/TR5/0,4AT - 2900997
Plug-in fuse (TR5 ), nominal current: 0.4 A, tripping characteristic: slow-blow (T), packing volume per unit: 8 pcs.
®
Drawings
Diagram
04/27/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/2940676
Power supply unit - EG 45-PS-230AC/ 5DC/250 - 2940676

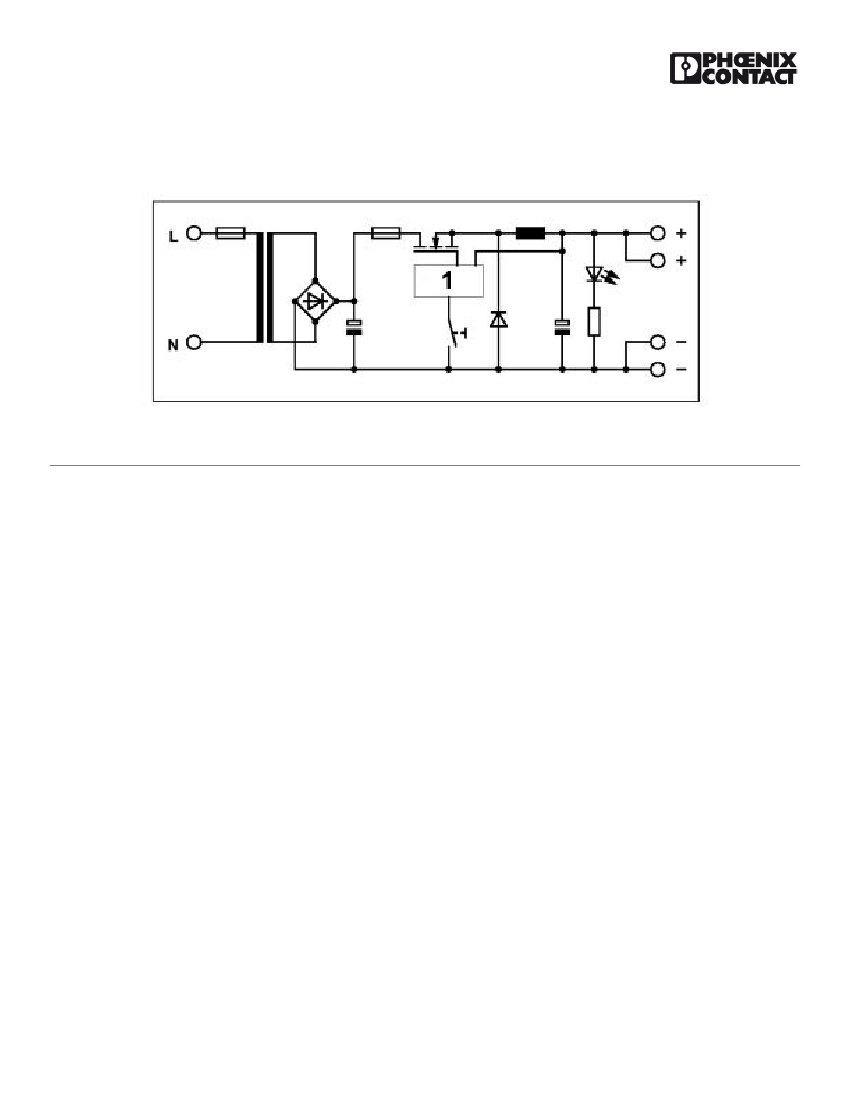

Circuit diagram
1 = switched-mode regulator
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/27/2016 Page 5 / 5
