8B36-2431 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8B36-2431

8B36-2431: DescriptionI/O Connectors XE004226389 8B36-2431=MSAS INTERNAL R/A SHELL, 36 PIN, DUAL KEY, SMT TY; CategoryThe connector The connector; File Size1MB，8 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

8B36-2431 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8B36-2431	-	-	View	Buy Now

8B36-2431 Overview

I/O Connectors XE004226389 8B36-2431=MSAS INTERNAL R/A SHELL, 36 PIN, DUAL KEY, SMT TY

8B36-2431 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8B36
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Termination type	SURFACE MOUNT
Total number of contacts	36
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

™

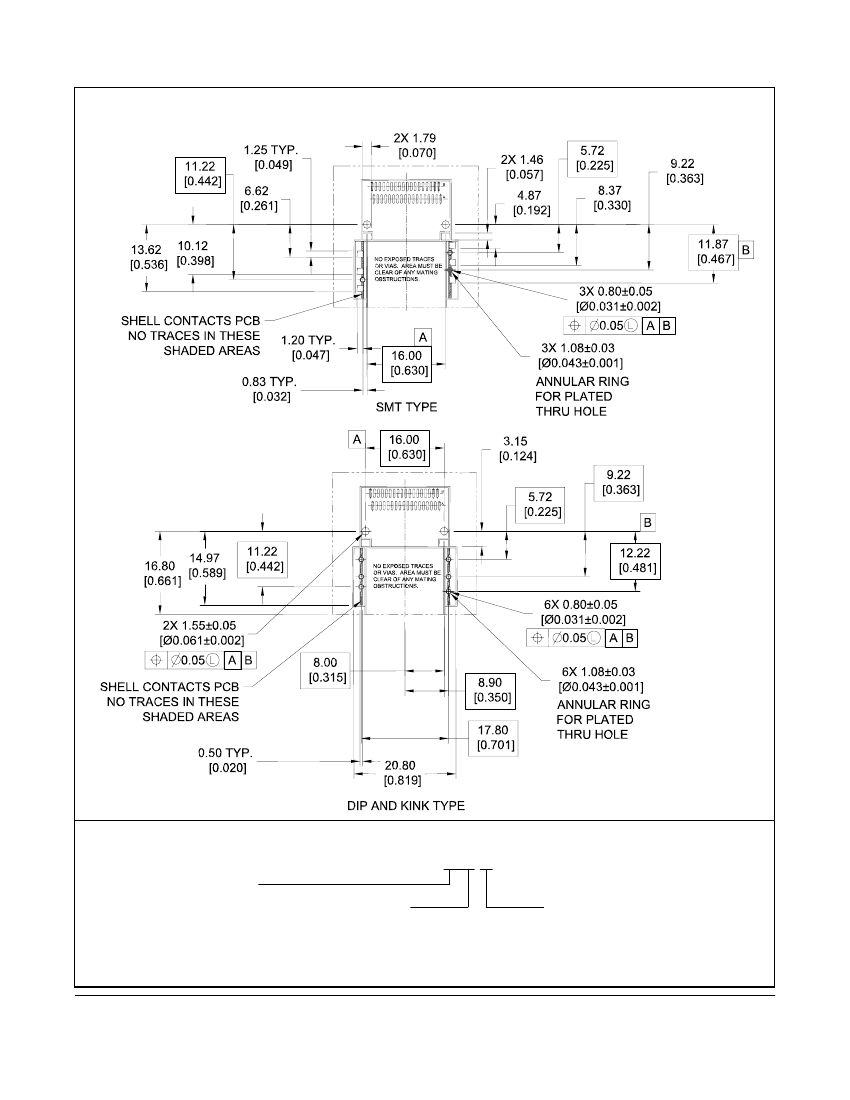

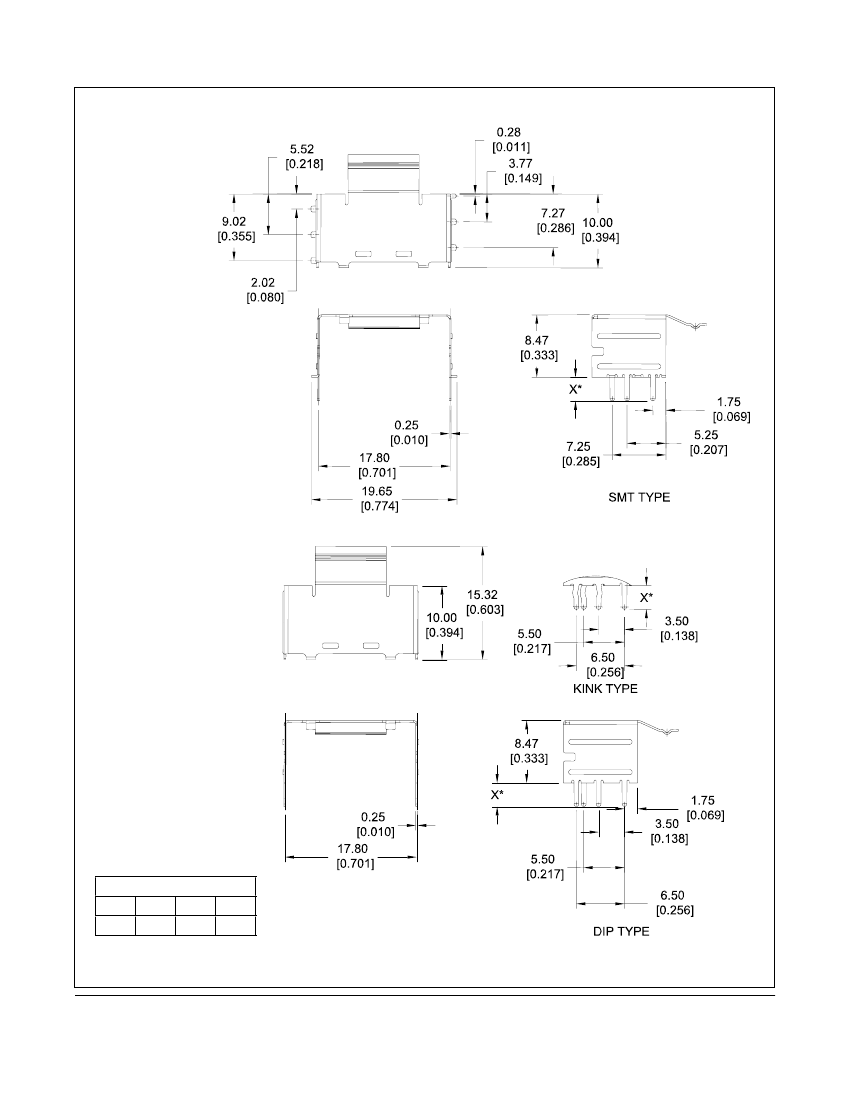

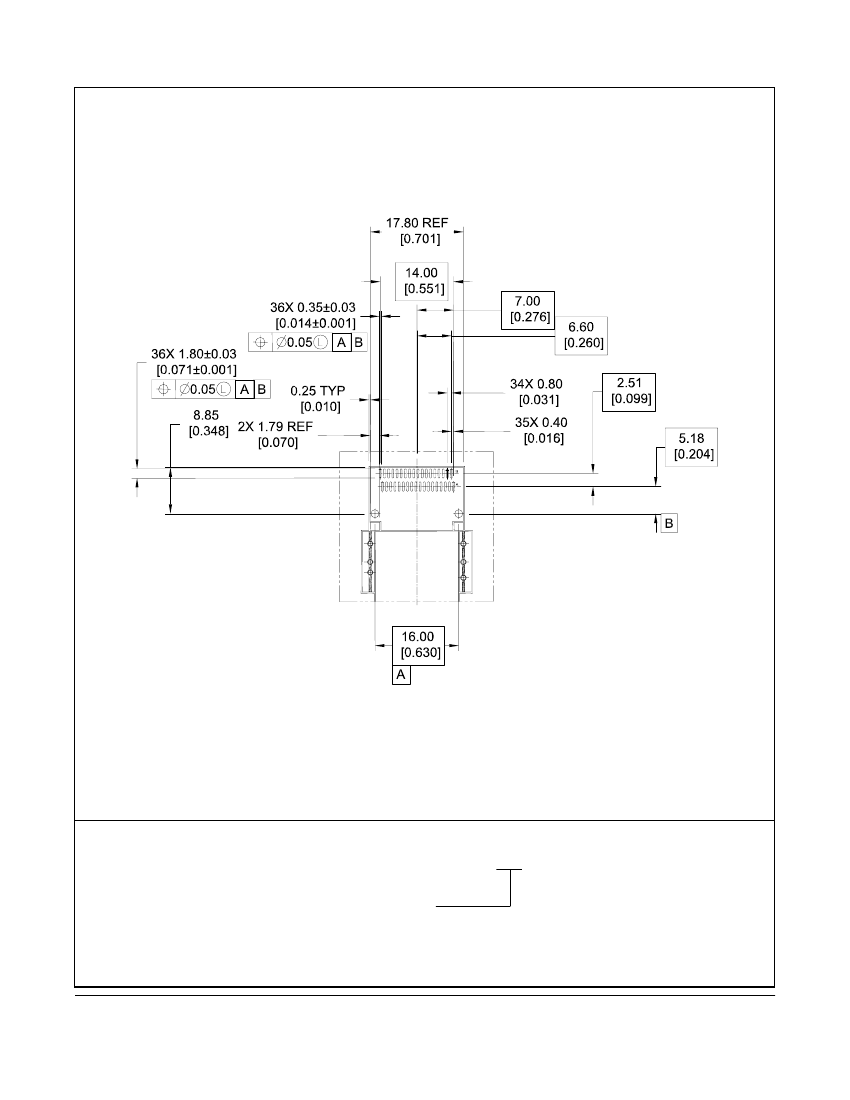

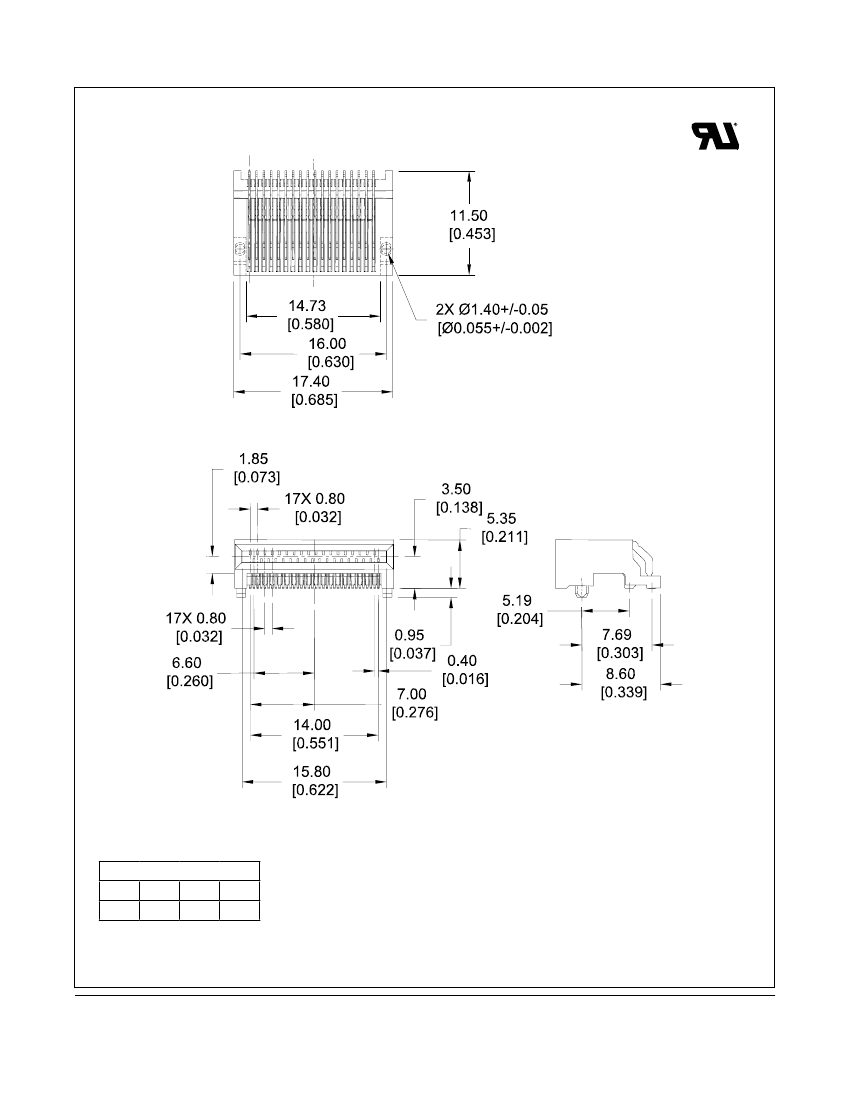

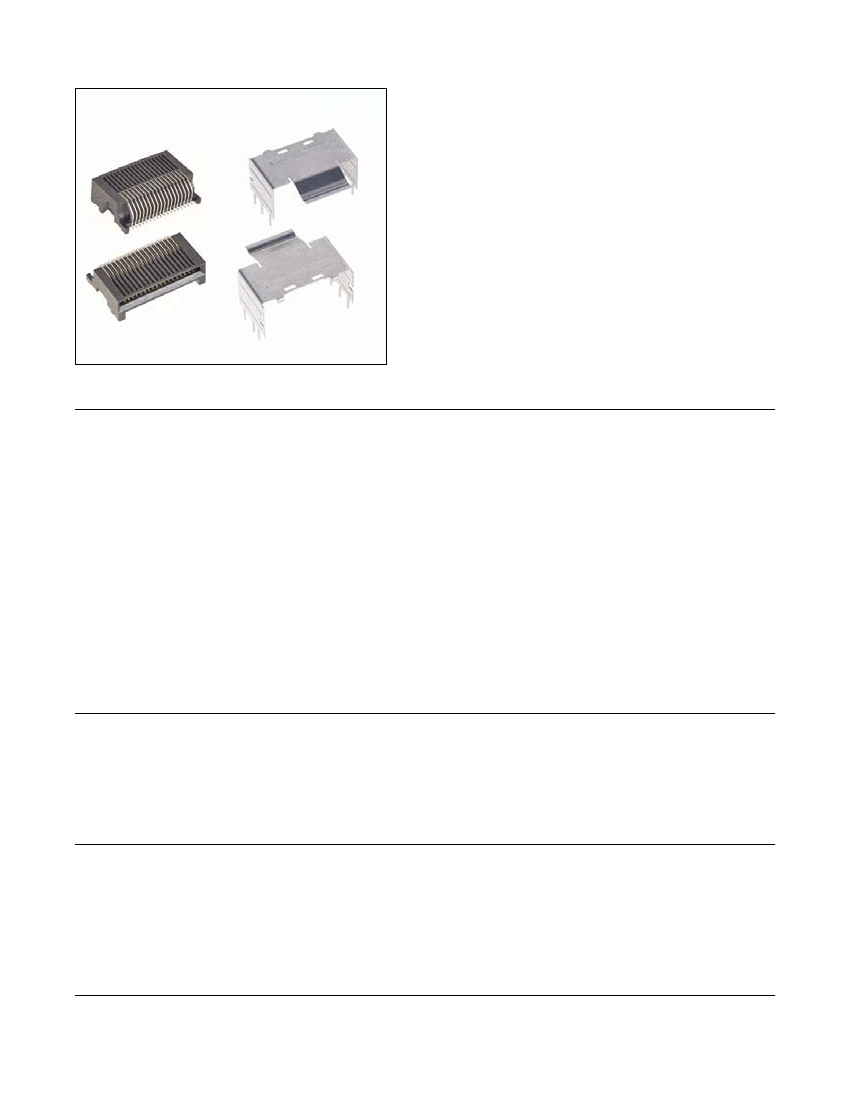

Mini Serial Attached SCSI (miniSAS) Connector/Shell

Right Angle Receptacle/Right Angle Shell

8A36/8B36 Series

• 6 Gb/s input/output connector for server applications

• Surfacemount termination on receptacle

• Multiple tail types available for board assembly on

shell guide

• Multiple pin lengths for a range of board thicknesses

on shell guide

• Multiple backshell polorization options for cable

assemblies on shell guide

• Meets SFF-8086 Specification

• Meets SAS Specification, SAS-1.1

• See Regulatory Information Appendix (RIA) for

chemical compliance information

Date Modified: May 16, 2008

TS-2219-C

Sheet 1 of 5

Physical

Insulation:

Material: High Temperature Thermoplastic

Flammability: UL 94V-0

Color: Black

Contact:

Material: Copper Alloy

Plating:

Underplating: 50 μ" min. [ 1.27 μm ] Nickel

Wiping Area: 30 μ" min. [ 0.76 μm ] Gold

Solder Tails: 100 μ" min. [ 2.54 μm ] Matte Tin

Backshell:

Material: Stainless Steel

Wiping Area: 30 μ" [ 0.76 μm ] Nickel on tails only

Electrical

Connector:

Current Rating:

Per Contact: 0.5 A

Insulation Resistance:

MΩ min.

Withstanding Voltage:

300 V

min. for 1 minute

Environmental

Operating Temperature:

-20°C to +85°C

UL File No.: E68080

Electronic Solutions Division

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373
