NP-3033 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> NP-3033

NP-3033: DescriptionStandard Circular Connector NEPTUNE PLUG 30 AMP 3P 3W; CategoryThe connector; File Size2MB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

NP-3033 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NP-3033	-	-	View	Buy Now

NP-3033 Overview

Standard Circular Connector NEPTUNE PLUG 30 AMP 3P 3W

NP-3033 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	Standard Circular Connector
Product	Plugs
Number of Positions	3p3w
Contact Gender	Pin (Male)
Shell Material	Anodic
Current Rating	30 A
Wire Gauge	14 AWG - 10 AWG

Preview

Download Datasheet

View All

IDS-32

Amphenol

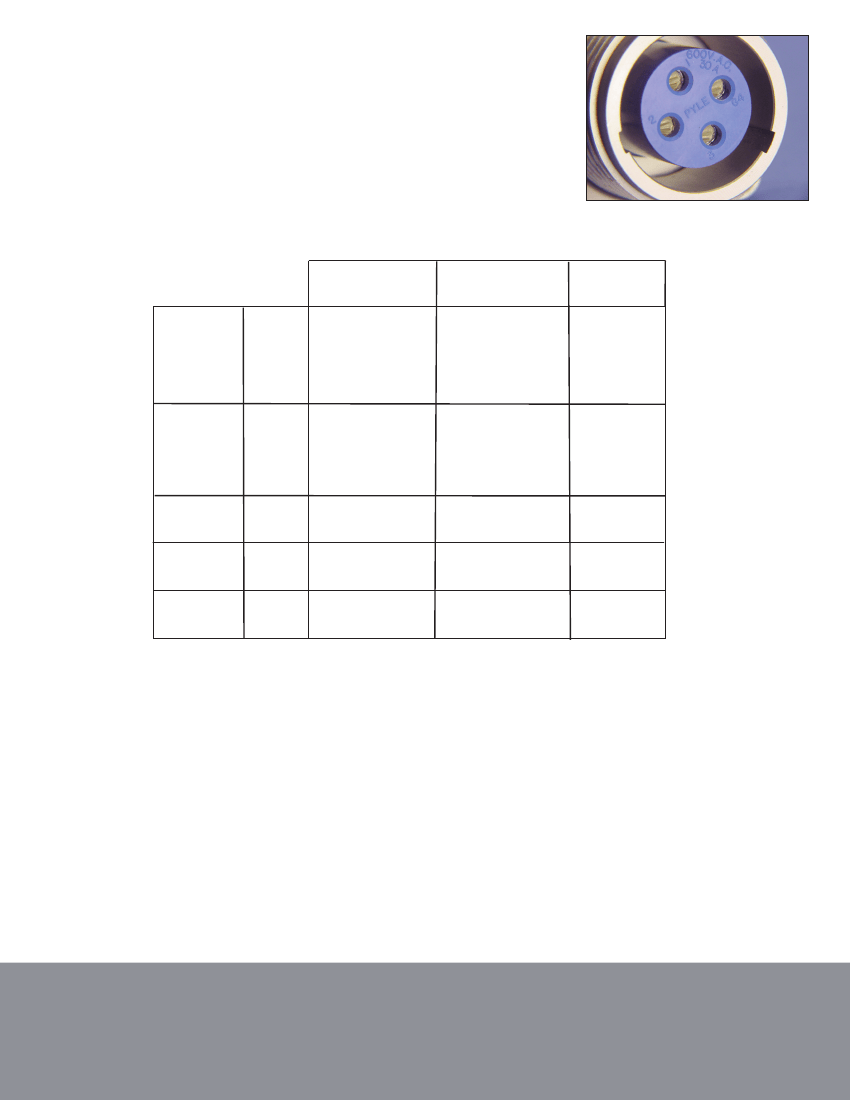

NEPTUNE

Rugged Environment

Connector featuring RADSOK

Contacts.

Amphenol Industrial Operations introduces a new power

connector family featuring Amphenol’s exclusive RADSOK

contact system. The new NEPTUNE

connector series is

designed to perform in the most demanding environments.

NEPTUNE

incorporates our RADSOK

contact technology.

The RADSOK

system is a patented electrical terminal based

on a hyperbolic grid configuration. As a male pin is inserted,

the grid deflects, imparting high normal forces. The hyperbolic

configuration ensures a large coaxial, face-to-face

engagement area for a low milli-volt drop connection with low

insertion force. The stamped grid and cylinder are very rugged,

allowing for a high quantity of insertion cycles and off axis

insertions.

Features:

• RADSOK contacts provide increased amperage in smaller

package

• 30 Amp through 400 Amp/600 Volt inserts available

• Decreased weight & panel layout compared to the competition

• Double lead Acme threads for easy coupling

• Machined contacts designed for longer life/mating cycles

• RADSOKs allow for lower insertion forces than standard contacts

• Three key design to limit cross-mating

• Machined aluminum dust cap for environmental protection

• Plugs utilize mechanical clamp strain relief

• VFD rated inserts

• U.L. approval pending

www.amphenol-industrial.com

NP-3033 Related Products

	NP-3033	NP-3034	NP-20034	NP-3023	NP-15044	NP-10044	NP-6034	NR-6044	NR-15044	NR-10044
Description	Standard Circular Connector NEPTUNE PLUG 30 AMP 3P 3W	Standard Circular Connector NEPTUNE PLUG 30 AMP 3P 4W	Standard Circular Connector 3P 4W 200 AMPS 4/0 - 2/0 SZ WIRE	Standard Circular Connector NEPTUNE PLUG 30 AMP 2P 3W	Standard Circular Connector NEPTUNE PLUG 150 AMP 4P 4W	Standard Circular Connector NEPTUNE PLUG 100 AMP 4P 4W	Standard Circular Connector 3P 4W 60 AMPS #4 - #8 SZ WIRE	Standard Circular Connector 4P 4W 60 AMPS #4 - #8 SZ WIRE	Standard Circular Connector NEPTUNE RECEPTACLE 150 AMP 4P 4W	Standard Circular Connector 4P 4W 100 AMPS 1/0 - #2 SZ WIRE
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	Standard Circular Connector	Standard Circular Connector	Standard Circular Connector	Standard Circular Connector	Standard Circular Connector	Standard Circular Connector	Standard Circular Connector	Standard Circular Connector	Standard Circular Connector	Standard Circular Connector
Product	Plugs	Plugs	Plugs	Plugs	Plugs	Plugs	Plugs	Receptacles	Receptacles	Receptacles
Number of Positions	3p3w	3p4w	3p4w	2p3w	4p4w	4p4w	3p4w	4p4w	4p4w	4p4w
Contact Gender	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Socket (Female)	Socket (Female)	Socket (Female)
Shell Material	Anodic	Anodic	Anodic	Anodic	Anodic	Anodic	Anodic	Anodic	Anodic	Anodic
Current Rating	30 A	30 A	200 A	30 A	150 A	100 A	60 A	60 A	150 A	100 A
Wire Gauge	14 AWG - 10 AWG	14 AWG - 10 AWG	2/0-4/0	14 AWG - 10 AWG	2-1/0	2-1/0	8 AWG - 4 AWG	8 AWG - 4 AWG	2-1/0	2-1/0
