3406UFA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 3406UFA

3406UFA: DescriptionBridge Rectifier Diode, 3 Phase, 18A, 600V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size182KB，2 Pages; ManufacturerVOLTAGE MULTIPLIERS INC.; Websitehttp://www.voltagemultipliers.com/

Download Datasheet Parametric Compare View All

3406UFA Overview

Bridge Rectifier Diode, 3 Phase, 18A, 600V V(RRM), Silicon,

3406UFA Parametric

Parameter Name	Attribute value
package instruction	R-XUFM-D5
Reach Compliance Code	compliant
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	2 V
JESD-30 code	R-XUFM-D5
Maximum non-repetitive peak forward current	100 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Maximum output current	18 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

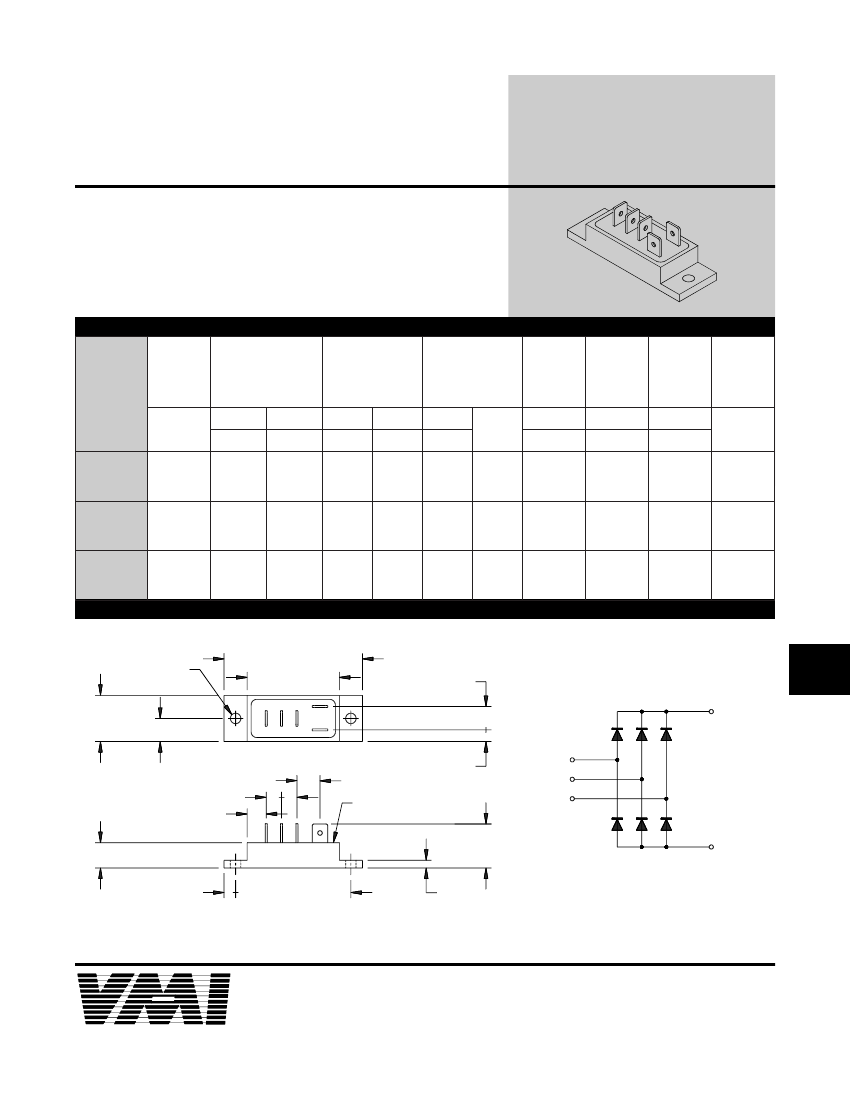

200 V - 1,000 V Three Phase Bridge

18.0 A - 20.0 A Forward Current

70 ns - 3000 ns Recovery Time

3402A - 3410A

3402FA - 3410FA

3402UFA - 3410UFA

ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS

Part Number

Working

Reverse

Voltage

(Vrwm)

Average

Rectified

Current

@TC

(Io)

55°C

Volts

3402A

3406A

3410A

3402FA

3406FA

3410FA

3402UFA

3406UFA

3410UFA

Amps

100°C

Amps

Reverse

Current

@ Vrwm

(Ir)

25°C

µA

100°C

µA

25°C

Volts

Amps

Forward

Voltage

1 Cycle

Surge

Current

tp=8.3ms

(Ifsm)

25°C

Amps

Repetitive

Surge

Current

(Ifrm)

25°C

Amps

Reverse

Recovery

Time

(1)

(Trr)

25°C

°C / W

Thermal

Impd.

(Vf)

J-C

200

600

1000

200

600

1000

200

600

1000

20.0

18.0

13.0

12.5

12.0

1.0

1.2

1.5

1.7

2.0

9.0

150

100

3000

150

2.2

(1)Trr Testing: If=0.5A, Ir=1.0A, Irr=0.25A *Op. Temp. & Stg. Temp. = -55°C to +150°C Isolation Voltage: 2000V

.169(4.29)

Thru (2 PL)

.75

(19.05) .375(9.5)

2.25(57.2)

1.50(38.1)

.38(9.7)

.19(4.8)

.375(9.5)

.25(6.4) (2 PL)

.31(7.9)

.41(10.4)

.187(4.8)

AC AC AC

Aluminum Case

.82(20.8)

MAX.

.125

(3.2)

1.875(47.6)

Dimensions: In. (mm) • All temperatures are ambient unless otherwise noted. • Data subject to change without notice.

VOLTAGE MULTIPLIERS INC.

8711 W. Roosevelt Ave.

Visalia, CA 93291

TEL

559-651-1402

FAX

559-651-0740

www.voltagemultipliers.com

257

3406UFA Related Products

	3406UFA	3402UFA	3406FA	3410FA	3410UFA
Description	Bridge Rectifier Diode, 3 Phase, 18A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 18A, 200V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 20A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 20A, 1000V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 18A, 1000V V(RRM), Silicon,
package instruction	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	2 V	2 V	1.5 V	1.7 V	2 V
JESD-30 code	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5
Maximum non-repetitive peak forward current	100 A	100 A	100 A	100 A	100 A
Number of components	6	6	6	6	6
Phase	3	3	3	3	3
Number of terminals	5	5	5	5	5
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	18 A	18 A	20 A	20 A	18 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	200 V	600 V	1000 V	1000 V
surface mount	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	1	1
