47725-1310 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 47725-1310

47725-1310: DescriptionAutomotive Connectors MX150 .138" PLG 02X06P A BLK; CategoryThe connector; File Size32KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

47725-1310 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	47725-1310	-	-	View	Buy Now

47725-1310 Overview

Automotive Connectors MX150 .138" PLG 02X06P A BLK

47725-1310 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Automotive Connectors
RoHS	Details
Product	Connectors
Number of Positions	12 Position
Gender	Male
Mounting Style	Panel
Termination Style	Crimp
Application	Wire to Wire
Color	Black
Current Rating	22 A
Description/Function	Sealed connector system
Number of Rows	2 Row
Packaging	Bulk
Type	Plug
Pitch	3.5 mm
Factory Pack Quantity	210

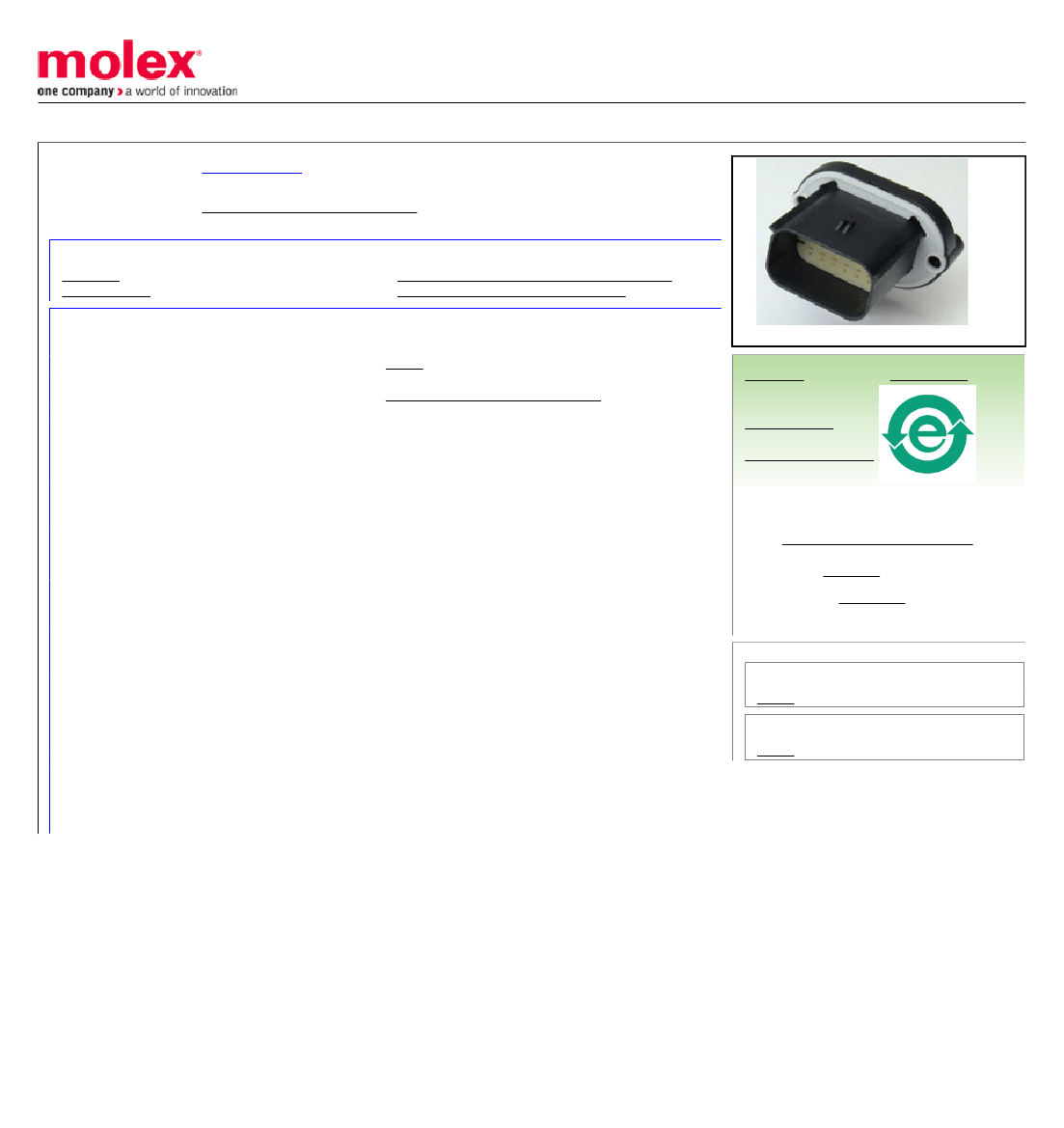

Preview

Download Datasheet

View All

This document was generated on 06/20/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

47725-1310

Active

MX150™ Sealed Connector System

MX150™ Male 2x6 Panel Mount Connector, Key Option A, Black

Application Specification AS-47725-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Crimp Housings

47725

Power, Wire-to-Wire

MX150™ Sealed Connector System

MX150™

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Reviewed

China RoHS

General

Product Family

Series

Application

Overview

Product Name

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Temperature Range - Operating

Black

Male

Yes

Bag

Yes

3.50mm

Yes

-40°C to +125°C

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Electrical

Current - Maximum per Contact

22A

Search Parts in this Series

47725Series

Mates With

33472 MX150™ Sealed Female Connector

Material Info

UPC

883906945916

Reference - Drawing Numbers

Application Specification

Sales Drawing

AS-47725-001

SD-47725-130

This document was generated on 06/20/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
