3402UFB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 3402UFB

Preview

3402UFB: DescriptionBridge Rectifier Diode, 3 Phase, 18A, 200V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size249KB，2 Pages; ManufacturerVOLTAGE MULTIPLIERS INC.; Websitehttp://www.voltagemultipliers.com/

Download Datasheet Parametric Compare View All

3402UFB Overview

Bridge Rectifier Diode, 3 Phase, 18A, 200V V(RRM), Silicon,

3402UFB Parametric

Parameter Name	Attribute value
package instruction	R-XUFM-X5
Reach Compliance Code	compliant
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	2 V
JESD-30 code	R-XUFM-X5
Maximum non-repetitive peak forward current	100 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Maximum output current	18 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

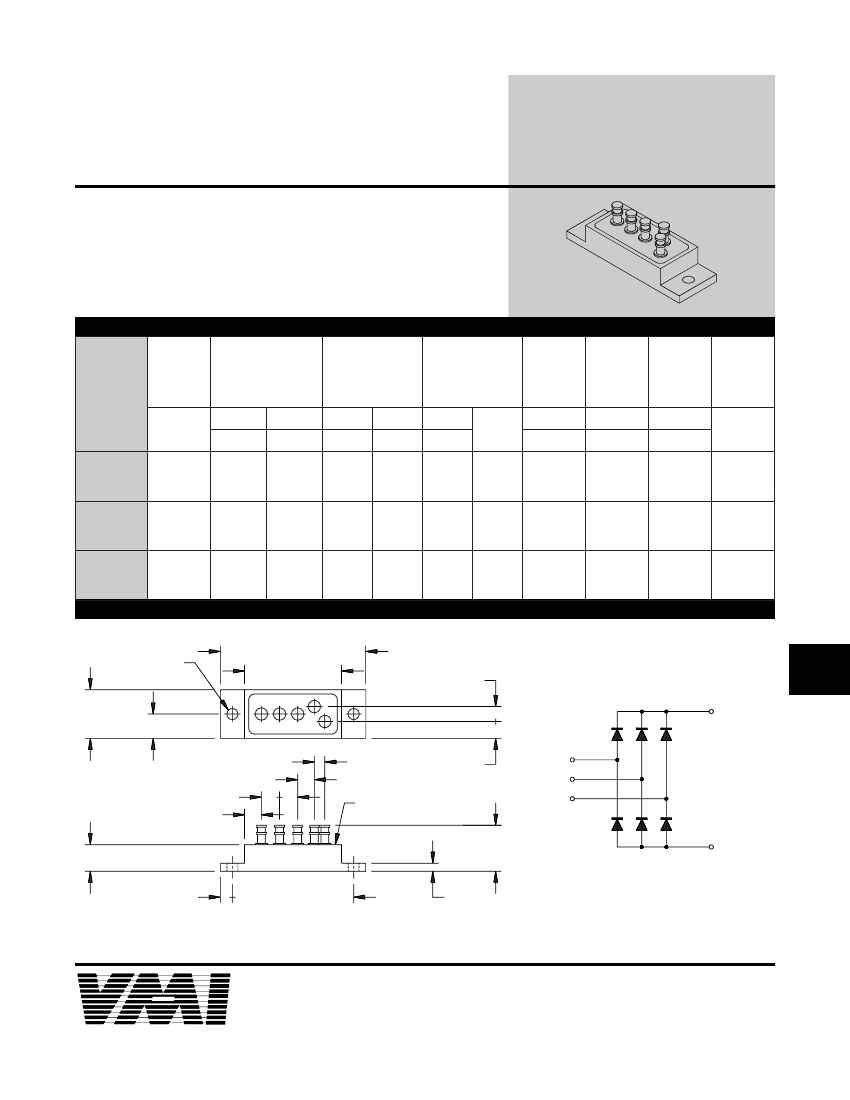

200 V - 1,000 V Three Phase Bridge

18.0 A - 20.0 A Forward Current

70 ns - 3000 ns Recovery Time

3402B - 3410B

3402FB - 3410FB

3402UFB - 3410UFB

ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS

Part Number

Working

Reverse

Voltage

(Vrwm)

Average

Rectified

Current

@TC

(Io)

55°C

Volts

3402B

3406B

3410B

3402FB

3406FB

3410FB

3402UFB

3406UFB

3410UFB

Amps

100°C

Amps

Reverse

Current

@ Vrwm

(Ir)

25°C

µA

100°C

µA

25°C

Volts

Amps

Forward

Voltage

1 Cycle

Surge

Current

tp=8.3ms

(Ifsm)

25°C

Amps

Repetitive

Surge

Current

(Ifrm)

25°C

Amps

Reverse

Recovery

Time

(1)

(Trr)

25°C

ns

°C / W

Thermal

Impd.

(Vf)

u

J-C

200

600

1000

200

600

1000

200

600

1000

20.0

18.0

13.0

12.5

12.0

1.0

25

1.2

1.5

1.7

2.0

9.0

150

100

25

20

3000

150

70

2.2

(1)Trr Testing: If=0.5A, Ir=1.0A, Irr=0.25A *Op. Temp. & Stg. Temp. = -55°C to +150°C Isolation Voltage: 2000V

.169(4.29)

Thru (2 PL)

.75

(19.05) .375(9.5)

2.25(57.2)

1.50(38.1)

_

.23(5.84)

+

11

AC

_

.257(6.53)

.281(7.14) (2 PL)

.26(6.60)

.41(10.4)

.187(4.8)

AC

.163

(4.14)

.26(6.60)

Aluminum Case

.82(20.8)

MAX.

.125

(3.2)

+

1.875(47.6)

Dimensions: In. (mm) • All temperatures are ambient unless otherwise noted. • Data subject to change without notice.

VOLTAGE MULTIPLIERS INC.

8711 W. Roosevelt Ave.

Visalia, CA 93291

TEL

559-651-1402

FAX

559-651-0740

www.voltagemultipliers.com

259

3402UFB Related Products

	3402UFB	3406UFB	GUB-GL0ALF-02-6340-F-A	GUB-GL0ALF-02-6340-F-C	3402FB	3406FB
Description	Bridge Rectifier Diode, 3 Phase, 18A, 200V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 18A, 600V V(RRM), Silicon,	Array/Network Resistor, Isolated, Thin Film, 0.16W, 634ohm, 1% +/-Tol, -50,50ppm/Cel, 5030,	Array/Network Resistor, Isolated, Thin Film, 0.16W, 634ohm, 1% +/-Tol, -50,50ppm/Cel, 5030,	Bridge Rectifier Diode, 3 Phase, 20A, 200V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 20A, 600V V(RRM), Silicon,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Number of terminals	5	5	20	20	5	5
Maximum operating temperature	150 °C	150 °C	125 °C	125 °C	150 °C	150 °C
Package form	FLANGE MOUNT	FLANGE MOUNT	SMT	SMT	FLANGE MOUNT	FLANGE MOUNT
package instruction	R-XUFM-X5	R-XUFM-X5	-	-	R-XUFM-X5	R-XUFM-X5
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	-	-	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON	-	-	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	2 V	2 V	-	-	1.5 V	1.5 V
JESD-30 code	R-XUFM-X5	R-XUFM-X5	-	-	R-XUFM-X5	R-XUFM-X5
Maximum non-repetitive peak forward current	100 A	100 A	-	-	100 A	100 A
Number of components	6	6	-	-	6	6
Phase	3	3	-	-	3	3
Maximum output current	18 A	18 A	-	-	20 A	20 A
Package body material	UNSPECIFIED	UNSPECIFIED	-	-	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Certification status	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	600 V	-	-	200 V	600 V
surface mount	NO	NO	-	-	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	-	-	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	-	-	UPPER	UPPER
Base Number Matches	1	1	-	-	1	1
