2962997: DescriptionTerminal Block Interface Modules UM 45-IB-DI/SIM8; CategoryThe connector; File Size54KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

2962997 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2962997	-	-	View	Buy Now

2962997 Overview

Terminal Block Interface Modules UM 45-IB-DI/SIM8

2962997 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	PHOENIX CONTACT
Product Category	Terminal Block Interface Modules
RoHS	Details
Product	Passive Interface Modules
Factory Pack Quantity	1
Unit Weight	1.855410 oz

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/2962997

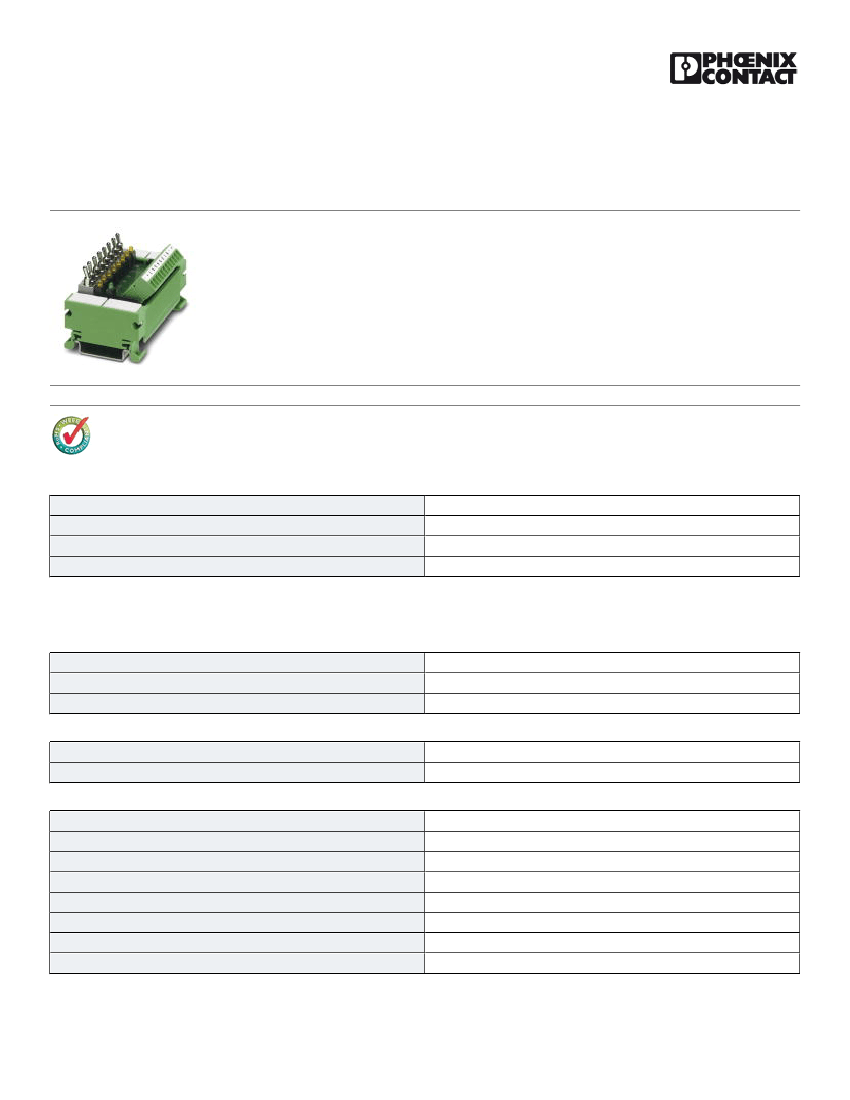

Interface module - UM 45-IB-DI/SIM8 - 2962997

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

VARIOFACE switch module, with COMBICON connector, for simulation, for 8 signals, for mounting DIN rail NS

35

Key Commercial Data

Packing unit

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 pc

87.5 g

85365019

Germany

Technical data

Dimensions

Width

Height

Depth

75 mm

45 mm

51 mm

Ambient conditions

Ambient temperature (operation)

Ambient temperature (storage/transport)

-20 °C ... 50 °C

-20 °C ... 70 °C

General

Max. perm. operating voltage

Max. perm. current (per branch)

Max. permissible current (all branches)

Mounting position

Assembly instructions

Degree of protection

Standards/regulations

Rated insulation voltage

30 V DC

50 mA

400 mA

any

In rows with zero spacing

IP00

DIN EN 50178

50 V

04/28/2016 Page 1 / 3
