3502UF datasheet, PDF - EEWORLD Datasheet

3502UF: DescriptionBridge Rectifier Diode, 3 Phase, 40A, 200V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size72KB，2 Pages; ManufacturerVOLTAGE MULTIPLIERS INC.; Websitehttp://www.voltagemultipliers.com/

Download Datasheet Parametric View All

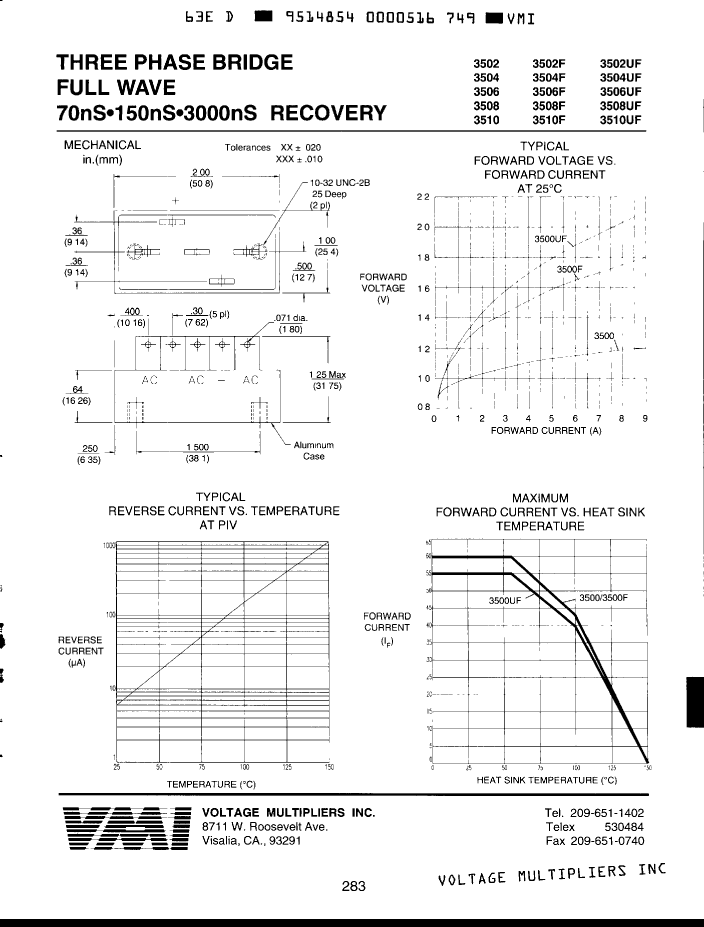

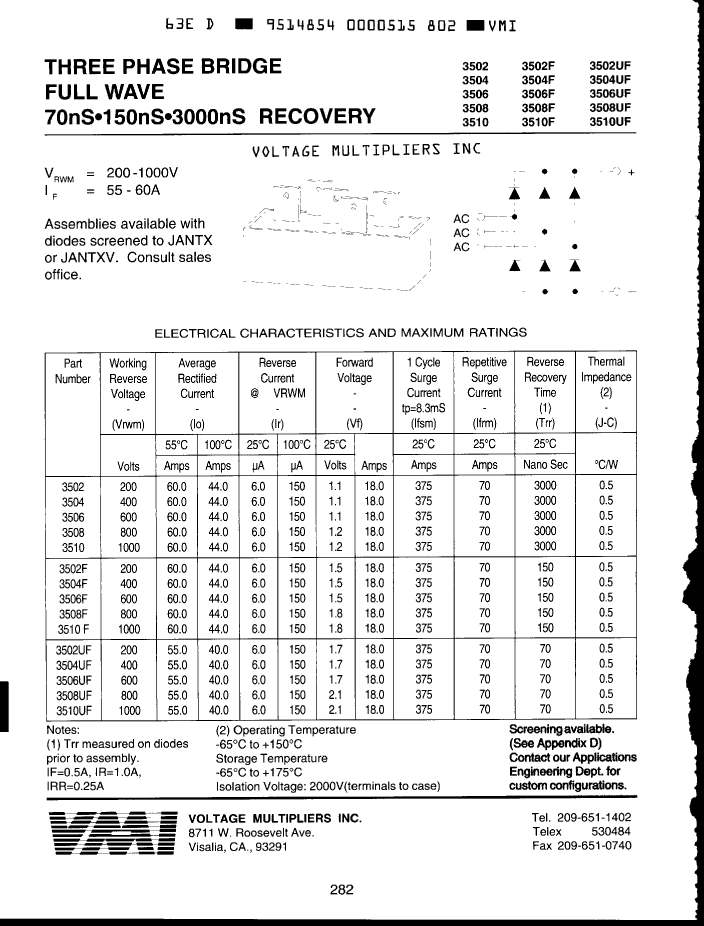

3502UF Overview

Bridge Rectifier Diode, 3 Phase, 40A, 200V V(RRM), Silicon

Parameter Name	Attribute value
package instruction	R-XUFM-D5
Reach Compliance Code	unknown
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JESD-30 code	R-XUFM-D5
Maximum non-repetitive peak forward current	375 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Maximum output current	40 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.07 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1
