Board 4s SKYPER™ 32 -

Technical Explanations

Evaluation Board 4s SKYPER™ 32

Technical Explanations

Revision 02

Status:

evaluation board

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------

This Technical Explanation is valid for the following parts:

part number

L6100160

Related documents:

title

Technical Explanations SKYPER™ 32

Prepared by: Markus Hermwille

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------

version

≥

Rev04

type

Board 4s SKYPER™ 32

date code (YYWW)

≥

0522

Content

Disclaimer................................................................................................................................................................ 2

Application and Handling Instructions...................................................................................................................... 3

Further application support...................................................................................................................................... 3

General Description................................................................................................................................................. 3

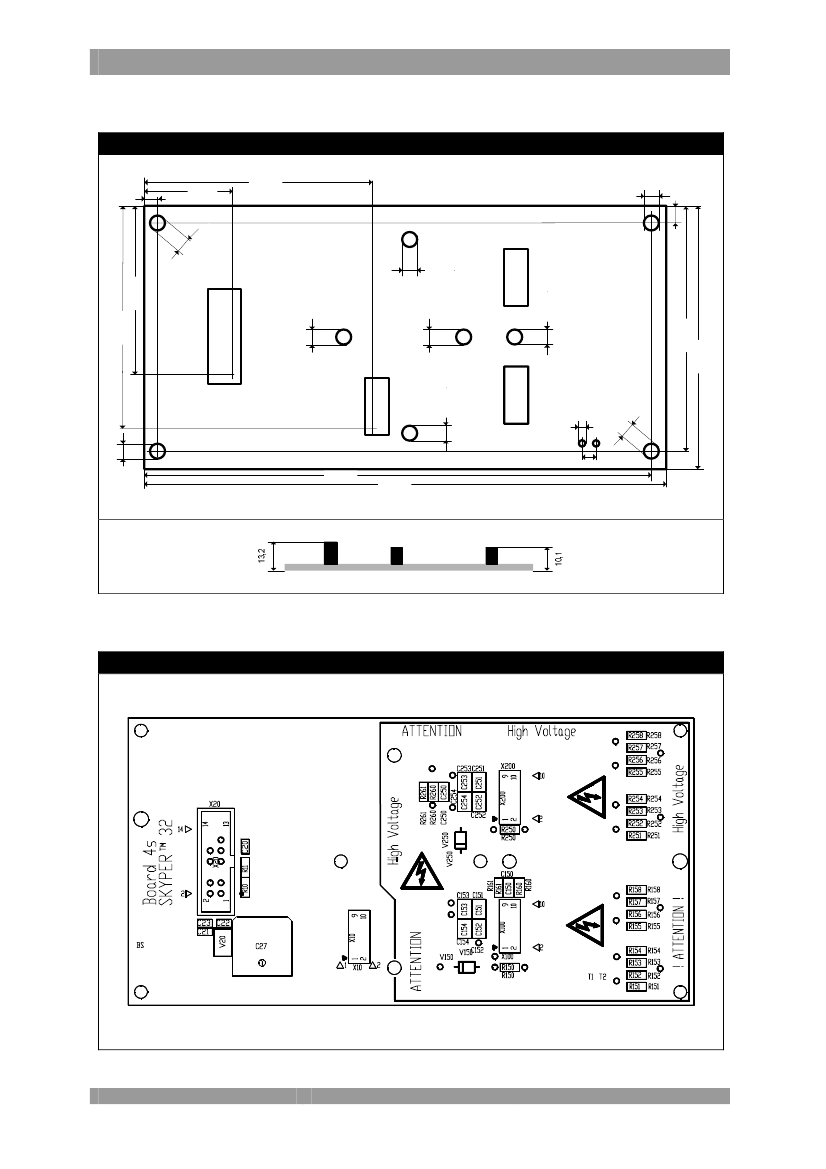

Dimensions.............................................................................................................................................................. 4

Component Placement Layout ................................................................................................................................ 4

PIN Array ................................................................................................................................................................. 5

Setting Dynamic Short Circuit Protection................................................................................................................. 6

Collector Series Resistance..................................................................................................................................... 6

Adaptation Gate Resistors....................................................................................................................................... 6

Boost Capacitors ..................................................................................................................................................... 7

Temperature Signal ................................................................................................................................................. 7

Mounting Notes ....................................................................................................................................................... 7

Schematics.............................................................................................................................................................. 8

Layouts.................................................................................................................................................................... 9

Parts List ................................................................................................................................................................. 9

Information furnished in this document is believed to be accurate and reliable. However, no representation or warranty is

given and no liability is assumed with respect to the accuracy or use of such information. Furthermore, this technical

information specifies semiconductor devices but promises no characteristics. No warranty or guarantee expressed or

implied is made regarding delivery, performance or suitability. Specifications mentioned in this document are subject to

change without notice. This document supersedes and replaces all information previously supplied and may be supersede

by updates.

1/9

2005-06-08 – Rev02

SEMIKRON

Board 4s SKYPER™ 32 -

Technical Explanations

Disclaimer

In accordance with SEMIKRON's quality procedures, we hereby notify you that the Evaluation Board 4s

SKYPER™ 32 should be considered as evaluation products only.

Evaluation products are experimental products and are therefore only intended for device evaluation. SEMIKRON

does not represent or guarantee that a final version will be made available after device evaluation. Evaluation

products are subject to the change service.

Although evaluation products have been manufactured using processes and procedures representative of final

production, they have not been subjected to all of our normal quality audits and controls. Additionally, neither the

product nor the manufacturing processes may have passed our internal qualification procedures.

IMPORTANT:

The evaluation boards are supplied without warranty of any kind, expressed, implied of statutory, including but

not limited to, any implied warranty of merchantability of fitness for a particular purpose. Credit or replacement

for evaluation products that fail to function will not be given nor will a failure analysis be performed. There is no

entitlement to technical support for evaluation products.

Claims for damages and reimbursement of expenses on the part of the undersigned customer shall be

excluded, regardless of the legal cause, especially claims in contract and in tort.

The liability exclusions shall not apply in cases of liability independent of the question of blame or negligence,

especially claims under the German Product Liability Act in cases of wilful intent, gross negligence, or injury to

life, limb or health and on account of a breach of major contractual obligations. Compensation for failure to

comply with major contractual obligations shall be limited, however, to typical, foreseeable damages, unless

wilful intent or gross negligence applies, or on account of liability for injury to life, limb or health. Any change in

the burden of proof to the detriment of the undersigned customer shall not be associated with the aforesaid

rulings

FOR SAFETY REASONS THE CUSTOMER IS NOT ALLOWED TO SELL EVALUATION PRODUCTS TO

ANY END CUSTOMER OR ANY OTHER THIRD PARTY.

If the customer fails not to sell the evaluation products to any end customer or any other third party, then the

customer shall indemnify SEMIKRON against all claims by the concerned end customer or third party in respect

of any loss, damage or injury arising from the aforesaid reason.

2/9

2005-06-08 – Rev02

SEMIKRON

Board 4s SKYPER™ 32 -

Technical Explanations

Please note:

All values in this technical explanation are typical values. Typical values are the average values expected in large

quantities and are provided for information purposes only. These values can and do vary in different applications. All

operating parameters should be validated by user’s technical experts for each application.

Application and Handling Instructions

Please provide for static discharge protection during handling. As long as the hybrid driver is not completely

assembled, the input terminals have to be short-circuited. Persons working with devices have to wear a

grounded bracelet. Any synthetic floor coverings must not be statically chargeable. Even during

transportation the input terminals have to be short-circuited using, for example, conductive rubber.

Worktables have to be grounded. The same safety requirements apply to MOSFET- and IGBT-modules.

Any parasitic inductances within the DC-link have to be minimised. Over-voltages may be absorbed by C- or

RCD-snubber networks between main terminals for PLUS and MINUS of the power module.

When first operating a newly developed circuit, SEMIKRON recommends to apply low collector voltage and

load current in the beginning and to increase these values gradually, observing the turn-off behaviour of the

free-wheeling diode and the turn-off voltage spikes generated across the IGBT. An oscillographic control will

be necessary. Additionally, the case temperature of the module has to be monitored. When the circuit works

correctly under rated operation conditions, short-circuit testing may be done, starting again with low collector

voltage.

It is important to feed any errors back to the control circuit and to switch off the device immediately in failure

events. Repeated turn-on of the IGBT into a short circuit with a high frequency may destroy the device.

The inputs of the hybrid driver are sensitive to over-voltage. Voltages higher than V

+0,3V or below -0,3V

may destroy these inputs. Therefore, control signal over-voltages exceeding the above values have to be

avoided.

The connecting leads between hybrid driver and the power module should be as short as possible (max.

20cm), the driver leads should be twisted.

Further application support

Latest information is available at

http://www.semikron.com.

For design support please read the SEMIKRON

Application Manual Power Modules available at

http://www.semikron.com.

General Description

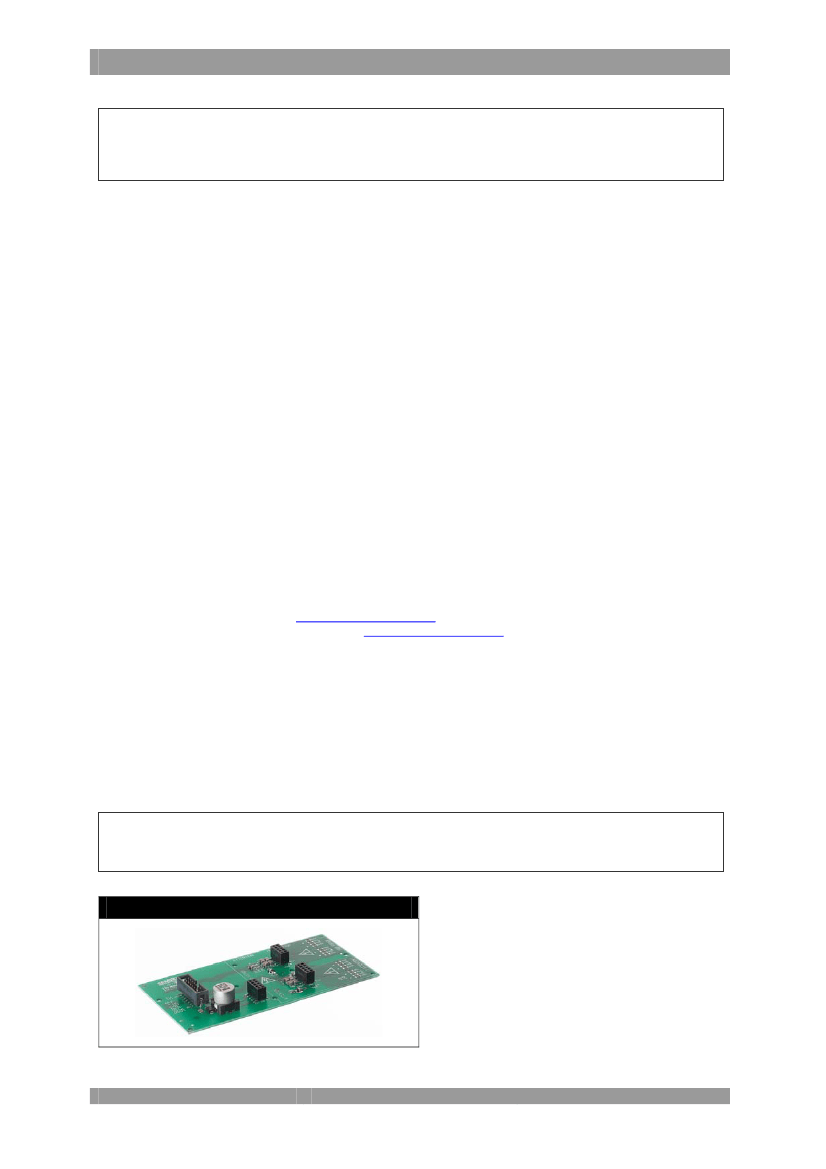

The Board 4s SKYPER™ 32 is an evaluation board for the IGBT module SEMiX 4s (spring contact version). The

board can be customized allowing adaptation and optimization to the used SEMiX Module.

The switching characteristic of the IGBT can be influenced through user settings, e.g. changing turn-on and turn-

off speed by variation of R

Gon

and R

Goff

. Furthermore, it is possible to adjust the monitoring level and blanking time

for the DSCP (see Technical Explanations SKYPER™ 32).

Please note:

This technical explanation is based on the Technical Explanations for SKYPER™ 32. Please read the Technical

Explanations SKYPER™ 32 before using the Evaluation Board.

Board 4s SKYPER™ 32

3/9

2005-06-08 – Rev02

SEMIKRON
