39726-0008: DescriptionPluggable Terminal Blocks 7.62MM EURO HDR VERT MTG ENDS 8C-GRN; CategoryThe connector; File Size131KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39726-0008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39726-0008	-	-	View	Buy Now

39726-0008 Overview

Pluggable Terminal Blocks 7.62MM EURO HDR VERT MTG ENDS 8C-GRN

39726-0008 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pluggable Terminal Blocks
RoHS	Not Applicable
Product	Headers
Number of Positions	8 Position
Pitch	7.62 mm
Factory Pack Quantity	1200

Preview

Download Datasheet

View All

10

9

8

7

6

5

4

3

2

1

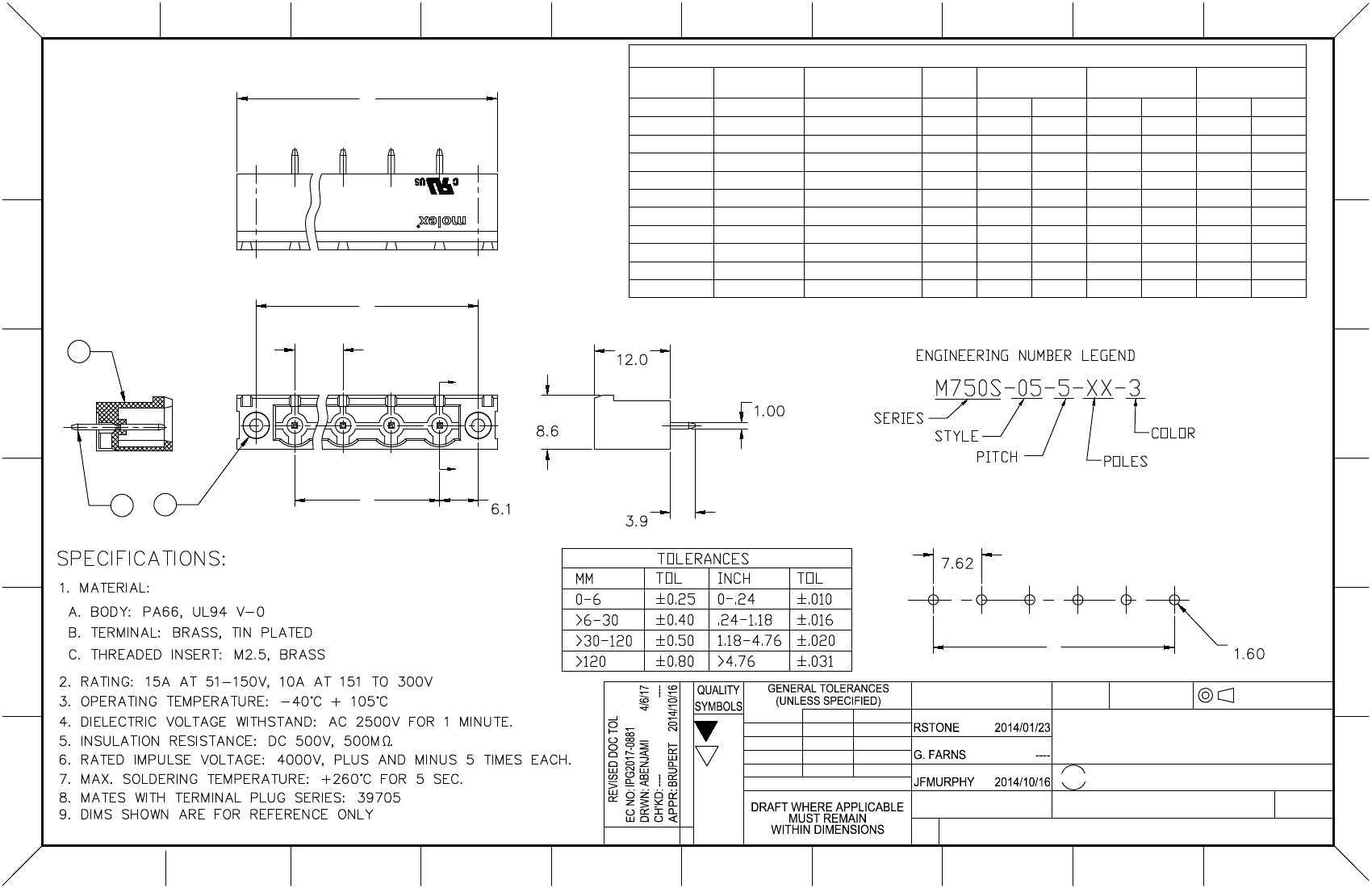

PART NUMBER DATA
