L6000 Overview

SINGLE CHIP READ & WRITE CHANNEL

L6000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	QFP
package instruction	10 X 10 MM, TQFP-64
Contacts	64
Reach Compliance Code	_compli
Interface integrated circuit type	READ CHANNEL
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	10 mm
Number of functions	1
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	FQFP
Encapsulate equivalent code	TQFP64,.47SQ
Package shape	SQUARE
Package form	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.85 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.3 V
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm

Preview

Download Datasheet

View All

L6000

SINGLE CHIP READ & WRITE CHANNEL

ADVANCE DATA

SUPPORTS 9-32Mbit/s DATA RATE OPERA-

TION IN RLL [1,7] CONSTRAINT

- Data Rate is Programmable

SUPPORTS ZONED BIT RECORDING AP-

PLICATIONS

LOW POWER OPERATION (500mW TYPI-

CAL @ 5V @ 32Mbits/Sec

PROVIDES PROGRAMMABILITY THROUGH

SERIAL MICROPROCESSOR INTERFACE

AND INTERNAL REGISTERS

- Bi-directional access to internal registers of

pulse detector, filter, servo demodulator,

frequency synthesizer and data separator.

PROGRAMMABLE POWER DOWN MODES

Full power-down mode (5mW max.)

POWER SUPPLY RANGE 4.3 to 5.5V

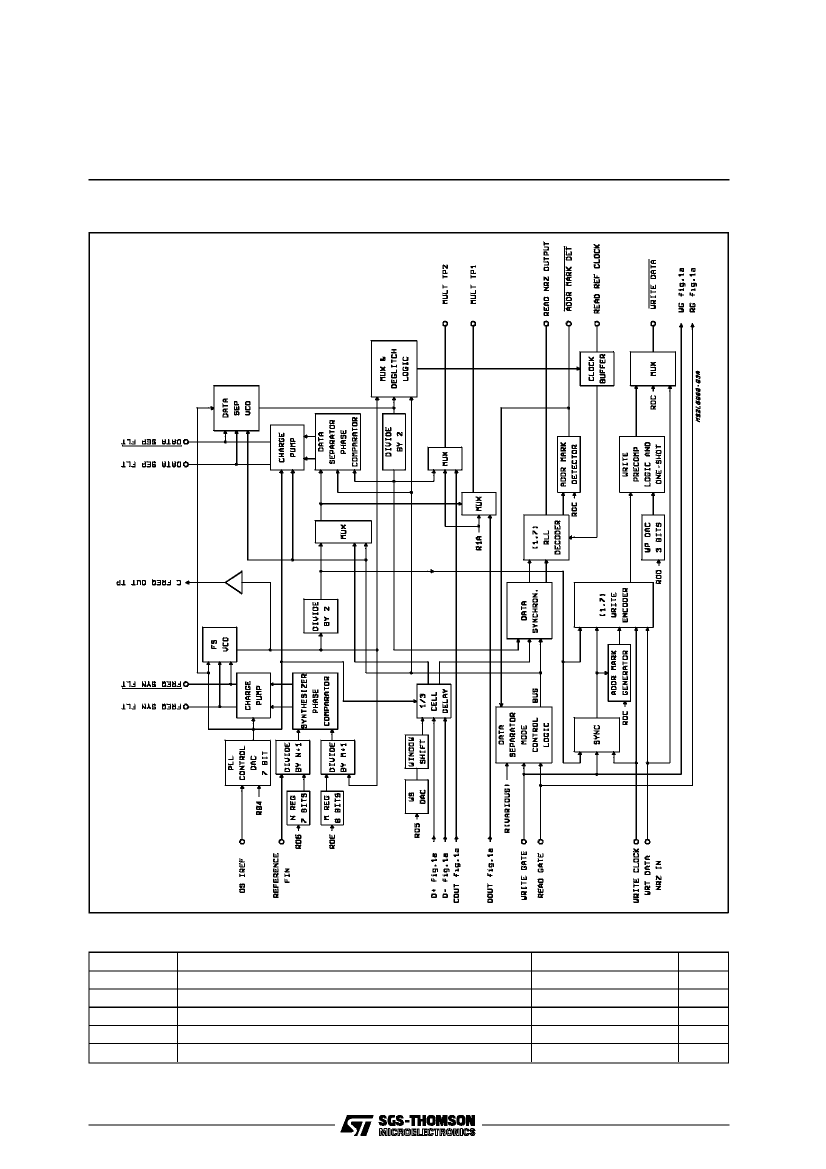

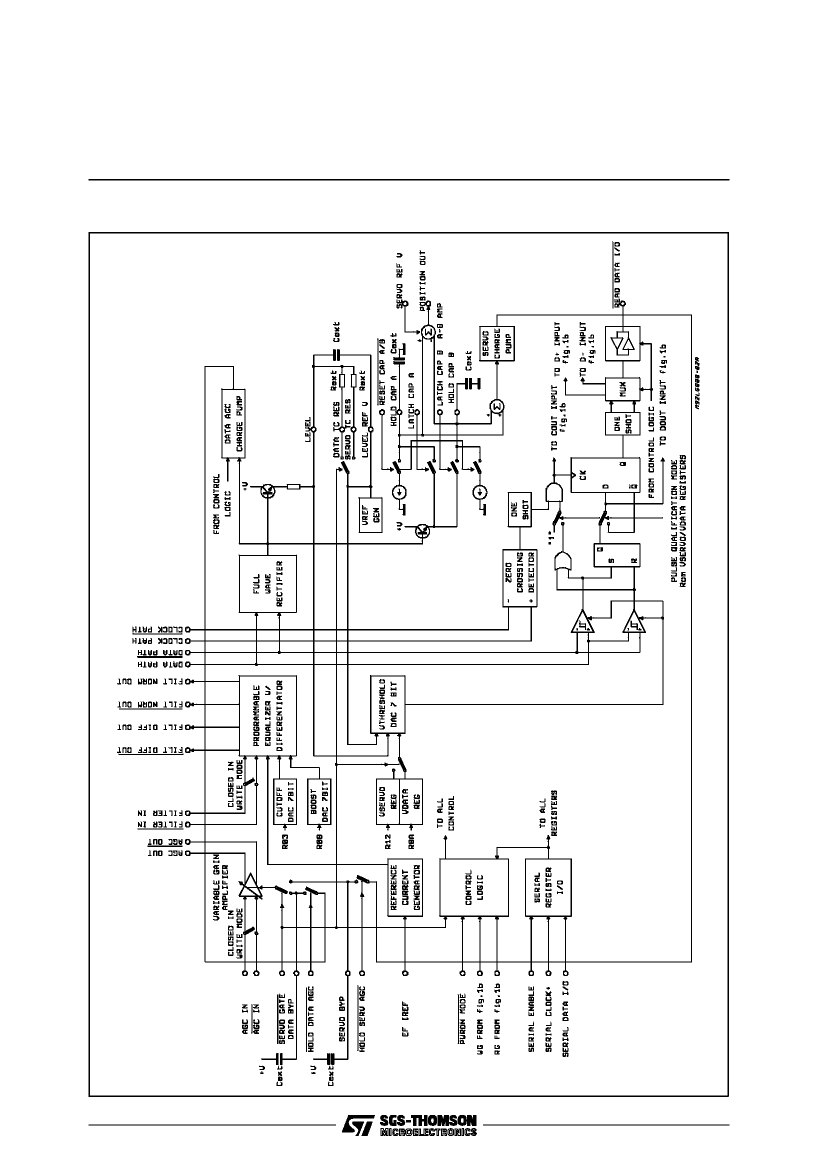

DESCRIPTION

The L6000 is a 5V single chip read channel IC. It

contains all the functions needed to implement a

high performance read channel including the

PIN CONNECTION

(Top view)

TQFP64

(10 x 10)

ORDERING NUMBER:

L6000

OPERATING TEMPERATURE:

0°C to 70°C

pulse detector, programmable active filter, servo

demodulator, frequency sinthesizer, and data

separator, at data rates up to 32 Mbit/s. A single

external resistor sets the reference current for the

internal DAC which, in turn, fixes the data rate.

This device is programmed through a serial port

and banks of internal registers. It is fully compat-

ible with zoned bit recording applications. Exter-

nal components do not need to be changed when

switching between zones. The L6000 is manufac-

tured using an advanced BiCMOS technology.

HOLD SRV AGC

RESET CAP A/B

SERVO TC RES

GND CORE DIG

GND DATA SEP

POSITION OUT

SERVO REF V

DATA TC RES

LATCH CAP A

LATCH CAP B

SERVO GATE

HOLD CAP A

HOLD CAP B

DAC TP OUT

SERVO BYP

LEVEL

LEVEL REF V

CLOC K PATH

DATA PATH

FI LT NORM OUT

FI LT DIFF OUT

VCC PULSE DET

FILT ER IN

PTAT R

AGC O UT

DATA SEP FLT

VCC DATA SEP

READ DATA I/O

ADDR MARK DET

READ REF CLOC K

WRIT E CLOC K

MULT T P1

MULT T P2

GND I/O

WRIT E DATA NR2 IN

READ NR2 O UTPUT

WRIT E DATA

VCC I/O

WRIT E GATE

READ GATE

SERIAL CLOCK +

GND PULSE DET

HOLD DATA AGC

REFERENCE FIN

GND FREO SYN

FREQ OUT TP

SERIAL DATA I/O

VCC FREQ SYN

VCC CORE DIG

FREQ SYN FLT

SERIAL ENABLE

FREQ SYN FLT

PWRDN MODE

DATA BYP

AGC IN

DS IREF

M92L6000-01

August 1993

1/24

This is advanced information on a new product now in development or undergoing evaluation. Details are subject to change without notice.
