Printed-circuit board connector - PC 5/ 3-ST1-7,62
BKCP1,2BDWH - 1798663
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 41 A, Rated voltage (III/2): 1000 V, Number of positions: 3, Pitch: 7.62 mm,
Connection method: Screw connection with tension sleeve, Color: black, Contact surface: Tin
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356747325
85366990
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Length
Height
Pitch
Dimension a
35.5 mm
19.7 mm
7.62 mm
15.24 mm
General
Range of articles
Type of contact
Number of positions
Connection method
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Nominal current I
N
Nominal cross section
Insulating material
Flammability rating according to UL 94
PC 5/..-ST1
Female connector
3
Screw connection with tension sleeve
8 kV
8 kV
6 kV
1000 V
1000 V
1000 V
41 A
6 mm²
PA
V0
11/14/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1798663
Printed-circuit board connector - PC 5/ 3-ST1-7,62
BKCP1,2BDWH - 1798663
Technical data
General
Internal cylindrical gage
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
Note
A4
10 mm
M3
0.5 Nm
0.8 Nm
Tightening torque ≤ 4 mm² is 0.5 Nm to 0.6 Nm,> 4 mm² is 0.7 Nm to 0.8
Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.2 mm²
10 mm²
0.2 mm²
6 mm²
0.25 mm²
0.25 mm²
4 mm²
24
10
0.2 mm²
2.5 mm²
0.2 mm²
4 mm²
0.25 mm²
1.5 mm²
0.25 mm²
2.5 mm²
24
8
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
11/14/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1798663
Printed-circuit board connector - PC 5/ 3-ST1-7,62
BKCP1,2BDWH - 1798663

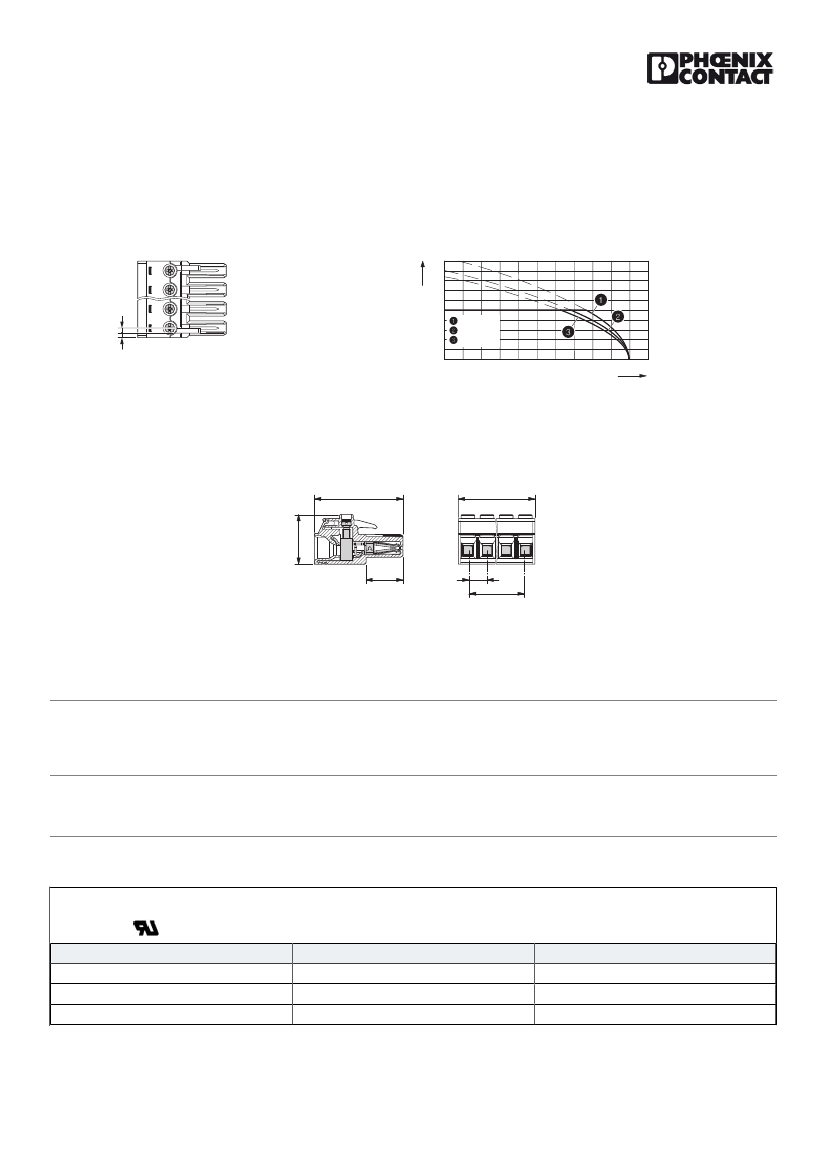

Drawings
Dimensional drawing
40
36
32
28
24
20
16
12
8
4
0
0
Current strength [A]
Diagram
2
= 2-pos.
= 5-pos.
= 12-pos.
10
20
30
40
50
60
70
80
90 100 110
1,785
Ambient temperature [°C]
Type: PC 5/...-ST1-7,62 with PCVK 4-7,62
Dimensional drawing
35,3
a+7,57
19,7
14,7
7,62
a
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
24-8
41 A
600 V
C
24-8
41 A
600 V
11/14/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1798663
Printed-circuit board connector - PC 5/ 3-ST1-7,62
BKCP1,2BDWH - 1798663
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
24-8
41 A
600 V
C
24-8
41 A
600 V
EAC B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 4 / 4
