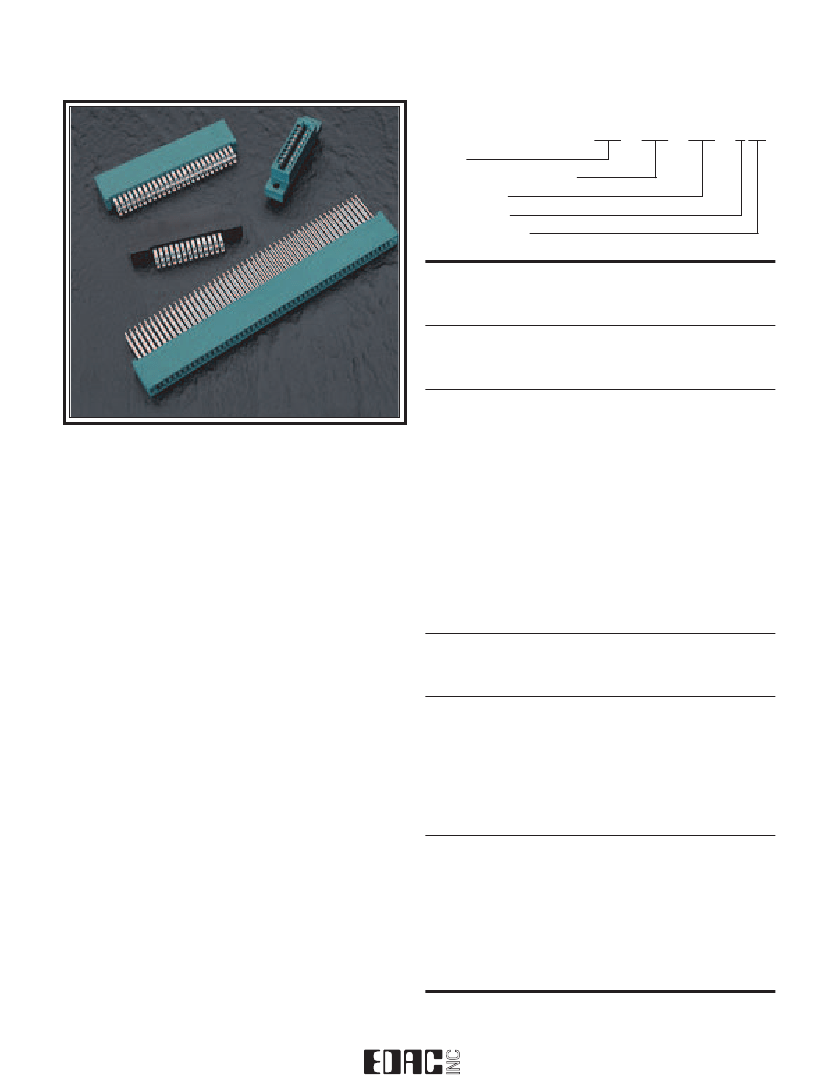

342/392 SERIES CARD EDGE CONNECTOR
.100" (2.54mm) Contact Spacing
Example Part Number 342 - 100 - 541 - 2 02
Series
Total Number of Contacts
Contact Code
Contact Rows
Mounting Options
Series
342
392
Total Number of Contacts
1
005, 006,...058
010, 012,...116
Insulator Colour
Green
Black
Contact Rows
Single Row
Dual Row
342/392 SERIES ORDERING CODE
UL Recognized
.100 (2.54) Contact Spacing x .200 (5.08) Row Spacing
Accepts .062 (1.57) Nominal Thickness P.C. Board
High Profile Insulator Body, .590 (14.99)
Contact Termination Options include P.C. Tail, Wire Hole,
Wire Wrap, 90 Degree & Extender Board Bends
●
Single or Dual Row Configurations
●
Variety of Mounting Options
●
Accepts Between Contact and In-Contact Polarizing Keys
●
Design based on Requirements of HE 901 Specification
●
●
●
●
●
FEATURES
Contact Code
2, 3
Description & Tail Size
Tail Length "G"
Wire Hole .050 x .025 (1.27 x 0.64)
.270 (6.86)
500
520
P.C. Tail .030 x .018 (0.76 x 0.46)
.185 (4.70)
P.C. Tail .025 Square (0.64 Square) .160 (4.06)
521
P.C. Tail .025 Square (0.64 Square) .400 (10.16)
523
524
P.C. Tail .018 Square (0.46 Square) .185 (4.70)
Wire Wrap .025 Square (0.64 Square) .570 (14.48)
540
541
Wire Wrap .025 Square (0.64 Square) .760 (19.30)
Wire Wrap .025 Square (0.64 Square) .655 (16.64)
542
Wire Wrap .050 x .025 (1.27 x 0.64)
.760 (19.30)
544
555
Extender Board Bend (Code 500 Contacts)
Extender Board Bend (Code 520 Contacts)
556
90 Degree Bend (Code 541 Contacts)
558
90 Degree Bend (Code 541 Contacts)
559
Extender Board Bend (Code 523 Contacts)
560
Contact Rows
1
2
Mounting Options
4
01
02
03
04
07
08
12
Description
Single Row
Dual Row
Description
No Mounting Lugs
.128 (3.25) Wide Mounting Slots
.116 (2.95) I.D. Floating Eyelets
.156 (3.96) Dia. Mounting Holes
M3-0.5 Metric Threaded Inserts
#4-40 Unified Threaded Inserts
.128 (3.25) Dia. Side Mounting Holes
◆
Insulator Material: Thermoplastic Polyester, UL 94V-0
◆
Contact Material: Copper, Nickel, Tin Alloy CA-725
◆
Contact Plating: Gold on the Mating Area, Tin on the
Contact Tails, Nickel Underplate
◆
Current Rating: 3 Amperes Continuous
◆
Contact Resistance: 10 Milliohms Maximum
◆
Dielectric Withstanding Voltage: 1200 V AC rms at Sea Level
Between Adjacent Contacts
◆
Insulation Resistance: 5000 Megohms Minimum
◆
Operating Temperature: -65 to +105 Degrees C
◆
Insertion Force: 16 oz (4.45 N) Maximum per Contact Pair
when Tested with a .070 (1.78) Thick Gauge
◆
Withdrawal Force: 1 oz (0.28 N) Minimum per Contact Pair
when Tested with a .054 (1.37) Thick Gauge
SPECIFICATIONS
Ordering Code Notes
1) All connector sizes up to 58 contacts single row / 116
contacts dual row are available upon request.
2) The 500 contact code is only available in the 342 series.
Green polyphenylene sulphide insulator material will be
supplied.
3) For details of the extender board and 90 degree bends, refer
to page 66.
4) For details of the mounting options, refer to page 68.
Page 28
Tel: (416) 754 - 3322
CARD EDGE CONNECTOR SERIES 342/392
Contact Spacing .100" (2.54mm)
NUMBER OF CONTACTS
Single
5
10
13
15
18
22
25
30
31
35
36
43
50
58
Dual
10
20
26
30
36
44
50
60
62
70
72
86
100
116
Inch
1.300
1.800
2.100
2.300
2.600
3.000
3.300
3.800
3.900
4.300
4.400
5.100
5.800
6.600
"A"
(mm)
(33.02)
(45.72)
(53.34)
(58.42)
(66.04)
(76.20)
(83.82)
(96.52)
(99.06)
(109.22)
(111.76)
(129.54)
(147.32)
(167.64)
Inch
1.022
1.522
1.822
2.022
2.322
2.722
3.022
3.522
3.622
4.022
4.122
4.822
5.522
6.322
"B"
(mm)
(25.96)
(38.66)
(46.28)
(51.36)
(58.98)
(69.14)
(76.76)
(89.46)
(92.00)
(102.16)
(104.70)
(122.48)
(140.26)
(160.58)
Inch
.746
1.246
1.546
1.746
2.046
2.446
2.746
3.246
3.346
3.746
3.846
4.546
5.246
6.046
"C"
(mm)
(18.95)
(31.65)
(39.27)
(44.35)
(51.97)
(62.13)
(69.75)
(82.45)
(84.99)
(95.15)
(97.69)
(115.47)
(133.25)
(153.57)
Inch
.600
1.100
1.400
1.600
1.900
2.300
2.600
3.100
3.200
3.600
3.700
4.400
5.100
5.900
"D"
(mm)
(15.24)
(27.94)
(35.56)
(40.64)
(48.26)
(58.42)
(66.04)
(78.74)
(81.28)
(91.44)
(93.98)
(111.76)
(129.54)
(149.86)
Inch
.400
.900
1.200
1.400
1.700
2.100
2.400
2.900
3.000
3.400
3.500
4.200
4.900
5.700
"E"
(mm)
(10.16)
(22.86)
(30.48)
(35.56)
(43.18)
(53.34)
(60.96)
(73.66)
(76.20)
(86.36)
(88.90)
(106.68)
(124.46)
(144.78)
Dimensions of Other Connector Sizes are Listed on Page 72
Fax: (416) 754 - 3299
Page 29

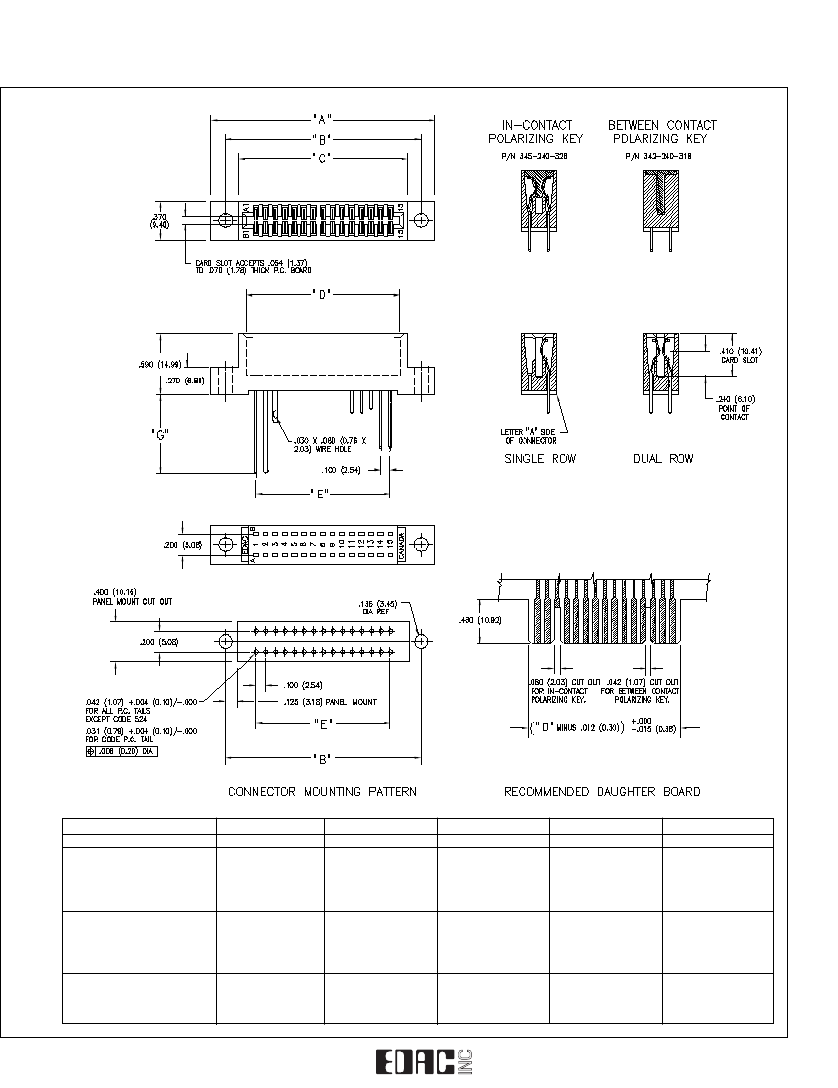

.100" (2.54mm) CONTACT SPACING CONNECTOR DIMENSIONS
325, 340, 341, 342, 345, 391, 392, 395, 745 Series Card Edge Connectors
