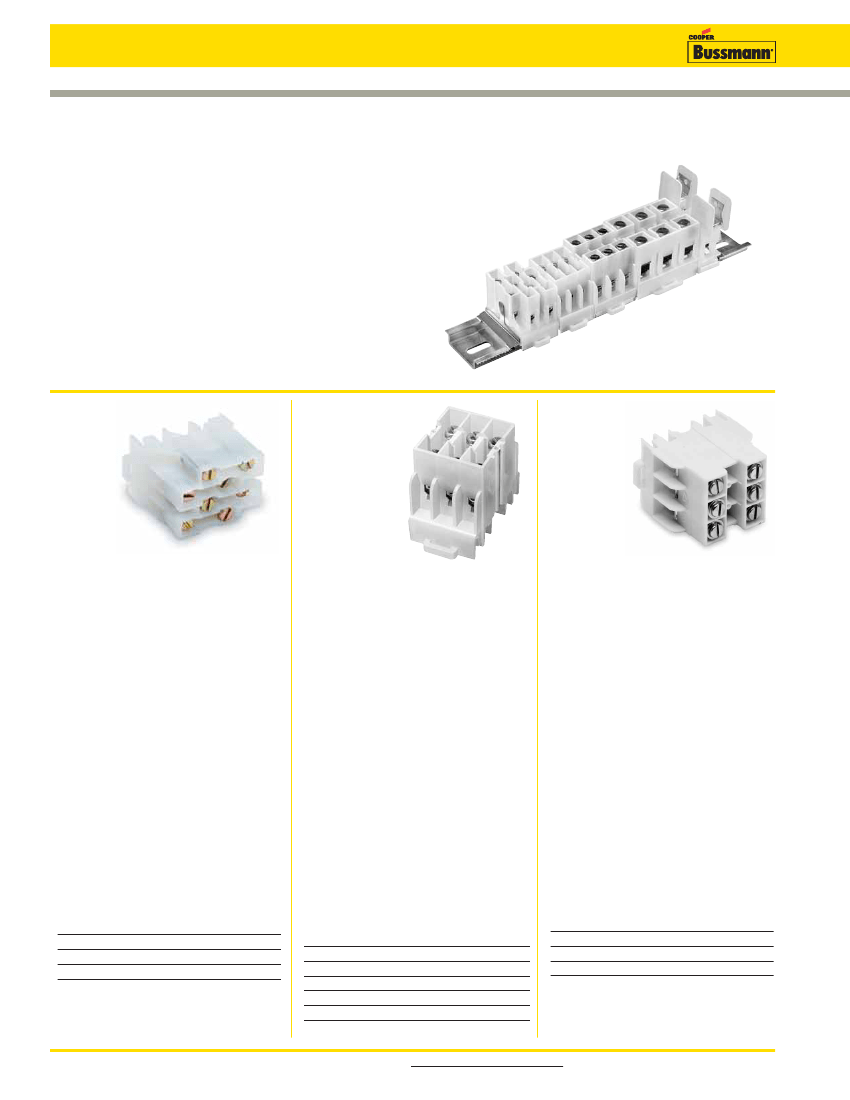

NDN Series
Specifications
Description:
High-density, snap-on 35mm DIN rail
compatible rail mount terminal blocks.
Construction:
Unique, impact resistant, one-piece
thermoplastic moldings. Heat treated stainless steel collars
(to secure wires). Tin-plated copper alloy terminals.
Zinc-plated steel screws.
Circuits Per Foot:
Up to 48 circuits per foot.
Agency Information:
CE, UL E62622; CSA LR15364.
Flammability Rating:
UL 94V2
NDNV4-__ __(color)
Specifications
Description:
Rail mount terminal
block.
Rating:
NDNV4 30A, 600V
Center Spacing:
0.25" (6.35mm)
Number of Poles:
4
Circuits Per Foot:
48
Circuit Jumper:
JN4, 4 circuits
Wire Range:
AWG #10-22 CU
Screw Size:
#6-32
Mounting Options:
35mm DIN rail,
C-rail
Marking Tape:
MTC6
Torque Rating:
18 lb-in
Operating Temperature:
105°C
Agency Information:
UL File E62622,
CSA File 15364.
Catalog Numbers
Catalog
Numbers
NDNV4-WH
NDNV4-BK
NDNV4-YE
Colors
White (Standard)
Black
Yellow
NDN3-__ __(color)
Specifications
Description:
Rail mount terminal
block.
Rating:
30A - field wiring: 40A -
factory wiring 600V
Center Spacing:
0.300" (7.62mm)
Number of Poles:
3
Circuits Per Foot:
38
Circuit Jumper:
JNDN3, 2 circuits
Wire Range:
AWG #10-22 CU
Screw Size:
#6-32
Mounting Options:
35mm DIN rail,
C-rail
Marking Tape:
MT12-1-2
Torque Rating:
18 lb-in
Operating Temperature:
105°C
Agency Information:
UL File E62622,
CSA File 15364.
Catalog Numbers
Catalog
Numbers
NDN3-WH
NDN3-BK
NDN3-BL
NDN3-RE
NDN3-YE
Colors
White (Standard)
Black
Blue
Red
Yellow
NDN63-__ __(color)
Specifications
Description:
Rail mount terminal
block.
Rating:
65A, 600V
Center Spacing:
0.375" (9.52mm)
Number of Poles:
3
Circuits Per Foot:
30
Circuit Jumper:
JN3, 2 circuits
Wire Range:
AWG #6-18 CU
Screw Size:
#10-32
Mounting Options:
35mm DIN rail,
C-rail
Marking Tape:
MT12-1-2
Torque Rating:
35 lb-in
Operating Temperature:
105°C
Agency Information:
UL File E62622,
CSA File 15364.
Catalog Numbers
Catalog
Numbers
NDN63-WH
NDN63-BK
NDN63-YE
Black
Yellow
Colors
White (Standard)
304
For more information, visit www.cooperbussmann.com

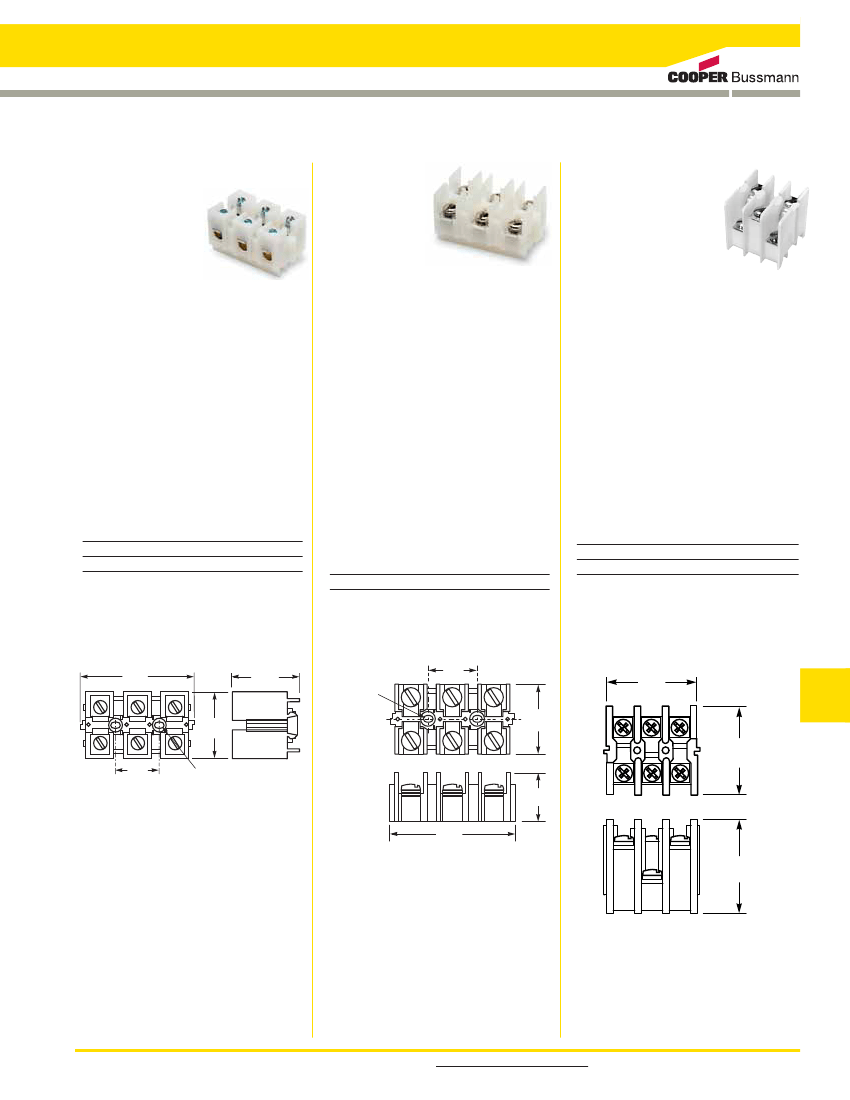

Connectors
Rail Mount Terminal Blocks
NDN1-WH
Specifications
Description:
Rail mount
terminal block.
Rating:
90A, 600V
Center Spacing:
0.635"
(16.13mm)
Number of Poles:
1
Circuits Per Foot:
18
Wire Range:
AWG #2-18 Cu
Screw Size:
#1/4-28
Mounting Options:
35mm DIN rail, C-rail
* Dove-tail option is available for mounting side-by-side.
Order part no. NDN1A-WH
Marking Tape:
MT12-1-2
Torque Rating:
32 lb-in
Operating Temperature:
105°C
Agency Information:
UL File E62622, CSA File 47235
Catalog Numbers
Catalog
Number
NDN1-WH
Color
White
NDN111-__ __(color)
Specifications
Description:
Rail mount terminal
block.
Rating:
90A, 600V
Center Spacing:
0.635" (16.13mm)
Number of Poles:
3
Circuits Per Foot:
18
Circuit Jumper:
JN1, 2 circuits
Wire Range:
AWG #2-18 Cu
Screw Size:
#1/4-28
Mounting Options:
35mm DIN rail, C-rail, Base Mount
* Dove-tail option is available for mounting side-by-side.
Order part no. NDN111-A
Marking Tape:
MT12-1-2
Torque Rating:
32 lb-in
Operating Temperature:
105°C
Agency Information:
UL File E62622, CSA File 47235
Catalog Numbers
Catalog
Numbers
NDN111-WH
NDN111-BK
NDN111-BL
NDN111-RE
NDN111-YE
NDN111A-WH
NDN111A-BK
NDN111A-YE
Colors
White (Standard)
Black
Blue
Red
Yellow
White
Black (Standard)
Yellow
Connectors

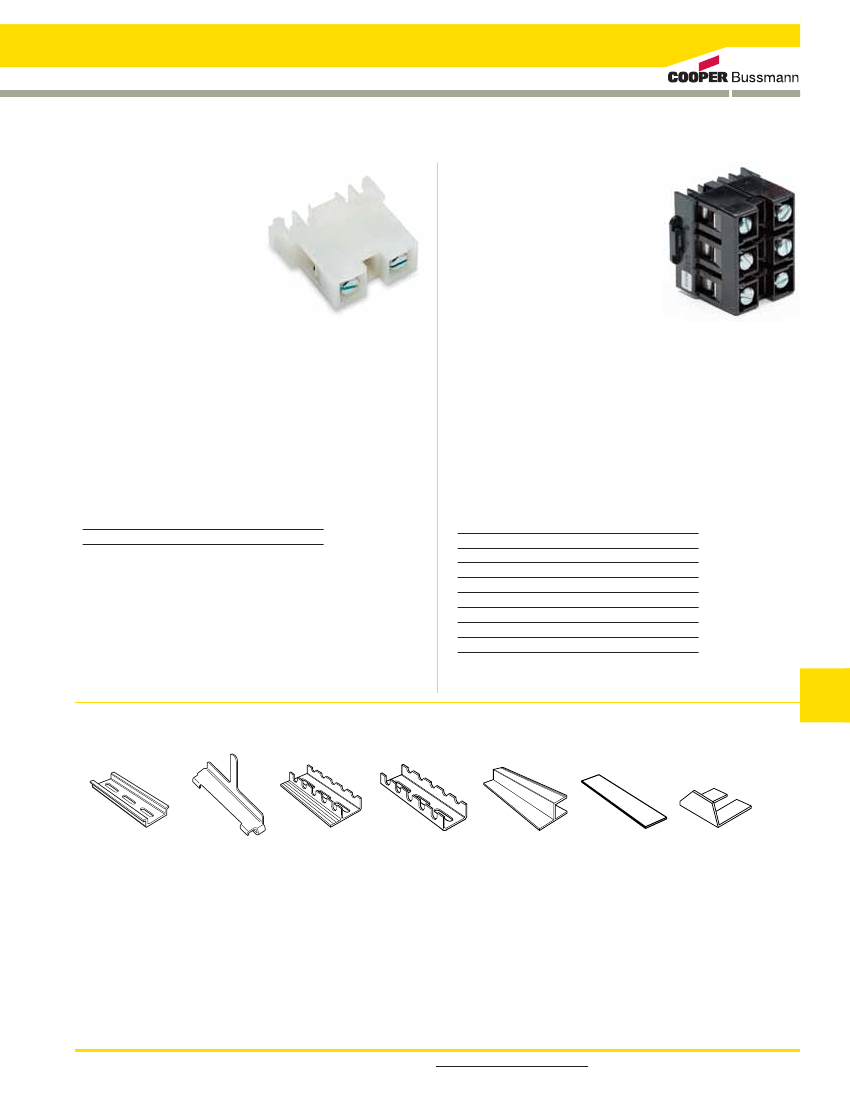

NDN Series Terminal Block Accessories
NDNA
35mm DIN Rail
Aluminum
NDNA 100
1 meter
NDNA 200
2 meters
NDNAS
35mm DIN Rail
End Stop
NFTA
C-Rail
Aluminum
Lengths to 72"
NRA
C-Rail
Low Profile
No Flange
Aluminum
Lengths to 37-1/2"
SOA72
72" Long
Stand-Off Channel
For C-Rail
MARKING
TAPE
See Series
Specifications
JUMPERS
See Series
Specifications
