53649-1074 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53649-1074

53649-1074: DescriptionBoard to Board & Mezzanine Connectors .635 PLUG SURFACE MNT 100 CKT; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

53649-1074 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53649-1074	-	-	View	Buy Now

53649-1074 Overview

Board to Board & Mezzanine Connectors .635 PLUG SURFACE MNT 100 CKT

53649-1074 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	EMBOSSED PACKAGING
Board mount options	PEG
body width	0.205 inch
subject depth	0.315 inch
body length	1.52 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	70 mΩ
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3
Plug contact pitch	0.025 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	100

Preview

Download Datasheet

View All

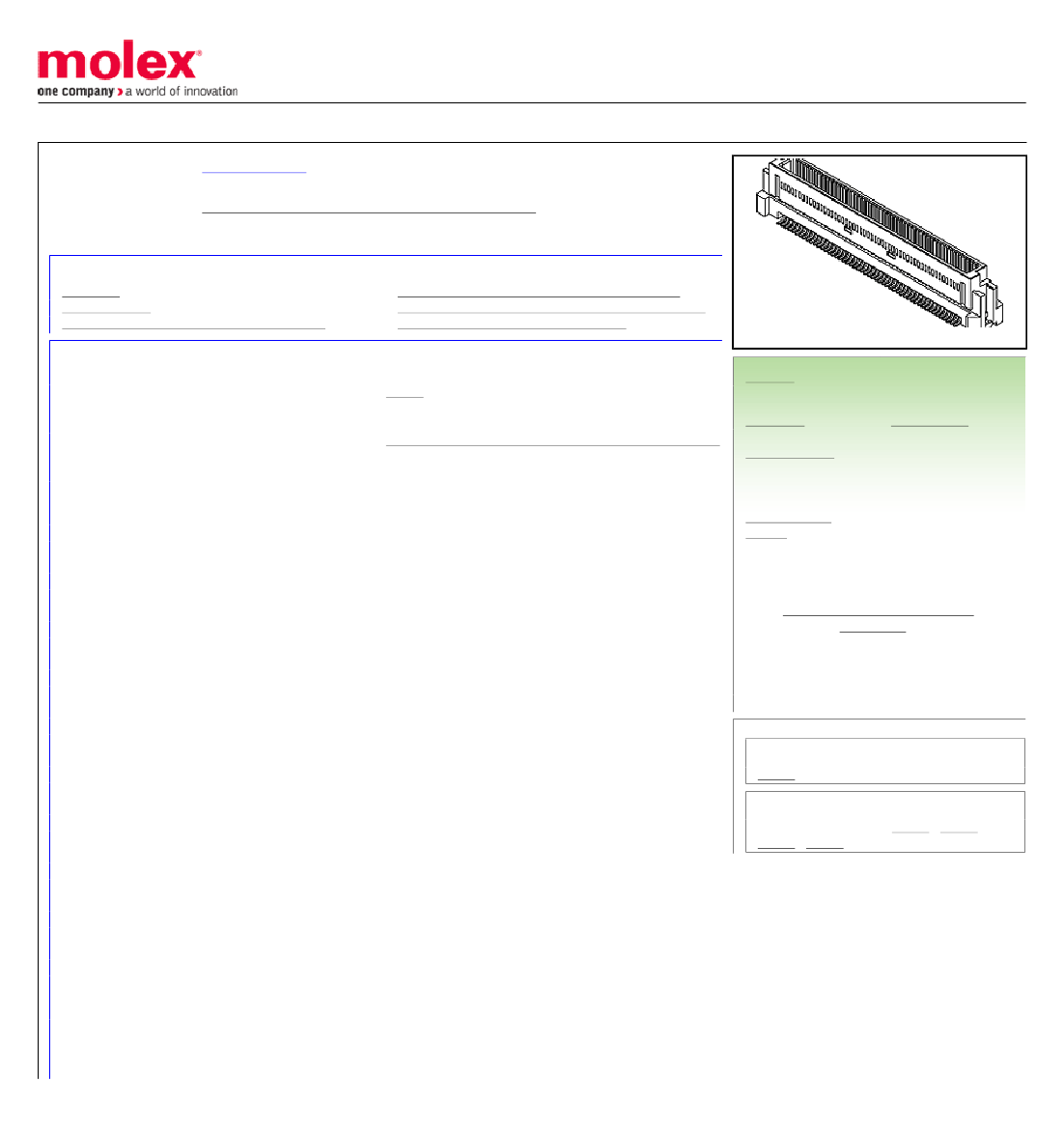

This document was generated on 01/09/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0536491074

Active

SlimStack™ 0.635mm Pitch Board-to-Board Connectors

0.635mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical Stacking, 9.00 and

15.00mm Stacking Heights, 100 Circuits, with Embossed Tape with Cover Packaging

Documents:

3D Model

Drawing (PDF)

Product Specification 527600000-000 (PDF)

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Robotic Placement

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Product Specification PS-52760-015-001 (PDF)

Packaging Specification SPK-53649-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Headers

53649

Board-to-Board, Signal

Stacking-Type

SlimStack™ 0.635mm Pitch Board-to-Board Connectors

SlimStack

822348184200

100

Natural

None

15.00mm, 9.00mm

Brass, Phosphor Bronze, Stainless Steel

Gold

Tin

High Temperature Thermoplastic

2004.901/mg

Vertical

Yes

Embossed Tape on Reel

0.64mm

0.254µm

2.032µm

Yes

Metal Cap

Fully

-55°C to +105°C

Surface Mount

0.5A

100V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

53649 Series

Mates With

SlimStack Receptacle 52760 , 52837 ,

52885 , 52901
