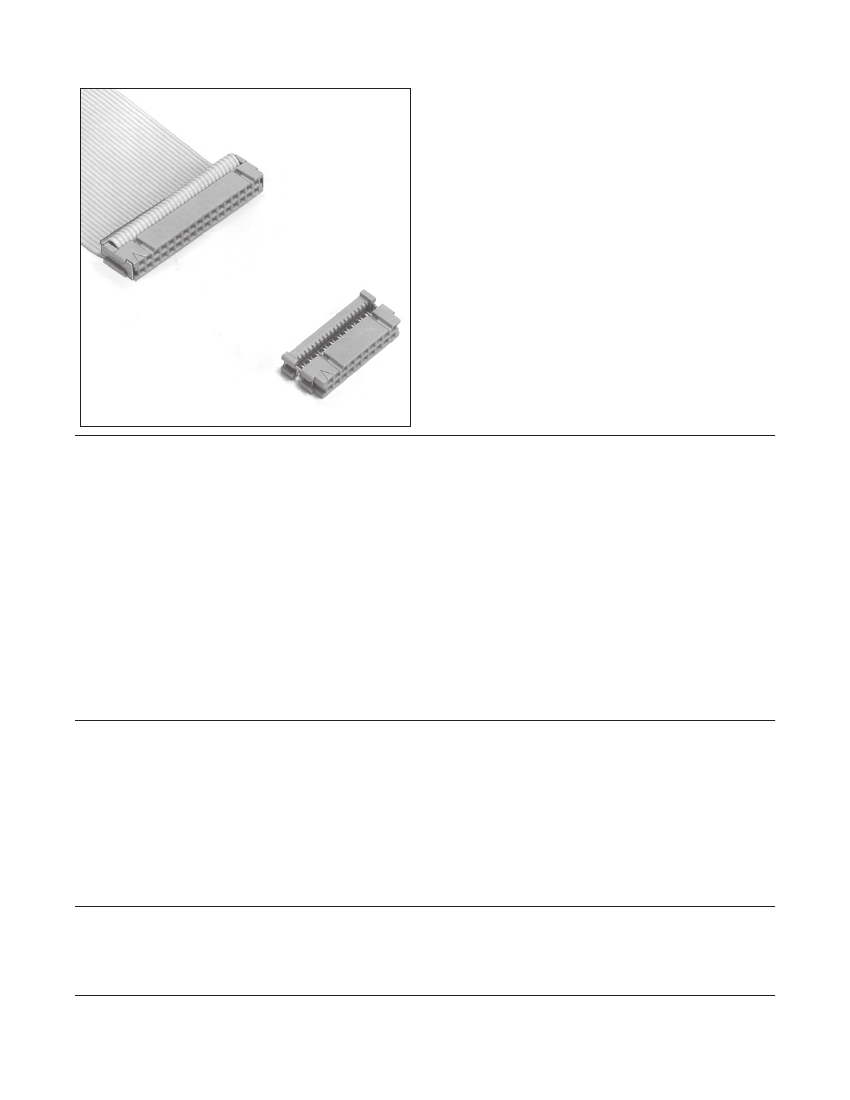

.100” × .100” .050” Pitch Cable (Optional Plastic or Metal Strain Relief)
•
•
•
•
•
•
•
•
•
•
3000 Series
Industry standard IDC socket
Optional plastic or low profile metal strain relief
Positive locking metal ‘‘J’’ clips provide high
cover retention
Mates with 3M headers, plugs and pin strips for
quick connect/disconnect capability
Open or closed end covers available
Accepts flat cable or discrete wire
Military polarization, with or without centerbump
Faster termination, lower applied cost and improved
productivity
• See the Regulatory Information Appendix (RIA) in the
“RoHS compliance” section of www.3mconnectors.com
for compliance information (RIA E1 & C1 apply)
Date Modified: May 1, 2012
TS-0719-E
Sheet 1 of 2
Physical
Insulation:
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact:
Material:
Copper Alloy
Plating:
Underplating and U-Slot: 100 μ” [ 2.54 μm ] Nickel - QQ-N-290, Class 2
Wiping Area: 30 μ” [ 0.76 μm ] Gold, MIL-G-45204, Type II, Grade C
Wire Accommodation: 26 and 28 AWG Solid and Stranded
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating:
26 AWG
28 AWG
1 Line
4.75
4.50
6 Adjacent Lines
2.00
1.75
All Lines
1.00
1.00
Rating Conditions: EIA-364-070 Method 2, 30°C maximum temperature rise, 20% derated.
Reference appropriate 3M Product Specification for detailed current derating curves.
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1,000 V
RMS
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Wiremount Socket Preassembled

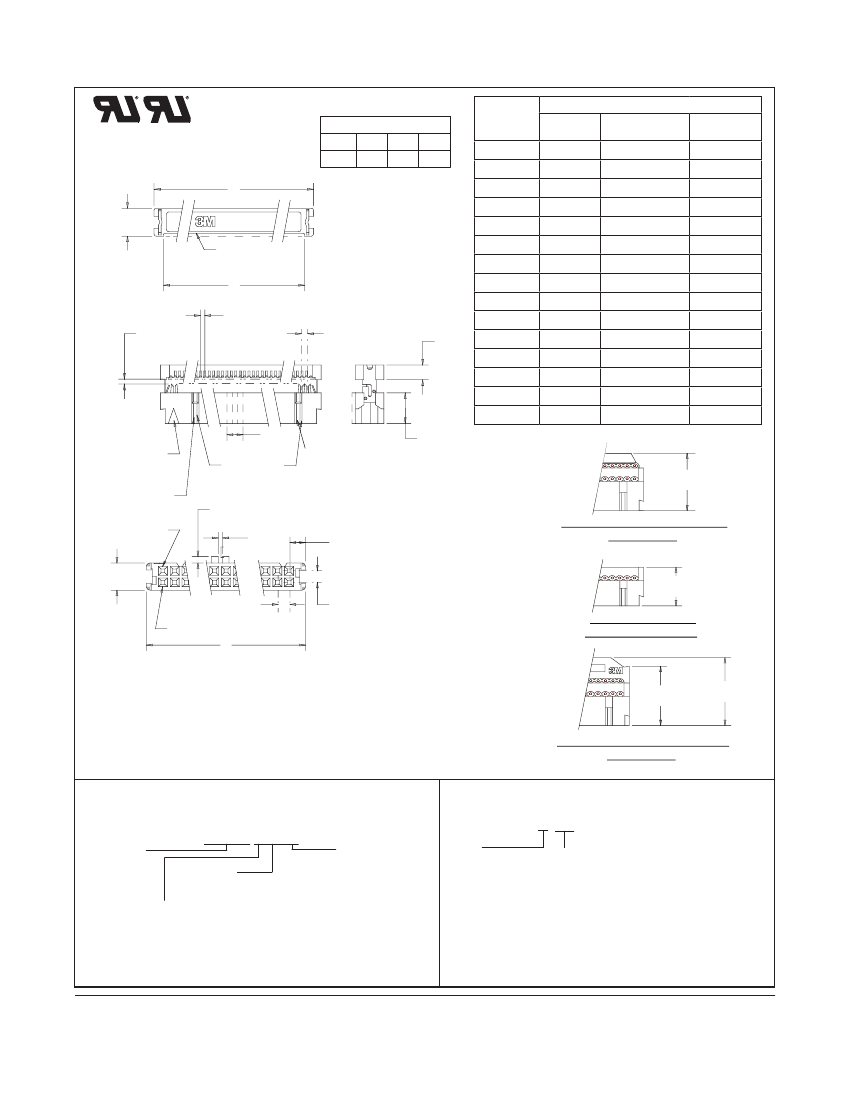

.100” × .100” .050” Pitch Cable (Optional Plastic or Metal Strain Relief)
C
Inch
(mm)
Tolerance Unless Noted
.0
Inch
A
.24
[ 6.1 ]
NO.3XXX
Recessed for Cable
Exit
B
.050 Typ
[ 1.27 ]
3000 Series
Dimensions
A
0.48 [12.2]
0.58 [14.7]
0.68 [ 17.3 ]
0.88 [ 22.4 ]
0.98 [ 24.9 ]
1.18 [ 30.0 ]
1.38 [ 35.1 ]
1.48 [ 37.6 ]
1.68 [ 42.7 ]
1.88 [ 47.8 ]
1.98 [ 50.3 ]
2.18 [ 55.4 ]
2.38 [ 60.5 ]
2.68 [ 68.1 ]
3.18 [ 80.8 ]
B
0.34 [8.6]
0.44 [11.2]
0.54 [ 13.7 ]
0.74 [ 18.8 ]
0.84 [ 21.3 ]
1.04 [ 26.4 ]
1.24 [ 31.5 ]
1.34 [ 34.0 ]
1.54 [ 39.1 ]
1.74 [ 44.2 ]
1.84 [ 46.7 ]
2.04 [ 51.8 ]
2.24 [ 56.9 ]
2.54 [ 64.5 ]
3.04 [ 77.2 ]
.00
.000
Contact
Quantity
6
8
10
14
16
20
24
26
30
34
36
40
44
50
60
Socket
Series
3863
3868
3473
3385
3452
3421
3626
3399
3419
3414
9436
3417
9444
3425
3334
±
.1
±
.01
±
.005
[ ] Dimensions for
Reference only
.070 Ref
[ 1.78 ]
.050 Ref
[ 1.27 ]
.15
[ 3.8 ]
Triangle Indicates
Position 1
See Note 1
Position 1
.14
[ 3.6 ]
Military:
Dual Polarization
Slots
See Note 4
.26
[ 6.6 ]
.54 Ref
[ 13.7 ]
.06 Centerbump (Optional)
[ .15 ]
.035
[ 0.89 ]
.14
[ 3.6 ]
Assembled Height with Metal
Strain Relief
.41 Ref
[ 10.4 ]
.24
[ 6.1 ]
.100 Typ
[ 2.54 ]
Position 2
A
.100
[ 2.54 ]
Assembled Height
without Strain Relief
Notes:
1. This polarizing groove is non-existent on 3863, 3868, 3385 and 3473 Series.
2. The low profile strain relief can be used with the 4600 Series Plug and .1 x .1 Headers with
ejector latches. The latches will only function as an ejector.
3. See TS-0721 for mating post pattern.
4. This polarizing groove is non-existent on 3863 and 3868 Series for Polarization Option 6.
.565 Ref
[ 14.35 ]
.64 Ref
[ 16.3 ]
Assembled Height with Plastic
Strain Relief
Ordering Information
Sockets
Socket Series:
XXXX-XXXX
See Table for
3M Part Number
Polarization:
0 = Military (Dual Slot)
6 = Centerbump and Military
Preassembled Cover Options:
G= Open Cover, recess on odd row side
H= Open Cover, recess on even row side
J= Closed Cover, for end cable termination, recess on odd row side
(10-60 Position Only)
K= Closed Cover, for end cable termination, recess on even row side
(10-60 Position Only)
00 = No Strain Relief
XX = Contact Quantity for Plastic
Strain Relief 10-60 Position.
(i.e. 50 for a 50
Position Strain Relief)
05= Plastic Strain Relief.
6 & 8 Position.
06 = Metal Strain Relief
10-60 Position
Strain Relief
(Order Separately)
3448-X0XX
Type:
2 = Low Profile 10-60
Position (Metal)
3 = Plastic
XX = ‘‘Contact Quantity’’
(i.e. 50 for
a 50 Position
Strain Relief)
Keying Plug
(Order Separately)
3435-0
See TS-0720
Pull Tabs
(Order Separately)
3490-X
TS-0719-E
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
