90800-3022 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 90800-3022

Preview

90800-3022: DescriptionHeaders & Wire Housings PICOFLEX HEADER AS SEMBLY; CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

90800-3022 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	90800-3022	-	-	View	Buy Now

90800-3022 Overview

Headers & Wire Housings PICOFLEX HEADER AS SEMBLY

90800-3022 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	STAGGERED CONFIGURATION
body width	0.276 inch
subject depth	0.313 inch
body length	1.249 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0

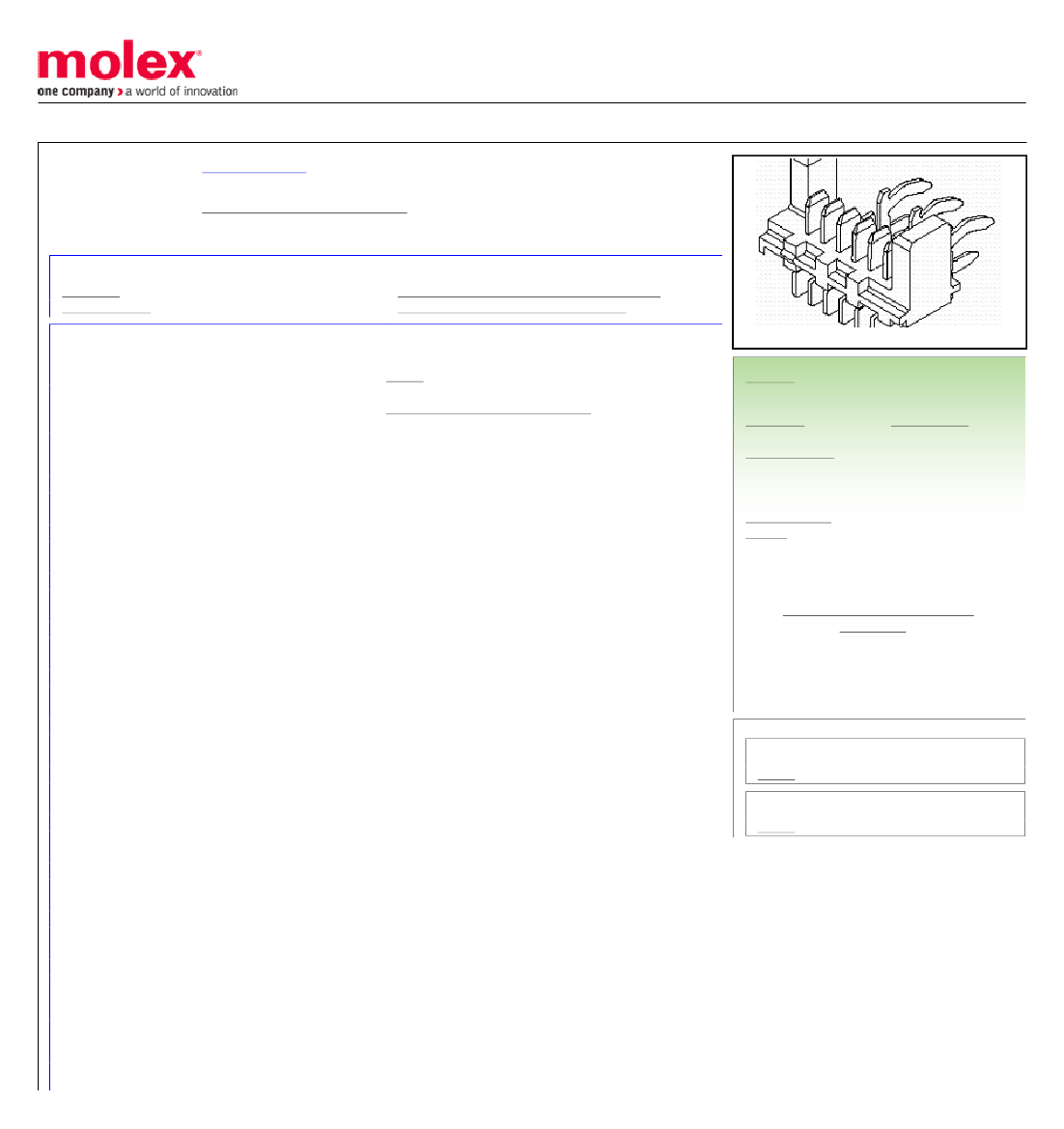

Preview

Download Datasheet

View All

This document was generated on 10/27/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0908003022

Active

Picoflex Ribbon-Cable Connectors

1.27mm Pitch Picoflex PF-50 Header, Right Angle, Low Profile, with Kinked PC Tails,

0.76µm Gold (Au) Selective Plating, 22 Circuits

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Product Specification PS-99020-0011 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Headers

90800

Signal, Wire-to-Board

Picoflex Ribbon-Cable Connectors

Picoflex

884982301894

No

22

Black

100

No

None

Yes

Brass

Gold

Polyester

1.406/g

1

Right Angle

No

Yes

1.60mm

Tube

1.27mm

0.762µm

0.102µm

Yes

No

Open Ends

No

-40°C to +105°C

Through Hole - Kinked Pin

1.2A

250V AC/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

90800 Series

Mates With

90327 IDT Connector
