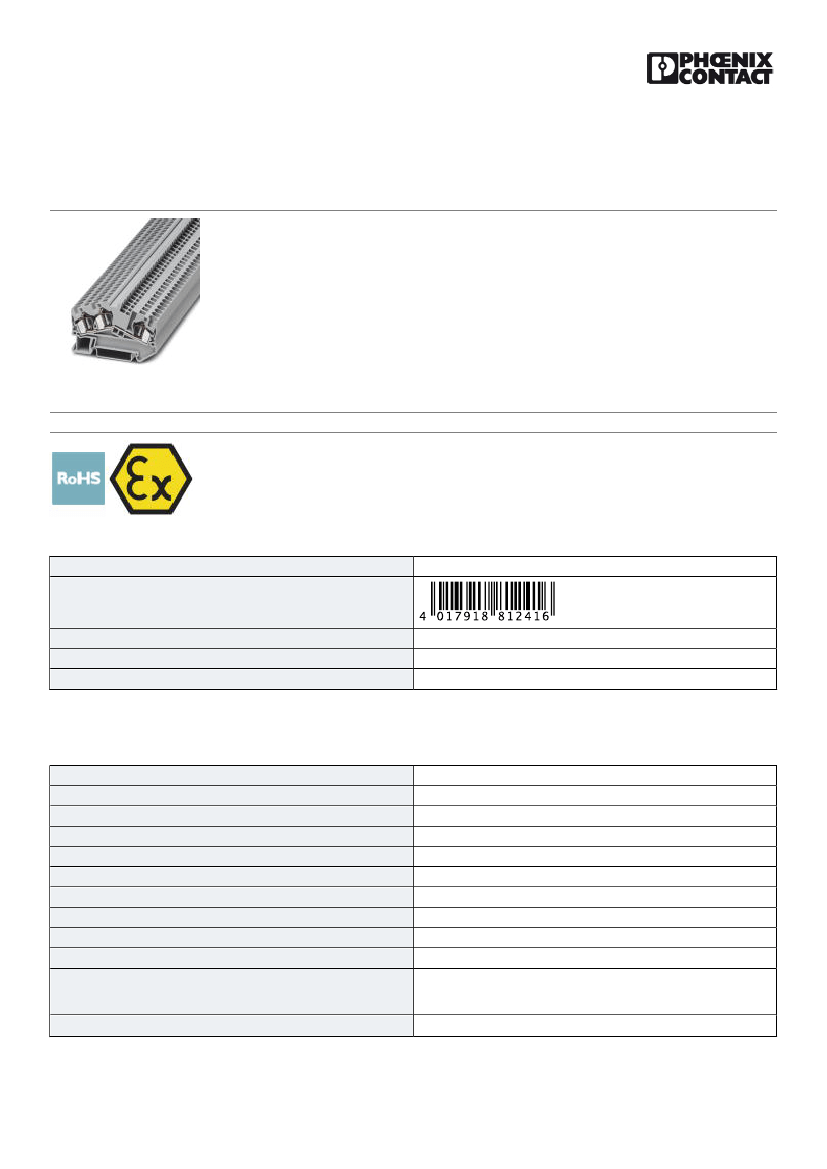

Feed-through terminal block - STS 4-TWIN RD - 3037520
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 6 mm²,
AWG: 28 - 10, Width: 6.2 mm, Color: red, Mounting type: NS 35/7,5, NS 35/15
The illustration shows the gray color
version
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918812416
85369010
Made to Order (non-returnable)
50 STK
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
1
3
1
4 mm²
red
PA
V0
8 kV
III
I
38 A (In the case of a 6 mm² conductor cross section, the maximum
load current must not be exceeded by the total current of all connected
conductors)
32 A (with 6 mm² conductor cross section)
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3037520
Feed-through terminal block - STS 4-TWIN RD - 3037520
Technical data
General
Nominal voltage U
N
Open side panel
800 V
Yes
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
2.2 mm
64.5 mm
43 mm
50.5 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Internal cylindrical gage
Spring-cage connection
IEC 60947-7-1
0.08 mm²
6 mm²
28
10
0.08 mm²
4 mm²
28
12
0.14 mm²
0.14 mm²
4 mm²
IEC/EN 60079-7
0.2 mm²
6 mm²
24
10
0.2 mm²
4 mm²
10 mm
A4
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/3037520
Feed-through terminal block - STS 4-TWIN RD - 3037520
Technical data
Environmental Product Compliance
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
CSA / UL Recognized / SEV / cUL Recognized / KR / CCA / EAC / DNV GL / DNV GL / cULus Recognized
Ex Approvals
ATEX / IECEx / EAC Ex
Approval details
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
B
28-10
30 A
600 V
C
28-10
30 A
600 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
28-10
30 A
600 V
C
28-10
30 A
600 V
SEV https://www.electrosuisse.ch/en/meta/shop/product-certificates.html CH-02-IK-0258.ZA5.A
mm²/AWG/kcmil
Nominal voltage UN
0.2-4
800 V
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/3037520
Feed-through terminal block - STS 4-TWIN RD - 3037520
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
28-10
30 A
600 V
C
28-10
30 A
600 V
KR http://www.krs.co.kr/eng/main/main.aspx HMB17372-EL004
CCA CH-02-IK-0258.I
mm²/AWG/kcmil
1.5
EAC EAC-Zulassung
DNV GL https://www.dnvgl.com/ E-13345 (E-9232)
DNV GL https://www.dnvgl.com/ TAE00001CS
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 4 / 4
