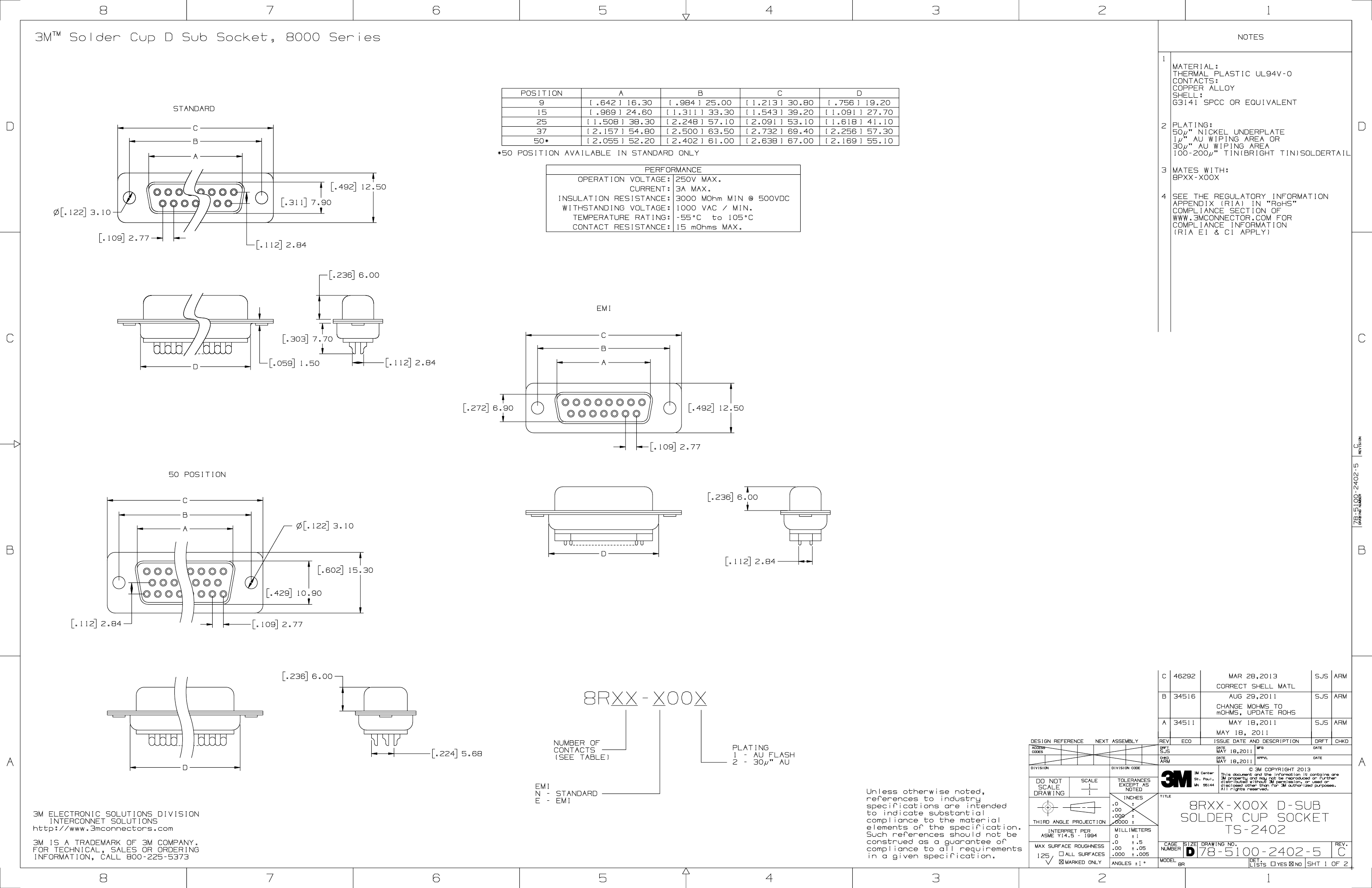

Solder Cup D Sub Socket, 8000 Series
STANDARD
D
C
B
A
POSITION
9
15
25
37
50*
A
[.642] 16.30
[.969] 24.60
[1.508] 38.30
[2.157] 54.80
[2.055] 52.20
B
[.984] 25.00
[1.311] 33.30
[2.248] 57.10
[2.500] 63.50
[2.402] 61.00
C
[1.213]
[1.543]
[2.091]
[2.732]
[2.638]
30.80
39.20
53.10
69.40
67.00
D
[.756] 19.20
[1.091] 27.70
[1.618] 41.10
[2.256] 57.30
[2.169] 55.10
MATERIAL:
THERMAL PLASTIC UL94V-0
CONTACTS:
COPPER ALLOY
SHELL:
G3141 SPCC OR EQUIVALENT
2
PLATING:
50 " NICKEL UNDERPLATE
1 " AU WIPING AREA OR
30 " AU WIPING AREA
100-200 " TIN(BRIGHT TIN)SOLDERTAIL
3 MATES WITH:
8PXX-X00X
4 SEE THE REGULATORY INFORMATION
APPENDIX (RIA) IN "RoHS"
COMPLIANCE SECTION OF
WWW.3MCONNECTOR.COM FOR
COMPLIANCE INFORMATION
(RIA E1 & C1 APPLY)
D
*50 POSITION AVAILABLE IN STANDARD ONLY
PERFORMANCE
OPERATION VOLTAGE: 250V MAX.
CURRENT: 3A MAX.
INSULATION RESISTANCE: 3000 MOhm MIN @ 500VDC
WITHSTANDING VOLTAGE: 1000 VAC / MIN.
TEMPERATURE RATING: -55 C to 105 C
CONTACT RESISTANCE: 15 mOhms MAX.
.492 12.50
.311 7.90
.122 3.10
.109 2.77
.112 2.84
.236 6.00
EMI
C
D
.303 7.70
C
B
C
.059 1.50
.112 2.84
A
.272 6.90
.492 12.50
.109 2.77
50 POSITION
.236 6.00
78-5100-2402-5
C
46292
MAR 28,2013
CORRECT SHELL MATL
SJS ARM
B
34516
AUG 29,2011
CHANGE MOHMS TO
mOHMS, UPDATE ROHS
A
DESIGN REFERENCE
NEXT ASSEMBLY
REV
DRFT
C
B
A
.122 3.10
B
.602 15.30
D
.112 2.84
B
.429 10.90
.112 2.84
.109 2.77
.236 6.00
8RXX-X00X
.224 5.68
NUMBER OF
CONTACTS
(SEE TABLE)
PLATING
1 - AU FLASH
2 - 30 " AU
ACCESS
CODES
SJS ARM
34511
ECO
MAY 18,2011
MAY 18, 2011
ISSUE DATE AND DESCRIPTION
DATE
MFG
SJS ARM
DRFT
DATE
CHKD
SJS
CHKD
MAY 18,2011
DATE
APPVL
DATE
A
ARM
DIVISION
DIVISION CODE
3M Center
MAY 18,2011
C
St. Paul,
MN
55144
D
EMI
N - STANDARD
E - EMI
3M ELECTRONIC SOLUTIONS DIVISION
INTERCONNET SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION, CALL 800-225-5373
A
3M COPYRIGHT 2013
Unless otherwise noted,
references to industry
specifications are intended
to indicate substantial
compliance to the material
elements of the specification.
Such references should not be
construed as a guarantee of
compliance to all requirements
in a given specification.
DO NOT
SCALE
DRAWING
SCALE
1
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
1
.0
.5
.00
.05
.000
.005
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
8RXX-X00X D-SUB
SOLDER CUP SOCKET
TS-2402
CAGE SIZE
NUMBER
MODEL
8R
DRAWING NO.
REV.
125
ALL SURFACES
MARKED ONLY
78-5100-2402-5
DET.
LISTS
YES
NO
C
1
SHT 1 OF 2
8
7
6
5
4
3
2
1
DRAWING NUMBER
REVISION
C
8
7
6
5
4
3
2
1
POSITION
D
9
15
25
37
50
MOUNTING
METHOD
FRONT
REAR
FRONT
REAR
FRONT
REAR
FRONT
REAR
FRONT
REAR
A
.874[22.2]
.806[20.5]
1.202[30.5]
1.134[28.8]
1.743[44.3]
1.674[42.5]
2.391[60.7]
2.326[59.1]
2.297[58.3]
2.218[56.3]
B
.437[11.1]
.403[10.2]
.601[15.3]
.567[14.4]
.872[22.2]
.837[21.3]
1.196[30.4]
1.163[29.5]
1.149[29.2]
1.109[28.2]
C
.984[25.0]
.984[25.0]
1.312[33.3]
1.312[33.3]
1.852[47.0]
1.852[47.0]
2.500[63.5]
2.500[63.5]
2.406[61.1]
2.406[61.1]
D
.492[12.5]
.492[12.5]
.656[16.7]
.656[16.7]
.926[23.5]
.926[23.5]
1.250[31.8]
1.250[31.8]
1.203[30.6]
1.203[30.6]
E
.513[13.0]
.449[11.4]
.513[13.0]
.449[11.4]
.513[13.0]
.449[11.4]
.513[13.0]
.449[11.4]
.623[15.8]
.555[14.1]
F
.257[6.5]
.225[5.7]
.257[6.5]
.225[5.7]
.257[6.5]
.225[5.7]
.257[6.5]
.225[5.7]
.312[7.9]
.278[7.1]
G
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
H
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
J
.083[2.1]
.132[3.4]
.083[2.1]
.132[3.4]
.083[2.1]
.132[3.4]
.083[2.1]
.132[3.4]
.083[2.1]
.132[3.4]
D
C
R0.81 MAX TYP
A
H
G
F
E
B
J RADIUS
TYP
C
D
C

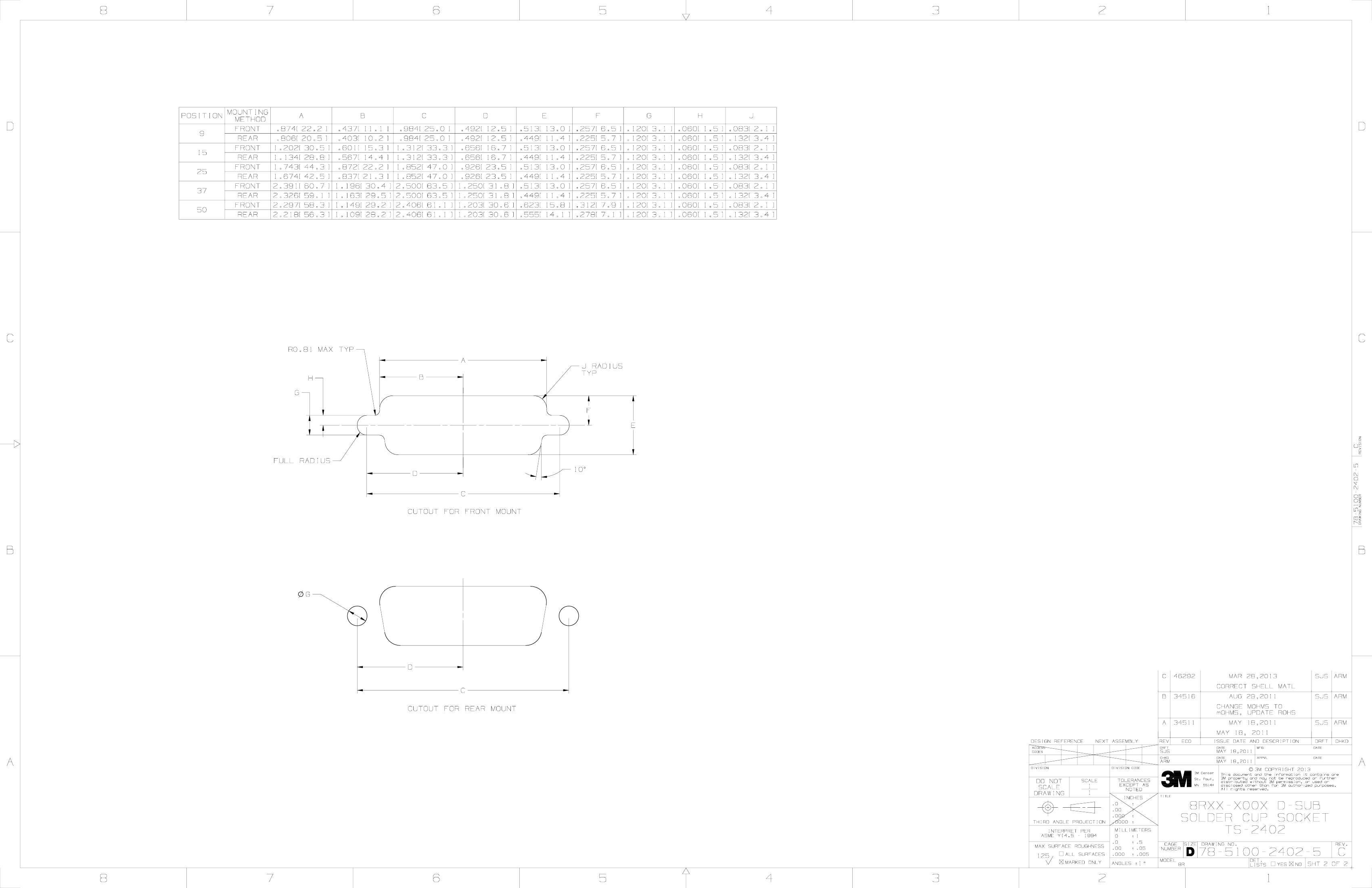

CUTOUT FOR FRONT MOUNT
