39-00-0165 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 39-00-0165

39-00-0165: DescriptionHeaders & Wire Housings SOCKET 22-28AWG REEL brass gold; CategoryThe connector Connector bracket; File Size200KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-00-0165 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-00-0165	-	-	View	Buy Now

39-00-0165 Overview

Headers & Wire Housings SOCKET 22-28AWG REEL brass gold

39-00-0165 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MATING: GOLD OVER NICKEL (50), TERMINATION: TIN (100) OVER NICKEL (50)
Assembly name	CONTACT
Connector bracket type	CONNECTOR ACCESSORY
Contactor design	CHAIN
Contact point gender	FEMALE
Contact style	SQ PIN-SKT
DIN compliance	NO
Finished thickness	30
IEC compliance	NO
MIL compliance	NO
Material	BRASS
Installation method	STRAIGHT
Terminal length	0.169 inch
Terminal type	CRIMP
used for	5557 SERIES HOUSING
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG

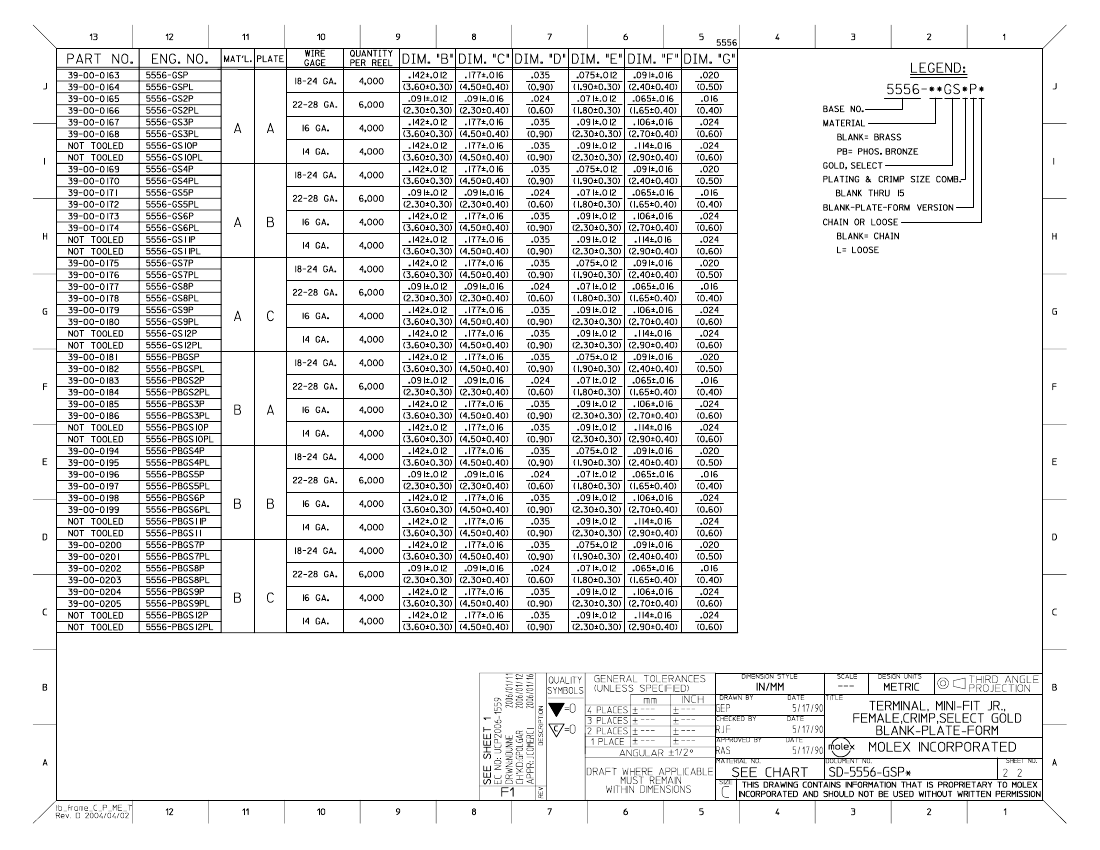

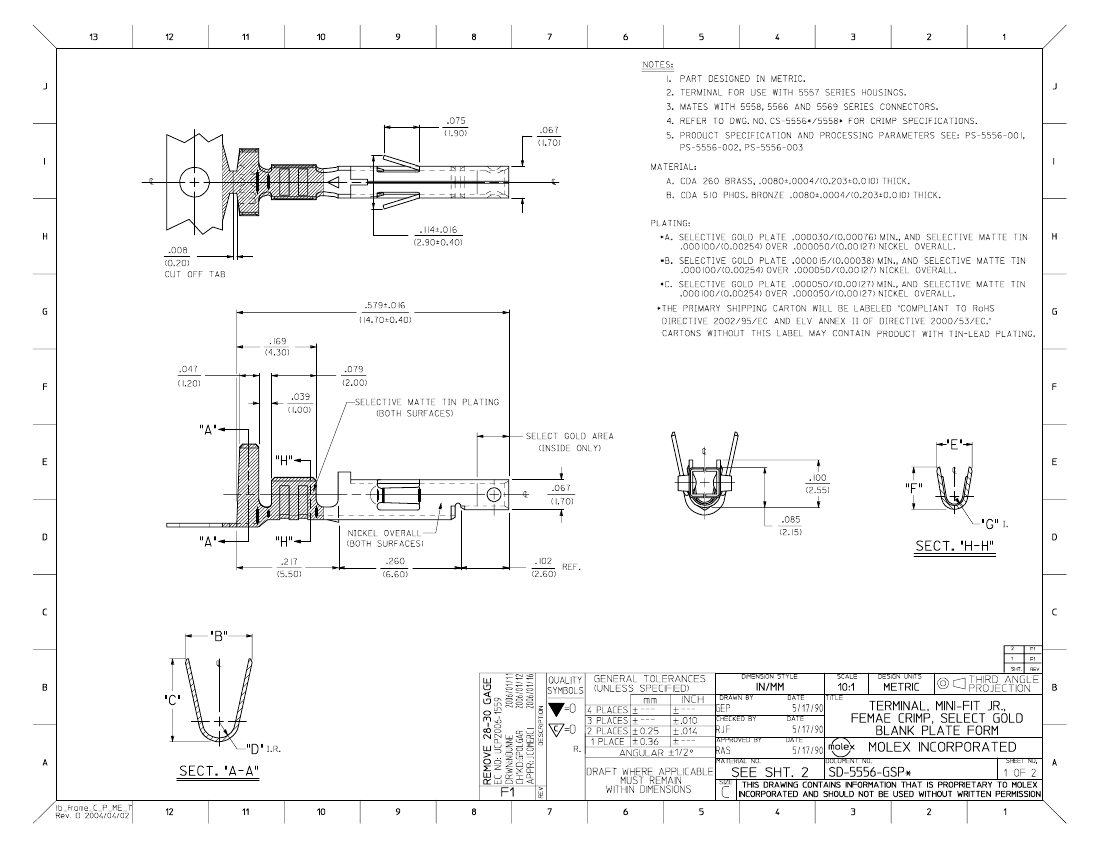

Preview

Download Datasheet

View All

39-00-0165 Related Products

	39-00-0165	39-00-0166	39-00-0195	39-00-0167	39-00-0168	D12/CRCW0805-P10084R50.5%ET1E3
Description	Headers & Wire Housings SOCKET 22-28AWG REEL brass gold	Headers & Wire Housings SOCKET 22-28AWG BULK	Headers & Wire Housings MiniFit Term Crp Fem Lse Bz Au 18-24	Headers & Wire Housings SOCKET 16 AWG REEL brass gold	Headers & Wire Housings SOCKET 16 AWG BULK	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 84.5ohm, 150V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	CHIP, HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	Molex	Molex	-	Molex	Molex	-
Other features	MATING: GOLD OVER NICKEL (50), TERMINATION: TIN (100) OVER NICKEL (50)	MATING: GOLD OVER NICKEL (50), TERMINATION: TIN (100) OVER NICKEL (50)	-	MATING: GOLD OVER NICKEL (50), TERMINATION: TIN (100) OVER NICKEL (50)	MATING: GOLD OVER NICKEL (50), TERMINATION: TIN (100) OVER NICKEL (50)	RATED AC VOLTAGE (V): 150, SEMI-PRECISION
Assembly name	CONTACT	CONTACT	-	CONTACT	CONTACT	-
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	-	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	-
Contactor design	CHAIN	LOOSE	-	CHAIN	LOOSE	-
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	-
DIN compliance	NO	NO	-	NO	NO	-
Finished thickness	30	30	-	30	30	-
IEC compliance	NO	NO	-	NO	NO	-
MIL compliance	NO	NO	-	NO	NO	-
Material	BRASS	BRASS	-	BRASS	BRASS	-
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	-
Terminal length	0.169 inch	0.169 inch	-	0.169 inch	0.169 inch	-
Terminal type	CRIMP	CRIMP	-	CRIMP	CRIMP	-
used for	5557 SERIES HOUSING	5557 SERIES HOUSING	-	5557 SERIES HOUSING	5557 SERIES HOUSING	-
Maximum wire diameter	22 AWG	22 AWG	-	16 AWG	16 AWG	-
