Single Slot SMT Connectors For Card-Bus Based PC Cards
IC11S Series
PC Card Standard Compliant
Low profile
5.6mm
Wide variety of options
(1)Board Mounting
➀
Standard type
➁
Reverse type

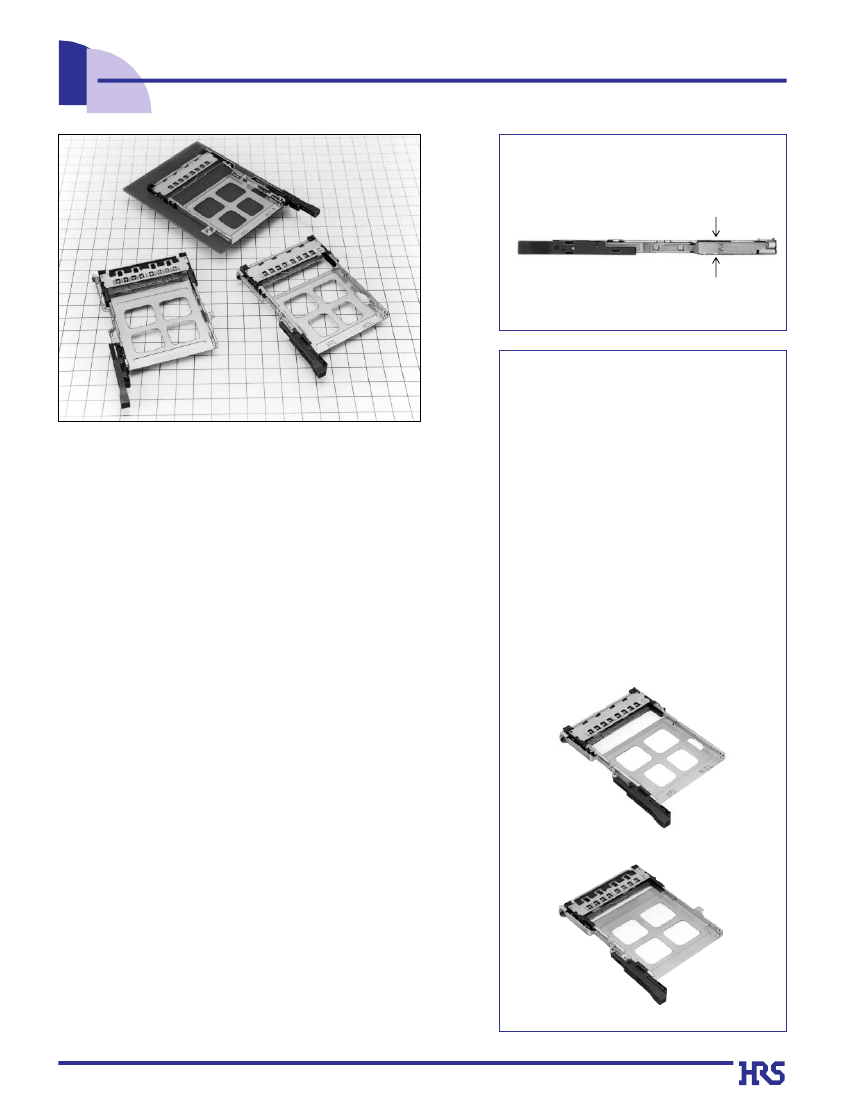

sFeatures
1. Meets requirements of the PC card standard
Grounding reliability, required for high-speed signal transmission, is
guaranteed with a ground plate and 8 grounding contacts. Type1
,2
and
3
PC cards can be used.
(2)Eject button type
➀
Rigid
➁
Folding
➂
Pop-up (Version 1, 2)
(3)Position of eject button
➀
Right
➁
Left
(4)Standoffs
➀
None
➁
2.2mm
2. Board space saving
Small size, efficient use of materials reduced board mounting area
allowing reduction in conductive pattern-prohibited areas.
3. Low profile
Reduced overall height allows it to be incorporated in very small
devices.
4. Efficient and reliable ejection mechanism
Our unique ejection mechanism design allows the PC card to be
reliably ejected at the distance sufficient for easy hand-removal.
5. Wide variety of options
•
Mounting: Standard - top of the PCB, Reverse – under the PCB
•
Ejection buttons: Rigid, Folding, Pop-up. All can be left or right side.
•
Standoff version: 2.2mm above the board surface, allowing space
for other components to be mounted under the connector.
6. Light weight
Pop-up button version 2 connector is 12% lighter than comparable
connector on version 1.
Standard type
sApplications
Notebook PCs, desktop PCs, audio/video equipment and other
devices utilizing PC cards.
Reverse type
A25
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Current rating
Ratings
Voltage rating
0.5A
125V AC
Operating temperature
Operating humidity
-55ç
to
+85ç(Note.1)
Relative humidity 95% max.
(No condensation)
Storage temperature
Storage humidity
-40ç
to
+70ç(Note.2)
40%
to
70%(Note.2)
Item
1.Insulation resistance
2.Withstanding voltage
3.Contact resistance
4.Vibration
1000Mø min.
Specification
500V DC
500V AC
1mA
No flashover or insulation breakdown.
60mø max. (initial value)
No electrical discontinuity of 100ns or more
Conditions
Frequency: 10 to 2000 Hz, full amplitude of 1.52 mm or
acceleration of 147 m/s
2
(peak), 4 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
Temperature: -55ç➝ +5ç to +35ç
➝
+85ç
➝
+5ç to +35ç
5.Humidity (Steady state) Insulation resistance: 100Mø min.
6.Temperature cycle
Insulation resistance: 100Mø min.
Duration: 30
➝
5 max.
➝
30
➝
5 max. (Minutes)
5 cycles
7.Durability
(Insertion/withdrawal)
8.Resistance
to
Soldering heat
Variations from initial contact resistance: 20mø max.
10000 cycles at 400 to 600 cycles per hour
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during
transportation.
sMaterials
/ Finish
qSMT
unit
Parts
Insulator
Card connected section
Terminal
Ground plate
Eject metal components
Phosphor bronze
Stainless steel
PPS
Brass
Material
Finish
Color : Black
Contact area: Gold plated
Termination area: Tin-lead plated
Contact area: Gold plated
Termination area: Tin-lead plated
–––––
Remarks
UL94V-0
–––––
–––––
–––––
qGuide
unit
Description
Guide plate
Pushrod
Rigid button
Foldering
button
Eject button
Pop-up
Version 1
Body
Body
Spring
Spring Pin
Body
Frame metal
Spring
Pin
Nut (Note)
Pop-up
Version 2
Body
Spring
Cam
Material
Stainless steel
Stainless steel
PBT
PBT
Stainless steel
Stainless steel
PBT
Stainless steel
Steel
Brass
Steel
PBT
Steel
Zinc alloy
Finish
–––––
–––––
Color : Black
Color: Black
–––––
–––––
Color: Black
–––––
–––––
Nickel plated
–––––
Color: Black
–––––
–––––
Remarks
–––––
–––––
UL94V-0
UL94V-0
–––––
–––––
UL94V-0
–––––
–––––
–––––
M2x0.4
UL94V-0
–––––
–––––
Eject button
Note: Rectangular nut is integrated in the guide unit (Pop-up button, Version 2 connectors).
A26
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sOrdering
Information
qSMT
Unit
)
IC11S A - 68 PLR - 1.27SF - EJ R
(
71)
1
1
2
Series name : IC11S
Standoff type
Blank : none
A
3
4
: 2.2mm
Number of contacts : 68 (Note)
Board Mounting type
PL
: standard type
8
7
PLR : reverse type
6
7
With ejector
Eject button positions
R : right
L : left
Product specification code
Blank : Tin-lead plated
(71) : Lead free plated
Note: 68 and 1.27 are not used in the part
number for the lead-free type.
2
3
4
5
5
6
7
8
1.27SF : 1.27mm pitch SMT connector (Note)
qGuide
Unit
IC11S A - BUR - PNEJ R
9
9
10
Series name : IC11S
Standoff type
Blank: none
A : 2.2mm
11
Board Mounting type
BD
: standard type
13
BUR : reverse type
10
11
12
12
Eject button type
EJ
FEJ
PEJ
: Rigid
: Folding
: Pop-up, Version 1
13
PNEJ : Pop-up, Version 2
Eject button positions
R : right
L : left
Note: In this Series the SMT unit and the Guide unit must be used in combinations shown below.
Other combinations cannot be used.
9
10
11
13
A27
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

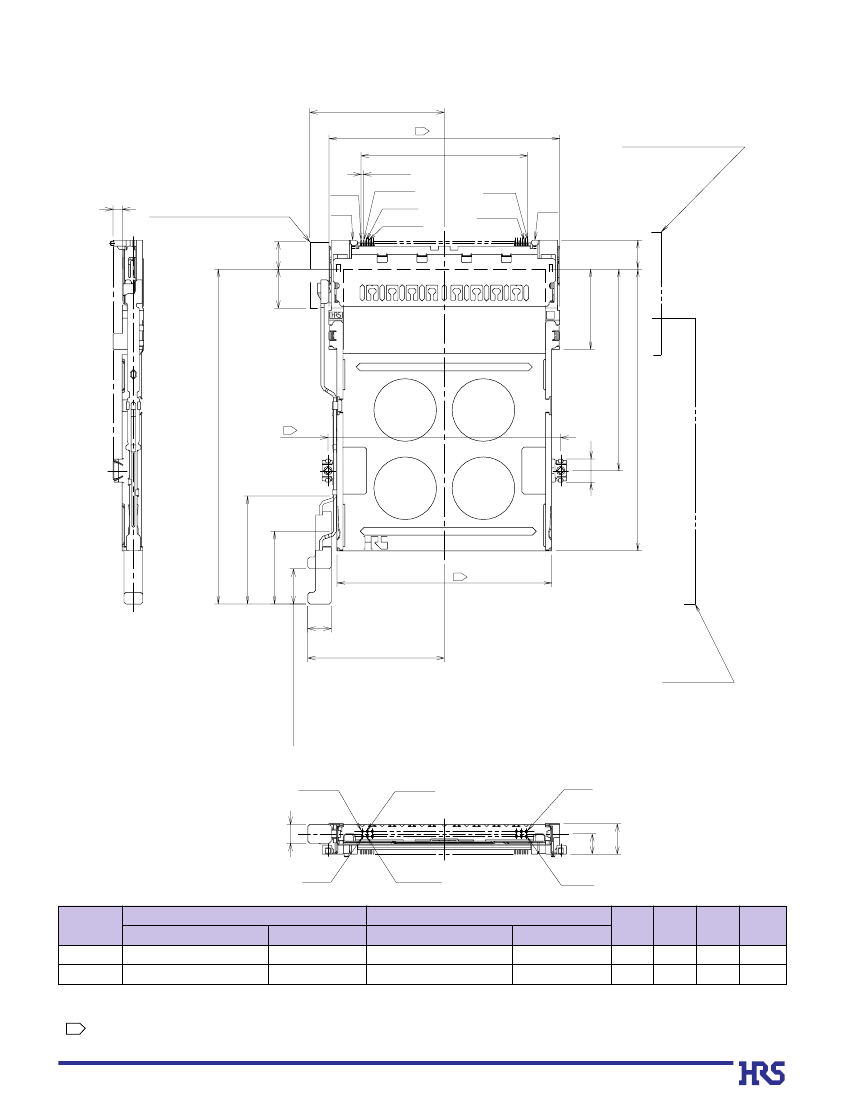

sStandard
Right rigid button
34.4 MAX
3 59
42.545
P= 0.635
SMT unit (1)
No.1
GND
7.4
No.35
No.2
No.36
No.68
No.34
GND
10MAX 7MAX
Eject metal components movable range
C
20.5
PUSH
A
PUSH
51.5
5.9
3 59.5
3 54.9
9(Ejector pushed-in for card withdrawal)
6
Guide unit (2)
(34.9)
No.1
No.2
No.34
4.8
B
A
No.35
No.36
No.68
Standoff
type
None
2.2mm
SMT unit
➀
Part Number
IC11S-68PL-1.27SF-EJR
IC11SA-68PL-1.27SF-EJR
CL No.
640-1007-3
640-1009-9
Guide unit
➁
Part Number
IC11S-BD-EJR
IC11SA-BD-EJR
CL No.
640-1071-2
640-1073-8
(18.6)
A
(mm)
3
5.2
(27.6)
85.6(Card fully inserted)
72
B
(mm)
5.6
7.8
C
(mm)
0.1
2.3
Weight
(g)
12.7
13.1
Note 1: All illustrations show the SMT unit (
➀
) and Guide unit (
➁
) assembled.
Note 2: Dimensions for card insertion are in accordance with “PC card standard”.
Note 3:
Indicated dimensions are symmetrical to the center of the card insertion slot.
3
A28
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

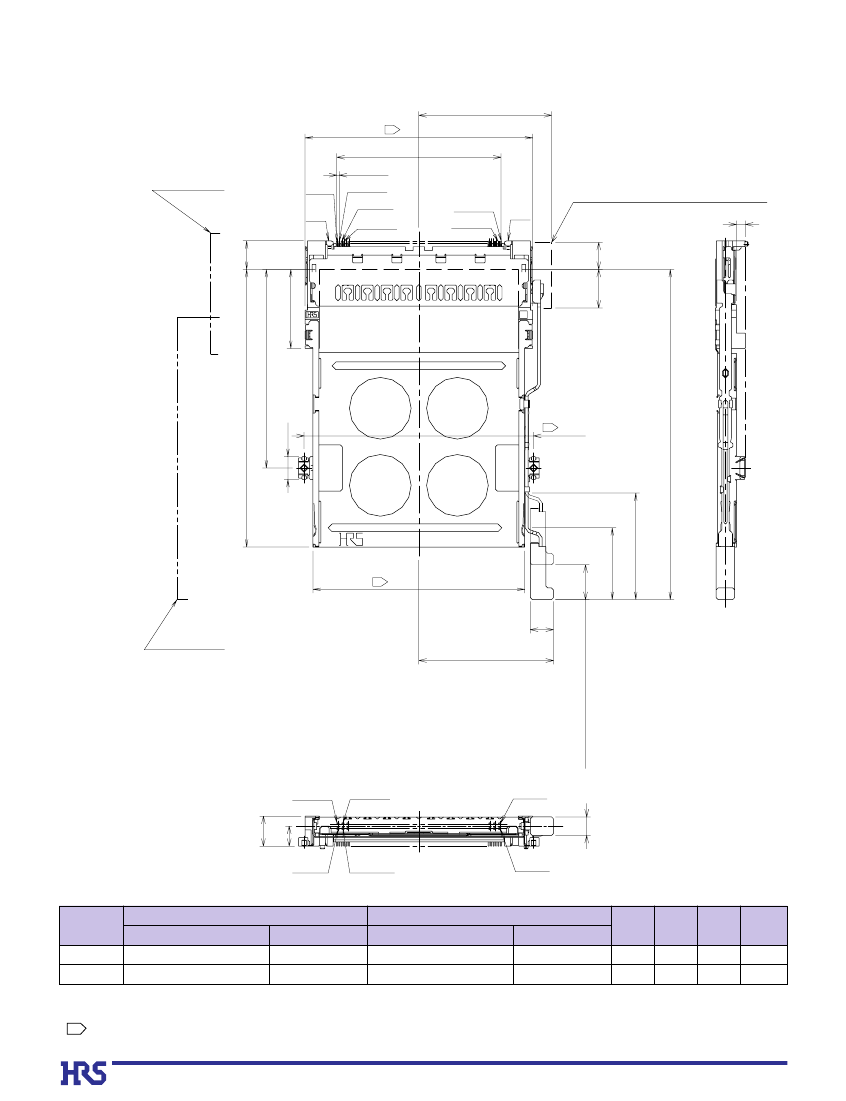

sStandard
Left rigid button
34.4MAX
3
59
42.545
SMT unit (1)
P= 0.635
No.1
C
Eject metal components movable range
GND
No.35
No.2
No.36
10MAX 7MAX
No.34
No.68
GND
PUSH
A
PUSH
20.5
85.6(Card fully inserted)
51.5
3
59.5
5.9
(27.6)
(18.6)
3
54.9
9(Ejector pushed-in for card withdrawal)
6
(34.9)
Guide unit (2)
No.1
No.2
No.34
4.8
No.35
No.36
No.68
Standoff
type
None
2.2mm
SMT unit
➀
Part Number
IC11S-68PL-1.27SF-EJL
IC11SA-68PL-1.27SF-EJL
Guide unit
➁
CL No.
640-1008-6
640-1010-8
A
B
Part Number
IC11S-BD-EJL
IC11SA-BD-EJL
CL No.
640-1072-5
640-1074-0
A
(mm)
3
5.2
72
7.4
B
(mm)
5.6
7.8
C
(mm)
0.1
2.3
Weight
(g)
12.7
13.1
Note 1: All illustrations show the SMT unit (
➀
) and Guide unit (
➁
) assembled.
Note 2: Dimensions for card insertion are in accordance with “PC card standard”.
Note 3:
Indicated dimensions are symmetrical to the center of the card insertion slot.
