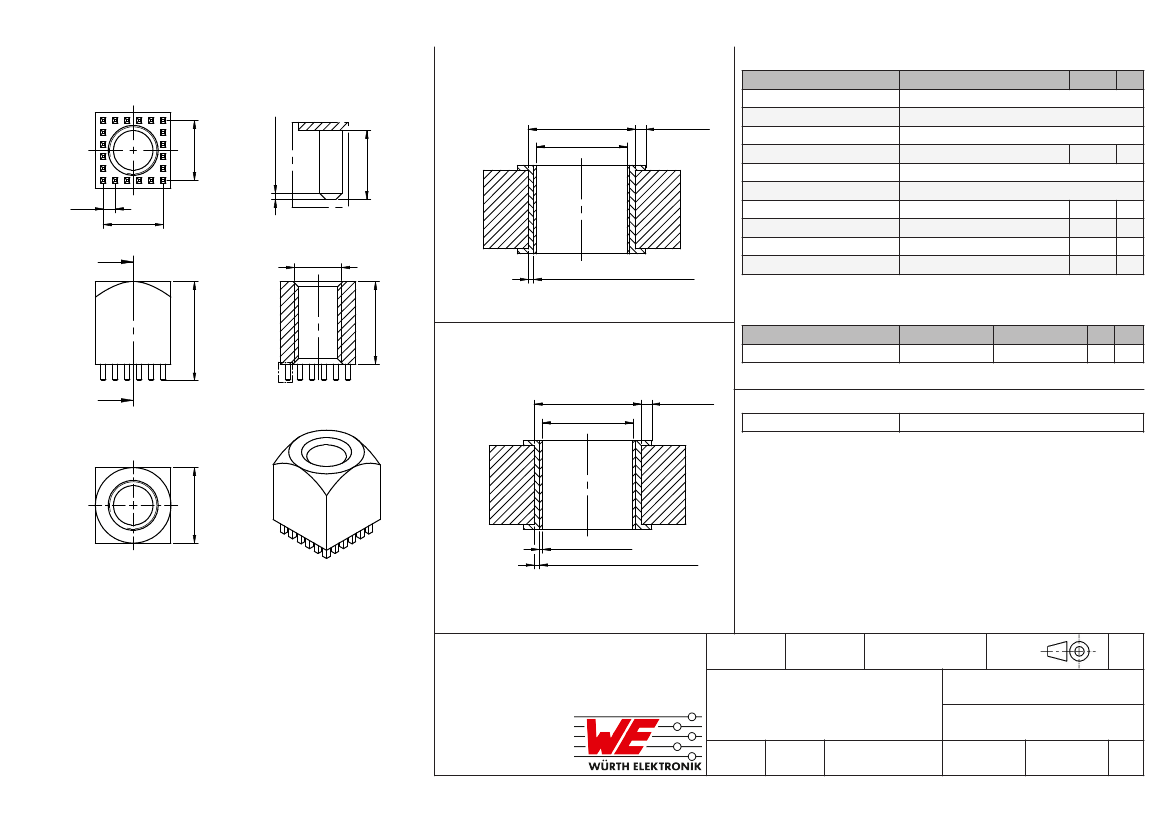

Dimensions: [mm]
detail B
Bevelled edge
0,3 ±0,2
around
Drillhole specification for PCB:
Drill hole specification for chemical surfaces
(
O
1,60
-0,03
Properties:
Properties
Material
Surface
Execution
Tightening Torque
Operating Temperature
Storage Conditions
Insertion Force
Extraction Force
1)
17
-55 °C up to +150 °C
0 °C up to +40 °C, < 75% RH
40
30
1.6
3.2
N per Pin min.
N per Pin min.
mm
mm
Value
Brass
Tin
Press-Fit
Nm
Unit
Tol.
)
min. 0,10
12,7
2,54
12,7
sectional drawing A-A
A
M 10
min. 25µm copper max. 60µm
3,5 ±0,2
O
1,475 ±0,05
PCB Thickness min
PCB Thickness max
1)
min. 24hours after
Press-Fit Process
21,0
17,5
Electrical Properties:
Drillhole specification for PCB:
Drill hole specification for HAL
Properties
Rated Current
Test conditions
@ 20 °C
Value
350
Unit
A
Tol.
max.
B
A
(
O
1,60
-0,03
)
min. 0,10
Packaging Properties:
Packaging
Bulk
O
1,45 ±0,05
q
16,0
max. 15µm Sn
min. 25µm copper max. 60µm
Scale - 1:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaMa
DESCRIPTION
WlW
DIN ISO 2768-1m
REDCUBE PRESS-FIT with internal
thread and circumference pin-plate
7461060
WP-BUCF
ORDER CODE
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.001
Valid
2017-09-18
eiCan
1/3
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Cautions and Warnings:
The following conditions apply to all goods within the product series of WP-BUCF of
Würth Elektronik eiSos GmbH & Co. KG:
General:
All recommendations according to the general technical specification of the data-sheet have to be complied with.
The responsibility for the applicability of customer specific products and the use in a particular customer design is always within the
authority of the customer.
Product Specific:
Follow all instructions in the datasheet, especially:
•
•
•
•
•
Drill-hole specifications.
Wave and reflow soldering is not applicable.
The maximum permissible torques must be complied with to prevent mechanical destruction.
While press-fit process PCB should be supported against bending.
Chip formation due to material displacement is permitted.
