Part Number

Search

32C9302-CG

Description
Fixed Disk Controller, 6MBps, CMOS, PQFP128
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size696KB,24 Pages
ManufacturerSilicon Systems Inc.
Download Datasheet Parametric Compare View All

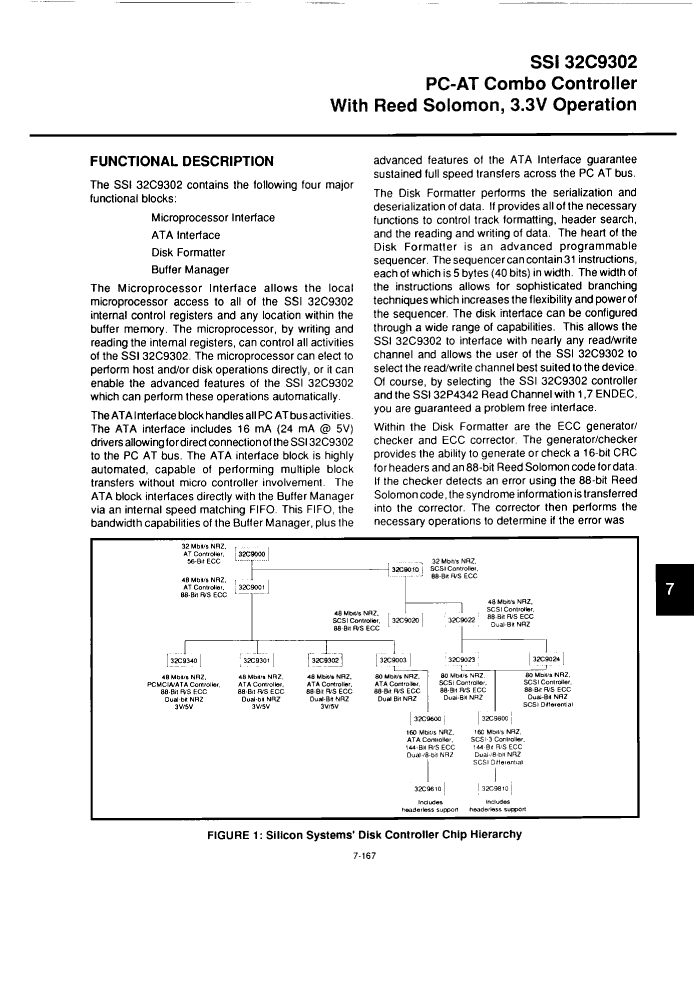

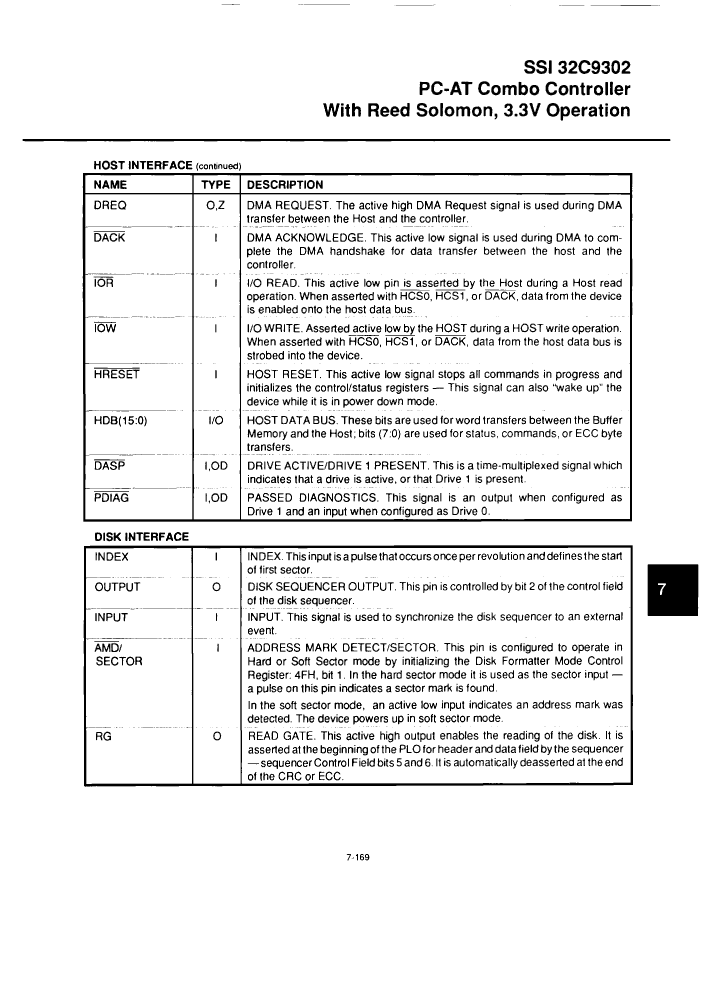

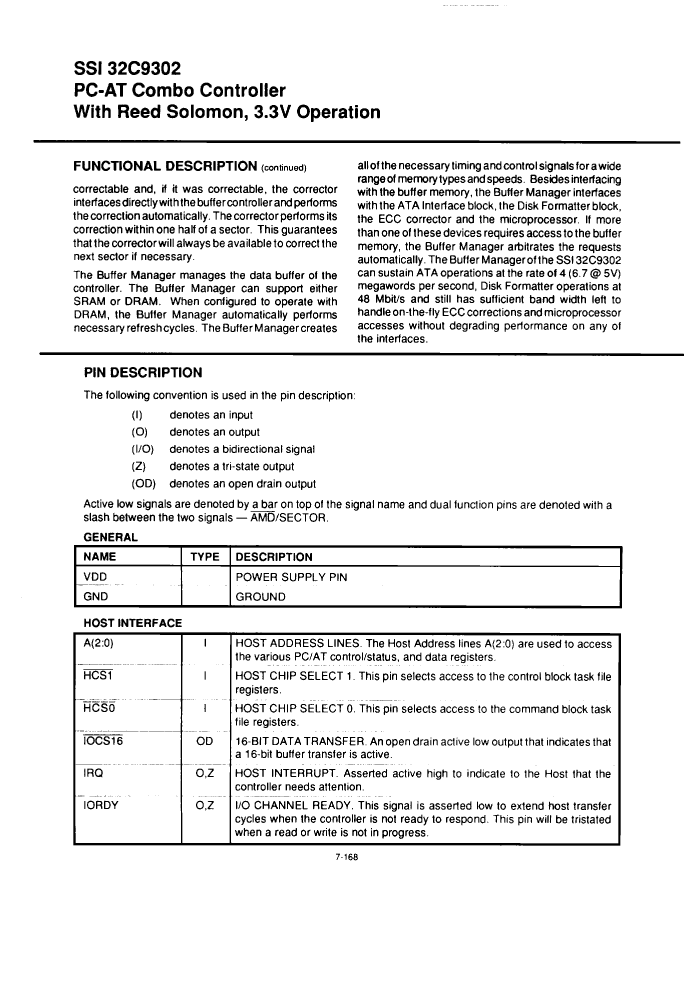

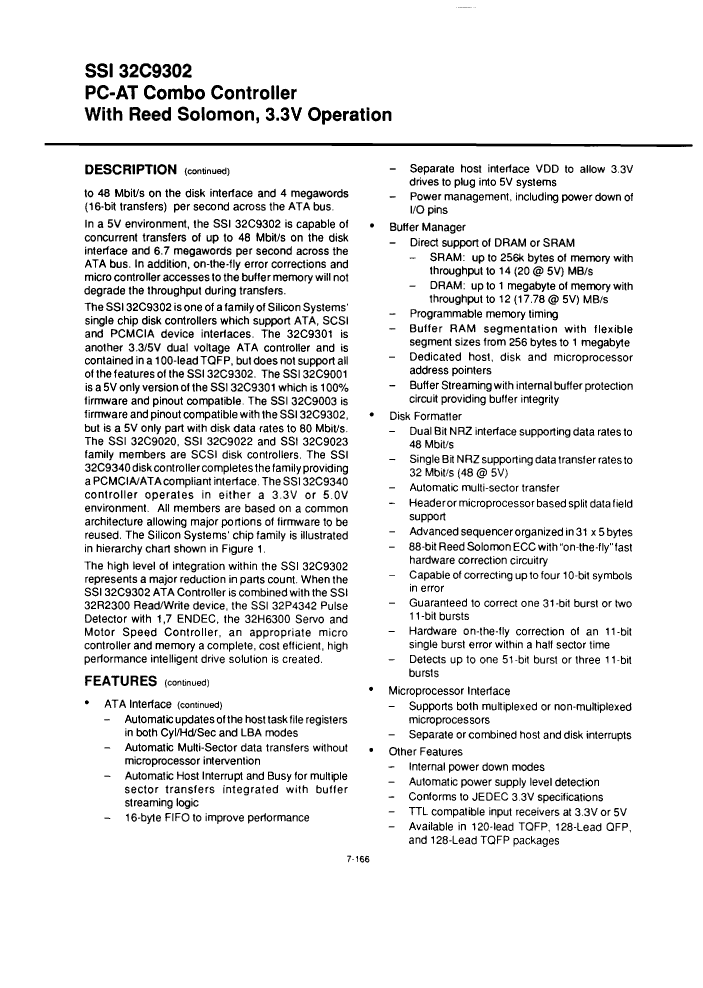

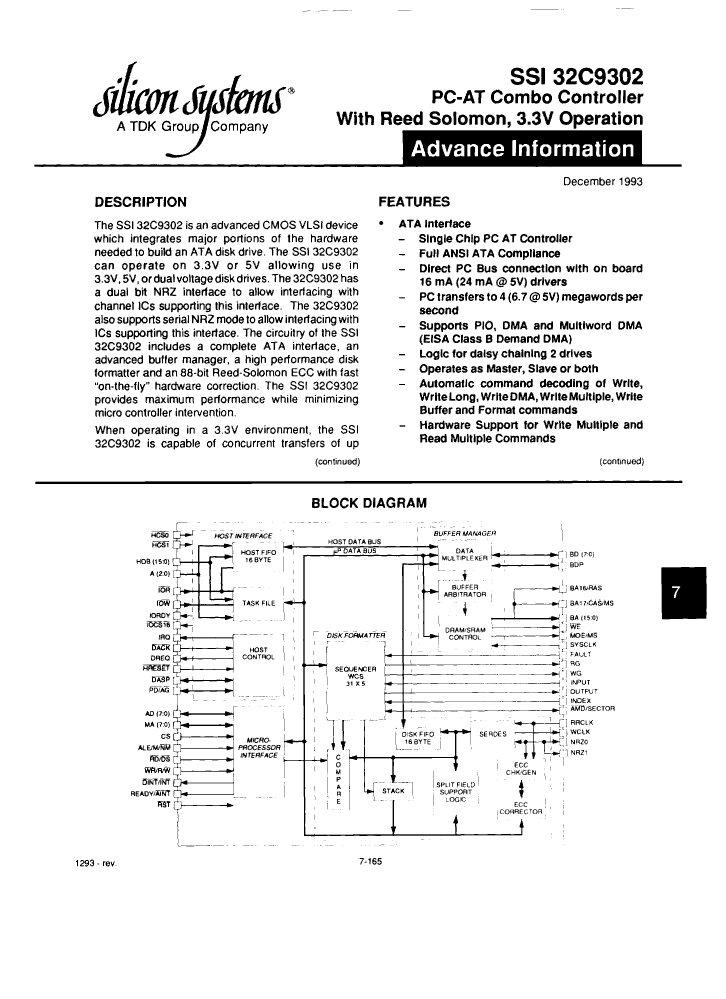

32C9302-CG Overview

Fixed Disk Controller, 6MBps, CMOS, PQFP128

32C9302-CG Parametric

Parameter NameAttribute value
package instruction,
Reach Compliance Codeunknown
Maximum data transfer rate6 MBps
External data bus width16
Maximum host data transfer rate13.4 MBps
Host interface standardATA; SCSI; PCMCIA; PC-AT
JESD-30 codeR-PQFP-G128
Number of terminals128
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLATPACK
Certification statusNot Qualified
Maximum slew rate50 mA
Maximum supply voltage5.5 V
Minimum supply voltage3 V
Nominal supply voltage5 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal formGULL WING
Terminal locationQUAD
uPs/uCs/peripheral integrated circuit typeSECONDARY STORAGE CONTROLLER, FIXED DISK
Base Number Matches1

32C9302-CG Related Products

32C9302-CG 32C9302-CGT 32C9302-CGT2
Description Fixed Disk Controller, 6MBps, CMOS, PQFP128 Fixed Disk Controller, 6MBps, CMOS, PQFP128 Fixed Disk Controller, 6MBps, CMOS, PQFP120
Reach Compliance Code unknown unknown unknown
Maximum data transfer rate 6 MBps 6 MBps 6 MBps
External data bus width 16 16 16
Maximum host data transfer rate 13.4 MBps 13.4 MBps 13.4 MBps
Host interface standard ATA; SCSI; PCMCIA; PC-AT ATA; SCSI; PCMCIA; PC-AT ATA; SCSI; PCMCIA; PC-AT
JESD-30 code R-PQFP-G128 R-PQFP-G128 S-PQFP-G120
Number of terminals 128 128 120
Maximum operating temperature 70 °C 70 °C 70 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR SQUARE
Package form FLATPACK FLATPACK FLATPACK
Certification status Not Qualified Not Qualified Not Qualified
Maximum slew rate 50 mA 50 mA 50 mA
Maximum supply voltage 5.5 V 5.5 V 5.5 V
Minimum supply voltage 3 V 3 V 3 V
Nominal supply voltage 5 V 5 V 5 V
surface mount YES YES YES
technology CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form GULL WING GULL WING GULL WING
Terminal location QUAD QUAD QUAD
uPs/uCs/peripheral integrated circuit type SECONDARY STORAGE CONTROLLER, FIXED DISK SECONDARY STORAGE CONTROLLER, FIXED DISK SECONDARY STORAGE CONTROLLER, FIXED DISK
Base Number Matches 1 1 1
