53253-0770: DescriptionHeaders & Wire Housings New 2.0 WtB Wafer As Wafer Assy Str 7Ckt; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

53253-0770 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53253-0770	-	-	View	Buy Now

53253-0770 Overview

Headers & Wire Housings New 2.0 WtB Wafer As Wafer Assy Str 7Ckt

53253-0770 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Samacsys Description	Molex MICRO-LATCH 53253, 2mm Pitch, 7 Way, 1 Row Shrouded, Straight PCB Header, Through Hole
body width	0.144 inch
subject depth	0.217 inch
body length	0.63 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (40)
Contact completed and terminated	TIN (40)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	53253
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	40u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

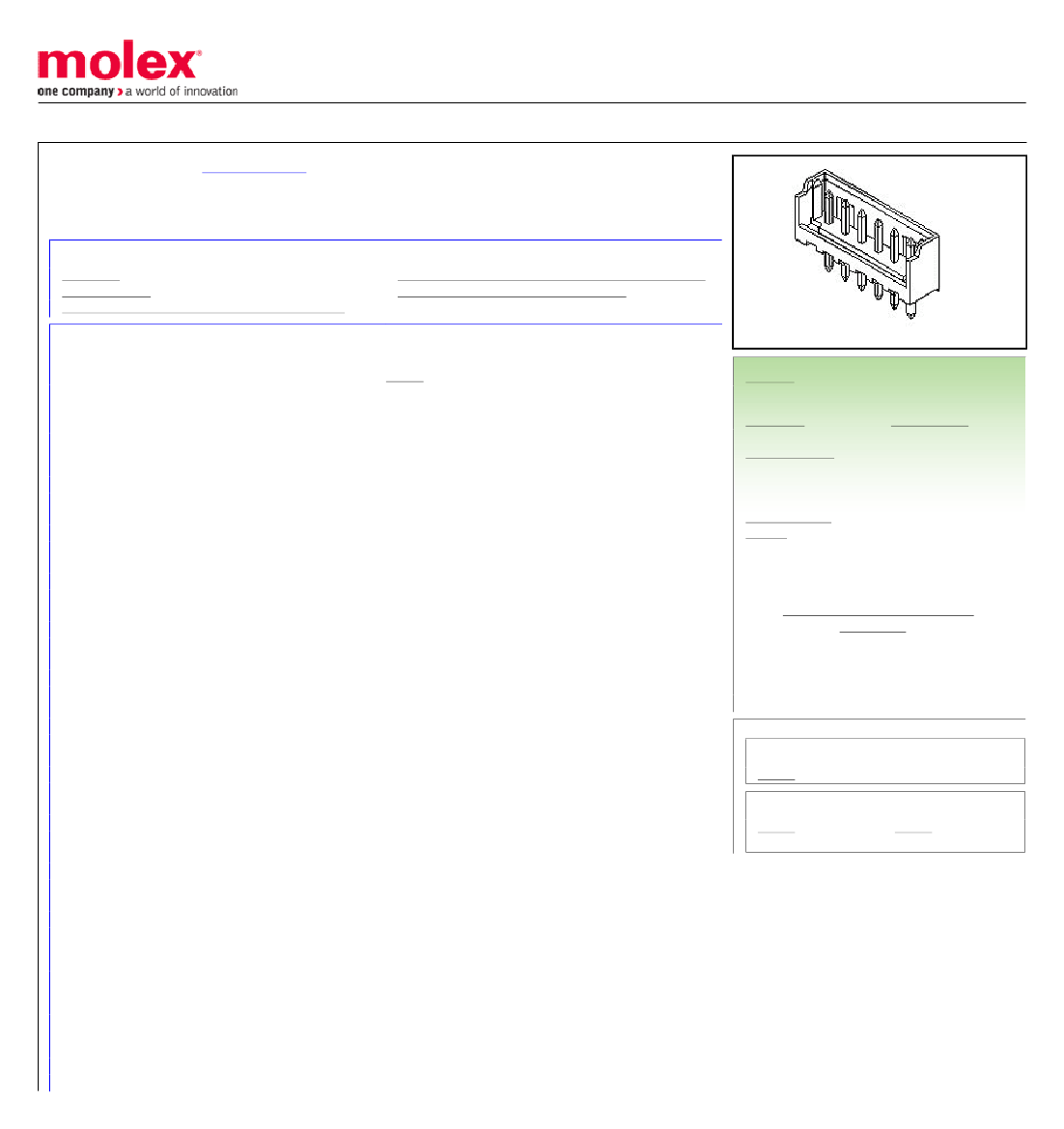

Preview

Download Datasheet

View All

This document was generated on 02/19/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0532530770

Active

2.00mm Pitch Micro-Latch Wire-to-Board Header, Vertical, Square Pin, Three-sided

Shroud, 7 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51065-016-001 (PDF)

General

Product Family

Series

Application

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Capable

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification SPK-53253-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Headers

53253

Signal, Wire-to-Board

Micro-Latch

756054354056

Yes

Brass

Tin

Nylon

239.200/mg

Vertical

3.50mm

Yes

1.60mm

Tray

2.00mm

1.016µm

Yes

Partial

-40°C to +105°C

Through Hole

2.0A

125V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

53253 Series

Mates With

51065 Crimp Housing, 50212 Crimp

Terminal

SPK-53253-001-001

PS-51065-016-001
