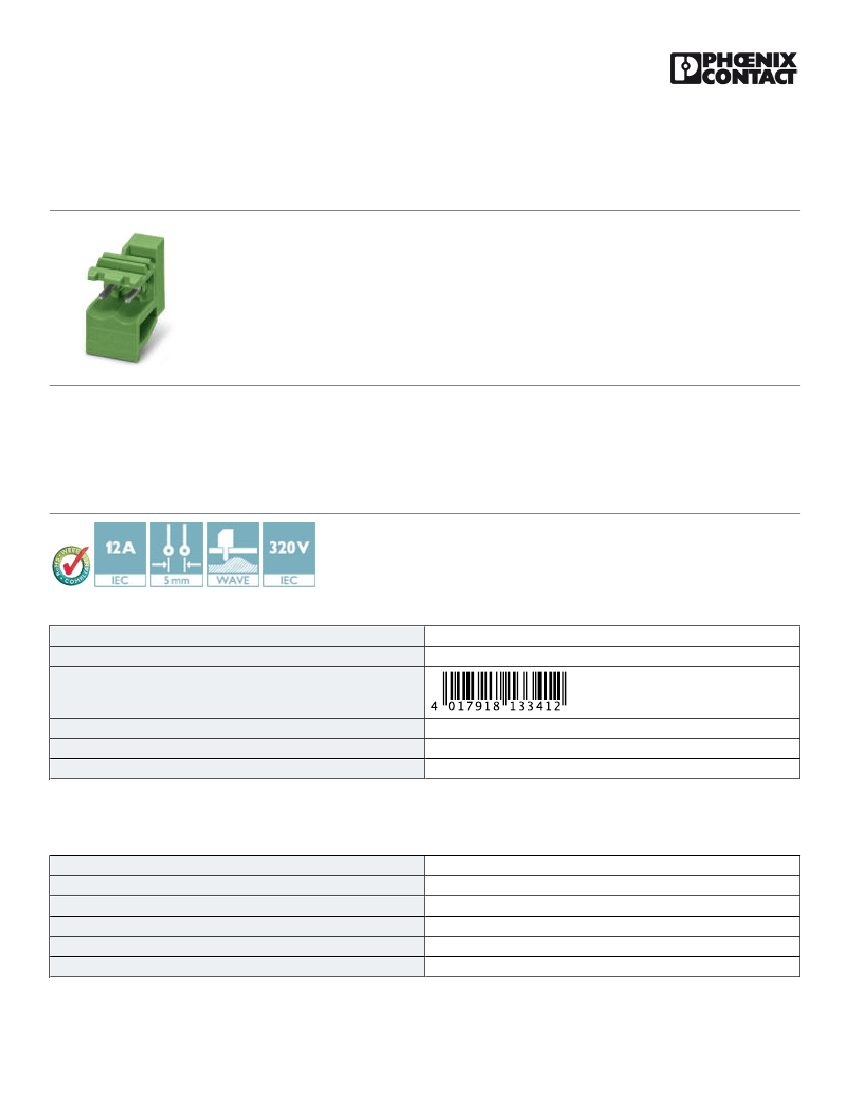

Base strip - MSTBO 2,5/ 2-G1L - 1861057
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 2, Pitch: 5 mm, Mounting:
Soldering, Article with lateral pin exit
Product Features
■
■
■
■
Headers for ME/ME MAX electronics housing
5 mm pitch
2 to 4-pos.
Plug-in direction orthogonal to the PCB
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1.43 g
85366990
Poland
1 pc
50 pc
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Length of the solder pin
Pin dimensions
14.65 mm
5.00 mm
5 mm
15 mm
3.5 mm
1 x 1 mm
04/20/2016 Page 1 / 9
https://www.phoenixcontact.com/us/products/1861057
Base strip - MSTBO 2,5/ 2-G1L - 1861057
Technical data
Dimensions
Hole diameter
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Number of positions
MSTBO 2,5/..-G1L
I
4 kV
4 kV
4 kV
250 V
320 V
400 V
EN-VDE
12 A
12 A
PA
V0
2
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27180401
27180401
27180506
27260701
27260704
27440402
27440402
27440402
ETIM
ETIM 2.0
ETIM 3.0
EC001031
EC001031
04/20/2016 Page 2 / 9
https://www.phoenixcontact.com/us/products/1861057
Base strip - MSTBO 2,5/ 2-G1L - 1861057
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / EAC / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
Nominal current IN
Nominal voltage UN
B
10 A
300 V
D
10 A
300 V
UL Recognized
Nominal current IN
Nominal voltage UN
B
16 A
300 V
D
10 A
300 V
04/20/2016 Page 3 / 9
https://www.phoenixcontact.com/us/products/1861057
Base strip - MSTBO 2,5/ 2-G1L - 1861057
Approvals
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
Nominal voltage UN
8A
250 V
cUL Recognized
Nominal current IN
Nominal voltage UN
B
16 A
300 V
D
10 A
300 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
8A
250 V
EAC
EAC
cULus Recognized
Accessories
Accessories
Coding element
04/20/2016 Page 4 / 9
https://www.phoenixcontact.com/us/products/1861057
Base strip - MSTBO 2,5/ 2-G1L - 1861057

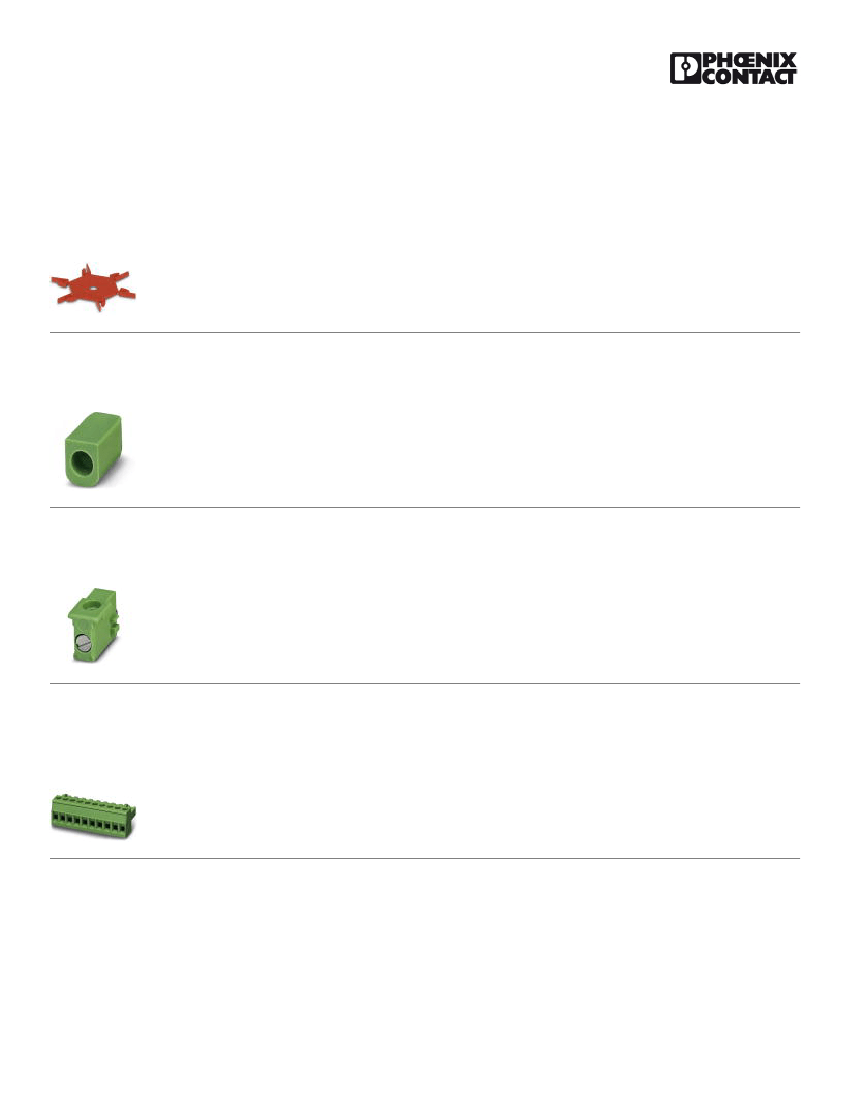

Accessories
Coding section - CR MSTBO-G1 - 2199618
Coding section
Filler plug
Accessories - MSTB-BL - 1755477
Keying cap, for forming sections, plugs onto header pin, green insulating material
Flange
Accessories - MSTB-BF - 1759981
Mounting flange, for fixing both ends of the header onto the PCB, green insulating material, with M 2 x 14 screws and
nuts.
Required add-on products
Printed-circuit board connector - MSTBT 2,5/ 2-ST - 1779835
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 2, Pitch: 5 mm, Connection
method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
04/20/2016 Page 5 / 9
