380AD009M0802F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> 380AD009M0802F

Preview

380AD009M0802F: DescriptionCircular MIL Spec Backshells NON ENV STRN RLF RC SPLIT 90DEG LT DUTY; CategoryThe connector Connector bracket; File Size79KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

380AD009M0802F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380AD009M0802F	-	-	View	Buy Now

380AD009M0802F Overview

Circular MIL Spec Backshells NON ENV STRN RLF RC SPLIT 90DEG LT DUTY

380AD009M0802F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

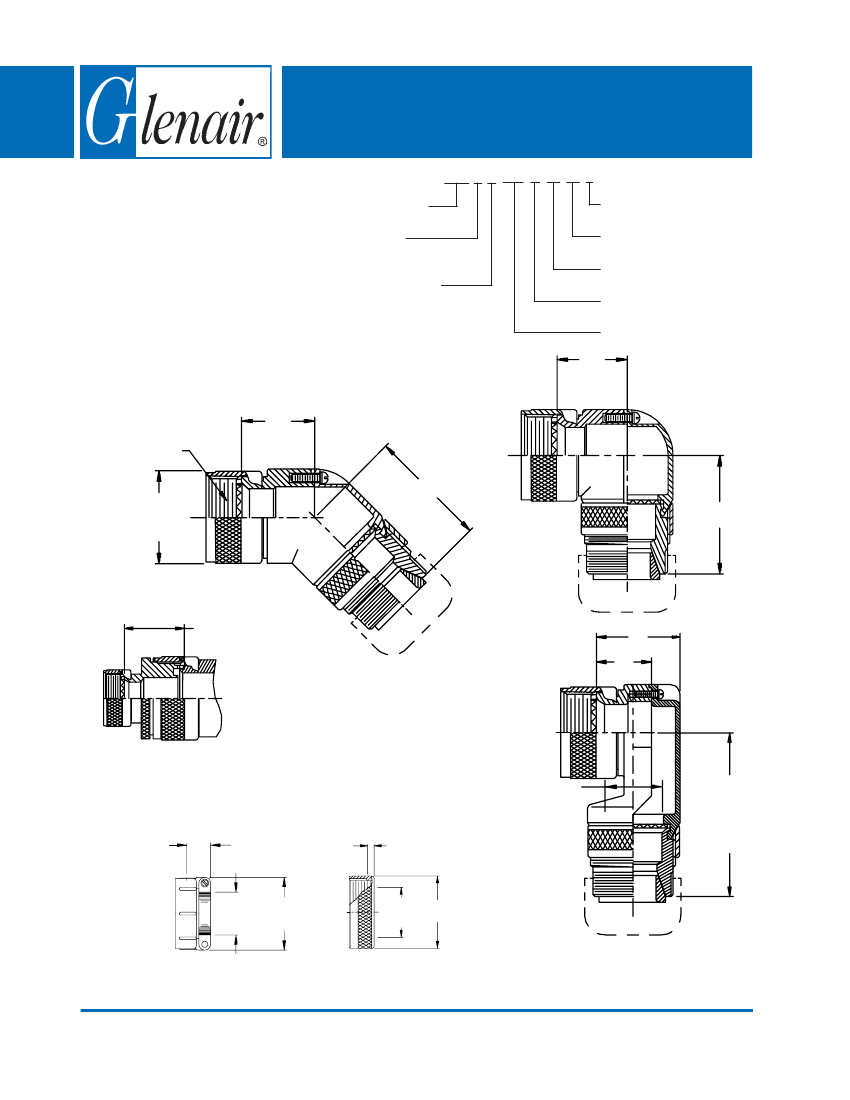

380-009

EMI/RFI Non-Environmental Backshell

with Strain Relief

Type D - Rotatable Coupling - Split Shell

38

CONNECTOR

DESIGNATORS

380 F D 009 M 16 05 F

Product Series

Connector

Designator

Angle and Profile

C = Ultra-Low Split 90°

D = Split 90°

F = Split 45°

Strain Relief Style (F, G)

Cable Entry (Table IV, V)

Shell Size (Table I)

Finish (Table II)

Basic Part No.

G

(Table III)

A-F-H-L-S

ROTATABLE

COUPLING

TYPE D INDIVIDUAL

OR OVERALL

SHIELD TERMINATION

A Thread

(Table I)

E

(Table III)

F (Table III)

C Typ.

(Table I)

H (Table III)

Split 90°

Split 45°

.88 (22.4) Max

L

(Table III)

J

(Table III)

STYLE 2

(See Note 1)

STYLE F

Light Duty

(Table IV)

.416 (10.5)

Max

Cable

Range

STYLE G

Light Duty

(Table V)

.072 (1.8)

Max

Max Wire

Bundle

(Table III,

Note 1)

K

(Table

III)

M

Cable

Entry

N

Ultra Low-Profile

Split 90°

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 56
