e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com

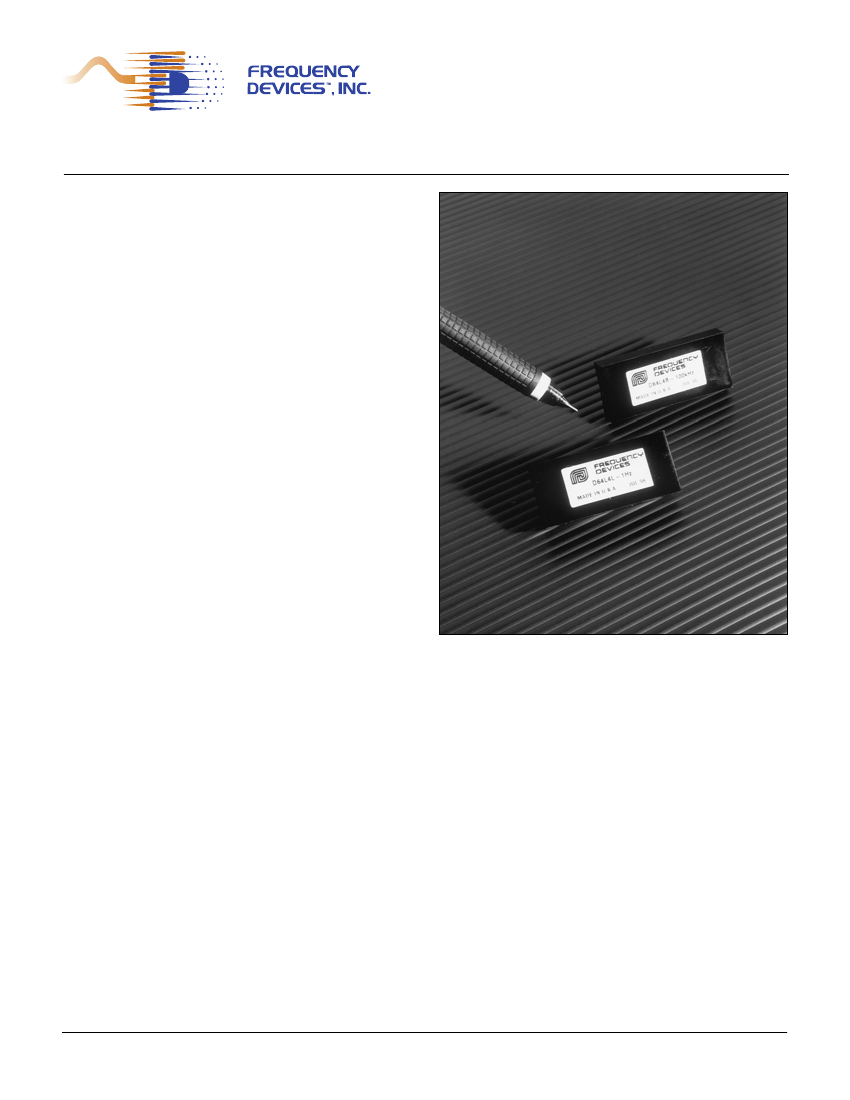

D64 & DP64 Series
Specification
(25°C and Vs ± 15 Vdc)
Analog Input Characteristics
Impedance
10 kΩ min.
Voltage Range
± 10 Vpeak
Max. Safe Voltage
± Vs
Analog Output Characteristics
Impedance(Closed Loop)
1
Ω
typ.
10
Ω
max.
Linear Operating Range
± 10 V
2
Maximum Current
± 2 mA
3
02
mV typ.
Offset Voltage
10 mV max.
Offset Temp. Coeff.
50
µV
/ °C
Power Supply (±V)
Rated Voltage
Operating Range
Maximum Safe Voltage
Quiescent Current D64
DP64
Temperature
Operating
Storage
1
Pin-Out and Package Data
Ordering Information
0.80
Side View
0.025 dia.
1.80
All dimensions are in inches
All case dimensions
±
0.01"
Front View
0.30
0.15 (min)
0.80
0.70
OUT
+VS
-VS OS
4
Bottom View
GND
IN
±
±
±
±
±
±
±
15 Vdc
5 to ± 18 Vdc
18 Vdc
12.5 mA typ.
20 mA max.
3.5 mA typ.
5 mA max.
0.10
0.00
0.00
0.15
0.45
0.55
1.55
1.65
1.80
Filter Mounting Assembly-See FMA-01A
Ordering Information
Filter Type
L
- Low Pass
H
- High Pass
Transfer Function
B
- Butterworth
L
- Bessel
Y2 -
0.2 Ripple Chebychev
Y5
- 0.5 Ripple Chebychev
-
0 to + 70 °C
- 25 to + 85 °C
Notes:
1. Input and output signal voltage referenced to supply
common.
2. Output is short circuit protected to common.
DO NOT CONNECT TO ±Vs.
3. Adjustable to zero.
DC Offset Adjustment
± Vs
Do not connect
if trim is not
required.
20 k
Ω
(Cermet)
OS
Power Level
D64L4B-849 Hz
D
– Standard Power
DP
– Low Power
4. Units operate with or with out offset pin connected.
- 3 dB Corner Frequency
5
e.g., 849 Hz
2.50 kHz
33.3 kHz
- Vs
5. How to Specify Corner Frequency:
Corner frequencies are specified by attaching a three digit frequency designator to the basic
model number. Corner frequencies can range from 1.00 Hz to 100 kHz.
We hope the information given here will be helpful. The information is based on data and our best knowledge, and we consider the information to be true and accurate. Please read all statements,
recommendations or suggestions herein in conjunction with our conditions of sale which apply to all goods supplied by us. We assume no responsibility for the use of these statements,
recommendations or suggestions, nor do we intend them as a recommendation for any use which would infringe any patent or copyright.
