59453-131110ECHLF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 59453-131110ECHLF

Preview

59453-131110ECHLF: DescriptionFFC & FPC Connectors SHORT TAIL AU PLT; CategoryThe connector; File Size804KB，9 Pages; ManufacturerFCI [First Components International]

Download Datasheet Parametric Compare View All

59453-131110ECHLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59453-131110ECHLF	-	-	View	Buy Now

59453-131110ECHLF Overview

FFC & FPC Connectors SHORT TAIL AU PLT

59453-131110ECHLF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI [First Components International]
Product Category	FFC & FPC Connectors
RoHS	Details
Product	Board Mount
Number of Positions	13 Position
Pitch	0.5 mm
Termination Style	SMD
Mounting Angle	Right Angle
Contact Location	Bottom Contact
Contact Plating	Gold
Current Rating	400 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Housing Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50 V
Contact Material	Copper Alloy
Actuation Type	ZIF
Insulation Resistance	100 MOhms
Factory Pack Quantity	5000

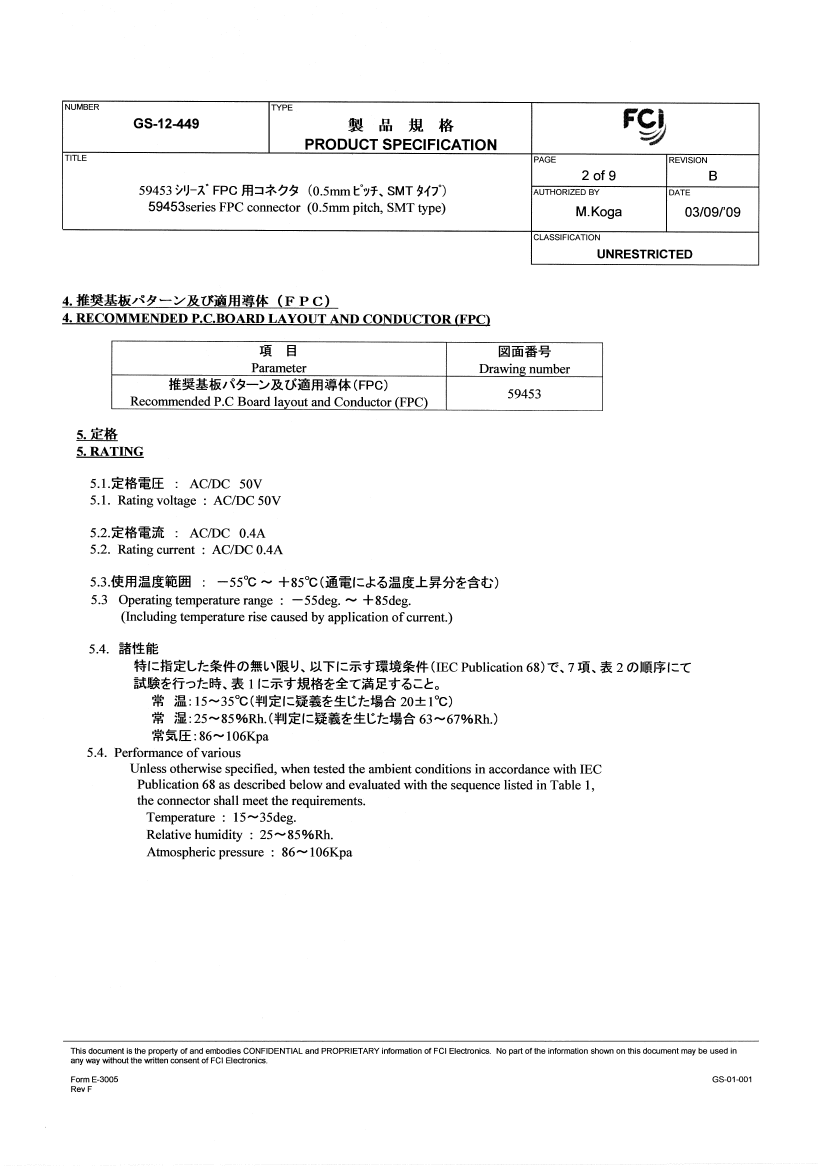

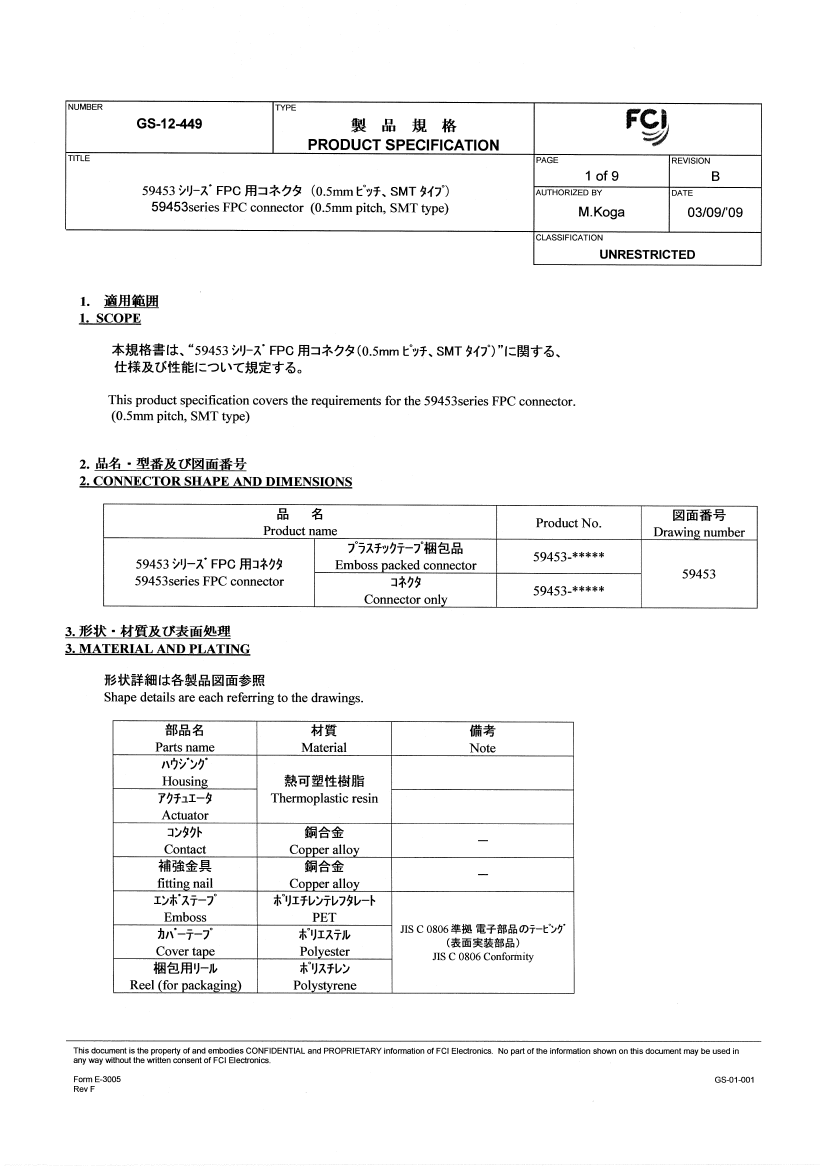

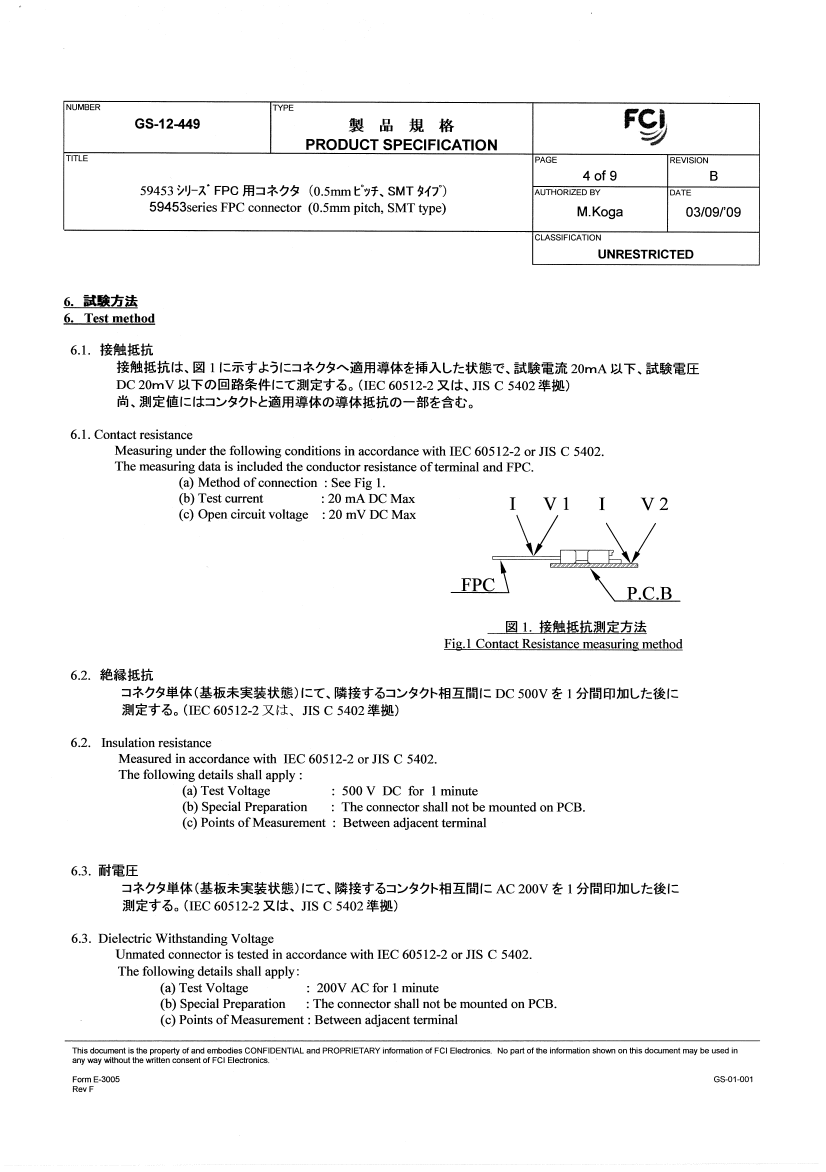

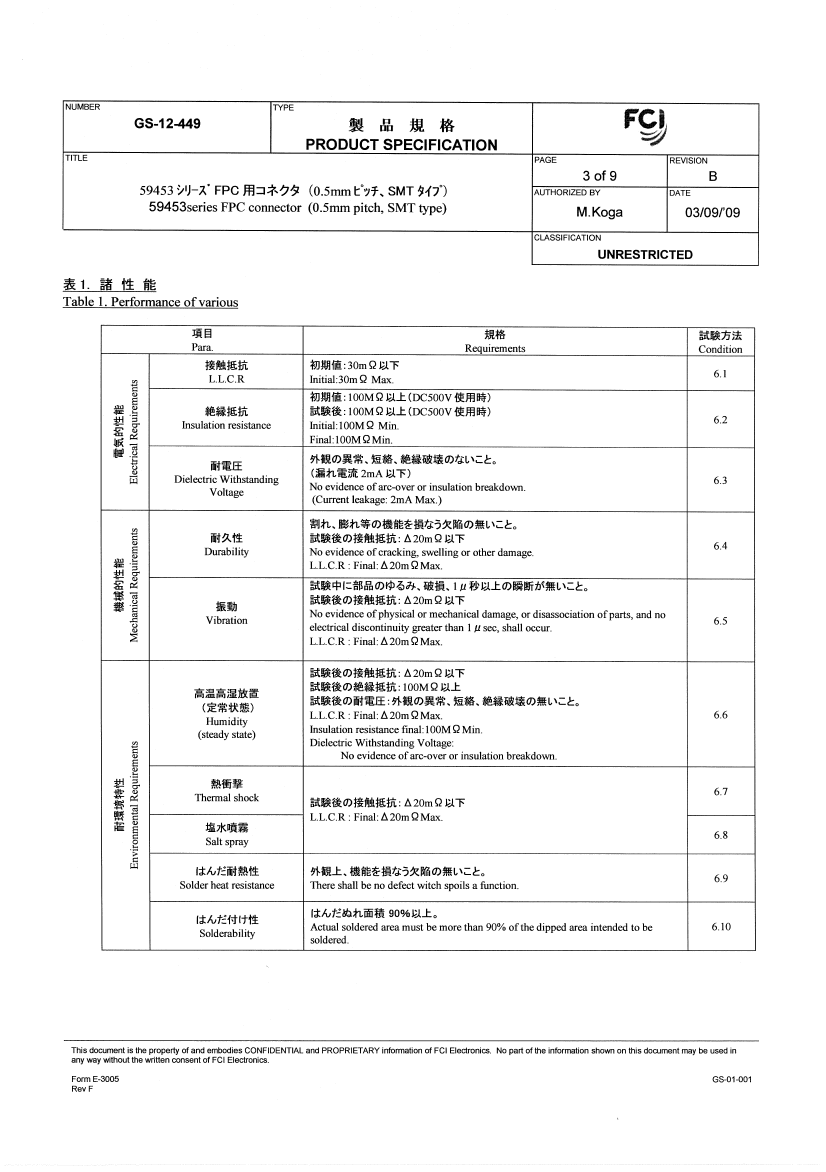

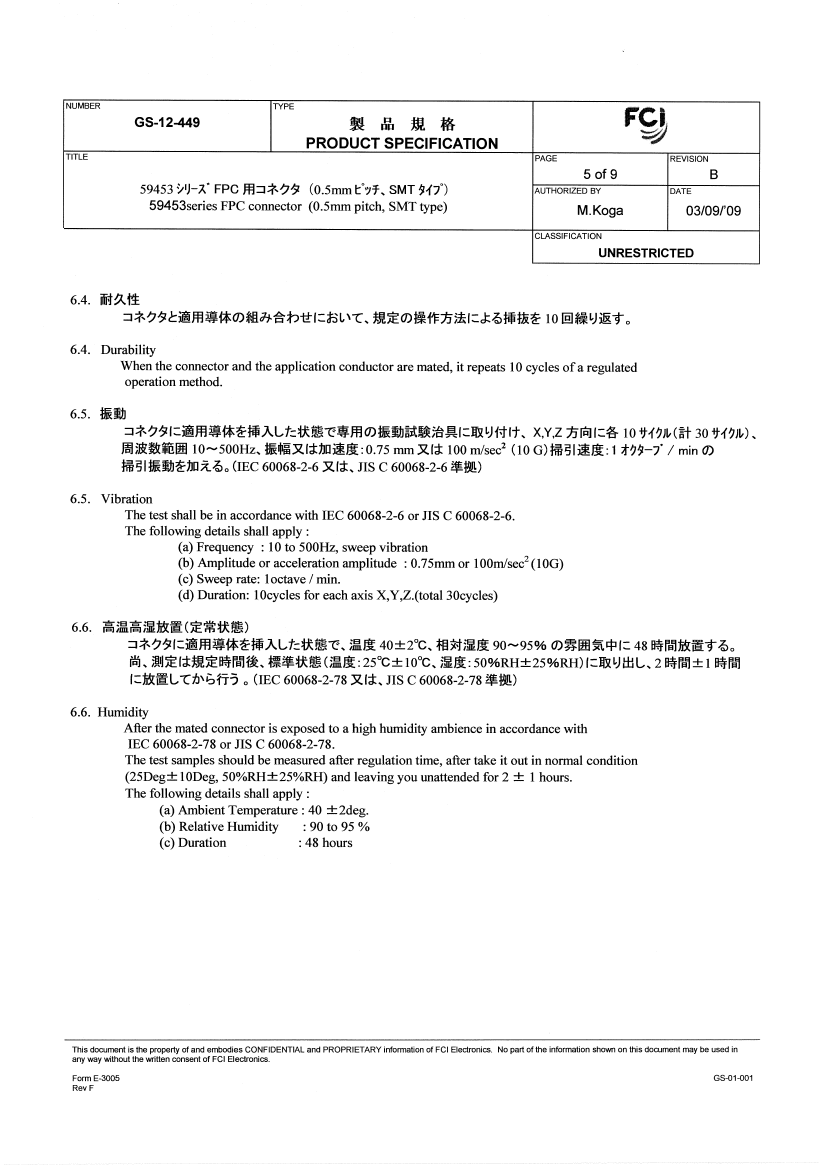

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Nov 28, 2010

.

59453-131110ECHLF Related Products

	59453-131110ECHLF	59453-081110ECHLF	59453-082110ECHLF	59453-051110EDHLF	59453-062110ECHLF
Description	FFC & FPC Connectors SHORT TAIL AU PLT	FFC & FPC Connectors TRANSFER TO MALAYSIA	FFC & FPC Connectors TRANSFER TO VENDOR	FFC & FPC Connectors TRANSFER TO MALAYSIA	FFC & FPC Connectors TRANSFER TO VENDOR
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]
Product Category	FFC & FPC Connectors	FFC & FPC Connectors	FFC & FPC Connectors	FFC & FPC Connectors	FFC & FPC Connectors
RoHS	Details	Details	Details	Details	Details
Product	Board Mount	Board Mount	Board Mount	Board Mount	Board Mount
Number of Positions	13 Position	8 Position	8 Position	5 Position	6 Position
Pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination Style	SMD	SMD	SMD	SMD	SMD
Mounting Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Contact Location	Bottom Contact	Bottom Contact	Top Contact	Bottom Contact	Top Contact
Contact Plating	Gold	Gold	Gold	Gold	Gold
Current Rating	400 mA	400 mA	400 mA	400 mA	400 mA
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Maximum Operating Temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Voltage Rating	50 V	50 V	50 V	50 V	50 V
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Actuation Type	ZIF	ZIF	ZIF	ZIF	ZIF
Insulation Resistance	100 MOhms	100 MOhms	100 MOhms	100 MOhms	100 MOhms
Factory Pack Quantity	5000	5000	5000	5000	5000
Packaging	Reel	Reel	Reel	Reel	Reel
