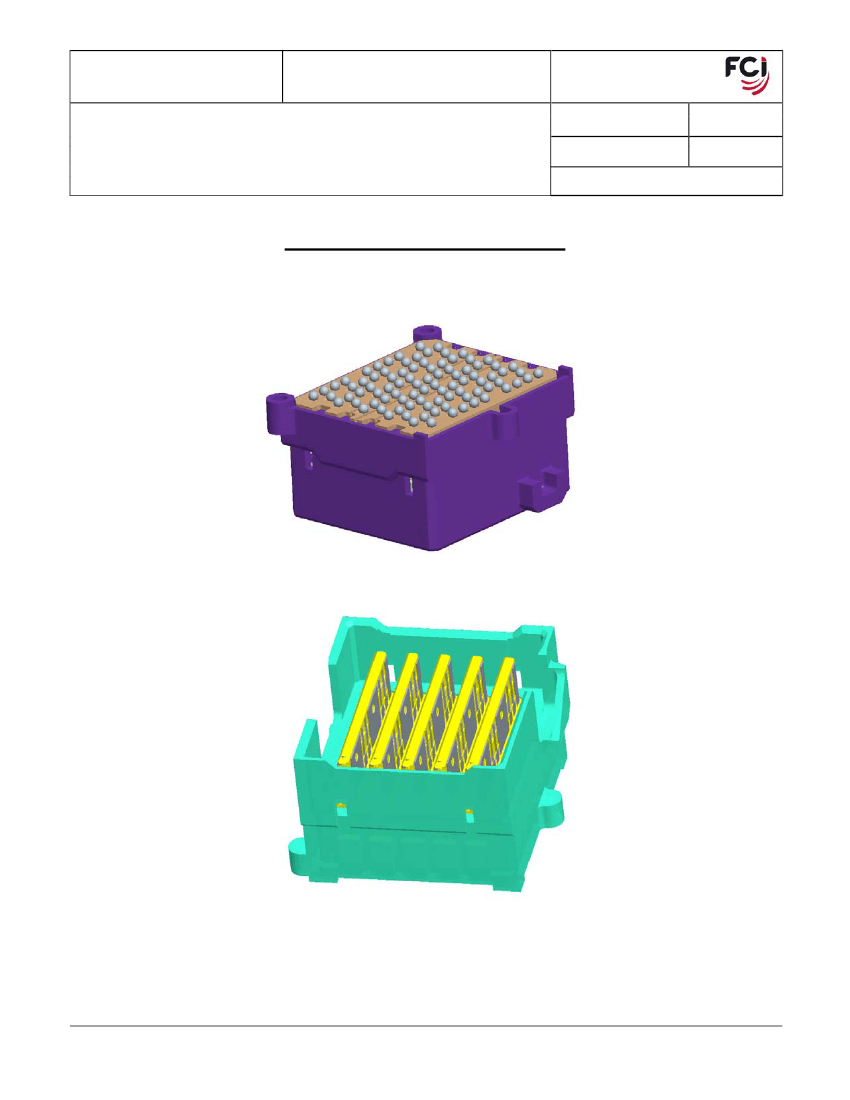

4 Pair, 5 Column, 9 mm Receptacle Version Shown
4 Pair, 5 Column, 6 mm Plug Version Shown
Copyright FCI
Form E-3334
Rev F
PDS: Rev :A
STATUS:Released
GS-01-001
Printed: Jul 18, 2013
NUMBER
TYPE
GS-12-1061
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
InfinX® BGA Connectors
2 of 11
AUTHORIZED BY
DATE
A
2012-10-26
Streckewald
CLASSIFICATION
RELEASED
TABLE OF CONTENTS:
1.0
2.0
3.0
OBJECTIVE ..................................................................................................................................... 4
SCOPE............................................................................................................................................. 4
APPLICABLE DOCUMENTS ........................................................................................................... 4
3.1
FCI Specifications ............................................................................................................... 4
3.2
Other Standards and Specifications ................................................................................... 4
4.0
REQUIREMENTS ............................................................................................................................ 4
4.1
Qualification ........................................................................................................................ 4
4.2
Materials ............................................................................................................................. 4
4.3
Visual inspection ................................................................................................................. 4
ELECTRICAL CHARACTERISTICS................................................................................................ 5
5.1
Contact Resistance ............................................................................................................. 5
5.1.1 Low Level (LLCR) .................................................................................................. 5
5.2
Current Rating (signal and power IMLA’s to be tested separately) .................................... 5
5.2.2 General Criteria ..................................................................................................... 5
5.2.3 Contacts ................................................................................................................. 5
5.3
Insulation Resistance.......................................................................................................... 5
5.4
Dielectric Withstanding Voltage (DWV) .............................................................................. 5
MECHANICAL CHARACTERISTICS .............................................................................................. 6
6.1
Mating / Un-mating Force ................................................................................................... 6
ENVIRONMENTAL CONDITIONS .................................................................................................. 6
7.1
Mechanical Shock ............................................................................................................... 6
7.2
Vibration .............................................................................................................................. 6
7.3
Thermal Life ........................................................................................................................ 6
7.4
Thermal Shock .................................................................................................................... 7
7.5
Cyclic Humidity and Temperature ...................................................................................... 7
7.6
Industrial Mixed Flowing Gas (class IIIA, 4 gas)................................................................. 7
7.7
Durability ............................................................................................................................. 7
7.8
Dust ..................................................................................................................................... 7
7.9
Steady State Temperature and Humidity ........................................................................... 7
QUALITY ASSURANCE PROVISIONS........................................................................................... 7
8.1
Equipment Calibration ........................................................................................................ 7
8.2
Inspection Conditions ......................................................................................................... 8
GS-01-001
5.0
6.0
7.0
8.0
Copyright FCI
Form E-3334
Rev F
PDS: Rev :A
STATUS:Released
Printed: Jul 18, 2013
NUMBER
TYPE
GS-12-1061
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
InfinX® BGA Connectors
3 of 11
AUTHORIZED BY
DATE
A
2012-10-26
Streckewald
CLASSIFICATION
RELEASED
8.3
8.4
8.5
8.6
Sample Quantity and Description ....................................................................................... 8
Acceptance ......................................................................................................................... 8
Qualification Testing ........................................................................................................... 8
Re-qualification testing ....................................................................................................... 8
TABLE 1: Qualification Test Matrix ....................................................................... 9
TABLE 2: Qualification Sample Requirements ................................................... 10
9.0
REVISION RECORD ..................................................................................................................... 11
Copyright FCI
Form E-3334
Rev F
PDS: Rev :A
STATUS:Released
GS-01-001
Printed: Jul 18, 2013
NUMBER
TYPE
GS-12-1061
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
InfinX® BGA Connectors
4 of 11
AUTHORIZED BY
DATE
A
2012-10-26
Streckewald
CLASSIFICATION
RELEASED
1.0 OBJECTIVE
This specification defines the performance, test, quality, and reliability requirements of the InfinX® Connector
System with BGA termination.
2.0 SCOPE
This specification applies to the InfinX® BGA connector, which is a high density, high speed interconnect
solution for mezzanine applications
3.0 APPLICABLE DOCUMENTS
3.1 FCI Specifications
•
Applicable FCI product customer drawings
•
FCI Application Specification GS-20-0365 (InfinX® BGA Connectors)
3.2 Other Standards and Specifications
•
UL-94V-0: Test for Flammability of plastic Materials in Devices and Appliances
•
EIA 364: Electrical Connector/Socket Test Procedures Including Environmental Classifications
•
GR-1217-CORE: Telcordia Specification “Generic Requirements for Separable Electric Connectors”
•
IPC-9701: “Performance Test Methods and Qualification Requirements for Surface Mount Solder
Attachments”
•
HP EL-MF862-04
4.0 REQUIREMENTS
4.1 Qualification
Connectors furnished under this specification shall be products that are capable of meeting the
qualification test requirements specified herein.
4.2 Materials
The material for each part shall be as specified herein, or equivalent.
•
•
•
•
•
Terminals: Copper alloy.
Plating: Performance based plating, capable of meeting the requirements of this specification.
Housing: High temperature thermoplastic, UL 94V-0 compliant.
Vacuum cap: Stainless Steel
Solder spheres: Lead free alloy.
4.3 Visual inspection
Visual inspections shall be performed using 10x magnification. Parts should be free from blistering,
discoloration, cracks, incomplete plating, etc.
Copyright FCI
Form E-3334
Rev F
PDS: Rev :A
STATUS:Released
GS-01-001
Printed: Jul 18, 2013
NUMBER
TYPE
GS-12-1061
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
InfinX® BGA Connectors
5 of 11
AUTHORIZED BY
DATE
A
2012-10-26
Streckewald
CLASSIFICATION
RELEASED
5.0 ELECTRICAL CHARACTERISTICS
5.1 Contact Resistance
5.1.1 Low Level (LLCR)
Measurements shall be performed using a four wire method per EIA 364-23. The initial low level
contact resistance shall be recorded. After environmental exposure, the increase in LLCR shall not
exceed 20mΩ. The following details shall apply:
•
•
•
•
Test Voltage: 20 mV maximum open circuit
Test Current: 100 mA maximum
Number of readings: 160 minimum from at least 4 connector systems.
The mechanical chock and vibration test sequence requires only 100 readings from at least 3
connector systems.
5.2 Current Rating (signal and power IMLA’s to be tested separately)
5.2.2 General Criteria
•
•
•
Test Specification: EIA 364-70
Ambient Temperature: 25˚C
Airflow: None (still-air)
5.2.3 Contacts
•
•
•
•
•
Measure temperature versus applied current
All contacts powered
Thermocouple location: Mechanically attached to the base of a terminal located approximately in
the center of the pin field.
Copper trace weight: 1oz
The temperature-rise above ambient shall not exceed 30˚C at 0.5A per contact.
5.3 Insulation Resistance
The insulation resistance of mated connectors shall not be less than 1000 MΩ after environmental
exposure when measured in accordance with EIA 364-21. The connectors shall be unmated when
insulation resistance is measured. The following details shall apply:
•
•
•
•
Test Voltage: 500 volts DC.
Electrification Time: 60 seconds minimum.
Points of Measurement: between closest adjacent contacts.
Number of measurements: 30 (10 readings per loose piece connector set)
5.4 Dielectric Withstanding Voltage (DWV)
There shall be no evidence of arc-over, insulation breakdown, or excessive current leakage (> 0.5 mA)
when mated connectors are tested in accordance with EIA 364-20. The following details shall apply:
•
•
•
•
Copyright FCI
Form E-3334
Rev F
PDS: Rev :A
STATUS:Released
GS-01-001
Test Voltage: 500 VAC, 60 Hz.
Test Duration: 60 seconds minimum.
Voltage application rate: 500 V per second
Points of Measurement: between closest adjacent contacts.
Printed: Jul 18, 2013
