TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 6T
FLAMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED CONTACT
PLATING: GOLD
ENVIRONMENTAL
OPERATING TEMPERATURE: -40°C UP TO +105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
INSULATION RESISTANCE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
STANDARD
CERTIFIED: E323964
SOLDERING
JEDEC LEAD FREE REFLOW SOLDERING PROCESS

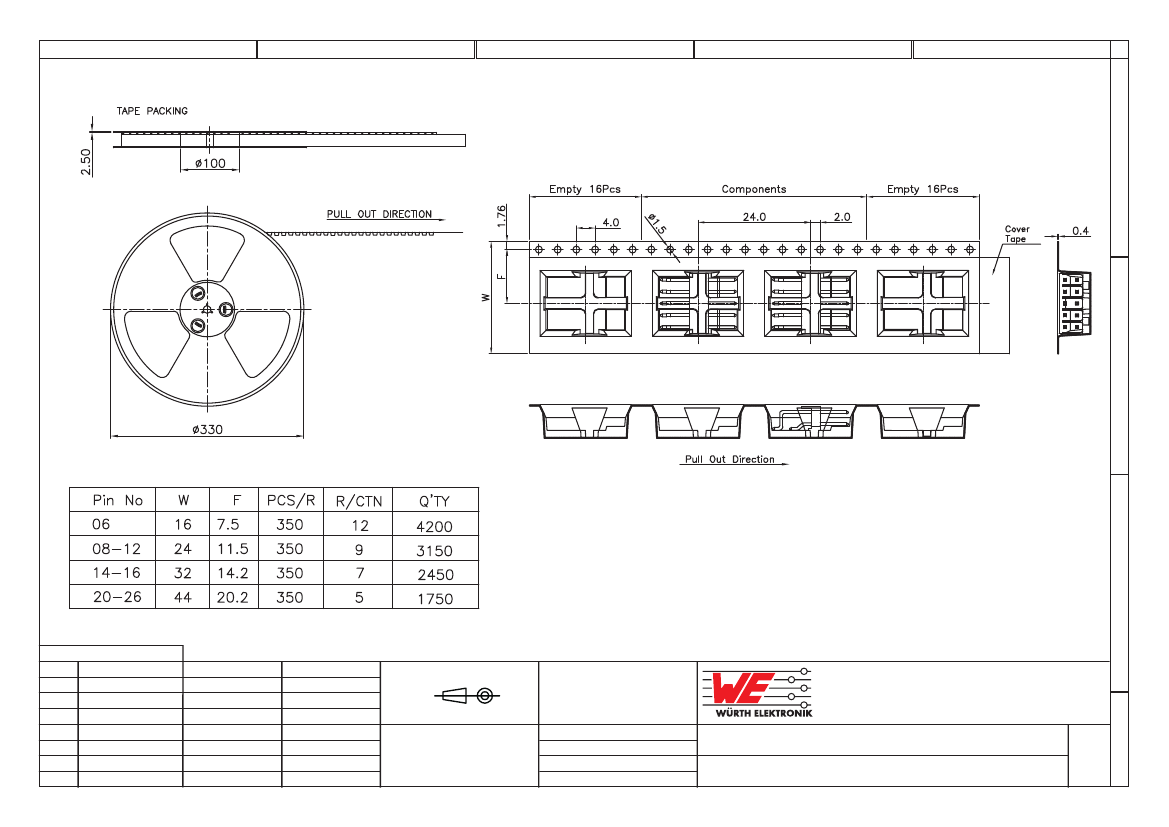

PACKAGING
TAPE & REEL
DIMENSIONS
A = 2.54 x (NB. PINS/2-1)
B = 2.54 x (NB. PINS/2)
AVAILABLE IN:
6-8-10-12-14-16-20-22-24-26
3A
250 VAC/DC
>1000MΩ
600 VAC/min
20 mΩ max
A
B±0.3
A±0.10
PCB LAYOUT - COMPONENT VIEW
B
A-2.54
C
RoHS Compliant
G
F
E
D
C
B
A
REV
29-JUL-16
-
-14
DATE
CERTIFICATION UL
PDF
FILE
AK
AS
BY
APPROVAL: GMo
SCALE:
SHEET: 1/3
DRAW: AS
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

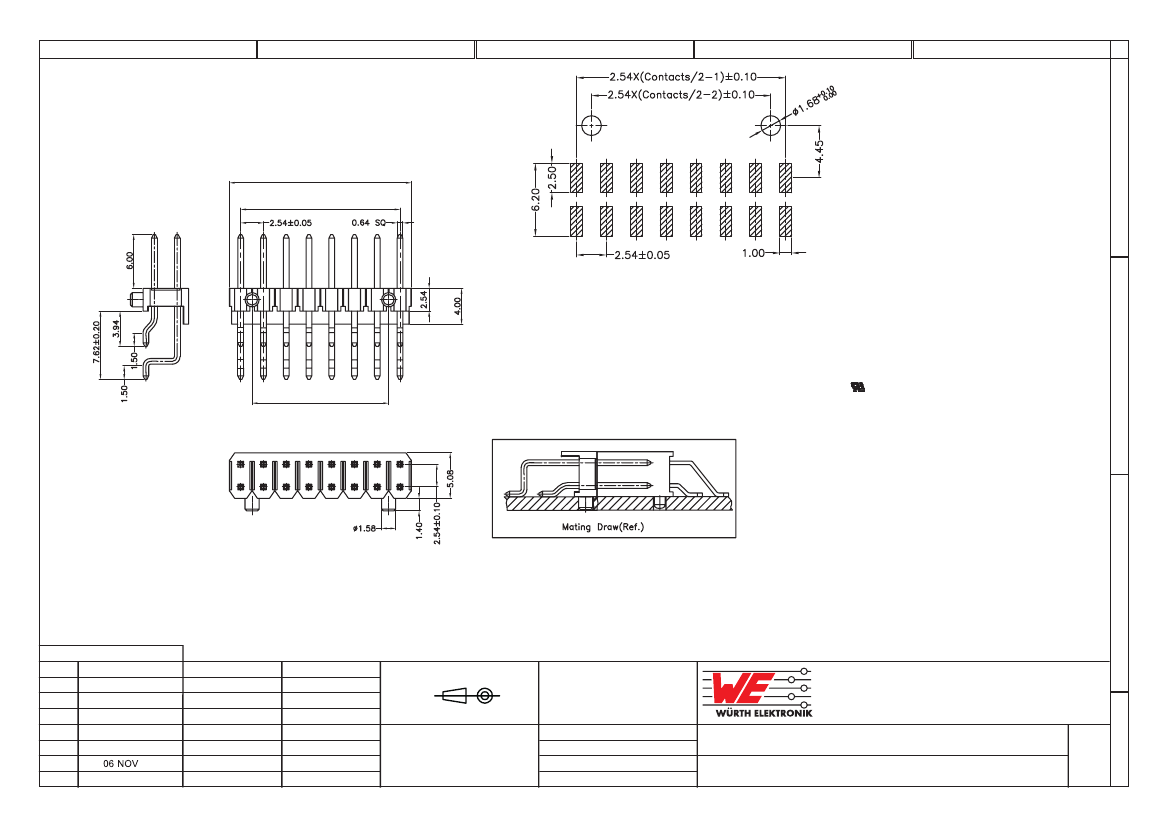

DESCRIPTION: WR-PHD - 2.54MM PIN HEADER - SMT TYPE
DOUBLE ROW RIGHT ANGLE
WERI PART NO: 610 1xx 249 121
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET: 3/3
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
D
