KSM-715SY Overview

Optic receiver modules

KSM-715SY Parametric

Parameter Name	Attribute value
Maker	KODENSHI
Reach Compliance Code	unknow
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Maximum slew rate	0.0025 mA
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

Optic receiver modules

KODENSHI

KSM-71

(Unit : mm)

NOTE

PIN configuration

①

②

③

71 SM

Vout

Vcc

GND

DIMENSIONS

The KSM-71 SY consist of a PIN Photodiode of high

speed and a preamplifier IC in the package as an

receiver for Infrared remote control systems

FEATURES

•One mold small package

•5 Volt supply voltage, low power consumption

•Shielded against electrical field disturbance

•High immunity against ambient light

•Easy interface with the main board

•TTL and CMOS compatibility

APPLICATIONS

•TV, VTR, Acoustic Devices, Air Conditioners, Car

Stereo Units, Computers, Interior controlling

appliances, and all appliances that require remote

controlling

MAXIMUM RATINGS

Parameter

Supply Voltage

Operating Temperature

Storage Temperature

Soldering Temperature

(Ta=25℃ Unless

otherwise noted)

B.P.F CENTER FREQUENCY

Model NO.

KSM-◯◯1 SY

KSM-◯◯2 SY

KSM-◯◯3 SY

KSM-◯◯4 SY

KSM-◯◯5 SY

B.P.F Center Frequency(kHz)

40.0

36.7

37.9

32.7

56.9

Symbol

Topr.

Tstg.

Tsol.

Rating

5.5

-10~+60

-20~+75

260(Max 5 sec)

Unit

℃

ELECTRO-OPTICAL CHARACTERISTICS

Parameter

Supply Voltage

Current Consumption

Peak Wavelength *1

B.P.F Center Frequency

Transmission Distance *1

H Level Output Voltage *1

L Level Output Voltage *1

H Level Output Pulse Width *1

L Level Output Pulse Width *1

Output Form

(Ta=25℃), Vcc=5.0V

Symbol

λp

Conditions

Input Signal=0

0°

±30°

30cm over the ray

axis

Burst Wave=600μs

Period=1.2

㎳

200±50lx

Min.

Typ.

Max.

5.5

2.5

0.5

700

Unit.

kHz

μs

4.5

5.0

1.2

940

37.9

4.5

5.0

0.1

500

600

500

600

Active Low Output

Note : *1. It specifies the maximum distance between emitter and detector that the output waveform satisfies the standard under the conditions below against the standard

transmitter

1) Measuring place : Indoor without extreme reflection of light

2) Ambient light source : Detecting surface illumination shall be irradiate 200±50lx under ordinary white fluorescence lamp without high frequency lightning

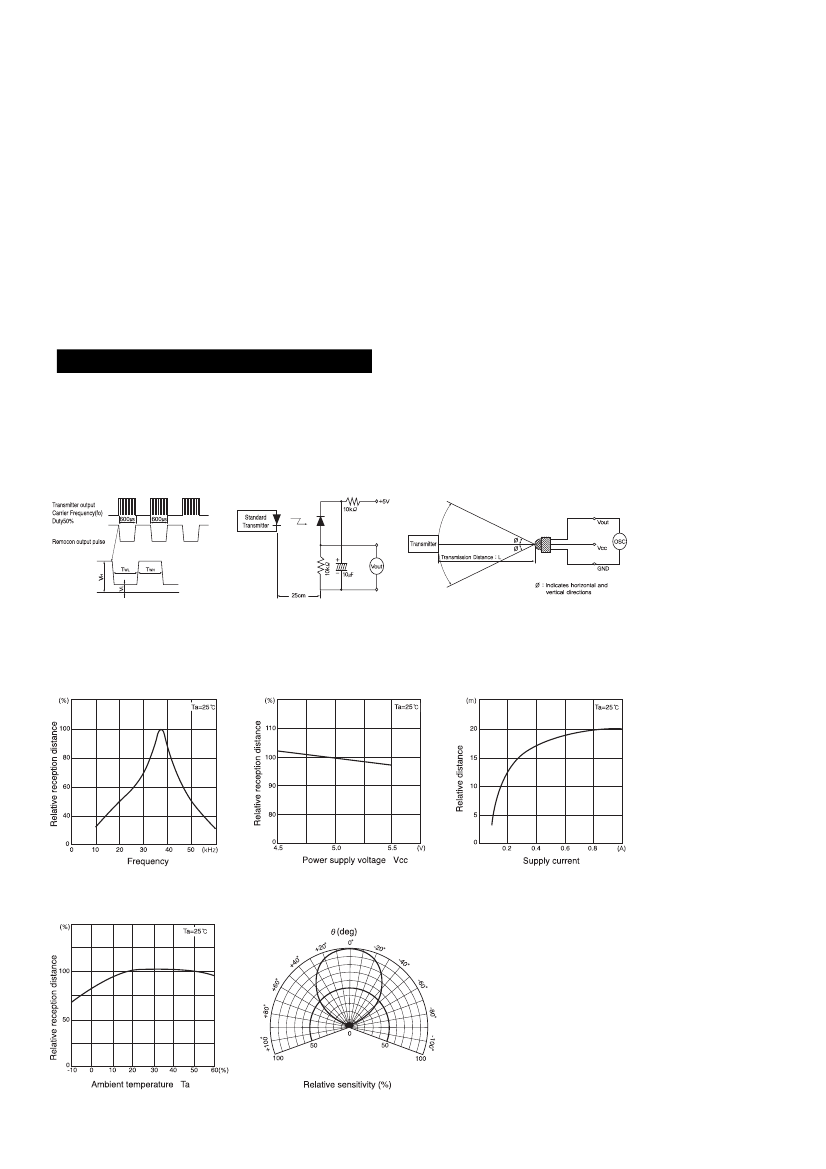

3) Standard transmitter : Burst wave of standard transmitter shall be arranged to 50mVp-p under the measuring circuit

- 1-
