32R5281R-14H44 datasheet, PDF - EEWORLD Datasheet

32R5281R-14H44: DescriptionRead/Write Amplifier Circuit, 14 Channel, BIPolar, PQCC44; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size232KB，8 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

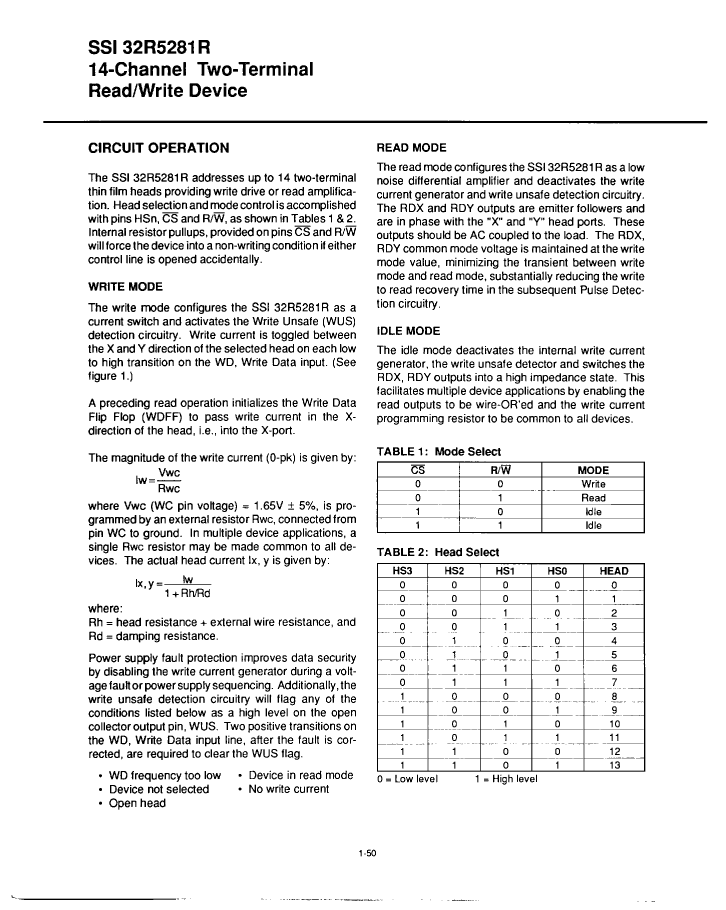

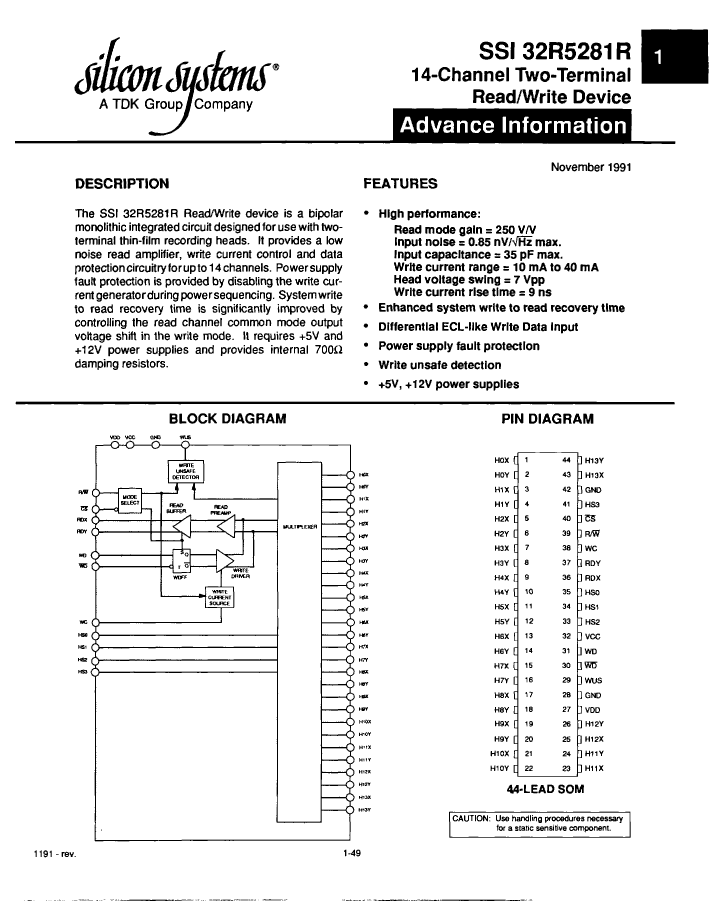

32R5281R-14H44 Overview

Read/Write Amplifier Circuit, 14 Channel, BIPolar, PQCC44

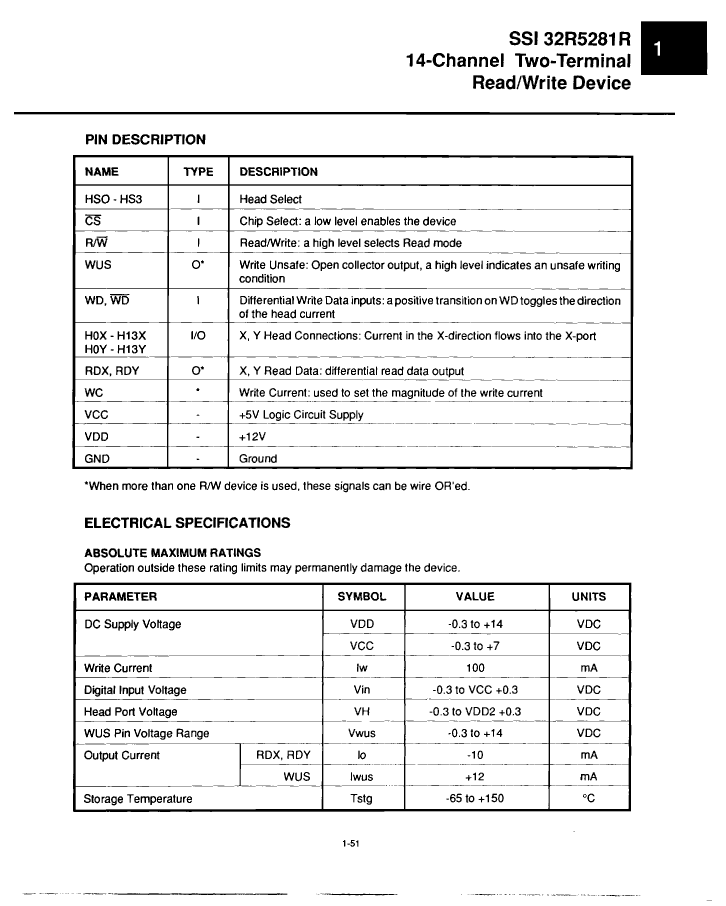

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Drive type	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	S-PQCC-J44
Number of channels	14
Number of functions	1
Number of terminals	44
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified

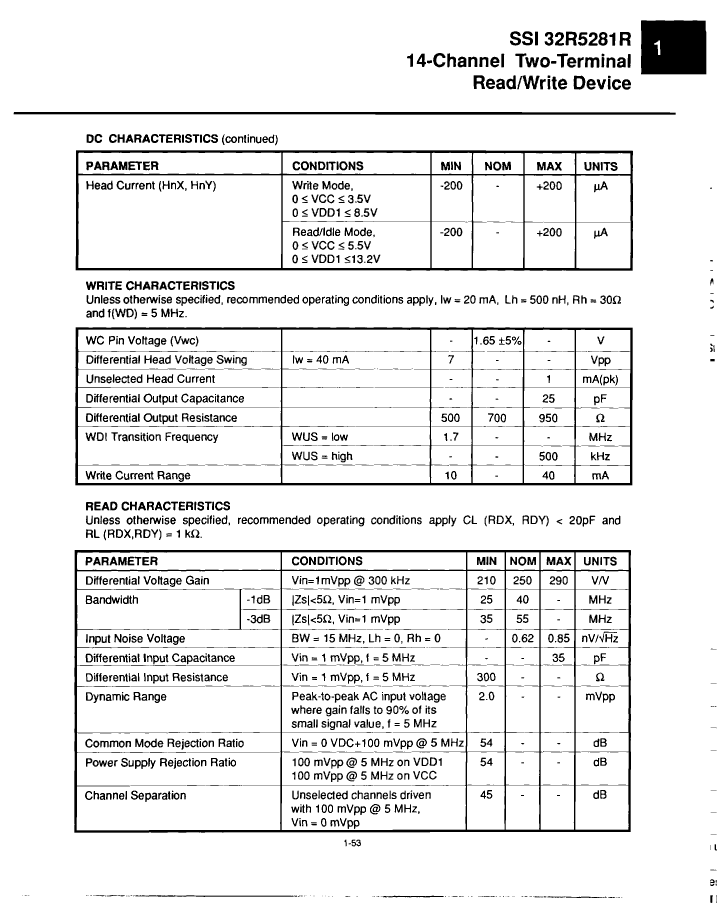

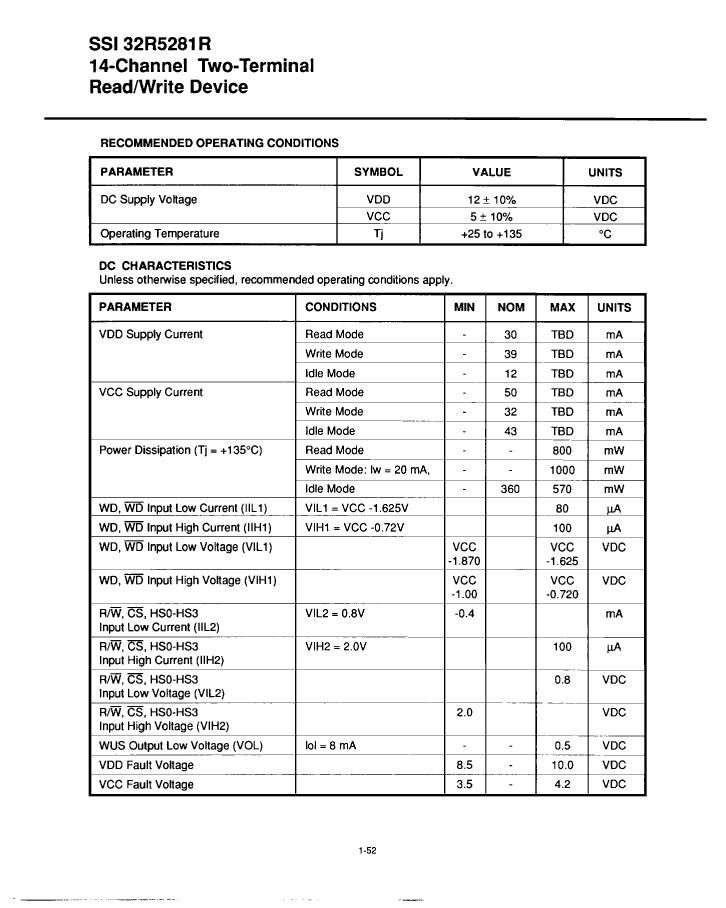

Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13.2 V
Mains voltage 1-minute	10.8 V
Supply voltage1-Nom	12 V
surface mount	YES
technology	BIPOLAR
Terminal form	J BEND
Terminal location	QUAD
Base Number Matches	1

	32R5281R-14H44	32R5281R-14M44
Description	Read/Write Amplifier Circuit, 14 Channel, BIPolar, PQCC44	Read/Write Amplifier Circuit, 14 Channel, BIPolar, PDSO44
Reach Compliance Code	unknown	unknown
Drive type	WINCHESTER	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	S-PQCC-J44	R-PDSO-G44
Number of channels	14	14
Number of functions	1	1
Number of terminals	44	44
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
Supply voltage 1-max	13.2 V	13.2 V
Mains voltage 1-minute	10.8 V	10.8 V
Supply voltage1-Nom	12 V	12 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Terminal form	J BEND	GULL WING
Terminal location	QUAD	DUAL
Base Number Matches	1	1
