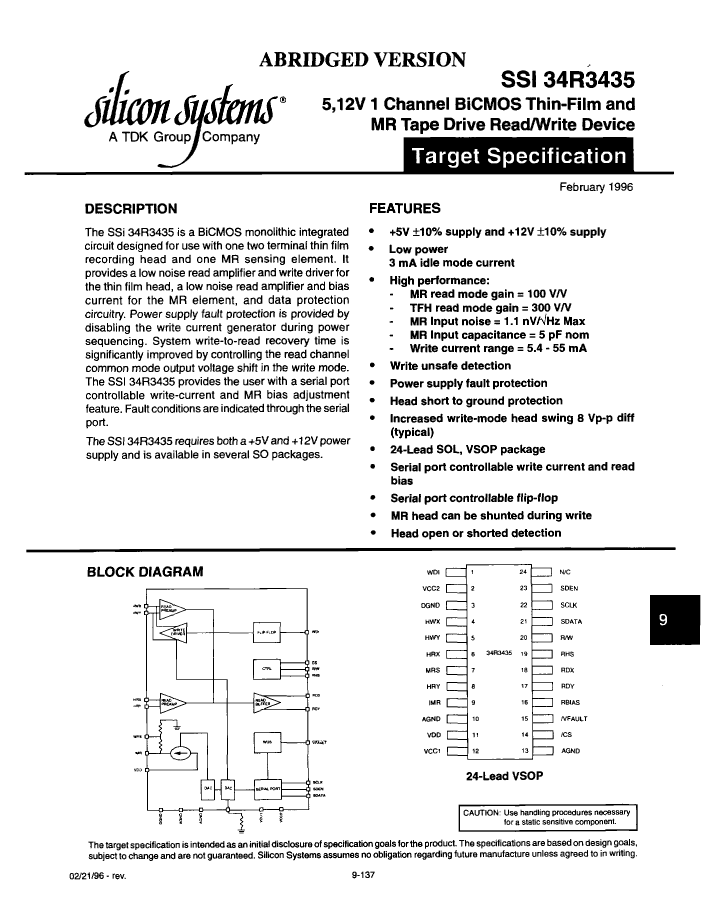

Preview

34R3435T-V24R: DescriptionRead/Write Amplifier Circuit, 1 Channel, BICMOS, PDSO24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size56KB，2 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

34R3435T-V24R Overview

Read/Write Amplifier Circuit, 1 Channel, BICMOS, PDSO24

34R3435T-V24R Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Drive type	TAPE
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G24
Number of channels	1
Number of functions	1
Number of terminals	24
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13.2 V
Mains voltage 1-minute	10.8 V
Supply voltage1-Nom	12 V
surface mount	YES
technology	BICMOS
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

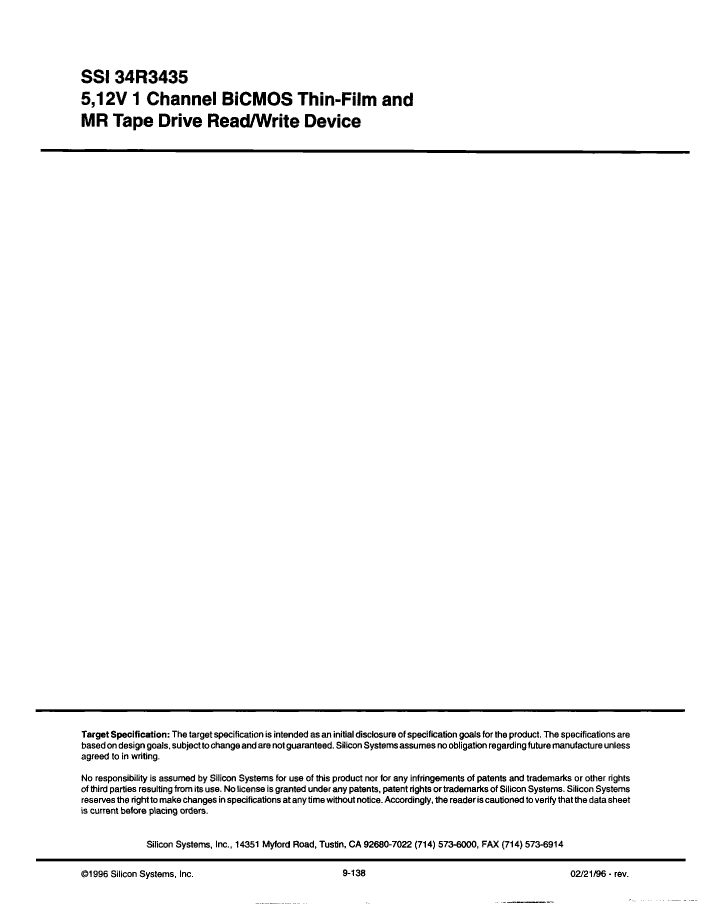

Preview

Download Datasheet

View All

34R3435T-V24R Related Products

	34R3435T-V24R	34R3435X-L24R	34R3435X-L24	34R3435X-V24R	34R3435X-V24	34R3435T-L24R	34R3435T-L24	34R3435T-V24
Description	Read/Write Amplifier Circuit, 1 Channel, BICMOS, PDSO24	Read/Write Amplifier Circuit, 1 Channel, BICMOS, PDSO24	Read/Write Amplifier Circuit, 1 Channel, BICMOS, PDSO24	Read/Write Amplifier Circuit, 1 Channel, BICMOS, PDSO24	Read/Write Amplifier Circuit, 1 Channel, BICMOS, PDSO24	Read/Write Amplifier Circuit, 1 Channel, BICMOS, PDSO24	Read/Write Amplifier Circuit, 1 Channel, BICMOS, PDSO24	Read/Write Amplifier Circuit, 1 Channel, BICMOS, PDSO24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Drive type	TAPE	TAPE	TAPE	TAPE	TAPE	TAPE	TAPE	TAPE
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
Number of channels	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Supply voltage 1-max	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V
Mains voltage 1-minute	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V
Supply voltage1-Nom	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	1
