32R512-8CW datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 32R512-8CW

Preview

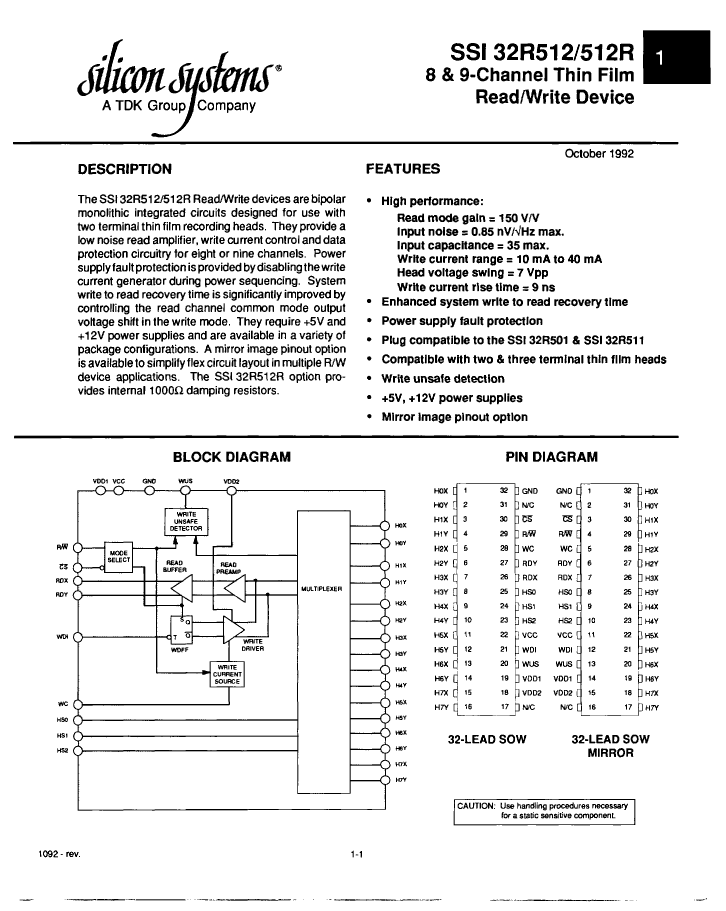

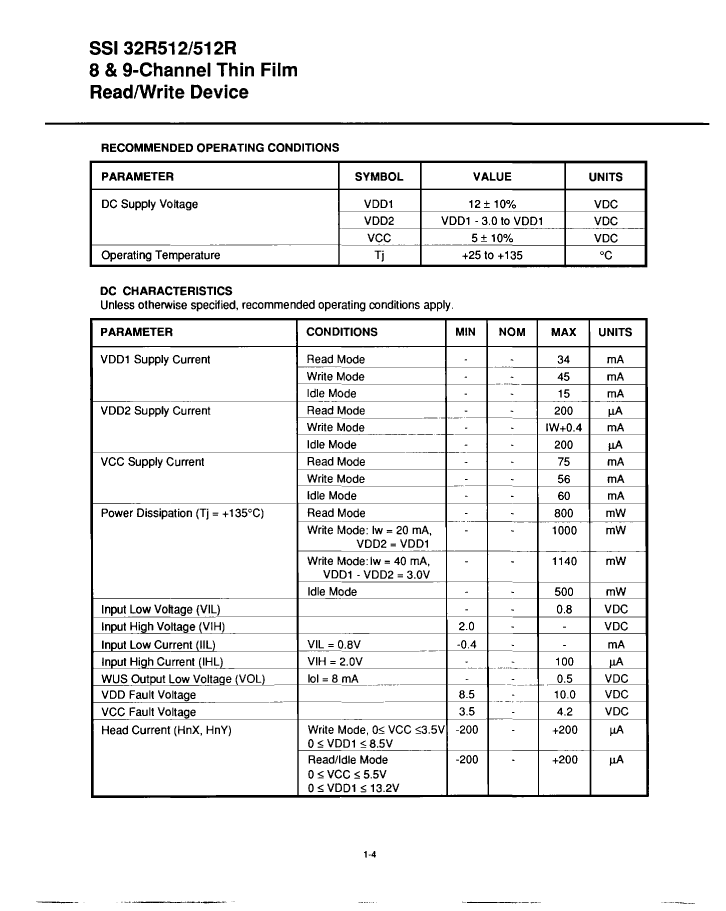

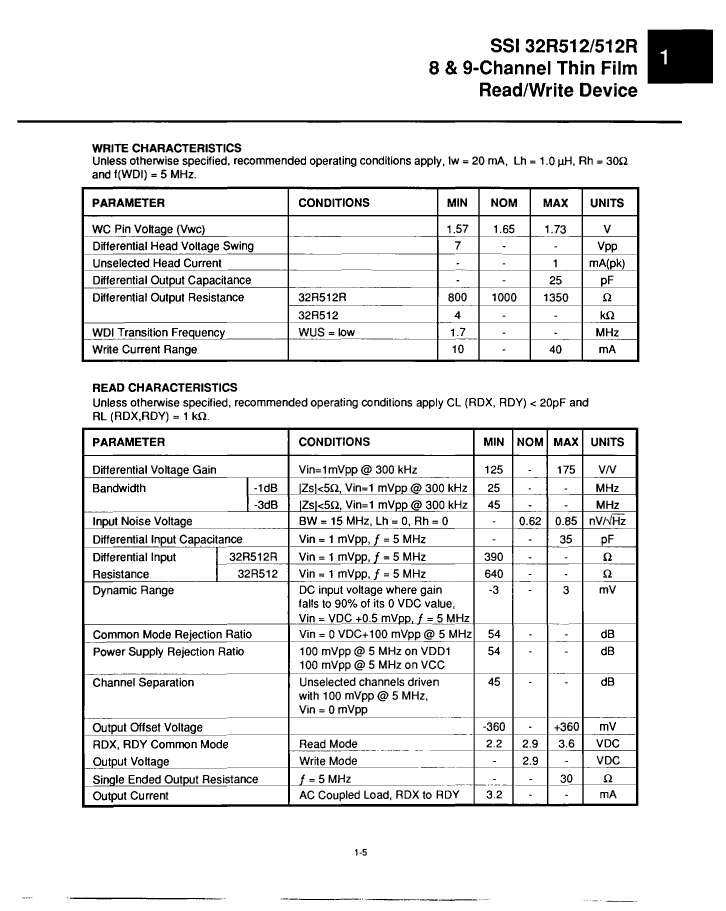

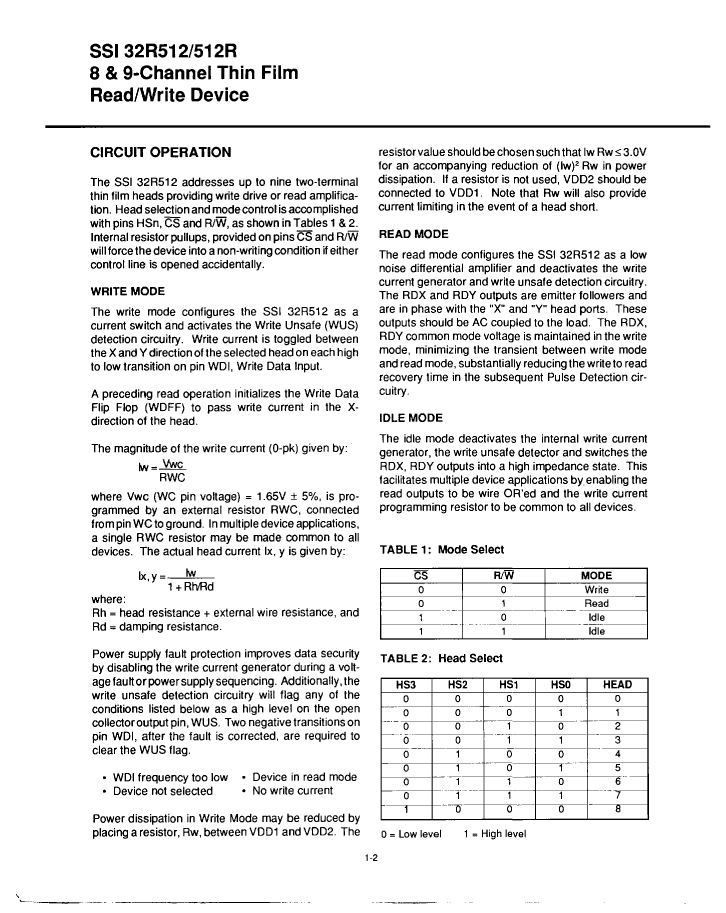

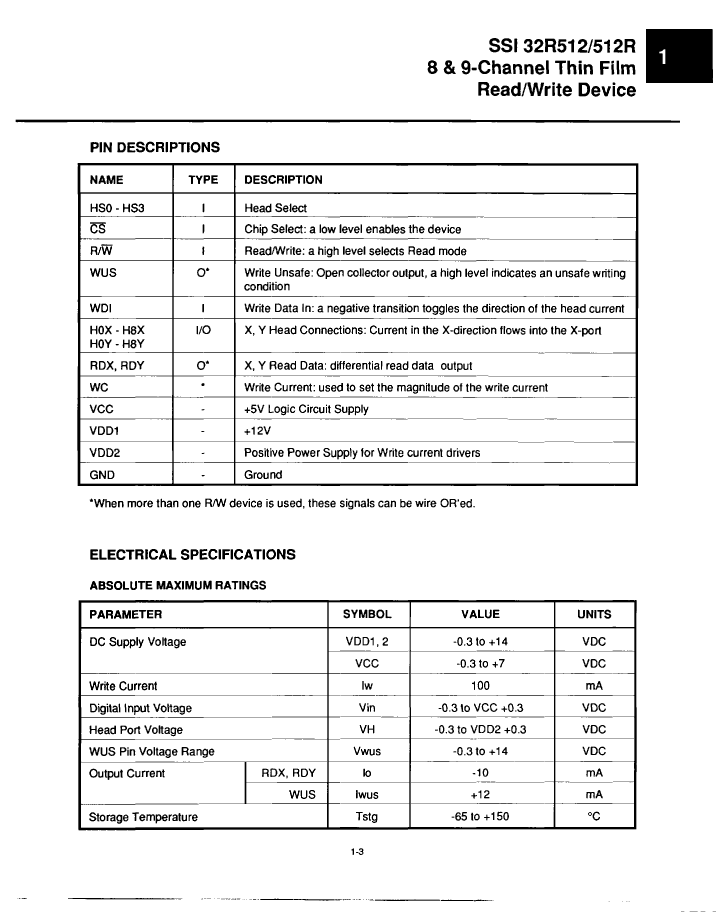

32R512-8CW: DescriptionRead/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size251KB，9 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

32R512-8CW Overview

Read/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32

32R512-8CW Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Drive type	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G32
Number of channels	8
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum slew rate	75 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13.2 V
Mains voltage 1-minute	10.8 V
Supply voltage1-Nom	12 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

32R512-8CW Related Products

	32R512-8CW	32R512R-9CL	32R512RM-9CL	32R512-9CL	32R512M-9CL	32R512M-8CW	32R512R-8CW	32R512RM-8CW
Description	Read/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32	Read/Write Amplifier Circuit, 9 Channel, BIPolar, PDSO34	Read/Write Amplifier Circuit, 9 Channel, BIPolar, PDSO34	Read/Write Amplifier Circuit, 9 Channel, BIPolar, PDSO34	Read/Write Amplifier Circuit, 9 Channel, BIPolar, PDSO34	Read/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32	Read/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32	Read/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Drive type	WINCHESTER	WINCHESTER	WINCHESTER	WINCHESTER	WINCHESTER	WINCHESTER	WINCHESTER	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G32	R-PDSO-G34	R-PDSO-G34	R-PDSO-G34	R-PDSO-G34	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32
Number of channels	8	9	9	9	9	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	32	34	34	34	34	32	32	32
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	75 mA	75 mA	75 mA	75 mA	75 mA	75 mA	75 mA	75 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Supply voltage 1-max	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V
Mains voltage 1-minute	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V
Supply voltage1-Nom	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	1
