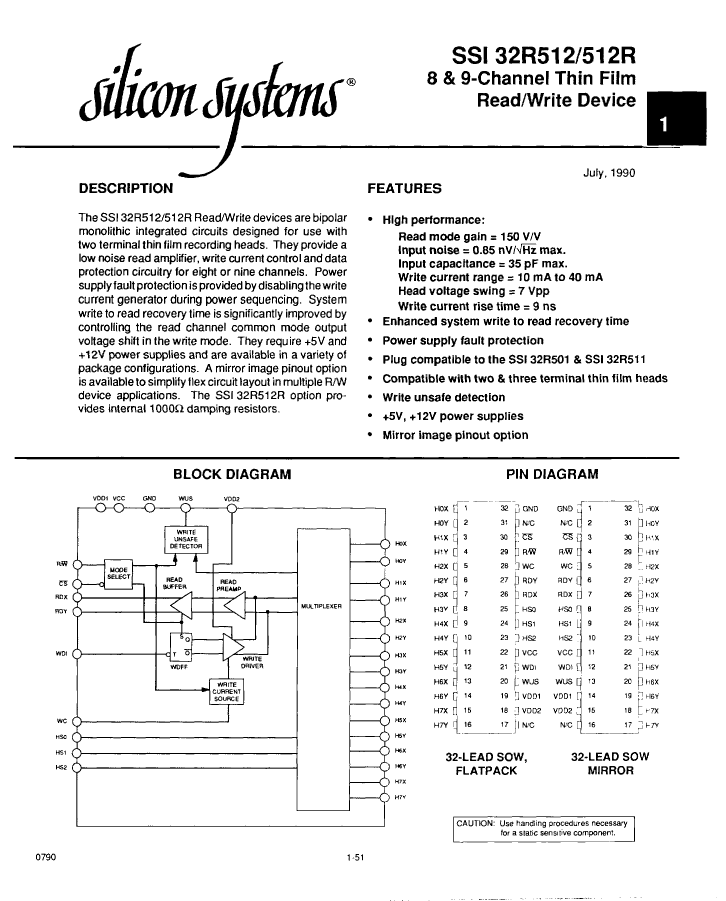

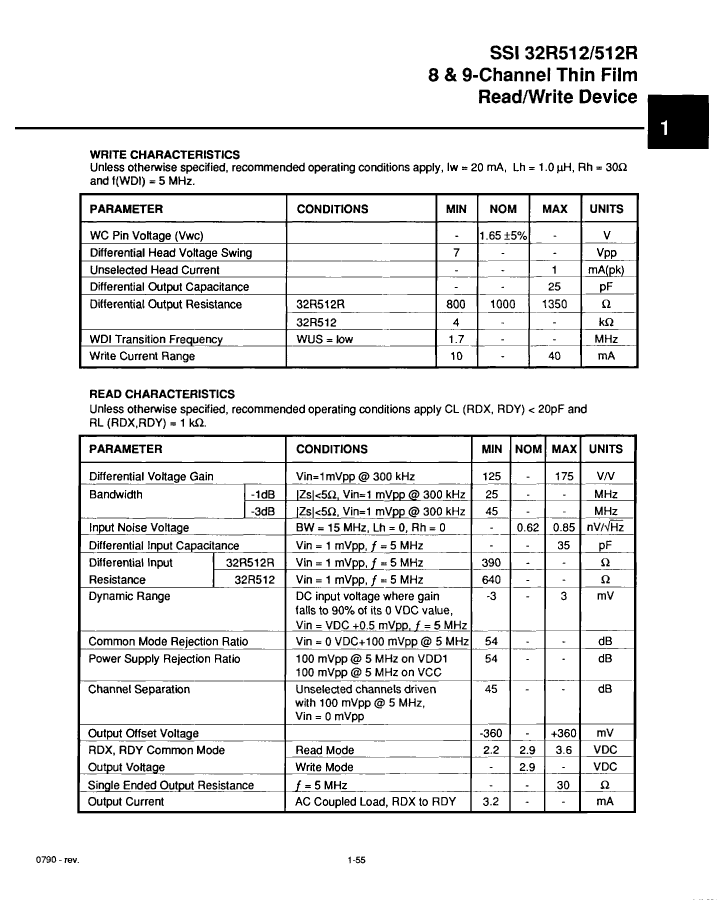

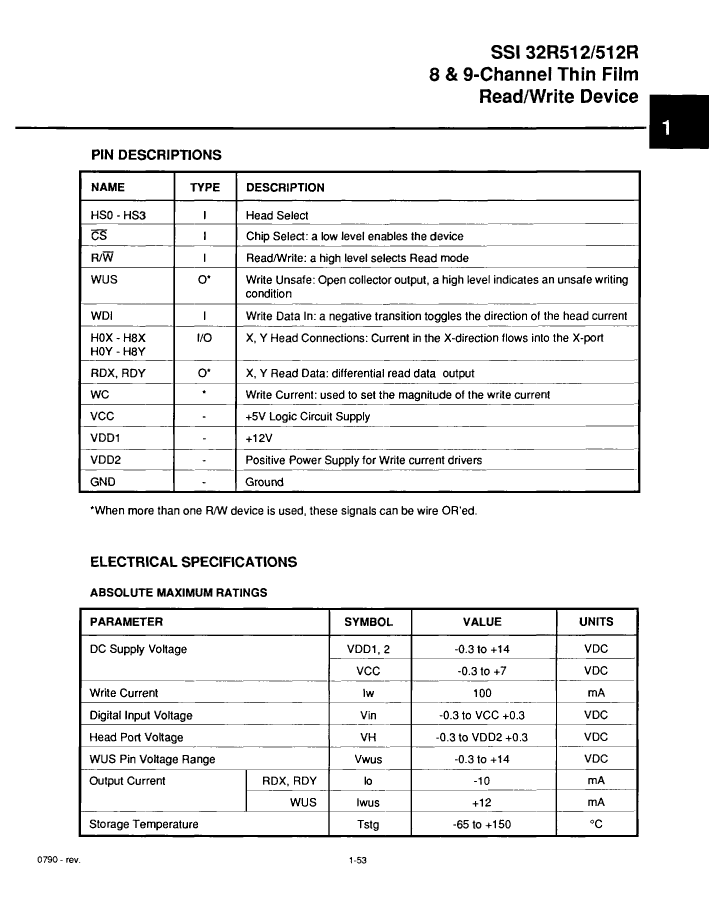

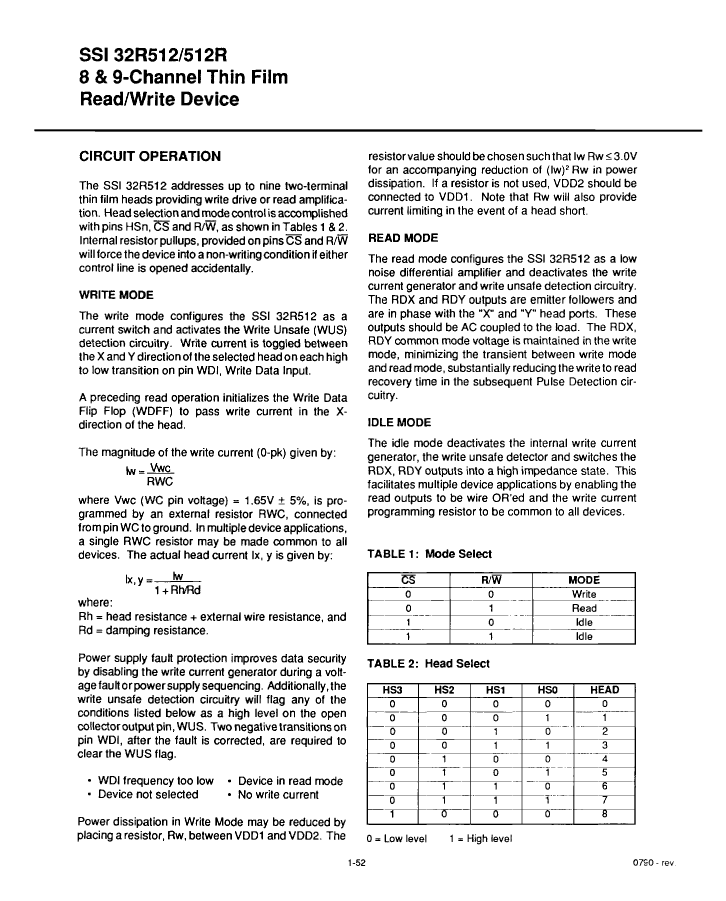

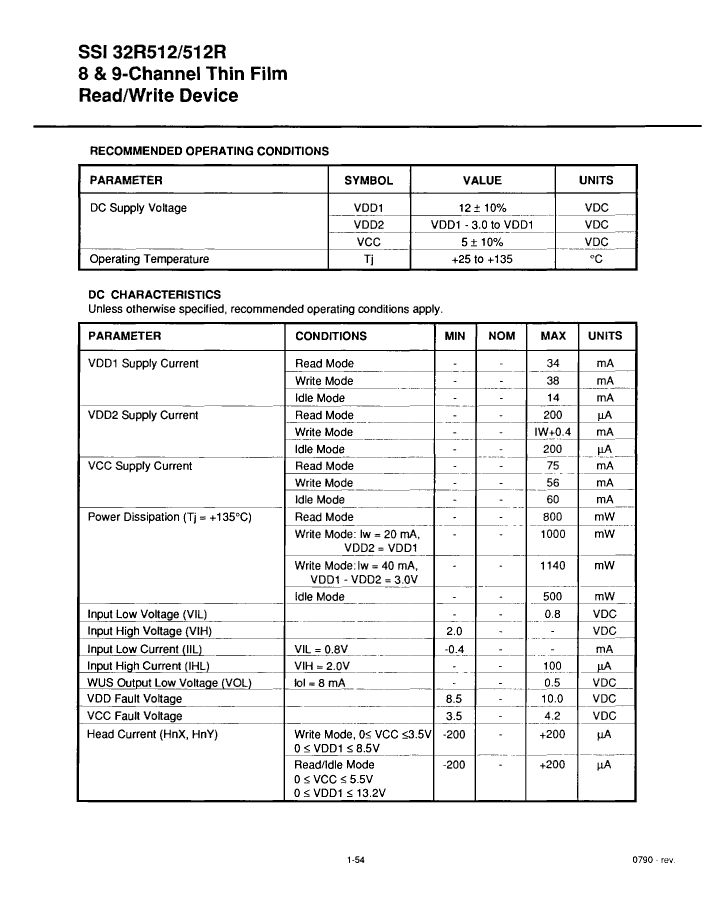

Read/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | SOP, SOP32,.5 |
| Reach Compliance Code | unknown |
| Drive type | WINCHESTER |
| Interface integrated circuit type | READ WRITE AMPLIFIER CIRCUIT |
| JESD-30 code | R-PDSO-G32 |
| JESD-609 code | e0 |
| Number of channels | 8 |
| Number of functions | 1 |
| Number of terminals | 32 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP32,.5 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5,12 V |
| Certification status | Not Qualified |
| Maximum slew rate | 38 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| Supply voltage 1-max | 13.2 V |
| Mains voltage 1-minute | 10.8 V |
| Supply voltage1-Nom | 12 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| SSI32R512-8CW | SSI32R512R-9CL | SSI32R512RM-9CL | SSI32R512-9CL | SSI32R512M-9CL | SSI32R512M-8CW | SSI32R512R-8CW | SSI32R512RM-8CW | |
|---|---|---|---|---|---|---|---|---|
| Description | Read/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32 | Read/Write Amplifier Circuit, 9 Channel, BIPolar, PDSO34 | Read/Write Amplifier Circuit, 9 Channel, BIPolar, PDSO34 | Read/Write Amplifier Circuit, 9 Channel, BIPolar, PDSO34 | Read/Write Amplifier Circuit, 9 Channel, BIPolar, PDSO34 | Read/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32 | Read/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32 | Read/Write Amplifier Circuit, 8 Channel, BIPolar, PDSO32 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | SOP, SOP32,.5 | SSOP, SOP34,.4,40 | SSOP, SOP34,.4,40 | SSOP, SOP34,.4,40 | SSOP, SOP34,.4,40 | SOP, SOP32,.5 | SOP, SOP32,.5 | SOP, SOP32,.5 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Drive type | WINCHESTER | WINCHESTER | WINCHESTER | WINCHESTER | WINCHESTER | WINCHESTER | WINCHESTER | WINCHESTER |
| Interface integrated circuit type | READ WRITE AMPLIFIER CIRCUIT | READ WRITE AMPLIFIER CIRCUIT | READ WRITE AMPLIFIER CIRCUIT | READ WRITE AMPLIFIER CIRCUIT | READ WRITE AMPLIFIER CIRCUIT | READ WRITE AMPLIFIER CIRCUIT | READ WRITE AMPLIFIER CIRCUIT | READ WRITE AMPLIFIER CIRCUIT |
| JESD-30 code | R-PDSO-G32 | R-PDSO-G34 | R-PDSO-G34 | R-PDSO-G34 | R-PDSO-G34 | R-PDSO-G32 | R-PDSO-G32 | R-PDSO-G32 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of channels | 8 | 9 | 9 | 9 | 9 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 32 | 34 | 34 | 34 | 34 | 32 | 32 | 32 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SSOP | SSOP | SSOP | SSOP | SOP | SOP | SOP |
| Encapsulate equivalent code | SOP32,.5 | SOP34,.4,40 | SOP34,.4,40 | SOP34,.4,40 | SOP34,.4,40 | SOP32,.5 | SOP32,.5 | SOP32,.5 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5,12 V | 5,12 V | 5,12 V | 5,12 V | 5,12 V | 5,12 V | 5,12 V | 5,12 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 38 mA | 38 mA | 38 mA | 38 mA | 38 mA | 38 mA | 38 mA | 38 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Supply voltage 1-max | 13.2 V | 13.2 V | 13.2 V | 13.2 V | 13.2 V | 13.2 V | 13.2 V | 13.2 V |
| Mains voltage 1-minute | 10.8 V | 10.8 V | 10.8 V | 10.8 V | 10.8 V | 10.8 V | 10.8 V | 10.8 V |
| Supply voltage1-Nom | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
