Modular Plug Connectors Compliant to Enhanced Category 5 Standards
TM21P Series (Shielded Type)
TM22P-88P (Non-shielded Type)
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
s
Features

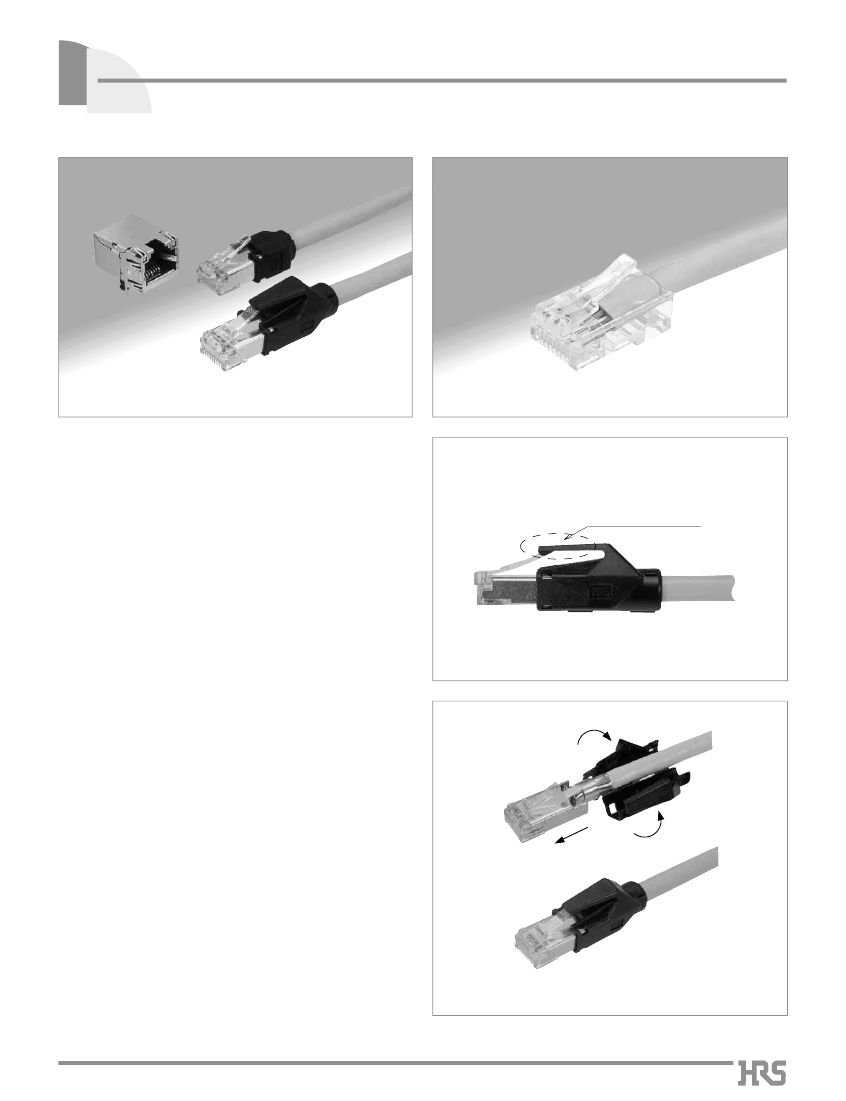

1. Supports High-Speed LAN Transmission
Conforms to requirements of TIA/EIA-568B data
wiring standard, meeting transmission performance of
Enhanced Category 5.
Supports Gigabit Ethernet (1000BASE-T) and Fast
Ethernet (100BASE-TX) high-speed LAN transmission.
Protected latch tab
2. EMI protection (TM21*P-88P)
360
°
coverage of the engagement area with a metal
shield assures protection against electromagnetic
interference. When mated with corresponding
connector the shield surfaces are securely connected
to provide continuous circuit.
3. Protected latch tab (TM21P-88P)
Flexible case extends over the release tab preventing
the possibility of breaking-off during handling of the
complete cable assembly.
4. Termination of conductors
Self located 24 AWG conductors (solid or stranded)
are terminated against pre-inserted contacts using
simple tooling.
1
5. Simplified termination (TM21*P-88P)
Removeable one piece cover allows easy access to
the termination areas.
2
1
6. Conforms to the ISO 8877 Standard
(ISDN Interface Connector)
1
Cover Installation Procedure
197
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
TM21P SeriesqModular Plug Connectors Compliant to Enhanced Category 5 Standards
sProduct
Specification
Current rating
Rating
Voltage rating
125 V AC
1A
Operating temperature range-25
ç
to +60
ç
(Note)
Item
1. Insulation resistance
2. Withstanding voltage
(between adjacent contacts)
100 M ohms min.
Specification
100 V DC
Conditions
No flashover or insulation breakdown
No flashover or insulation breakdown
230 m ohms max.
No electrical discontinuity of 5 ms or more
Contact resistance: 250m ohms max.
No electrical discontinuity of 5 ms. min.
Contact resistance: 250m ohms max.
Contact resistance: 250m ohms max.
Contact resistance: 250 m ohms max.
Insulation resistance: 100 M ohms min.
500 V AC / one minute
1500 V AC / one minute
100mA DC
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours / 3 axis
Acceleration of 490 m/s
2
, 11 ms duration,
sine half-wave waveform, 3 cycles in each of the 3 axis
200
Temperature: -55
ç
/+5
ç
to +35
ç
/+85
ç
/+5
ç
to +35
ç
Duration: 30/5/30/5(Minutes)
5 cycles
500 hours at temperature of 40
ç
and humidity of 90% to 95%
Exposed to density 5% salt water for 48 hours
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3. Withstanding voltage
(between contact and shield)
4. Contact resistance
5. Vibration
6. Shock
7. Durability
(mating/un-mating)
8. Temperature cycle
9. Humidity
Contact resistance: 250 m ohms max.
Insulation resistance: 1 M ohms min. (High humidity)
Insulation resistance: 10 M ohms min. (Dry state)
Contact resistance: 250 m ohms max.
10. Salt Spray
Note :Includes temperature rise caused by current flow.
sMaterials
Part
Insulator
Contacts
Shield
Conductor holding tray
Cover
Material
Polycarbonate
Copper alloy
Copper alloy
Polycarbonate
Polyamide
Finish
Color: Clear
Contact area: Gold plating
Tin plating
Color: Clear
Color: Light beige (Note)
Remarks
UL94V-2
-------
-------
UL94V-2
UL94V-2
Note :Cover available in various colors. Refer to page 3.
sOrdering
information
q
Plugs- Shielded
q
Plugs - Non-shielded
TM21 C P - 8 8P
1
1
Series name
2
Cover Type
3
Size
4
Inserted contacts
2
1
3
4
TM21P: Shielded
Blank: Protective latch cover
C: Short cover
8: For 8 contacts
8P: 8
TM22P - 8 8P
1
1
Series name
2
Size
3
Inserted contacts
2
3
TM22P : Non-shielded
8 : For 8 contacts
8P: 8
198
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
TM21P SeriesqModular Plug Connectors Compliant to Enhanced Category 5 Standards

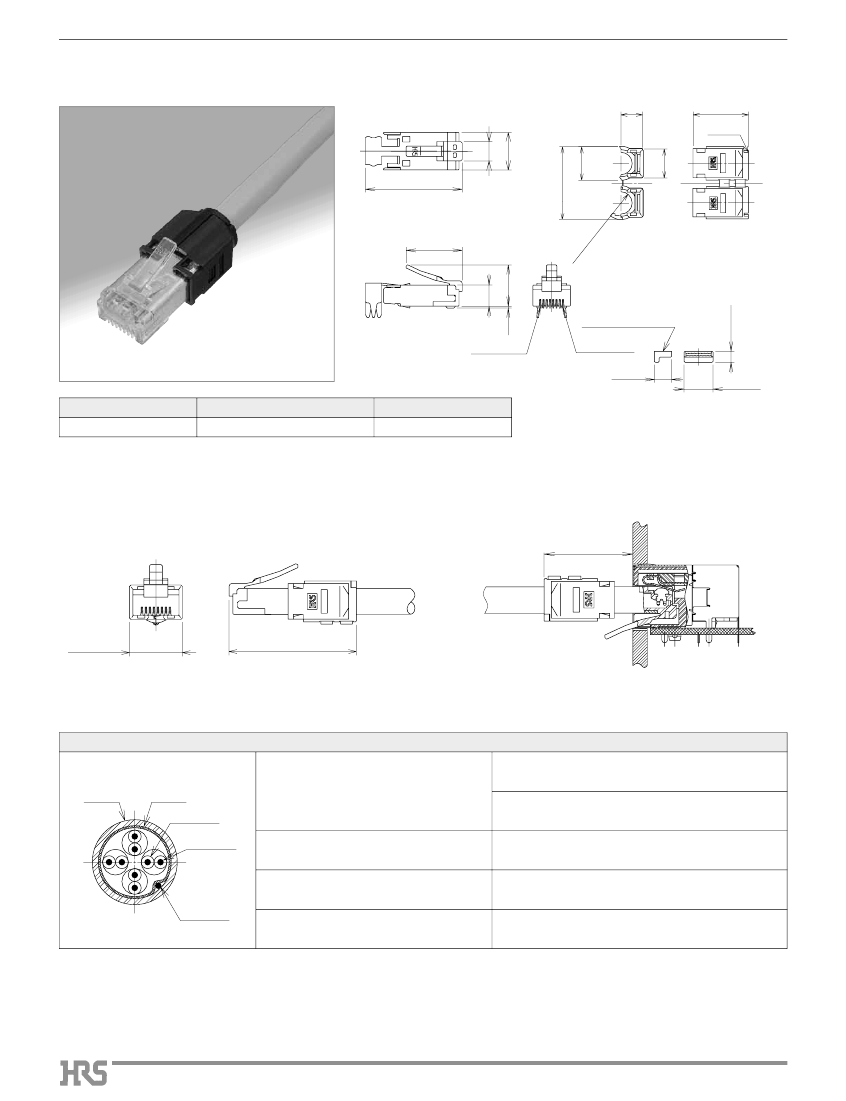

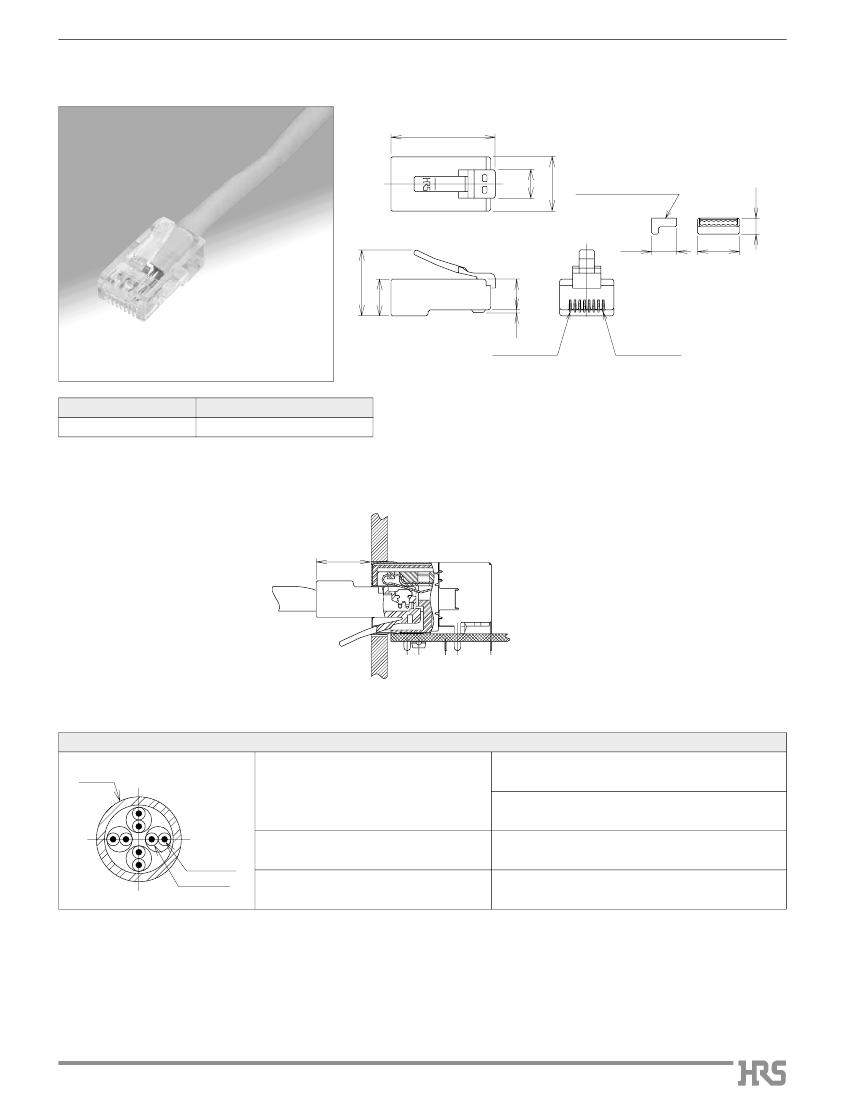

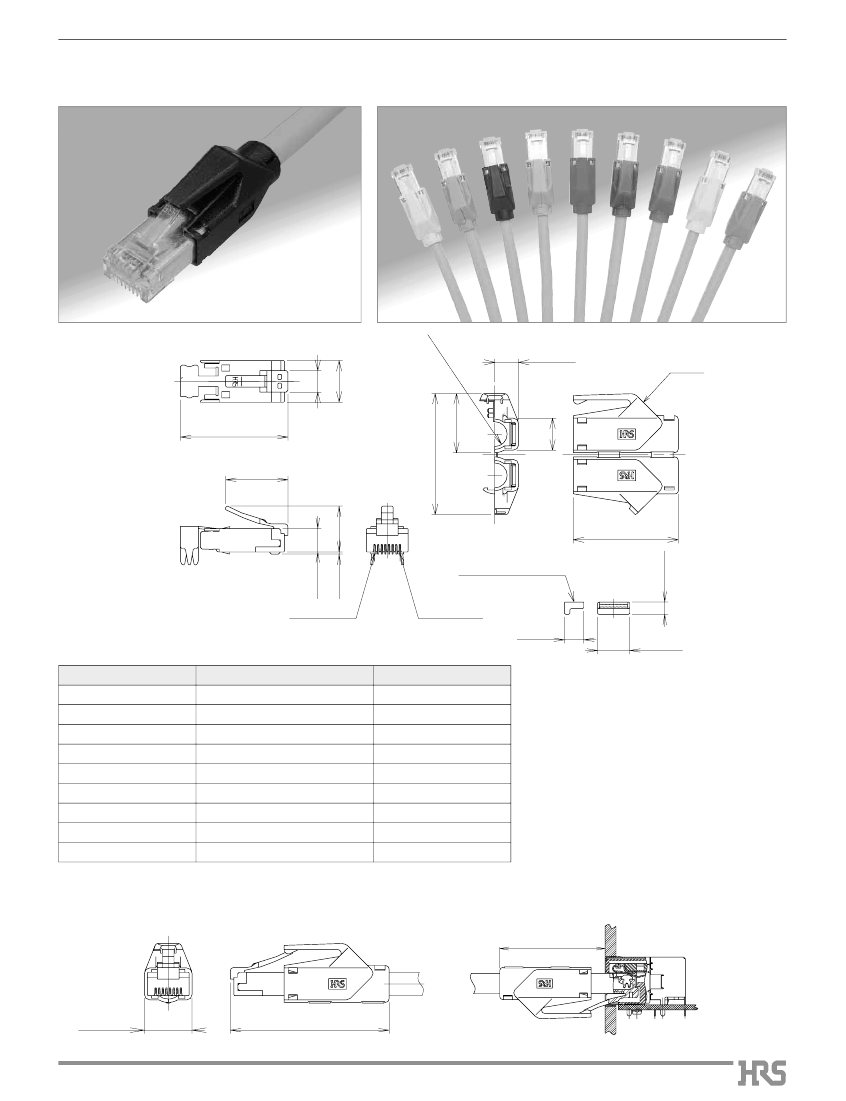

sPlug
Connectors
q
Shielded
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(R
)
3.5
6.7
Cover
6.09
11.7
17.5
12.9
(34)
9
30.2
16.6
29.5
Contact No. 1
(0.6)
6.6
Contact No.8
5.4
9.05
Part Number
TM21P-88P
TM21P-88P(02)
TM21P-88P(03)
TM21P-88P(04)
TM21P-88P(05)
TM21P-88P(06)
TM21P-88P(07)
TM21P-88P(08)
TM21P-88P(09)
CL No.
222-2862-9-02
222-2862-9-02
222-2862-9-03
222-2862-9-04
222-2862-9-05
222-2862-9-06
222-2862-9-07
222-2862-9-08
222-2862-9-09
Cover Color
Light beige
Medium gray
Black
Natural light gray
Red
Green
Blue
Yellow
Orange
sCover
installed
sMated
with corresponding receptacle
(shown for reference only)
(34)
(13.4)
(44.65)
3.45
Conductor holding tray
199
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
TM21P SeriesqModular Plug Connectors Compliant to Enhanced Category 5 Standards
sPlug
Connectors
q
Shielded-Short Cover
6.7
17.2
Cover
6.09
11.7
10.4
TM21CP-8
30.2
(22.4)
9
17.5
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
6.6
(0.6)
12.9
(R
3.
Contact No.1
Contact No.8
5.4
9.05
Part Number
TM21CP-88P(03)
CL No.
222-2884-1-03
Cover color
Black
Note: For other colors contact Hirose sales representative.
Some cables may not meet the required service ratings. Contact Hirose sales representative for specific cable applications
recommendations.
200
3.45
Conductor holding tray
5)
TM21CP-8
TM21CP-8
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
TM21P SeriesqModular Plug Connectors Compliant to Enhanced Category 5 Standards
sPlug
Connectors
q
Non-shielded
22.5
6.09
11.7
5.4
9.05
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
14.2
7.9
Contact No.1
(0.6)
6.6
Contact No.8
Part Number
TM22P-88P
CL No.
222-2899-9
sMated
with corresponding receptacle (shown for reference only)
