39715-0012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 39715-0012

39715-0012: DescriptionPluggable Terminal Blocks PLUG, MALE, HORIZ 5.08MM 12C-GREEN; CategoryThe connector; File Size151KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39715-0012 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39715-0012	-	-	View	Buy Now

39715-0012 Overview

Pluggable Terminal Blocks PLUG, MALE, HORIZ 5.08MM 12C-GREEN

39715-0012 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pluggable Terminal Blocks
RoHS	Not Applicable
Product	Plugs
Number of Positions	12 Position
Pitch	5.08 mm
Factory Pack Quantity	280

Preview

Download Datasheet

View All

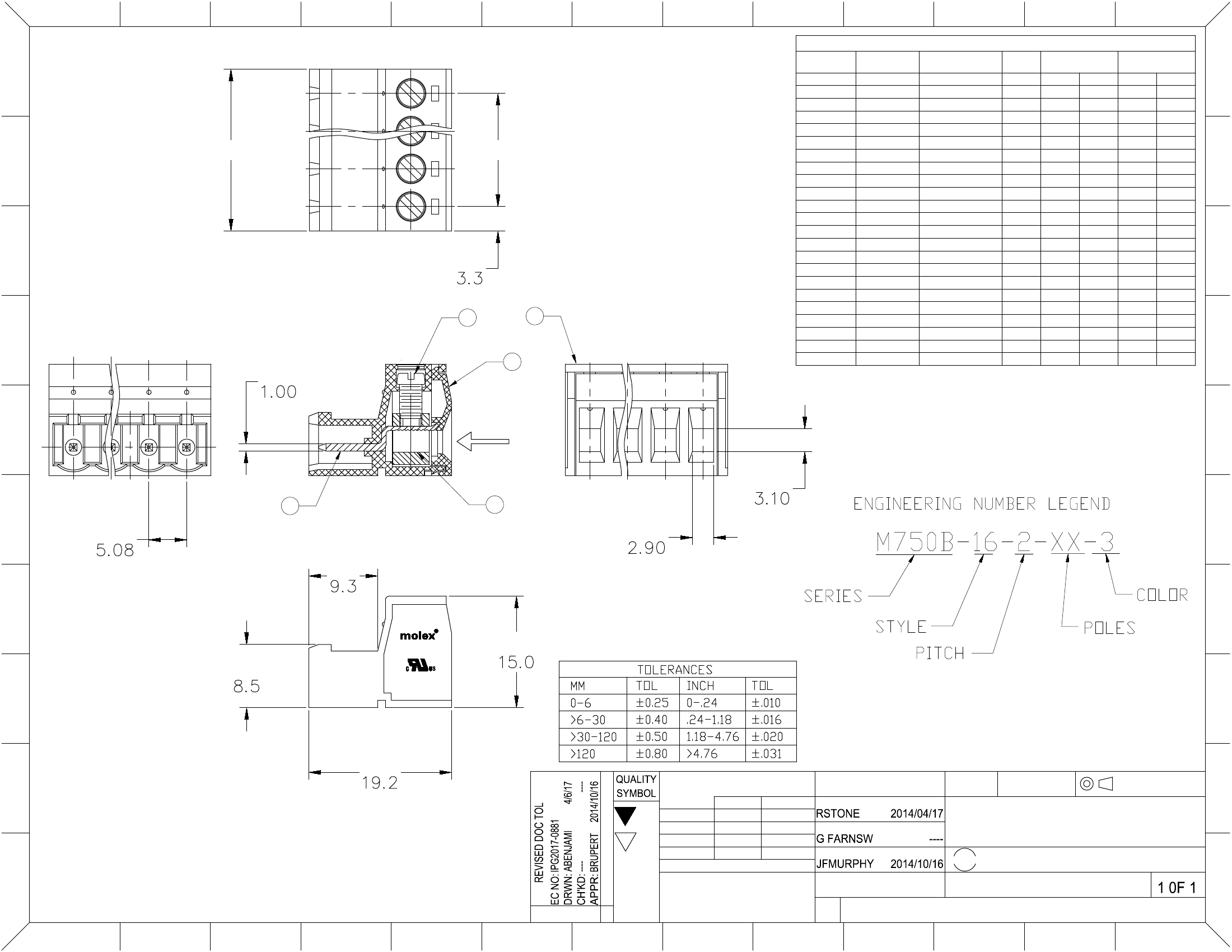

PART NUMBER DATA

CIRCUITS

.13

.039

PART

NUMBER

397150002

397150003

397150004

397150005

397150006

397150007

397150008

397150009

397150010

397150011

397150012

ENGINEERING

NUMBER

M750B-16-2-02-3

M750B-16-2-03-3

M750B-16-2-04-3

M750B-16-2-05-3

M750B-16-2-06-3

M750B-16-2-07-3

M750B-16-2-08-3

M750B-16-2-09-3

M750B-16-2-10-3

M750B-16-2-11-3

M750B-16-2-12-3

M750B-16-2-13-3

M750B-16-2-14-3

M750B-16-2-15-3

M750B-16-2-16-3

M750B-16-2-17-3

M750B-16-2-18-3

M750B-16-2-19-3

M750B-16-2-20-3

M750B-16-2-21-3

M750B-16-2-22-3

M750B-16-2-23-3

M750B-16-2-24-3

COLOR

GREEN

A IN mm

.46

.66

.86

1.06

1.26

1.46

1.66

1.86

2.06

2.26

2.46

2.66

2.86

3.06

3.26

3.46

3.66

3.86

4.06

4.26

4.46

4.66

4.86

11.7

16.7

21.8

26.9

32.0

37.1

42.1

47.2

52.3

57.4

62.5

67.5

72.6

77.7

82.8

87.9

92.9

98.0

103.1

108.2

113.3

118.3

123.4

B IN mm

.200

.400

.600

.800

1.000

1.200

1.400

1.600

1.800

2.000

2.200

2.400

2.600

2.800

3.000

3.200

3.400

3.600

3.800

4.000

4.200

4.400

4.600

5.08

10.16

15.24

20.32

25.40

30.48

35.56

40.64

45.72

50.80

55.88

60.96

66.04

71.12

76.20

81.28

86.36

91.44

96.52

101.59

106.67

111.75

116.83

REF. LAST 2 DIGITS OF PART NUMBER EQUALS CIRCUIT COUNT

WIRE ENTRY

.122

.200

.37

.114

M750B

.59

CONTACT FACTORY FOR OPTIONAL COLORS

.33

SPECIFICATIONS

1.MATERIAL:

A. BODY : PA66.UL94 V-0

B. SCREW: M3, STEEL.ZINC PLATED

C. COVER: PA66.UL94 V-0

D. CAGE: BRASS.NI PLATED

E. TERMINAL :BRASS.TIN PLATED

3.RATING: 250V,12A

4.MAX TORQUE : 4.4LBF.IN

5.WIRE STRIP LENGTH: .20in.(5.0mm)

.76

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DESCRIPTION

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

APPROVED BY

DATE

molex

PLUG, 5.08MM

MALE, HORIZONTAL

----

MOLEX INCORPORATED

SHEET NO.

7.DIMS. SHOWN ARE FOR REFERENCE ONLY

REV

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

SD-39715-001

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
