32R2024R-4CL20 datasheet, PDF - EEWORLD Datasheet

32R2024R-4CL20: DescriptionRead/Write Amplifier Circuit, 4 Channel, BIPolar, PDSO20; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size205KB，7 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

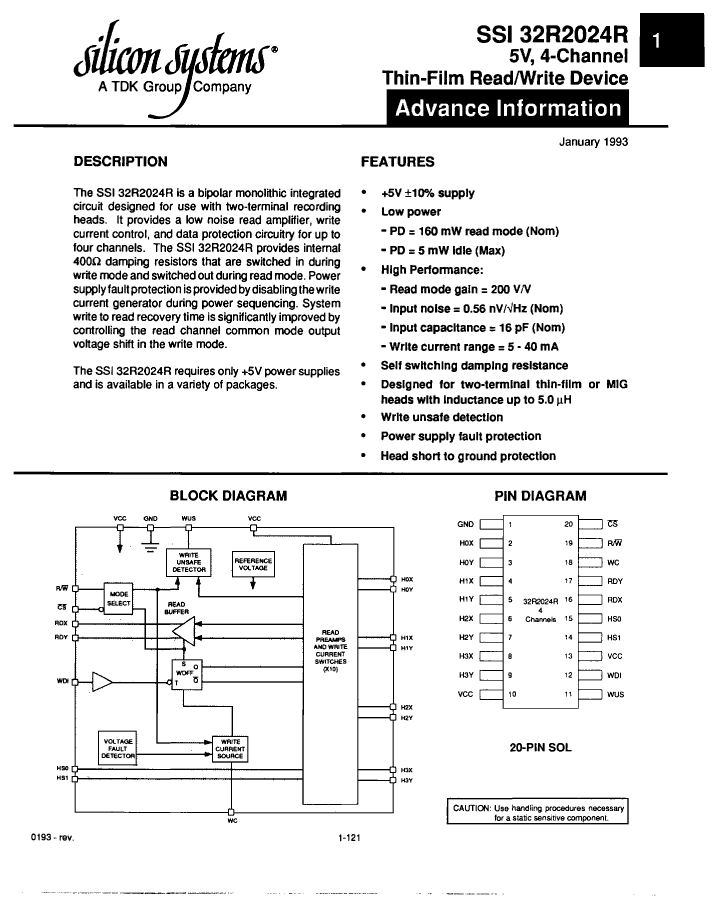

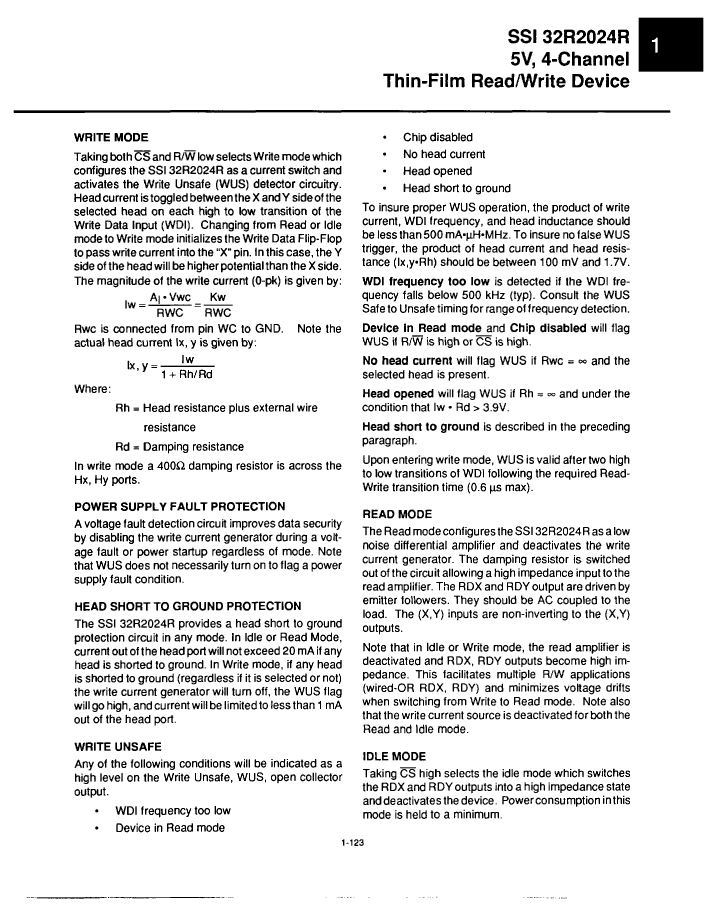

32R2024R-4CL20 Overview

Read/Write Amplifier Circuit, 4 Channel, BIPolar, PDSO20

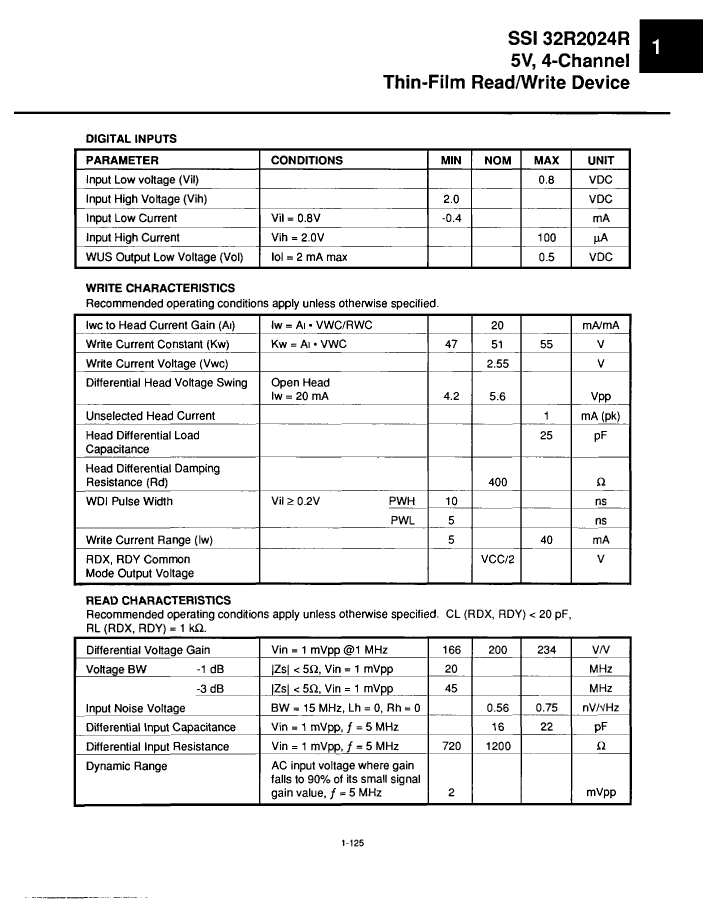

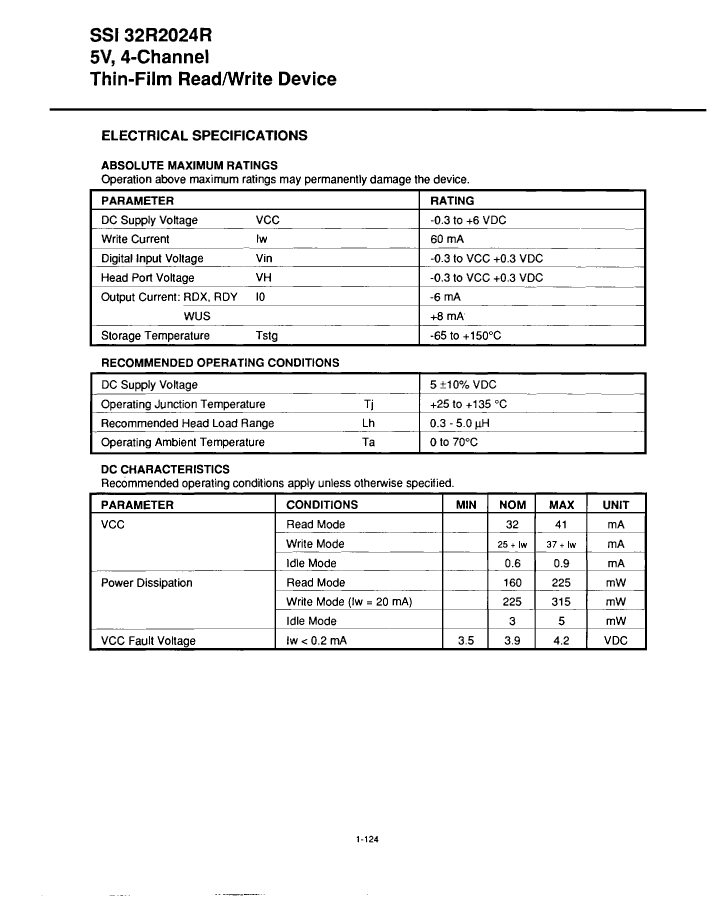

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Drive type	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G20
Number of channels	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	32R2024R-4CL20	32R2024R-4CV20
Description	Read/Write Amplifier Circuit, 4 Channel, BIPolar, PDSO20	Read/Write Amplifier Circuit, 4 Channel, BIPolar, PDSO20
Reach Compliance Code	unknown	unknown
Drive type	WINCHESTER	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G20	R-PDSO-G20
Number of channels	4	4
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Base Number Matches	1	1
