32R5121R-14M44 datasheet, PDF - EEWORLD Datasheet

32R5121R-14M44: DescriptionRead/Write Amplifier Circuit, 14 Channel, BIPolar, PDSO44; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size234KB，8 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

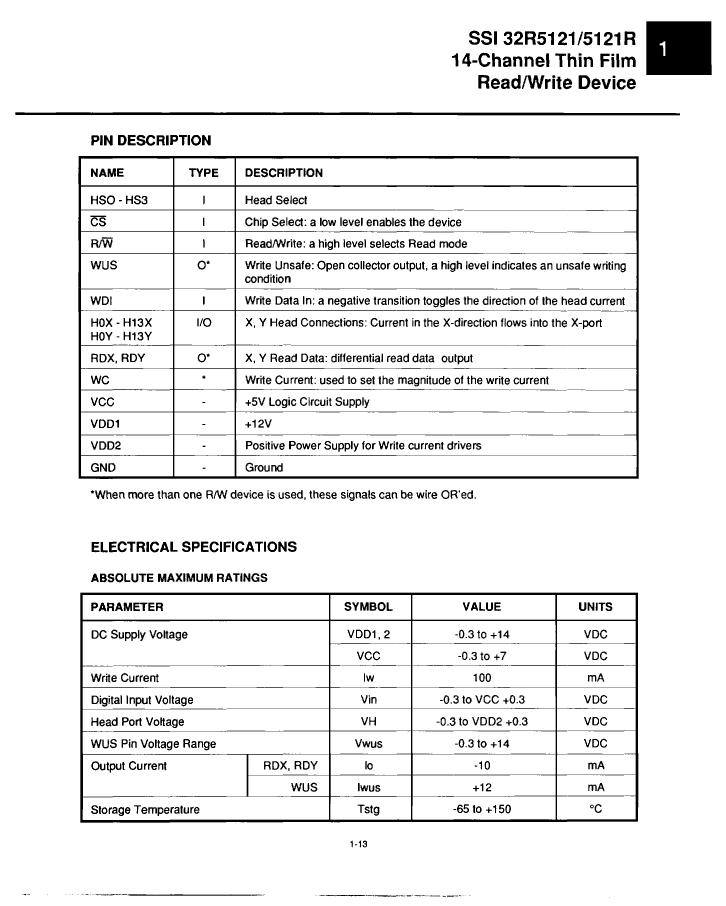

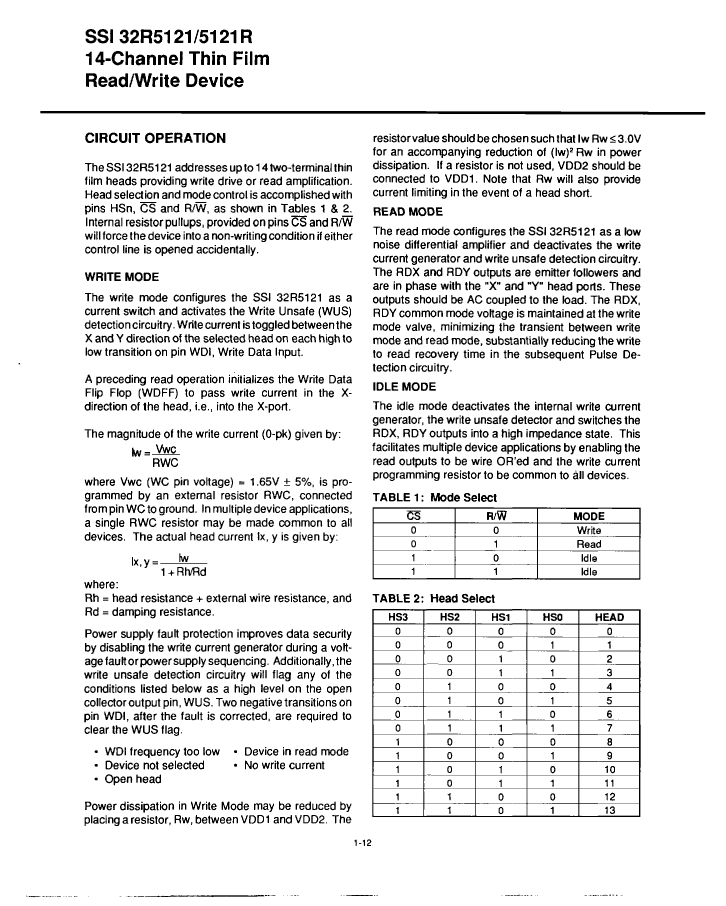

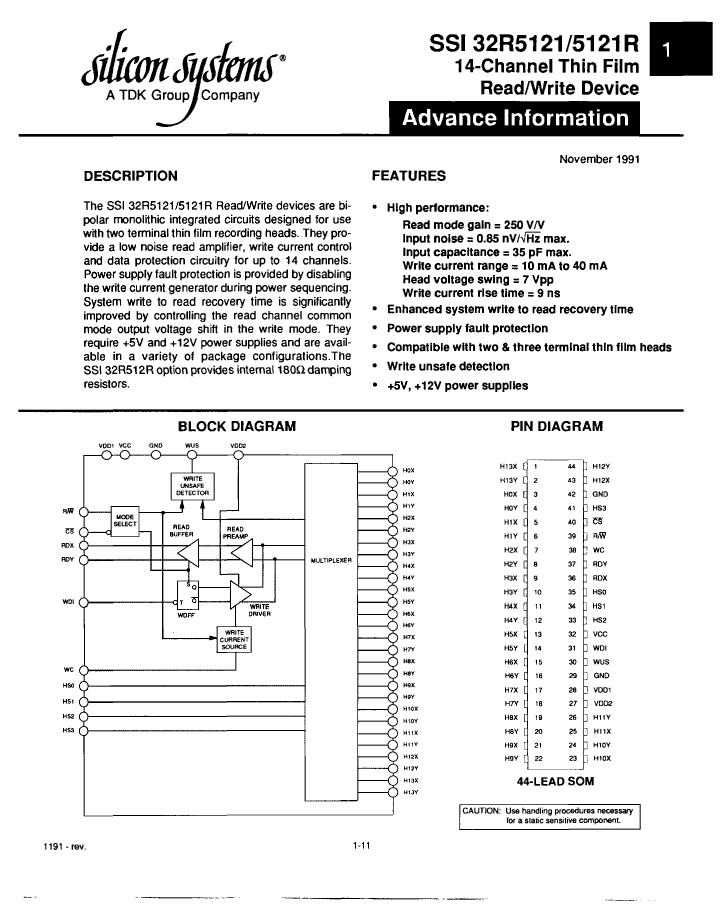

32R5121R-14M44 Overview

Read/Write Amplifier Circuit, 14 Channel, BIPolar, PDSO44

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Drive type	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G44
Number of channels	14
Number of functions	1
Number of terminals	44
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified

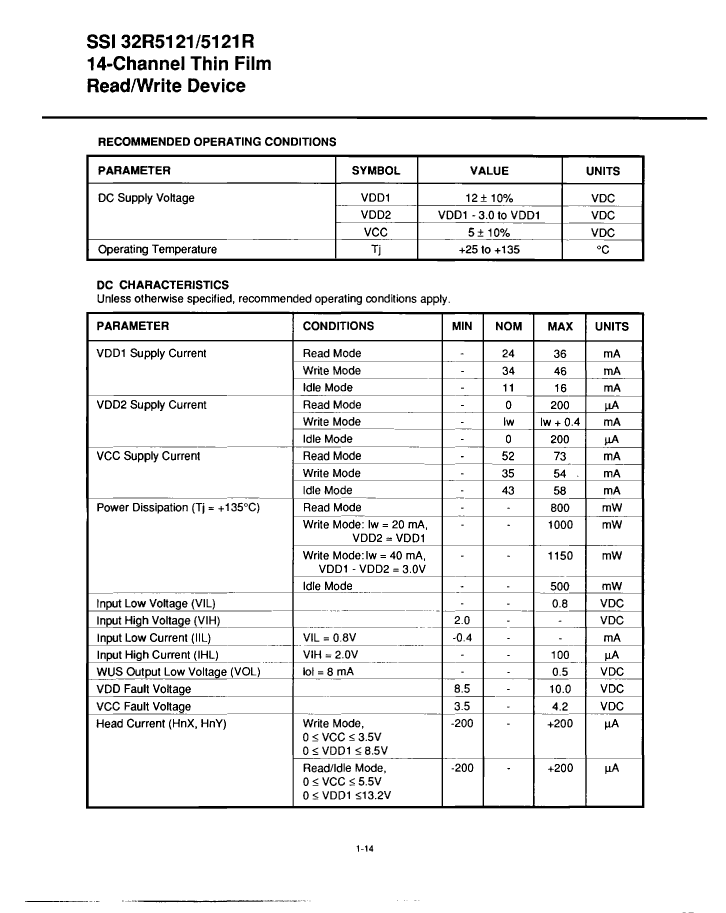

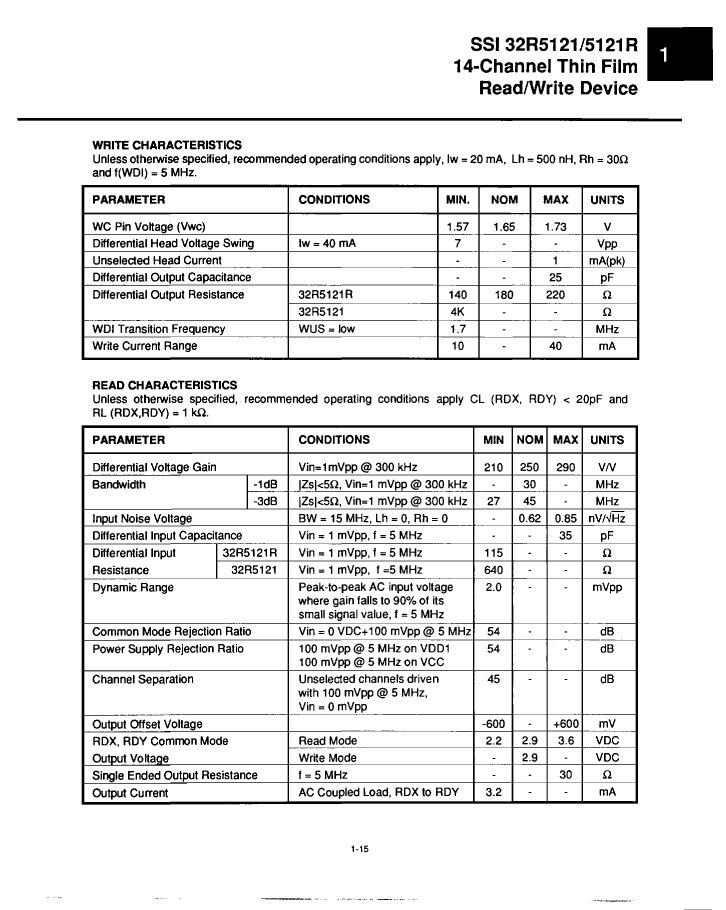

Maximum slew rate	73 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13.2 V
Mains voltage 1-minute	10.8 V
Supply voltage1-Nom	12 V
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	32R5121R-14M44	32R5121-14M44	32R5121-14H44	32R5121R-14H44
Description	Read/Write Amplifier Circuit, 14 Channel, BIPolar, PDSO44	Read/Write Amplifier Circuit, 14 Channel, BIPolar, PDSO44	Read/Write Amplifier Circuit, 14 Channel, BIPolar, PQCC44	Read/Write Amplifier Circuit, 14 Channel, BIPolar, PQCC44
Reach Compliance Code	unknown	unknown	unknown	unknown
Drive type	WINCHESTER	WINCHESTER	WINCHESTER	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G44	R-PDSO-G44	S-PQCC-J44	S-PQCC-J44
Number of channels	14	14	14	14
Number of functions	1	1	1	1
Number of terminals	44	44	44	44
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	SMALL OUTLINE	SMALL OUTLINE	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	73 mA	73 mA	73 mA	73 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
Supply voltage 1-max	13.2 V	13.2 V	13.2 V	13.2 V
Mains voltage 1-minute	10.8 V	10.8 V	10.8 V	10.8 V
Supply voltage1-Nom	12 V	12 V	12 V	12 V
surface mount	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	GULL WING	GULL WING	J BEND	J BEND
Terminal location	DUAL	DUAL	QUAD	QUAD
Base Number Matches	1	1	1	1
