2544-2051 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2544-2051

2544-2051: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, Crimp Terminal; CategoryThe connector The connector; File Size208KB，1 Pages; ManufacturerLeotronics Ltd

Download Datasheet Parametric View All

2544-2051 Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, Crimp Terminal

2544-2051 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	POLARISED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	2544-A
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

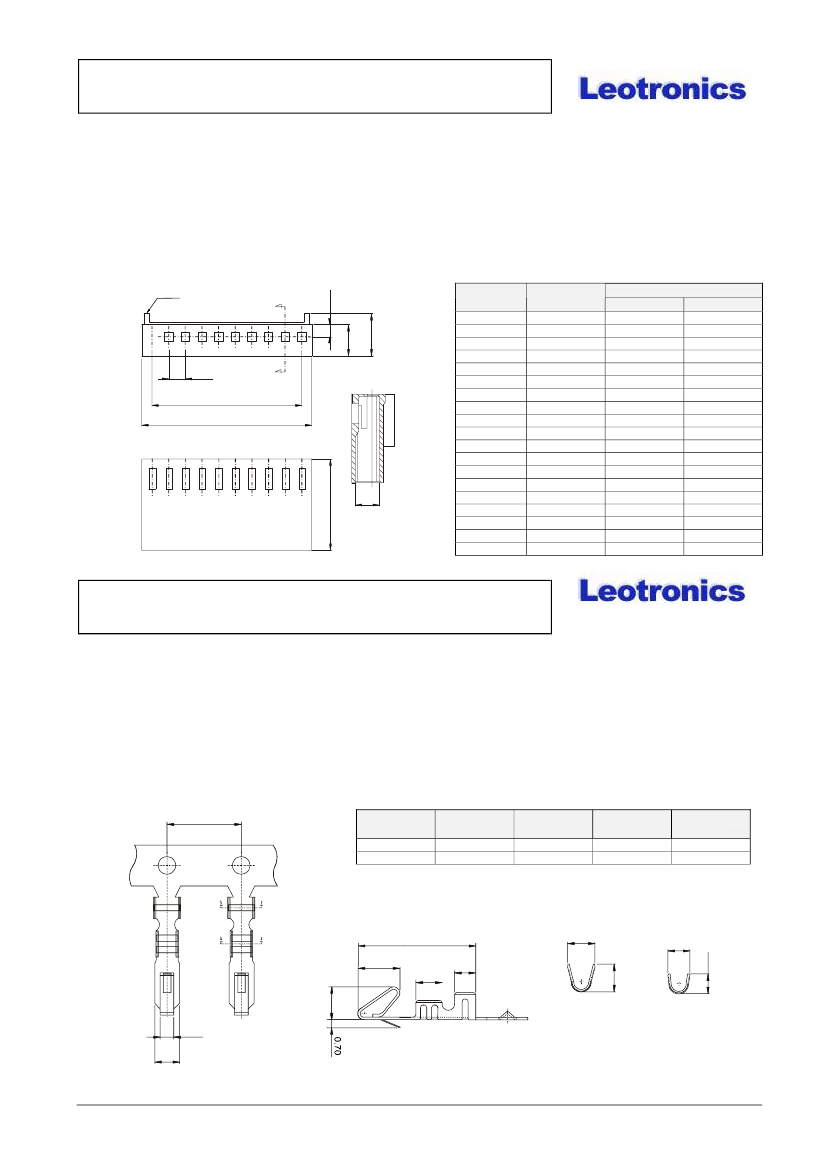

POLARISED CRIMP TERMINAL HOUSING

2544-A SERIES

Features

Available in 2 through 20 circuits

Polarised with locking ramp

Material : Nylon UL 94V-0

Dimensional Information

Accepts 2044 series crimp terminal

Mates with 2532, 2534, 2545, 2542, 2549, 2556 and 2567 series

Colour: Natural

Ordering and Dimensional Information

2.54mm (0.100”) With Locking Ramp

1.60

.063

Lock

Circuit Size

Part Number

2544 - 2021

2544 - 2031

2544 - 2041

2544 - 2051

2544 - 2061

2544 - 2071

2544 - 2081

2544 - 2091

2544 - 2101

2544 - 2111

2544 - 2121

2544 - 2131

2544 - 2141

2544 - 2151

2544 - 2161

2544 - 2171

2544 - 2181

2544 - 2191

2544 - 2201

Dimensions

2,54(0,100)

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

5,70(0,224)

8,24(0,324)

10,78(0,424)

13,32(0,524)

15,86(0,624)

18,40(0,724)

20,94(0,824)

23,48(0,924)

26,02(1,024)

28,56(1,124)

31,10(1,224)

33,64(1,324)

36,18(1,424)

38,72(1,524)

41,26(1,624)

43,80(1,724)

46,34(1,824)

48,88(1,924)

51,42(2,024)

4.9

.193

6.3

.248

2.54

.100

SEC. F-F

12.9

.508

3.40

.034

CRIMP TERMINAL

2044 SERIES.

Features

Accommodates wires ranges AWG 22-28

Material: Pre-tinned copper Alloy

Different material options are available

Dimensional Information

Ordering and Dimensional Information

Mates with 2544 A, 2544 B and 2430 series socket

Insulation diameter: 1.50mm(0.059”) Max.

2.54mm Crimp Terminal

5.00

.197

Reel Quantity

8,000Pcs (Reel)

Loose Piece

Part Number

2044 - 2000

2044 - 2001

Material

Tin Plating

Wire Ranges

AWG 22 – 28

Insulation

Diameter

1.50 (0.059”) Max.

3.4

.134

.122

3.10

9.5

.374

2.1

.083

1.7

.067

2.2

.087

2.2

.087

1.8

1.5

.059

.071

SEC. A-A

SEC. B-B

1.1

.043

2.00

.079

.028

FULL LINE CATALOGUE
