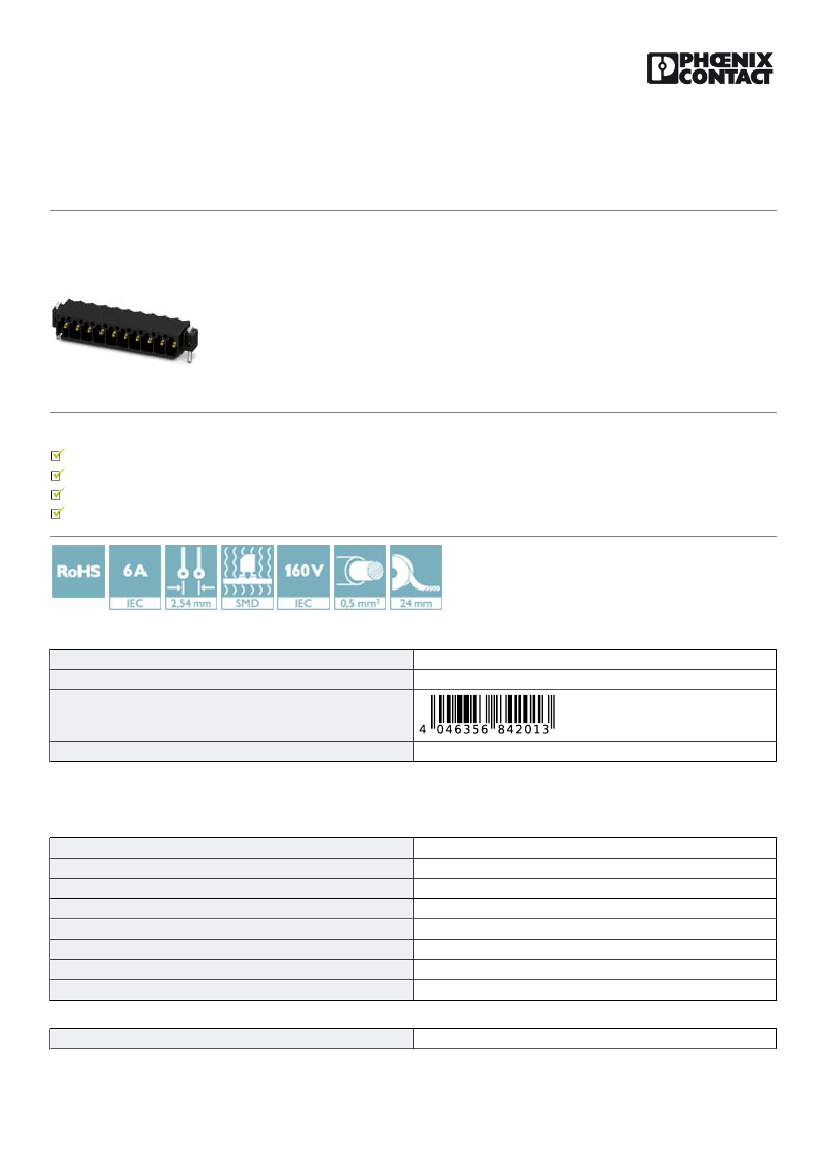

Printed-circuit board connector - MC 0,5/ 3-G-2,54 SMDR24C1 - 1706149
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 6 A, rated voltage (III/2): 160 V, number of positions: 3, pitch: 2.54 mm, color:
black, contact surface: Gold, mounting: SMD soldering, Fixed coding of the first position, can be combined
with the FMC 0,5/...-ST-2,54 C1 connector
The figure shows the 10-position
version
Your advantages
Designed for integration into the SMT soldering process
Additional solder anchors reduce the mechanical strain on the soldering spots
Gold-plated contacts ensure transfer quality remains stable over the long term
Supplied in tape-on-reel packing according to IEC 60286-3 for automated mounting
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4046356842013
465 pc
465 pc
Technical data
Dimensions
Length [ l ]
Width
Pitch
Dimension a
Width [ w ]
Height [ h ]
Pin dimensions
Length
7.1 mm
12.16 mm
2.54 mm
5.08 mm
12.16 mm
4.8 mm
0.64 x 0.64 mm
7.1 mm
General
Range of articles
MC 0,5/..-G-SMD
11/20/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1706149
Printed-circuit board connector - MC 0,5/ 3-G-2,54 SMDR24C1 - 1706149
Technical data
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Insulating material
Flammability rating according to UL 94
Color
Number of positions
IIIa
2.5 kV
2.5 kV
2.5 kV
32 V
160 V
160 V
EN-VDE
6A
LCP
V0
black
3
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Drilling diagram
a
2,54
Ø1,2
Dimensional drawing
7,1
a+7,08
2,06
7,38
4,8
4,24
2
1
1,2
2,54
1,02
2,54
a
2,54
Approvals
Approvals
Approvals
IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
11/20/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1706149
Printed-circuit board connector - MC 0,5/ 3-G-2,54 SMDR24C1 - 1706149
Approvals
Approval details
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
http://www.iecee.org/
DE1-55663-B1
160 V
6A
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
160 V
6A
40042258
EAC
B
150 V
6A
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19920306
C
50 V
6A
