M80-5000000M1-06-312-00-000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M80-5000000M1-06-312-00-000

M80-5000000M1-06-312-00-000: DescriptionPower to the Board Datamate Mix-Tek Male Connector; CategoryThe connector The connector; File Size271KB，4 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-5000000M1-06-312-00-000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-5000000M1-06-312-00-000	-	-	View	Buy Now

M80-5000000M1-06-312-00-000 Overview

Power to the Board Datamate Mix-Tek Male Connector

M80-5000000M1-06-312-00-000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.238 inch
subject depth	0.22 inch
body length	1.339 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0C6
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	COAX
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.157 inch
Mixed contacts	NO
Installation option 1	M2
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	4 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N

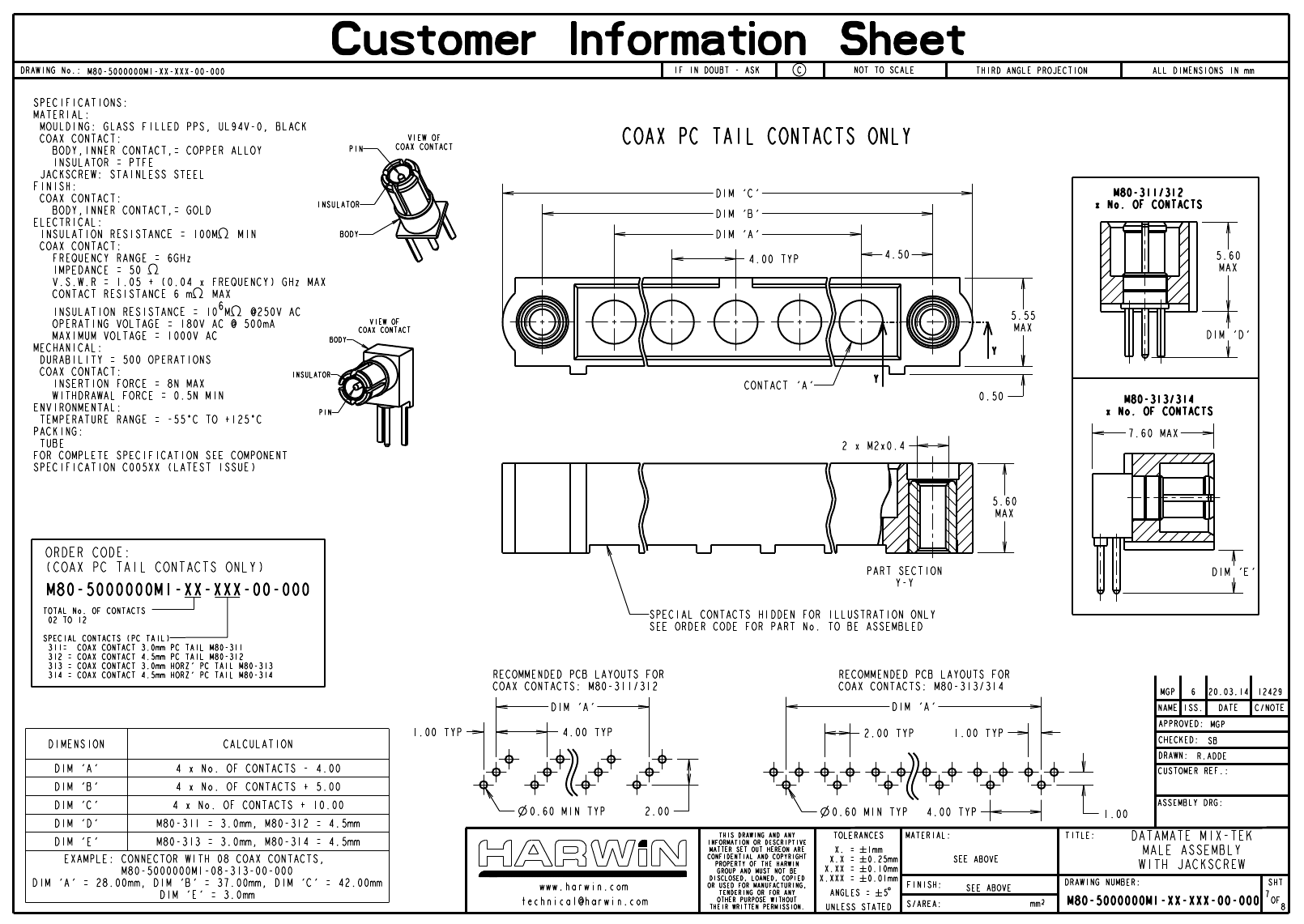

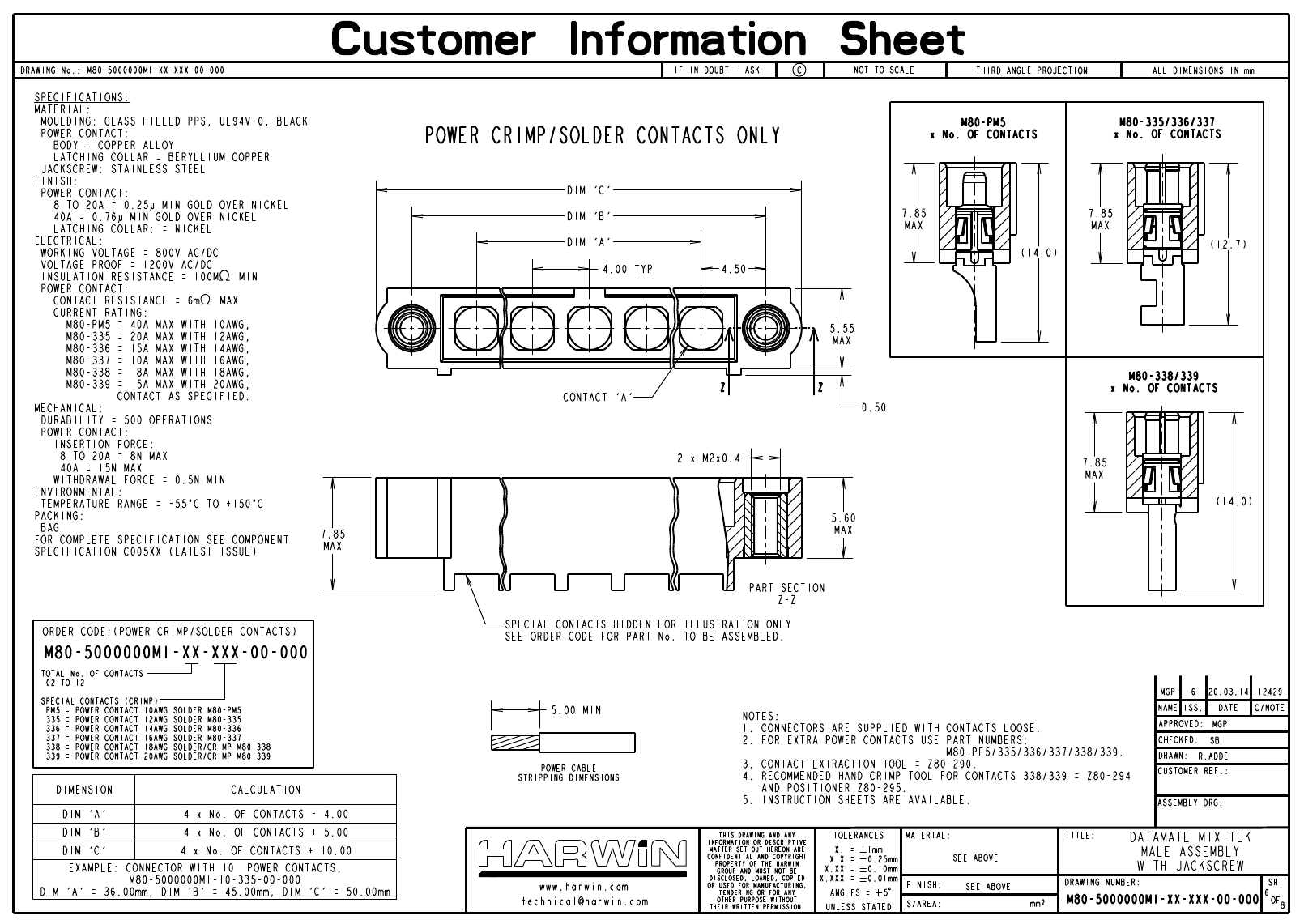

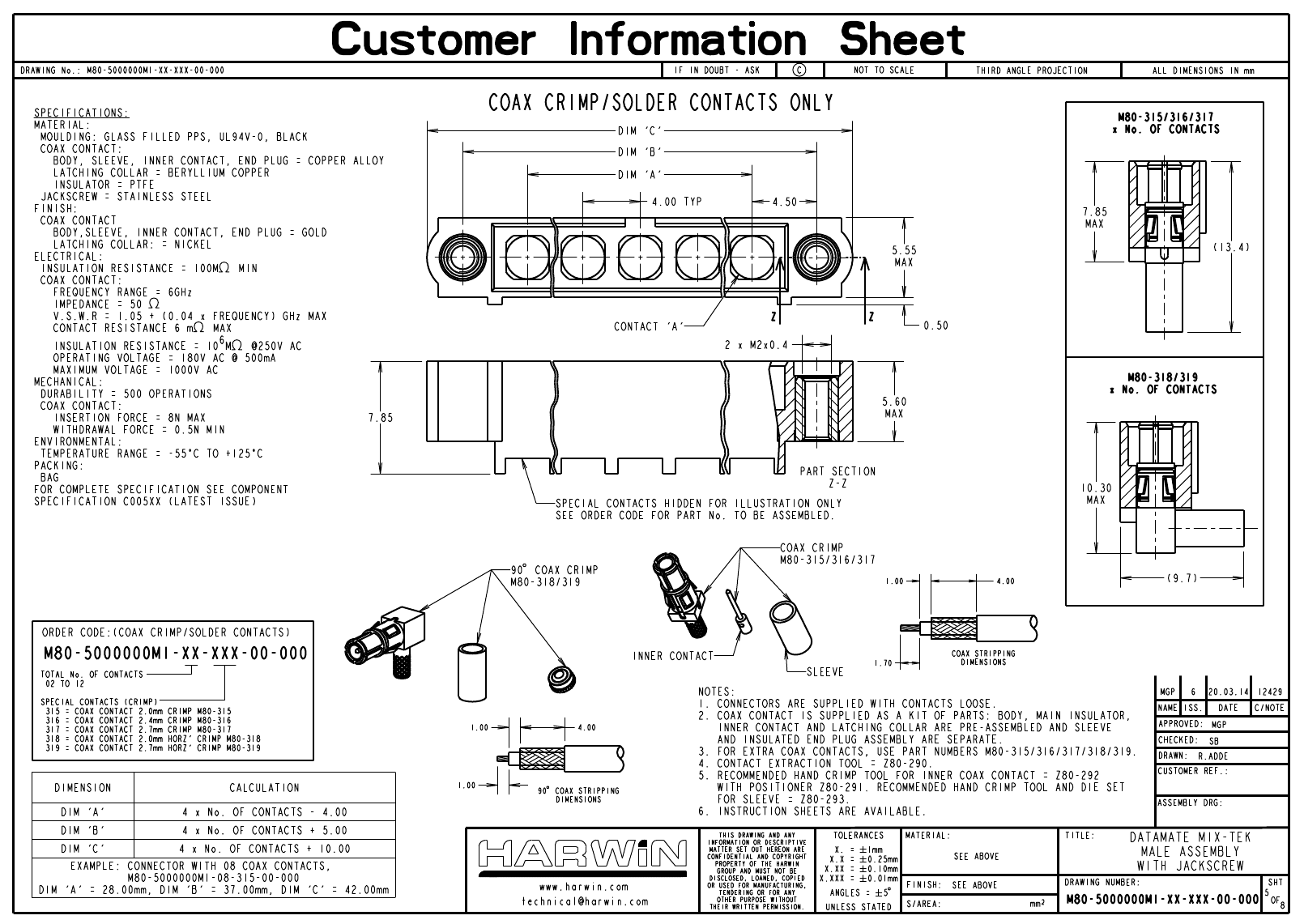

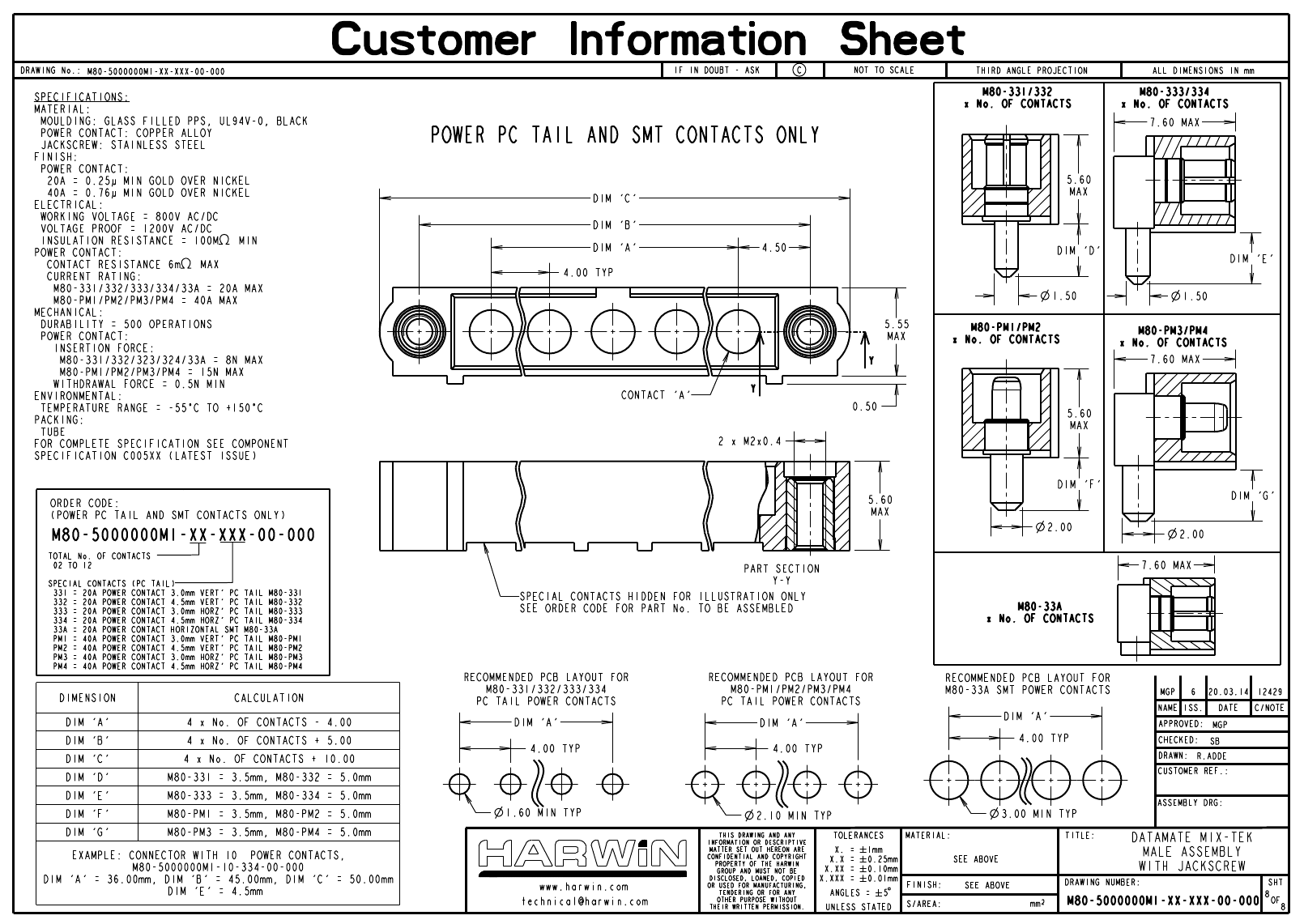

Preview

Download Datasheet

View All

M80-5000000M1-06-312-00-000 Related Products

	M80-5000000M1-06-312-00-000	M80-5000000M1-04-PM1-00-000	M80-5000000M5-10-333-00-000	M80-5000000M1-08-331-00-000	M80-8451745
Description	Power to the Board Datamate Mix-Tek Male Connector	Power to the Board MIX-TEK M V HIGH PWR W/JS	Power to the Board M/T MALE HORIZ POWER J/S	Power to the Board MIX-TEK M VERT 3MM PCT W/JS	Headers & Wire Housings 17 SIL F/CRMP CONN S/B HI-TEMP
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Reach Compliance Code	compliant	-	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	-	PANEL MOUNTABLE	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.238 inch	-	-	0.238 inch	0.135 inch
subject depth	0.22 inch	-	-	0.22 inch	0.32 inch
body length	1.339 inch	-	1.969 inch	1.654 inch	1.463 inch
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0C6	-	S0C10	S0P8	-
Contact to complete cooperation	NOT SPECIFIED	-	GOLD	NOT SPECIFIED	GOLD (12)
Contact completed and terminated	Gold (Au)	-	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	MALE	-	MALE	MALE	FEMALE
Contact material	NOT SPECIFIED	-	COPPER ALLOY	NOT SPECIFIED	BERYLLIUM COPPER
Contact resistance	6 mΩ	-	6 mΩ	6 mΩ	25 mΩ
Contact style	COAX	-	HYBRID	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	-	NO	NO	NO
Durability	500 Cycles	-	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	-	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO
maximum insertion force	4.8928 N	-	4.8928 N	4.8928 N	2.78 N
Insulation resistance	100000000 Ω	-	-	100000000 Ω	100000000 Ω
Insulator color	BLACK	-	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	-	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	POLYAMIDE
JESD-609 code	e4	-	e4	e4	e4
MIL compliance	NO	-	NO	NO	NO
Mixed contacts	NO	-	NO	NO	NO
Installation option 1	M2	-	LOCKING	M2	LOCKING
Installation method	STRAIGHT	-	RIGHT ANGLE	STRAIGHT	-
Installation type	BOARD	-	BOARD	BOARD	CABLE
Number of connectors	ONE	-	ONE	ONE	-
Number of rows loaded	1	-	1	1	1
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	-	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	4 mm	-	4 mm	4 mm	-
Termination type	SOLDER	-	SOLDER	SOLDER	CRIMP
Total number of contacts	6	-	10	8	17
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0
Evacuation force-minimum value	.5004 N	-	-	.5004 N	.199882 N
Body/casing type	-	-	RECEPTACLE	RECEPTACLE	SOCKET
