3-1532185-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1532185-0

3-1532185-0: DescriptionD Type Connector; CategoryThe connector The connector; File Size572KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

3-1532185-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1532185-0	-	-	View	Buy Now

3-1532185-0 Overview

D Type Connector

3-1532185-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	145070369104
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	24 weeks
Samacsys Description	M83513/03-G14C, MCKS-C2-B-51P6G9-72.0
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-09 20:32:13
Body/casing type	PLUG
Contact point gender	MALE
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	3A
Mixed contacts	NO
Number of connectors	ONE
Number of ports	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	3 A
Terminal pitch	1.27 mm
Total number of contacts	51

Preview

Download Datasheet

View All

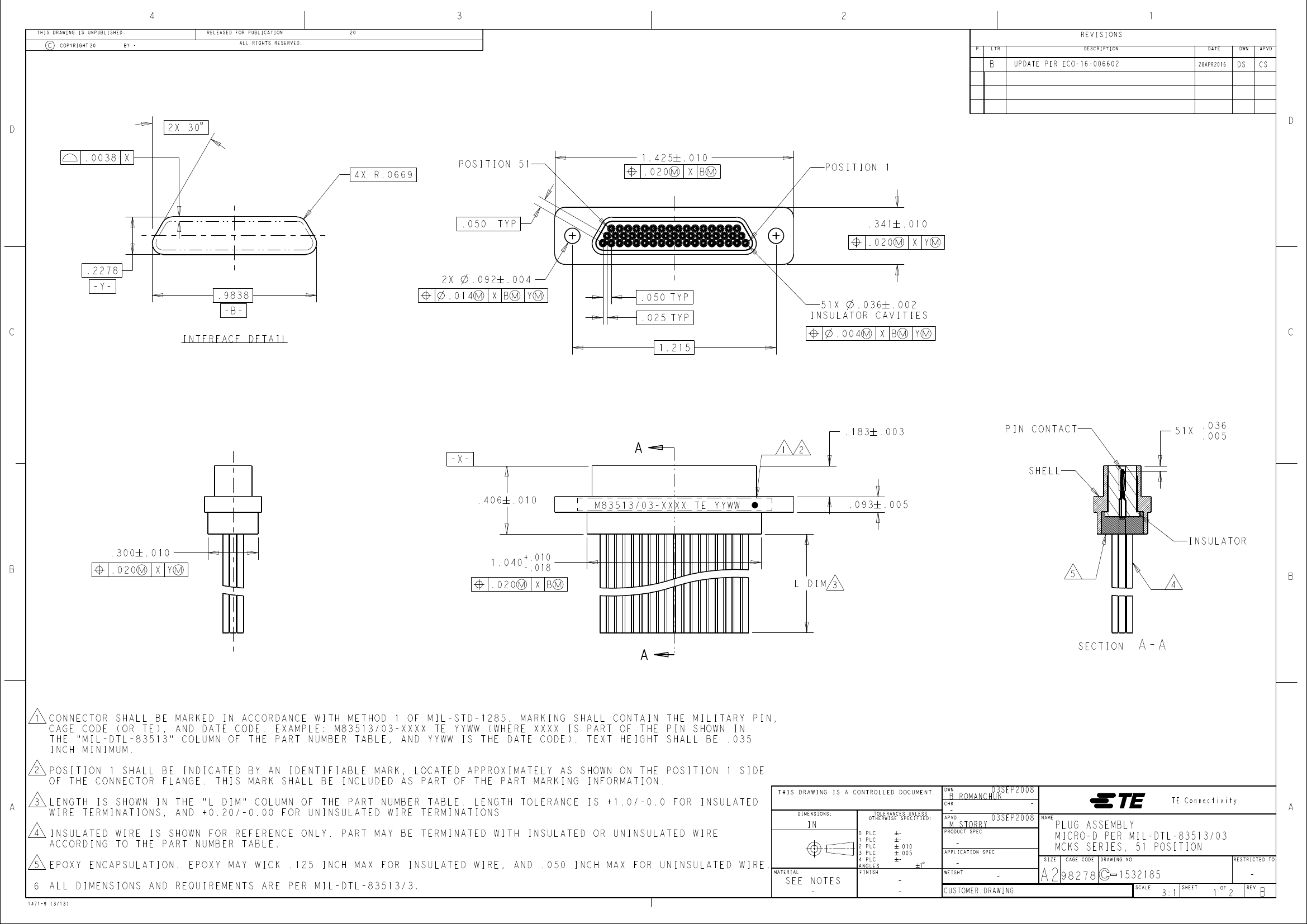

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

UPDATE PER ECO-16-006602

28APR2016

.0038

2X 30 $

POSITION 51

1.425

.010

4X R.0669

.020 m

X B m

POSITION 1

.050

TYP

.341

.020 m

.010

X Y m

.2278

-Y-

.9838

-B-

n .092

.004

.050 TYP

.025 TYP

1.215

51X n .036 # .002

INSULATOR CAVITIES

X B m Y m

INTERFACE DETAIL

.183

-X-

.003

PIN CONTACT

51X

.036

.005

SHELL

.406

.010

M83513/03-XXXX TE YYWW

.093

.005

INSULATOR

1.040

+.010

-.018

X B m

L DIM

.300

.020 m

.010

X Y m

.020 m

SECTION

A-A

CONNECTOR SHALL BE MARKED IN ACCORDANCE WITH METHOD 1 OF MIL-STD-1285. MARKING

CAGE CODE (OR TE), AND DATE CODE. EXAMPLE: M83513/03-XXXX TE YYWW (WHERE XXXX

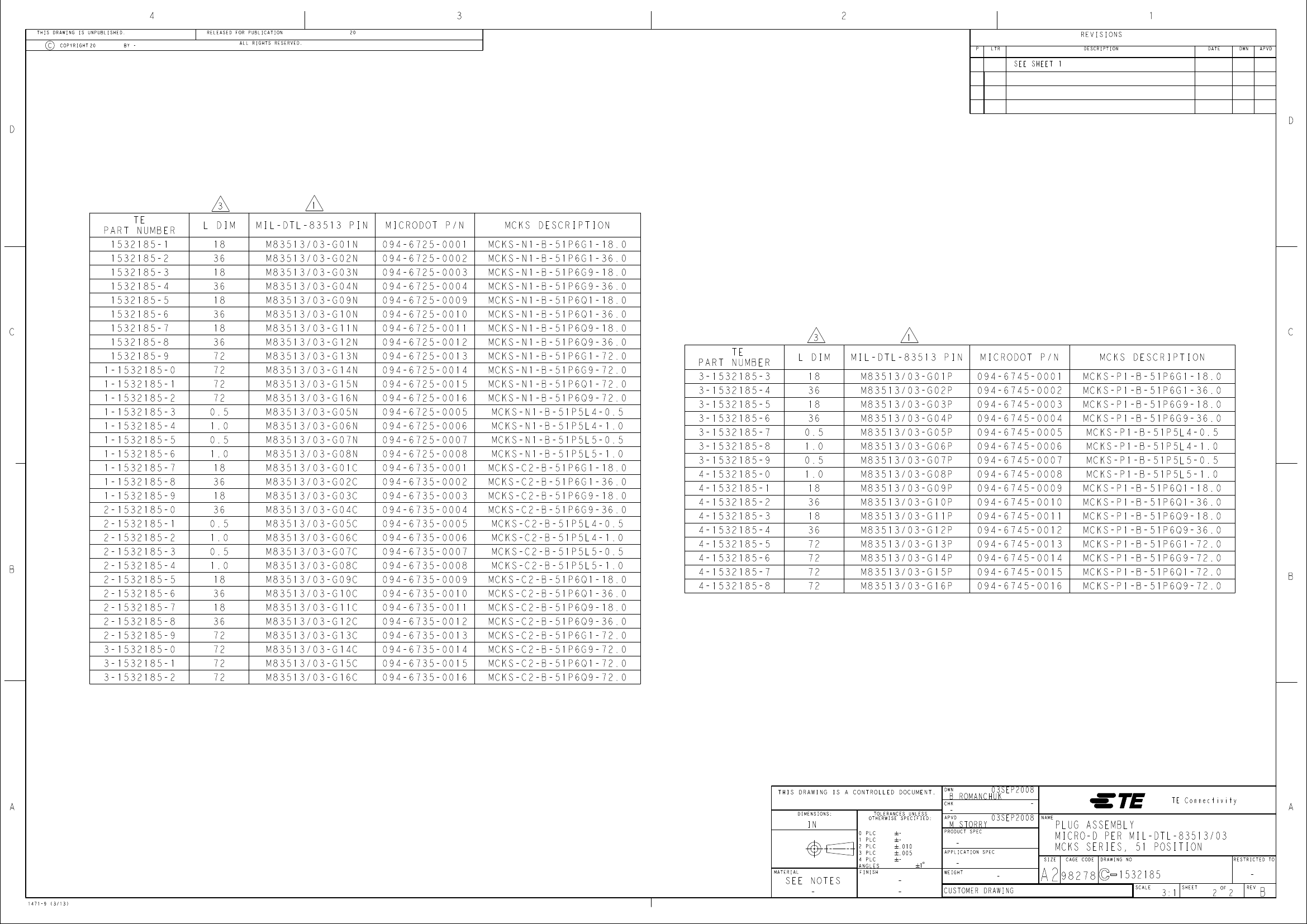

THE "MIL-DTL-83513" COLUMN OF THE PART NUMBER TABLE, AND YYWW IS THE DATE

INCH MINIMUM.

POSITION 1 SHALL BE INDICATED BY AN IDENTIFIABLE MARK, LOCATED APPROXIMATELY AS

OF THE CONNECTOR FLANGE. THIS MARK SHALL BE INCLUDED AS PART OF THE PART

LENGTH IS SHOWN IN THE "L DIM" COLUMN OF THE PART NUMBER TABLE.

WIRE TERMINATIONS, AND +0.20/-0.00 FOR UNINSULATED WIRE TERMINATIONS

INSULATED WIRE IS SHOWN FOR REFERENCE ONLY. PART MAY BE TERMINATED WITH

ACCORDING TO THE PART NUMBER TABLE.

EPOXY ENCAPSULATION. EPOXY MAY WICK .125 INCH MAX FOR INSULATED WIRE, AND .050

ALL DIMENSIONS AND REQUIREMENTS ARE PER MIL-DTL-83513/3.

SHALL CONTAIN THE MILITARY PIN,

IS PART OF THE PIN SHOWN IN

CODE). TEXT HEIGHT SHALL BE .035

SHOWN ON THE POSITION 1 SIDE

MARKING INFORMATION.

LENGTH TOLERANCE IS +1.0/-0.0 FOR INSULATED

INSULATED OR UNINSULATED WIRE

INCH MAX FOR UNINSULATED WIRE.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

03SEP2008

B ROMANCHUK

03SEP2008

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.010

.005

PRODUCT SPEC

M STORRY

APPLICATION SPEC

1 $

SEE NOTES

1471-9 (3/13)

WEIGHT

CUSTOMER DRAWING

98278

SIZE

PLUG ASSEMBLY

MICRO-D PER MIL-DTL-83513/03

MCKS SERIES, 51 POSITION

CAGE CODE

DRAWING NO

RESTRICTED TO

1532185

SCALE

3:1

SHEET

REV
